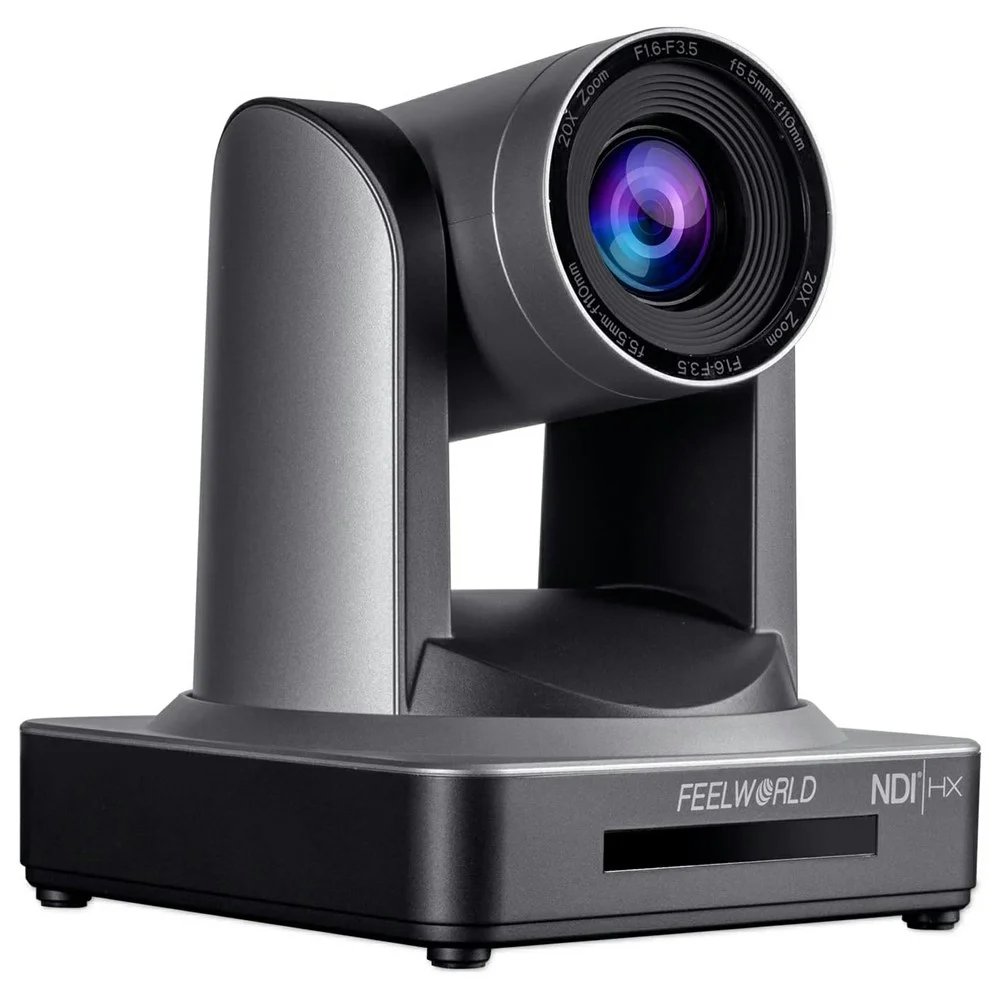

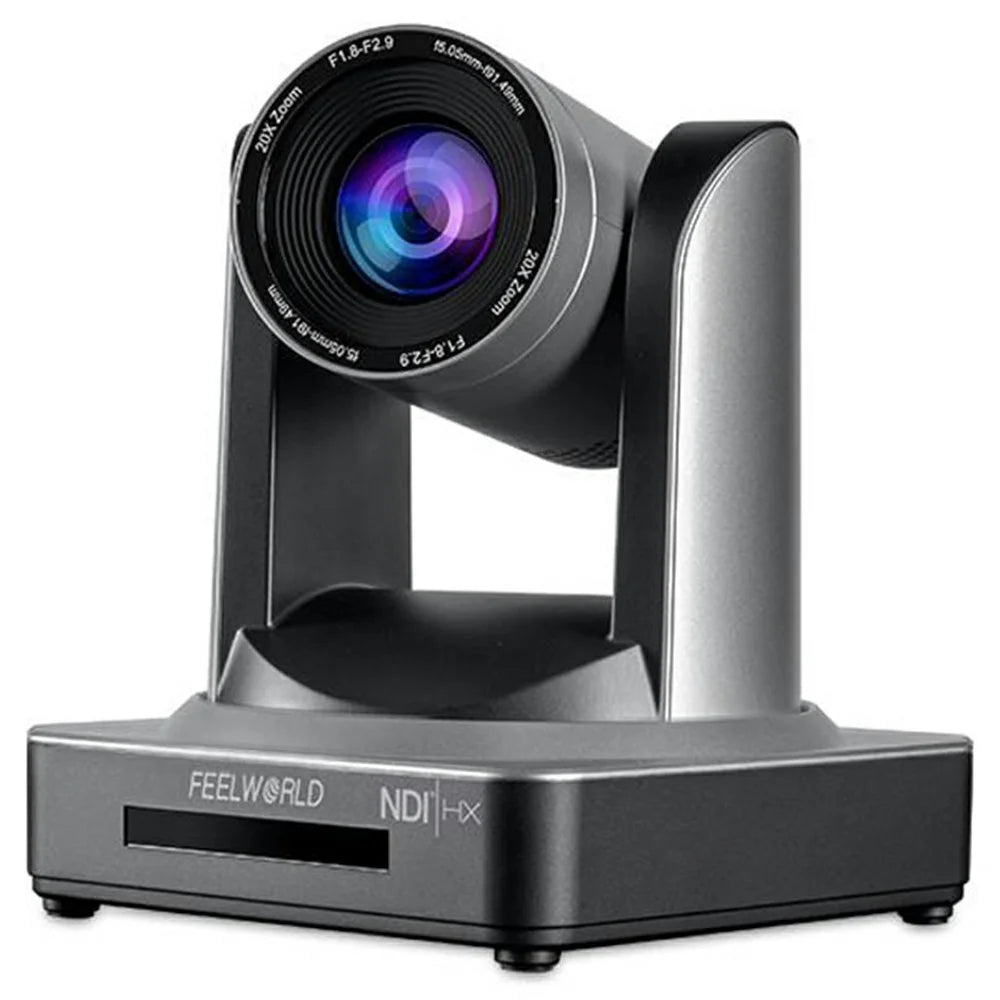

FEELWORLD NDI20X 20X Optical Zoom PTZ Camera Simultaneous USB NDI HD 3G-SDI Live Streaming Camera - EU Plug

• 【20X Optical Zoom】Professional HD PTZ camera with 20× optical zoom, ideal for large venues and long-distance shooting while maintaining sharp image quality.
• 【Full HD 1080P@60fps】Supports up to 1080P at 60fps, delivering smoother motion and clearer, more detailed video output.

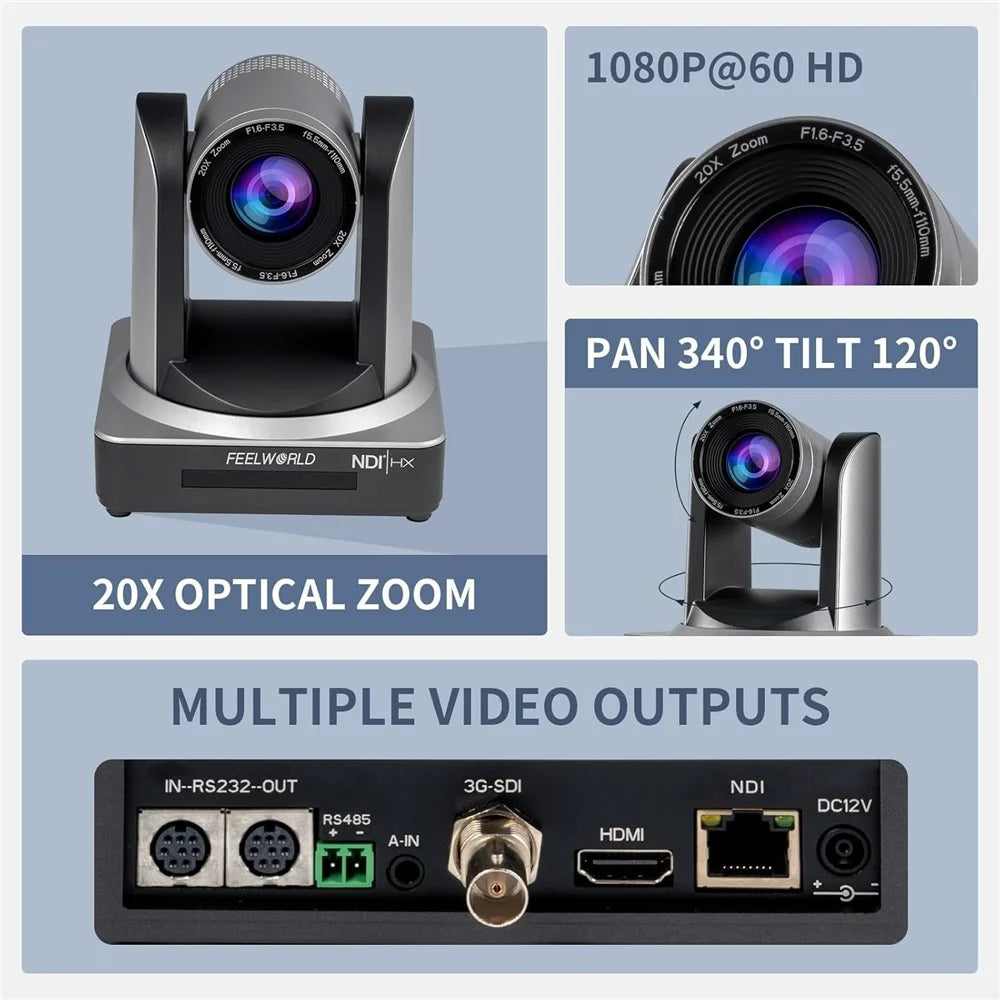

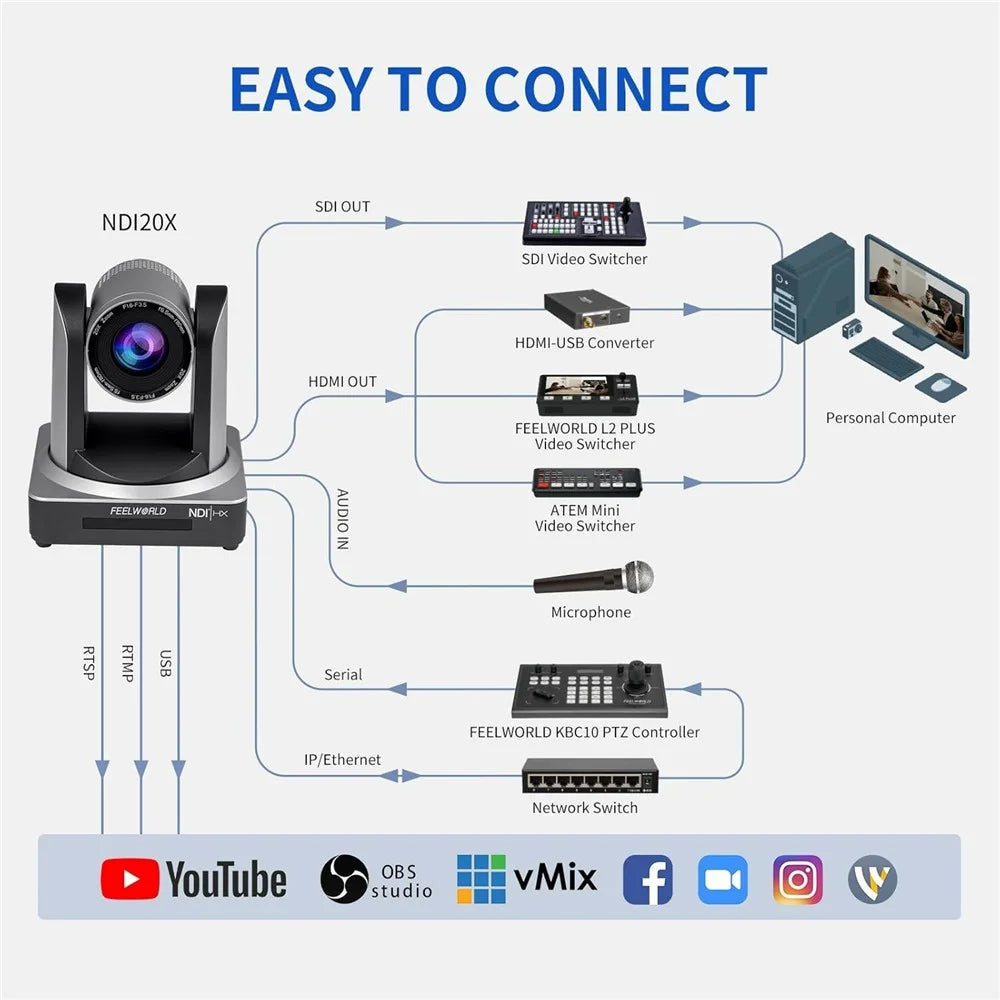

• 【Multiple Video Outputs】Equipped with USB, NDI/IP, HD, 3G-SDI, and LAN interfaces to flexibly adapt to various live streaming and video production workflows.
• 【PoE Power Supply】Supports Power over Ethernet (PoE), reducing cable clutter and enabling faster, cleaner installation.
• 【Fast Auto Focus】Advanced auto-focus system ensures quick and accurate subject capture for every shot.
• 【Pofessional Audio Input】Features dual-channel 3.5mm line-in for external audio devices and higher-quality sound capture.
• 【Advanced Noise Reduction】Built-in 2D & 3D noise reduction technology minimizes image noise while preserving clarity and detail.
• 【Ultra-Quiet PTZ Movement】High-speed, ultra-silent pan-tilt rotation enables smooth, multi-angle, all-around shooting without distraction.
• 【Preset Position Control】Supports up to 255 preset positions (10 via remote control) for fast and precise camera switching.
• 【Efficient Video Encoding】Supports H.265 and H.264 encoding for smoother, clearer video transmission under low-bandwidth conditions.
• 【Wide Application Scenarios】Perfect for church live streaming, video conferencing, sports events, online education, and other professional broadcast environments.

Specifications:

• Camera Parameter:
• Model: NDI20X
• Image Sensor: 1/2.8 inch high-quality CMOS sensor
• Effective Pixels: 2.07 million, 16:9
• Viewing Angle: 3.45° to 60.04°
• Focal Length: f=5.05-91.49mm
• Aperture: F1.8 to F2.9
• Optical Zoom: 20X
• Minimum Illumination: 0.5 lux (F1.8, AGC ON)
• Digital Noise Reduction: 2D & 3D
• White Balance: Auto/Manual/One-key white balance/Specified color temperature 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K)
• Focus: Auto/Manual/One-key focus
• Exposure: Auto/Manual
• Backlight Compensation: On/Off
• Wide Dynamic Range: Off/Dynamic Level Adjustment
• Video Adjustments: Brightness, Chroma, Saturation, Contrast, Sharpness, Black & White Mode, Gamma Curve
• Signal-to-Noise Ratio: >55dB

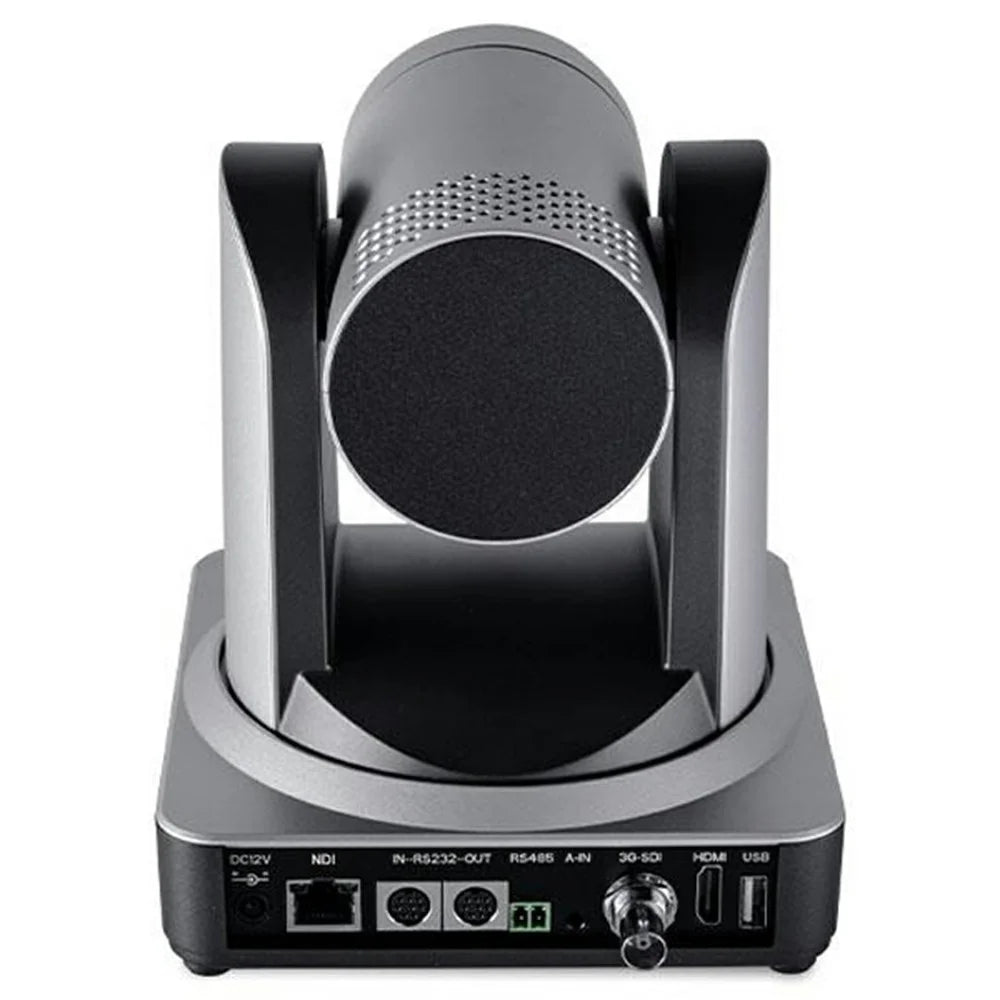

• Interfaces Parameter:
• Video Output Interfaces: USB2.0, HD, 3G-SDI, LAN (NDI)
• Video Stream: Dual-stream output
• Video Compression Format: H.264, H.265
• Control Interface: RS232 (loop-through), RS485
• Control Protocol: VISCA/Pelco-D/Pelco-P
• Audio Input Interface: Dual-channel 3.5mm linear input
• Audio Compression Format: AAC, MP3, G.711A
• Network Interface: 100M Ethernet port (10/100BASE-TX)
• Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA
• Power Interface: HEC3800 power socket (DC12V)
• Gimbal Parameter:
• Horizontal Rotation: -170° to +170°
• Vertical Rotation: -30° to +90°
• Horizontal Control Speed: 0.1 to 60°/sec
• Vertical Control Speed: 0.1 to 30°/sec
• Preset Position Speed: Horizontal: 60°/sec, Vertical: 30°/sec
• Preset Positions: Up to 255 user-configurable (10 on remote control)
• Video Format:
• HD/SDI Video Format: 1080P60/50/30/25/59.94/29.97; 1080i60/50/59.94; 720P60/50/59.94
• USB 2.0 Formats: 320x240|352x288|640x360|640x480|704x576|704x480|720x576|800x448|800x600|960x540|1024x576|1024x768|1280x720|1920x1080P30/25/20/15/10/5
• Other Parameter:
• Operating Voltage: 12V/1.5A
• Power Consumption: 12W (maximum)
• Storage Temperature: -40℃ to +70℃
• Storage Humidity: 20% to 90%
• Operating Temperature: -10℃ to +50℃
• Operating Humidity: 20% to 80%
• Dimensions (WxHxD): 150mmx150mmx167.5mm
• Weight: 1.4kg
