FEELWORLD LUT7S PRO 7 Inch 2200nits 3D LUT Touch Screen DSLR Camera Field Monitor with 4K HD 3G-SDI Input Output

• 【Ultra-Bright 7-inch 4K Display】Featuring a 7-inch IPS screen with 1920x1200 resolution and 2200 nits brightness, the LUT7S PRO ensures clear visibility even in bright outdoor conditions.

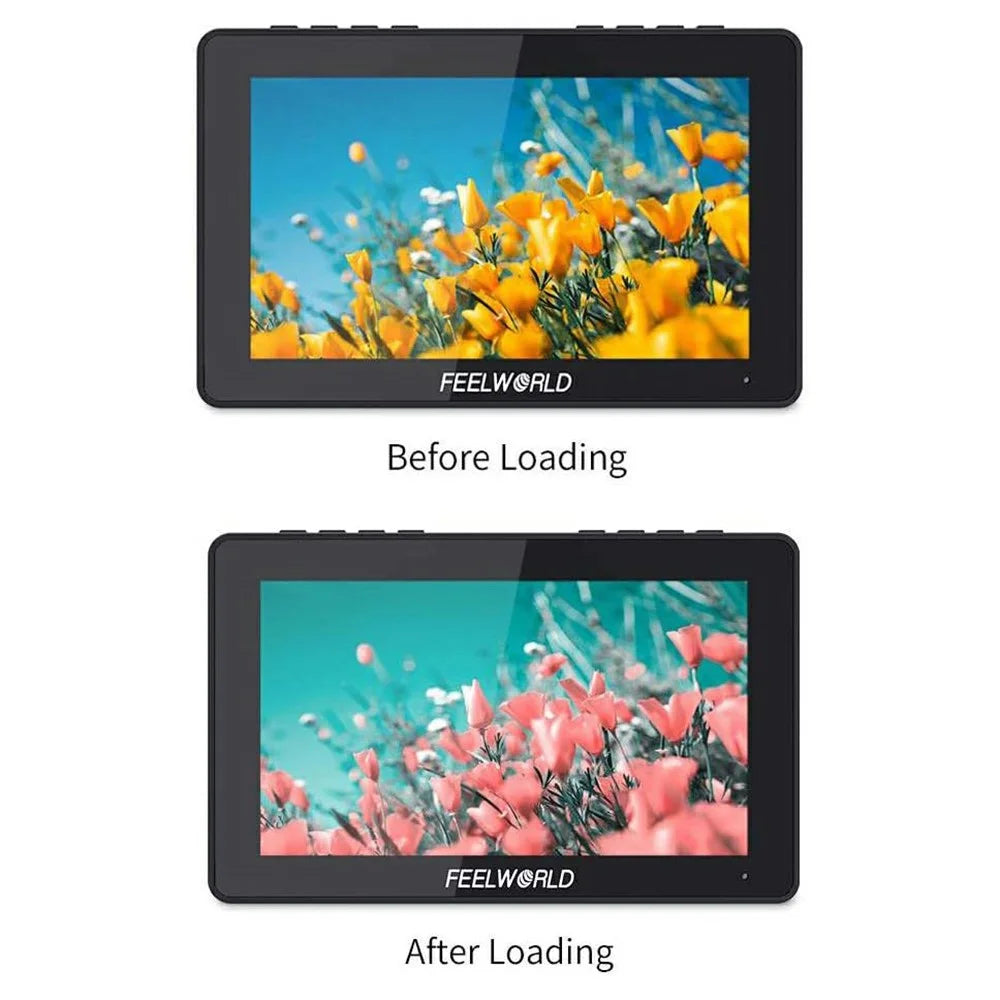

• 【Professional Color Management】Support for 3D LUT and Log to Rec.709 conversion, along with customizable LUT uploads, enables precise color grading and monitoring.

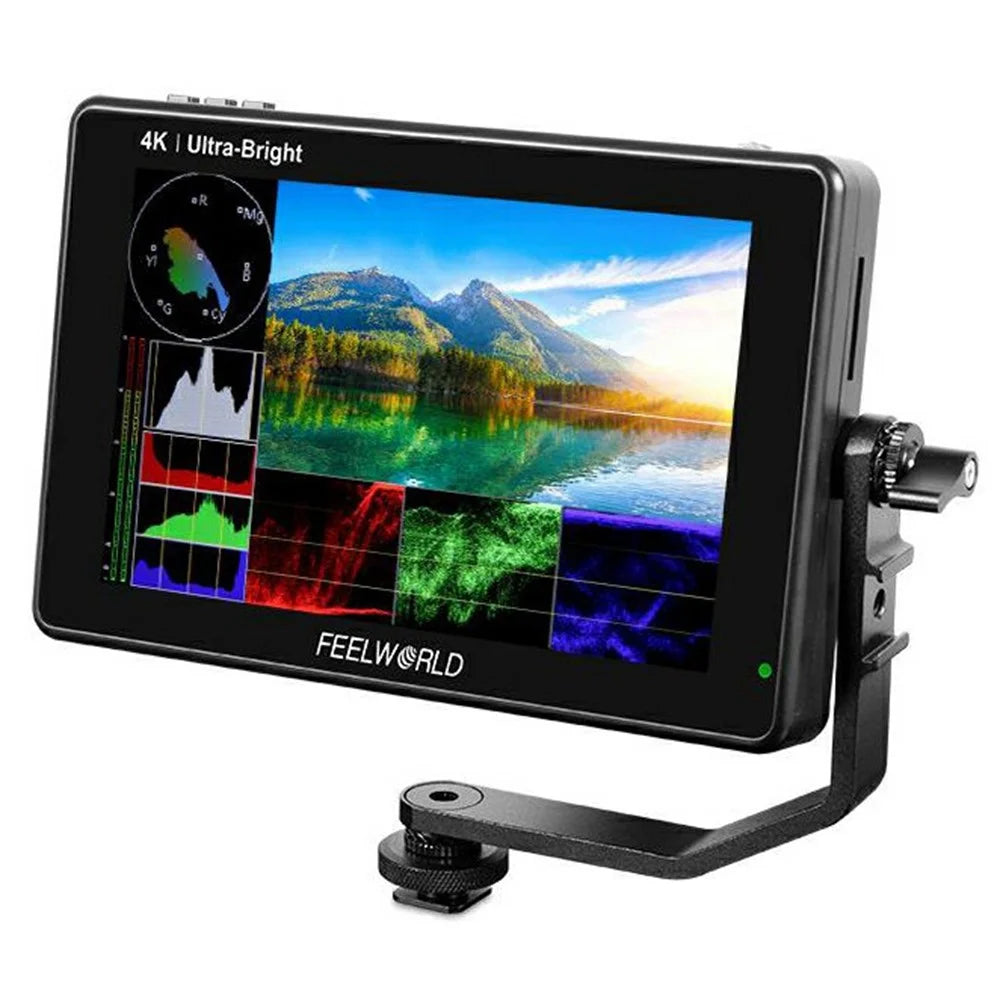

• 【Comprehensive Monitoring Tools】Equipped with waveform, vectorscope, histogram, focus assist, zebra, and false color functions for precise image analysis and exposure control.

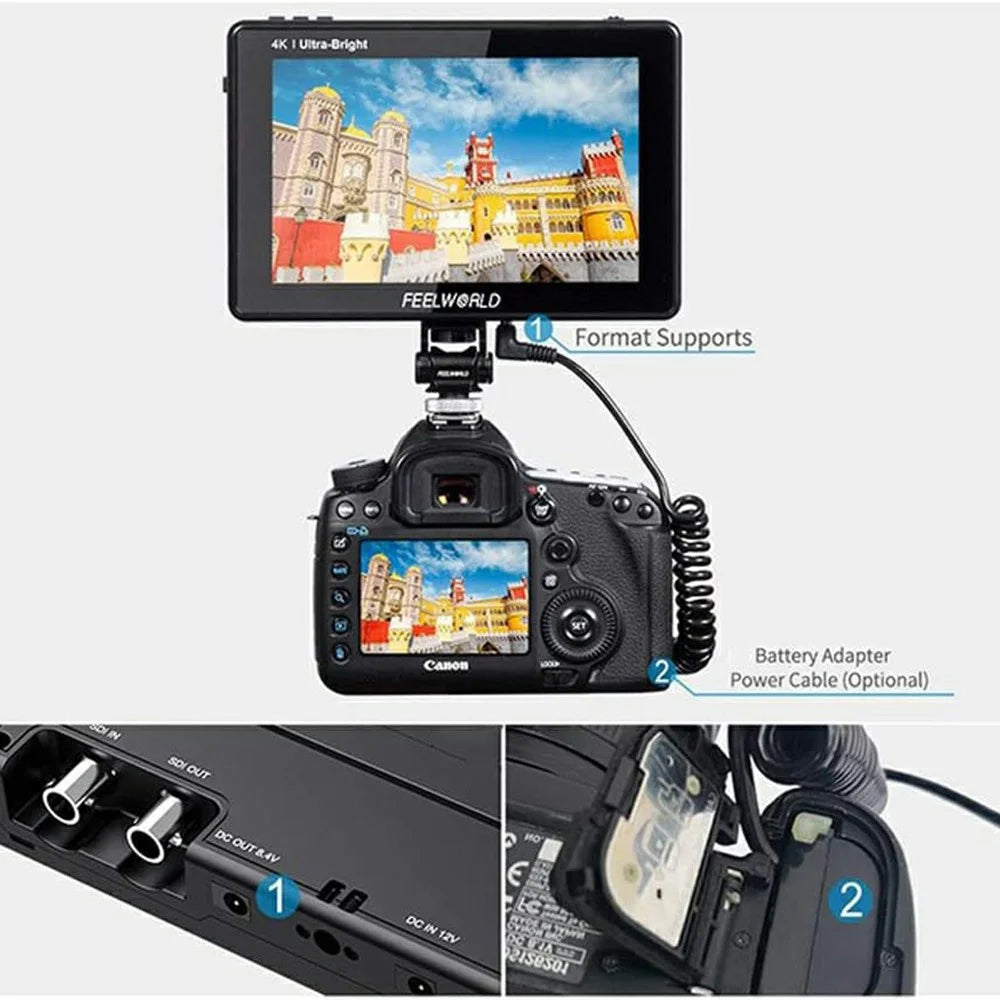

• 【Versatile Input/Output Options】Includes HD and 3G-SDI inputs and outputs, supporting various video formats up to 4K UHD (3840x2160p) at 30fps.

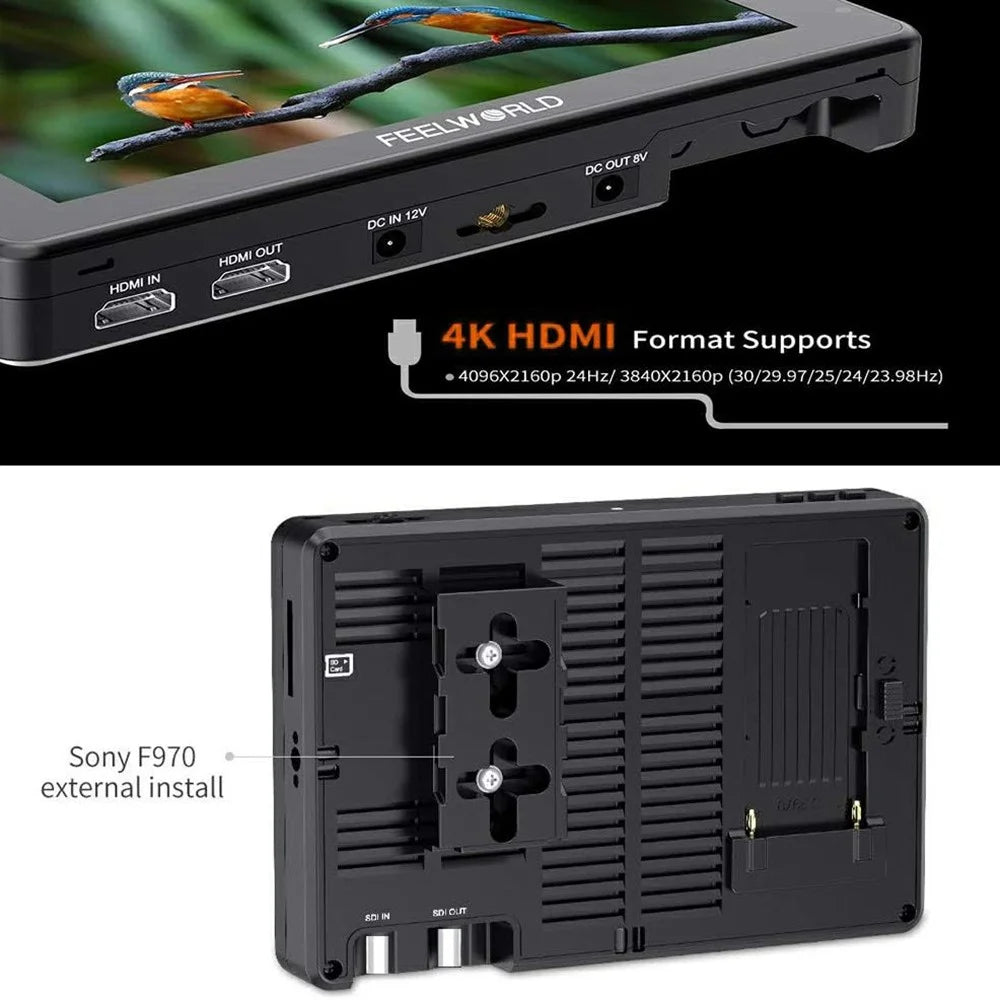

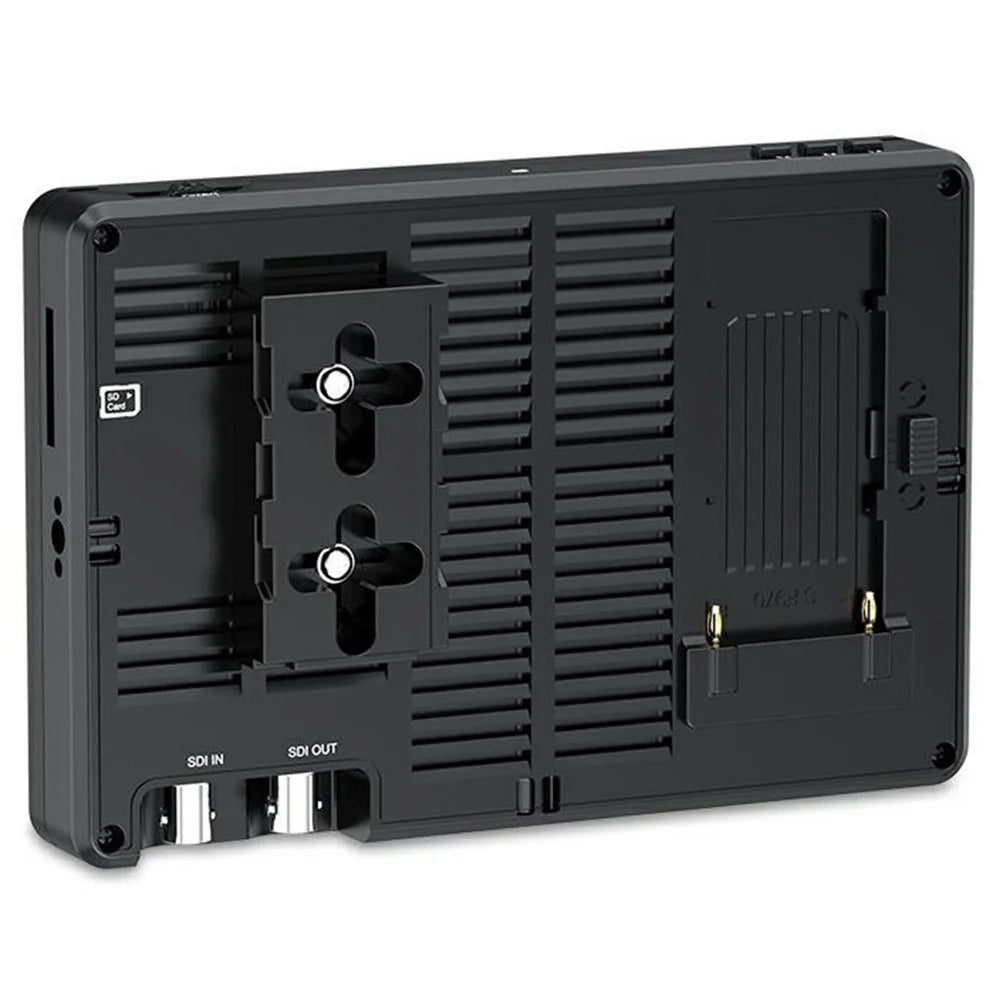

• 【Innovative Power Solution】Features for Sony F970 battery plate design on the back, allowing for powering wireless transmitters, lights, or other accessories directly from the monitor.

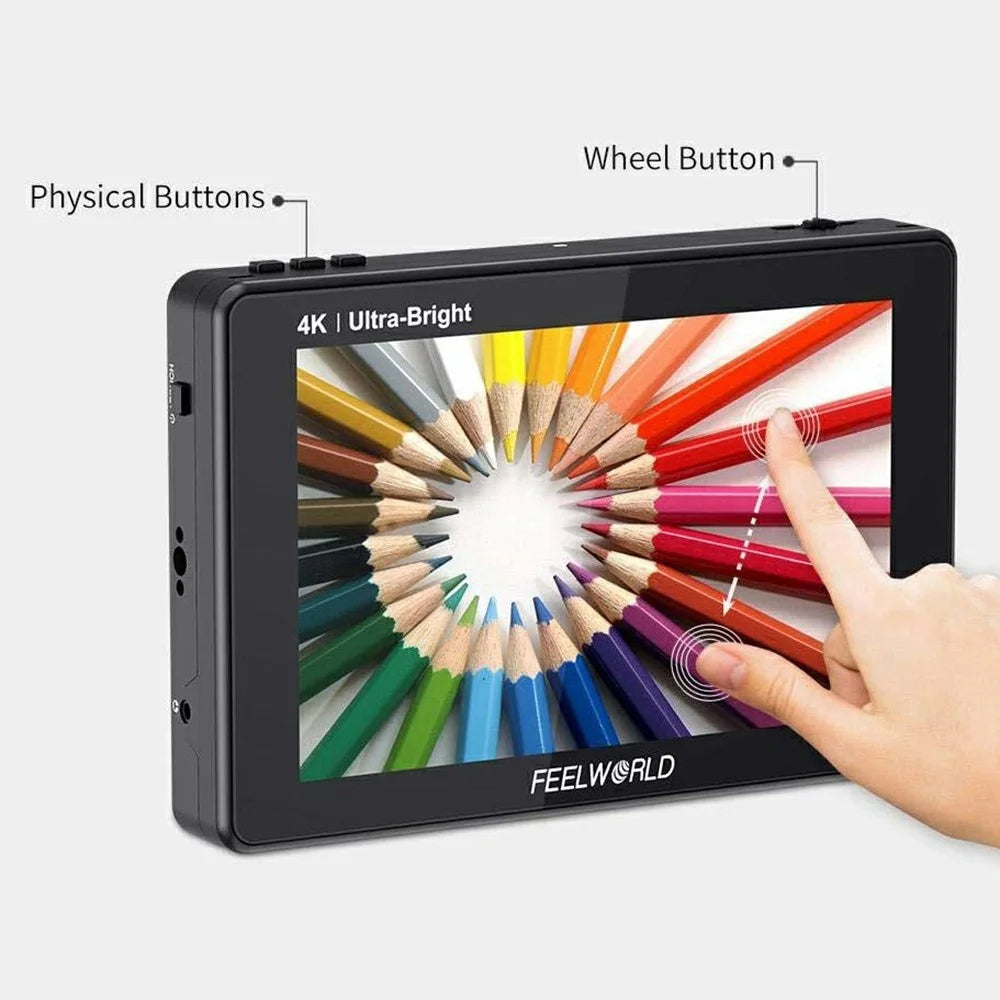

• 【Touch Screen Interface】Intuitive touch screen menu system for easy navigation and quick access to all monitoring tools and settings.
• 【Durable Design】With a wide operating temperature range and multiple mounting options, the LUT7S PRO is built for professional field use in various environments.

Specifications:

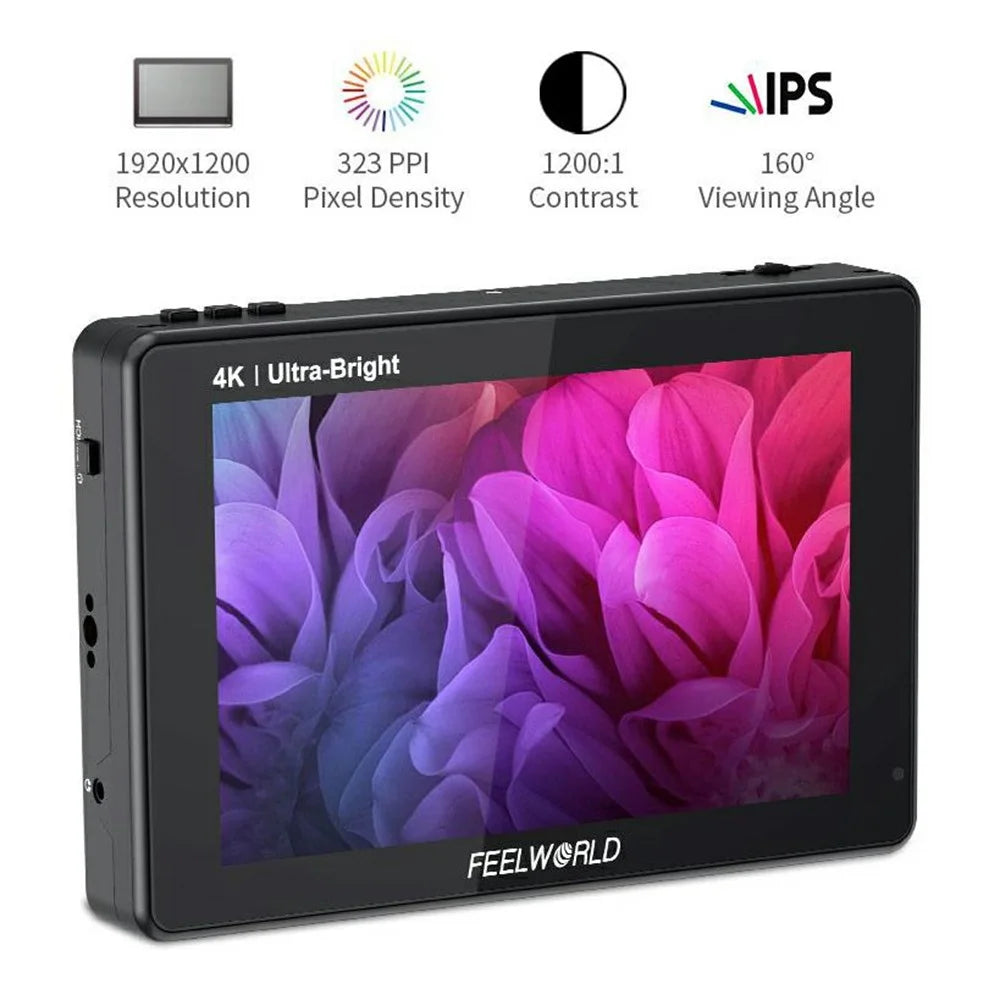

• Screen Size: 7-inch IPS
• Resolution: 1920x1200 pixels
• Brightness: 2200 cd/m² (with light sensor)
• Contrast Ratio: 1200:1
• Viewing Angle: 80°/80° (L/R) 80°/80° (U/D)
• Inputs: 1x 3G-SDI, 1x HD
• Outputs: 1x 3G-SDI, 1x HD, 1x DC OUT 8V
• Audio: Headphone jack, Speaker
• Supported Formats: Up to 4K UHD 3840x2160p (30fps), 4096x2160p (24Hz)
• Power Input: DC 7-24V
• Power Consumption: ≥20W
• Operating Temperature: -20℃ to 50℃
• Dimensions: 190(L) x 126(H) x 27(D) mm
• Weight: 450g
• Mounting: 1/4-20 thread (left, right, bottom)
• Battery Plate: Sony F970 compatible
