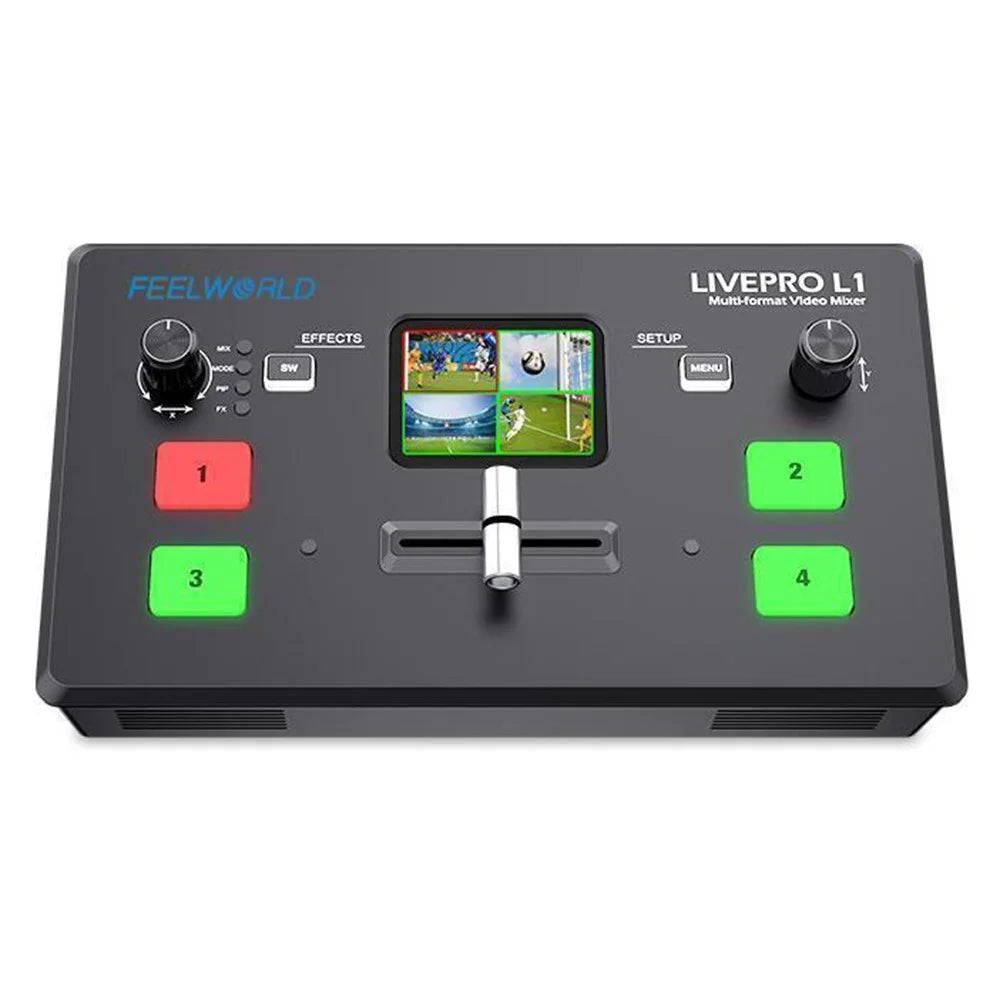

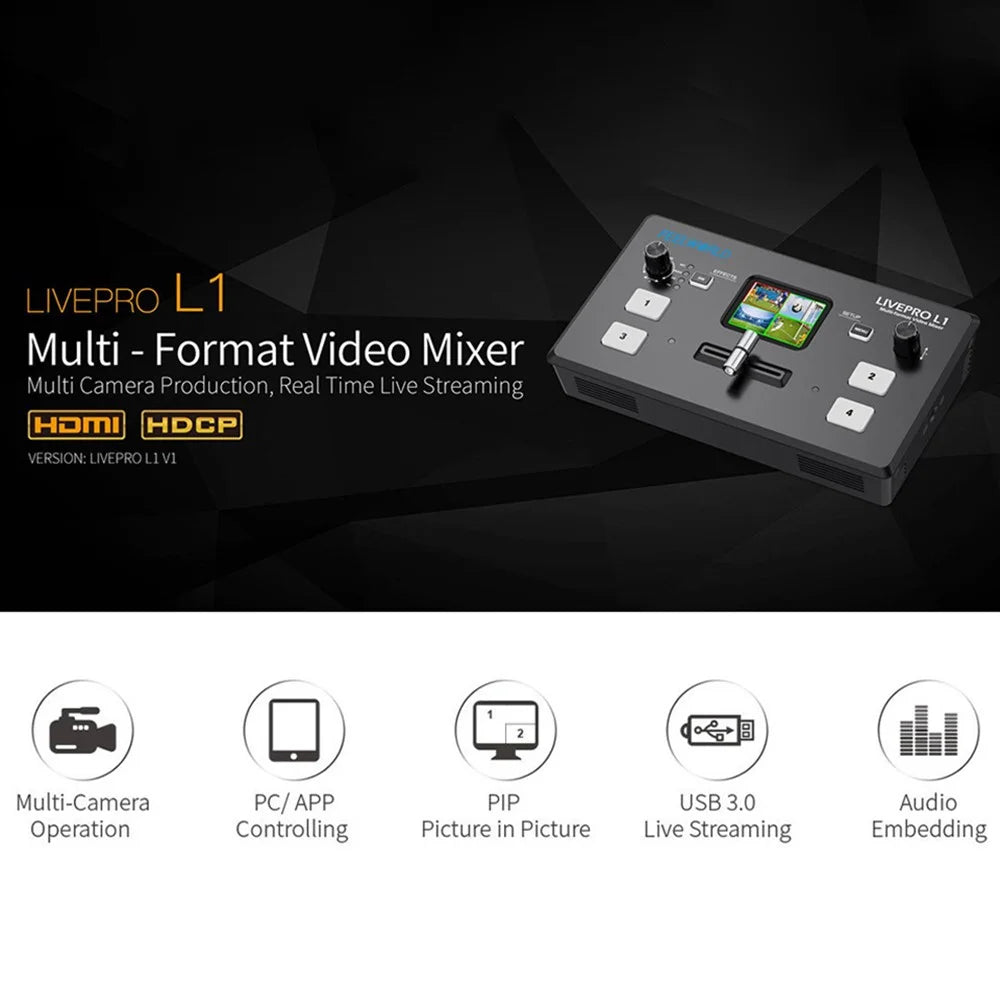

FEELWORLD LIVEPRO L1 V1 USB 3.0 Multi-Camera Live Streaming Video Switcher with 2-Inch TFT Screen, 4 HD Inputs, and APP Control - US Plug

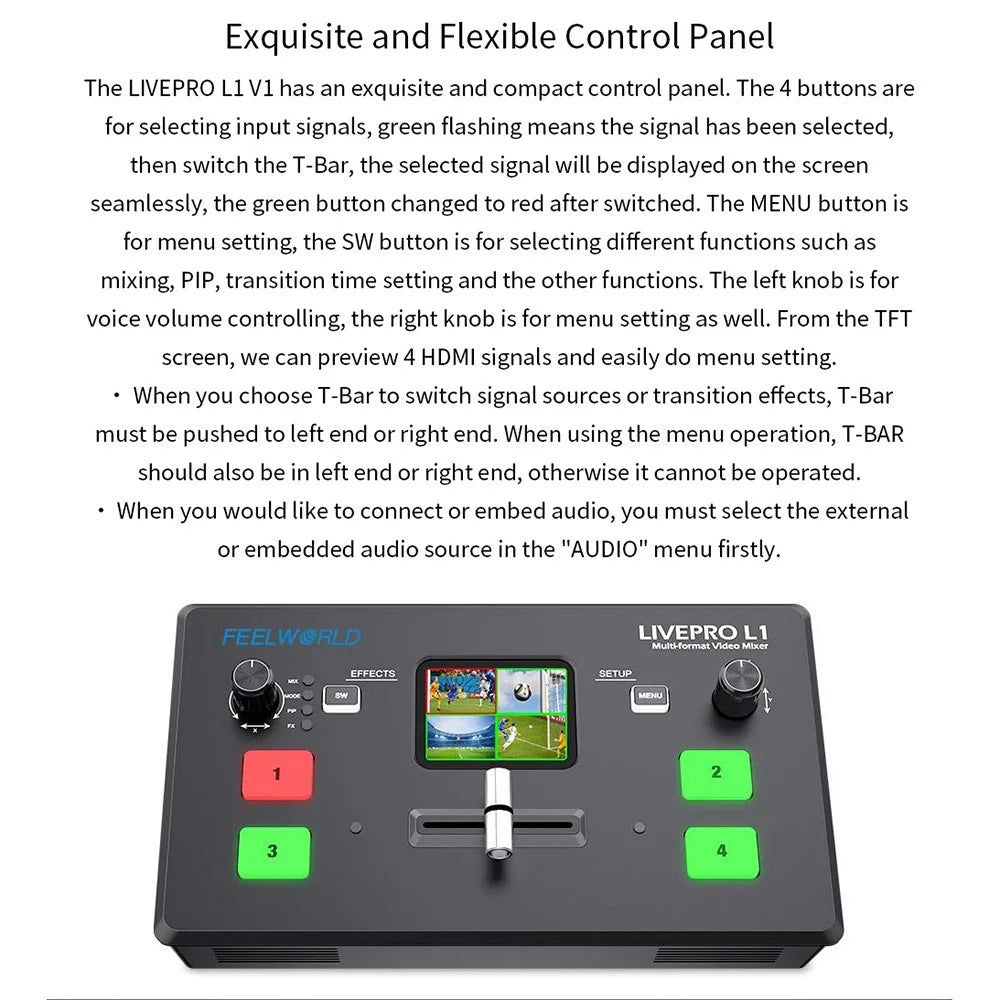

• 【2-Inch TFT Real-Time Preview】Features a built-in 2.0" TFT screen that allows real-time monitoring of four HD input sources simultaneously for efficient live production.
• 【USB 3.0 Streaming Output】Supports high-speed USB 3.0 live streaming output, ensuring smooth and stable broadcasting performance across major platforms.
• 【4 HD Inputs & Flexible Audio Control】Equipped with four HD input channels and supports internal or external embedded audio selection for precise sound management.
• 【Multiple Transition & Picture-in-Picture Effects】Offers 14 transition effects, picture-in-picture function, and both quick-cut (0.5–5.0s adjustable) and T-Bar switch modes.
• 【Comprehensive Control Options】Supports computer host control via LAN port and mobile APP operation, providing versatile and convenient control for professional workflows.

Specifications:

• Model: LIVEPRO L1 V1
• Screen Size: 2.0-inch TFT Display
• Backlight: LED

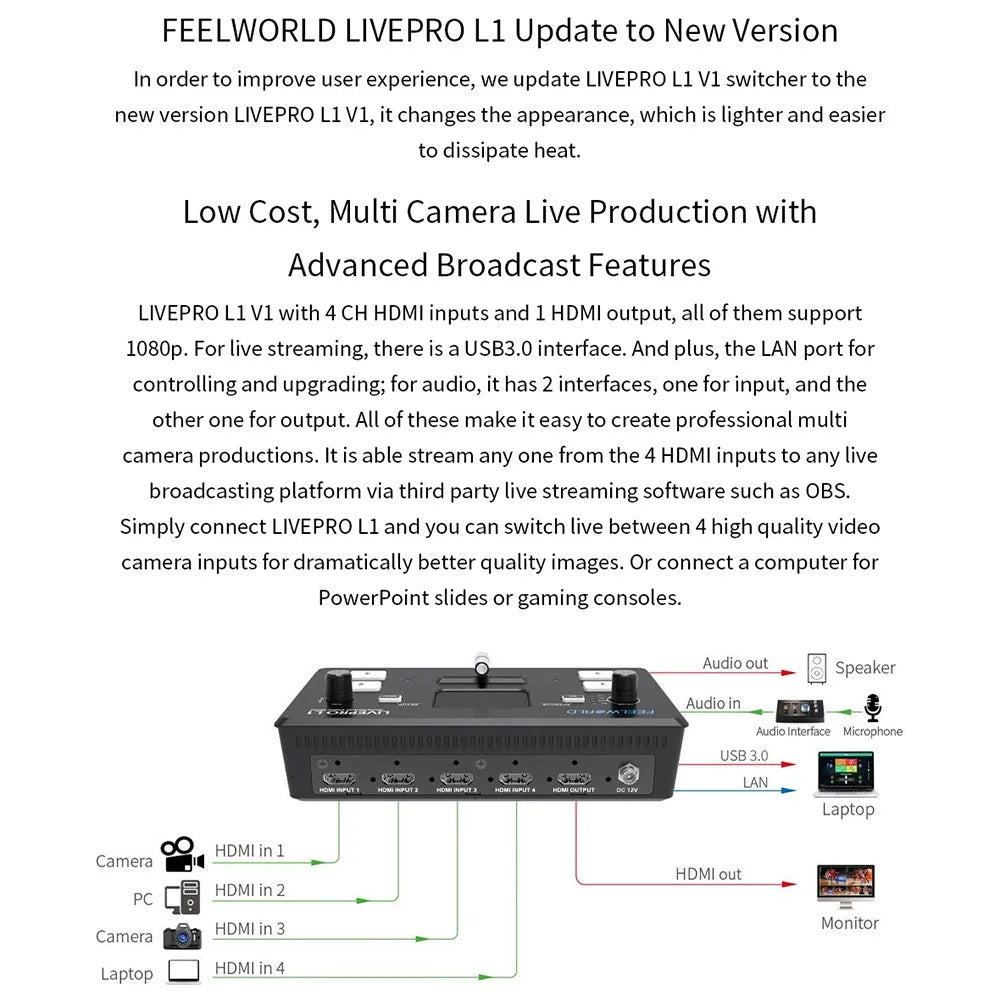

• Input: 4 x HD Inputs
• Output:
• 1 x HD Output

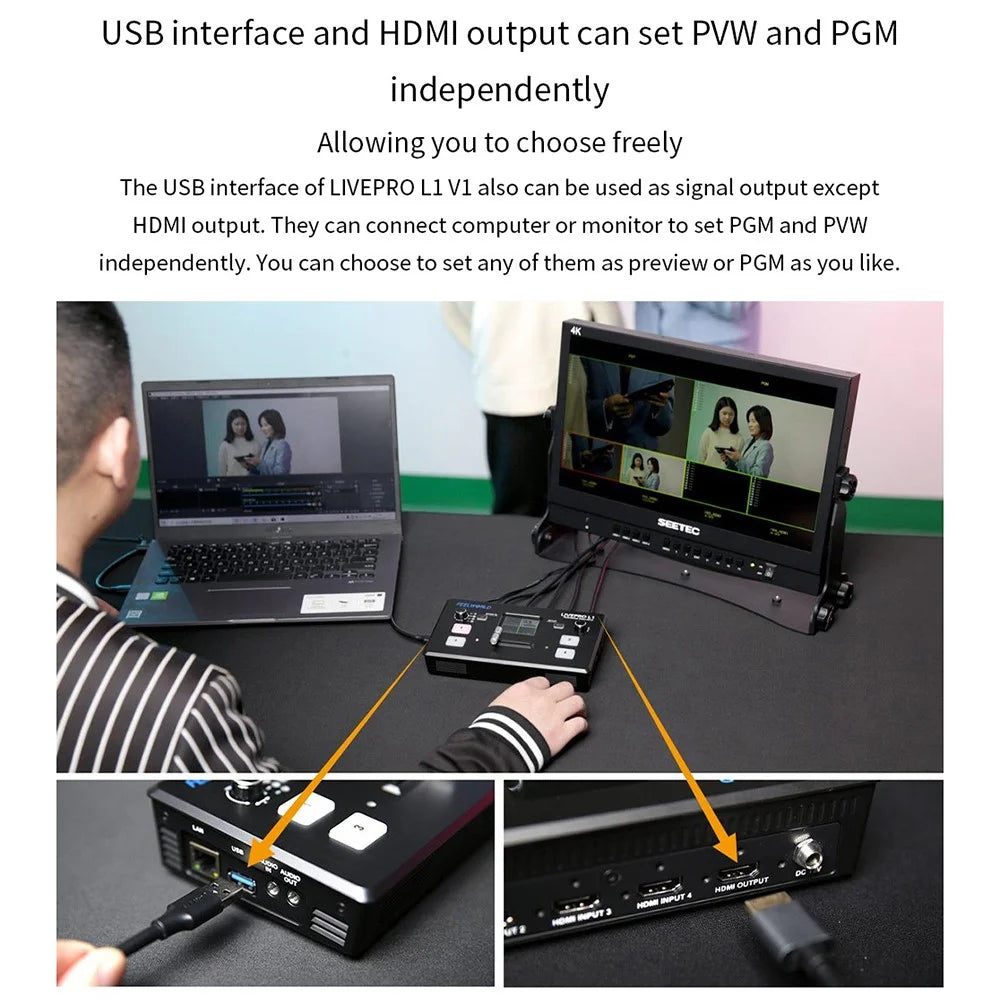

• 1 x USB Type-A (USB 3.0)
• Communication Interface: 1 x RJ45 (LAN, compatible with CAT6 cable)

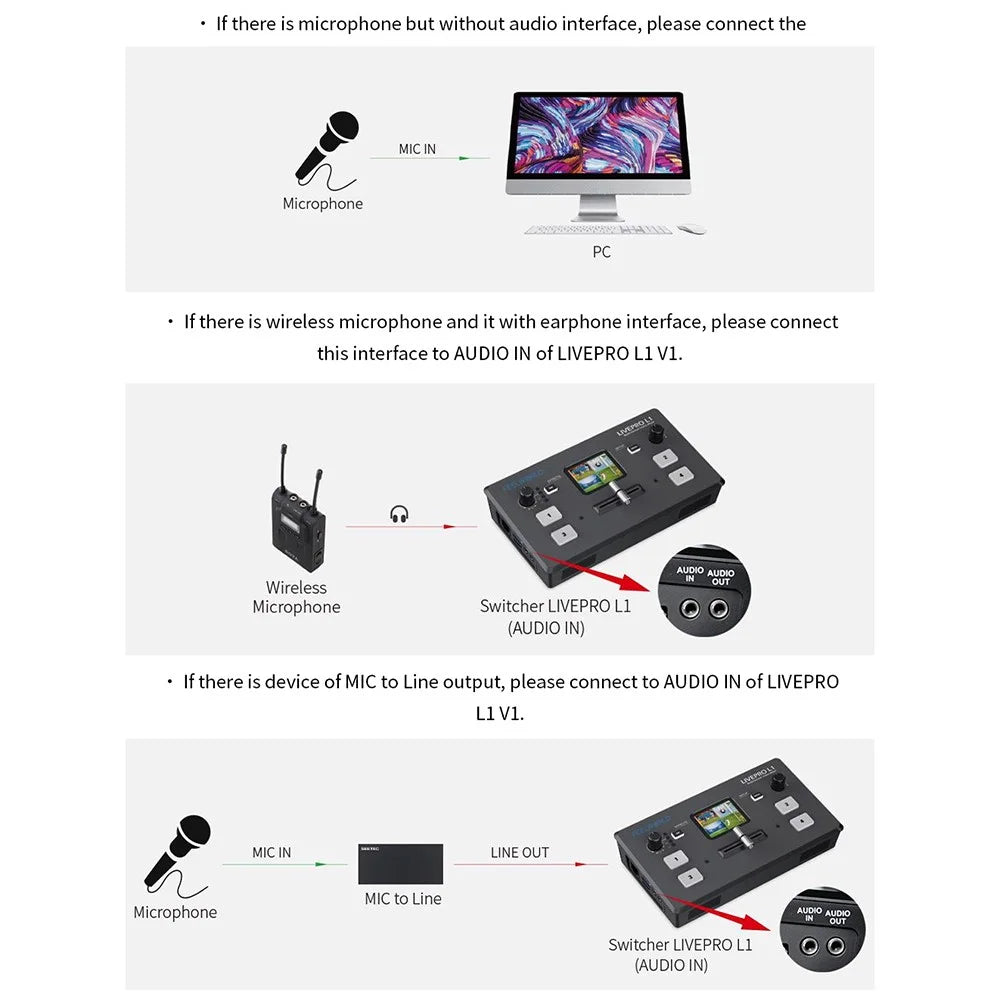

• Audio Input: 1 x 3.5mm Jack
• Audio Output: 1 x 3.5mm Jack
• Input Resolutions (HD):
• SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60
• 1024x768@60 | 1280x720@60 | 1280x768@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60 | 1440x900@60 | 1600x1200@60 | 1680x1050@60 | 1920x1080@60 | 1920x1200@60
• Output Resolutions (HD):
• SMPTE 720p@50/60 | 1080p@24/25/30/50/60
• VESA 1024x768@60 | 1280x720@60 | 1280x768@60 | 1280x1024@60 | 1360x768@60
• Streaming Output:
• 1280x720@50/60 | 1280x1024@60 | 1360x768@60 | 1920x1080@24/25/30/50/60
• Maximum Power Consumption: 18W
• Operating Temperature: -30°C ~ 50°C
• Operating Humidity: 10% ~ 85%
• Dimensions: 190 (L) x 110 (W) x 43 (H) mm
• Weight: 500g
