FEELWORLD L2 Plus Multi-Camera Live Streaming Video Switcher with 5.5-Inch Touchscreen, 4 HD Inputs, PTZ Control - US Plug - 1
FEELWORLD L2 Plus Multi-Camera Live Streaming Video Switcher with 5.5-Inch Touchscreen, 4 HD Inputs, PTZ Control - US Plug - 1

FEELWORLD L2 Plus Multi-Camera Live Streaming Video Switcher with 5.5-Inch Touchscreen, 4 HD Inputs, PTZ Control - US Plug

by FEELWORLD
$13,460.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

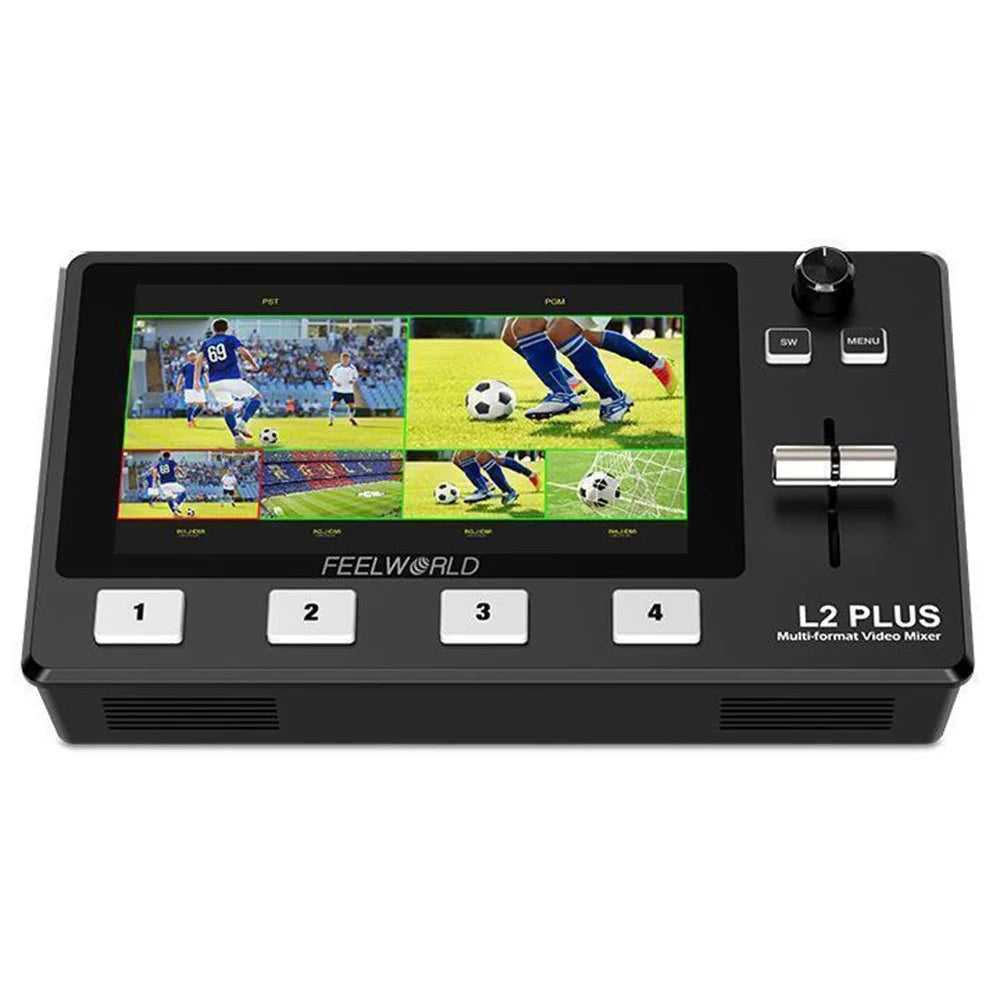

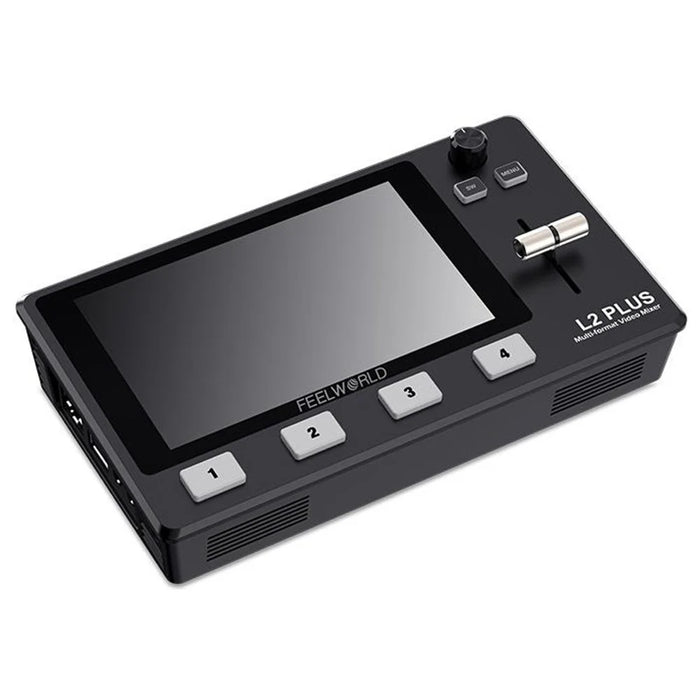

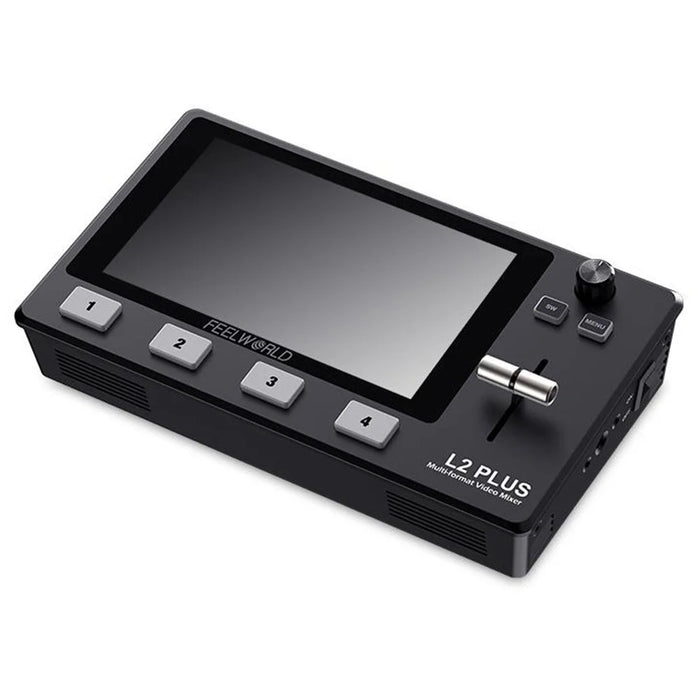

  • 【5.5-Inch Touchscreen Monitoring】Equipped with a 5.5" touchscreen that displays four input sources, PST preview, and PGM output simultaneously—offering simple operation and real-time monitoring without an external display.
  • 【Chroma Key and Logo Overlay】Supports green or blue screen keying effects and logo overlay for creating professional virtual studio visuals with custom title overlays.

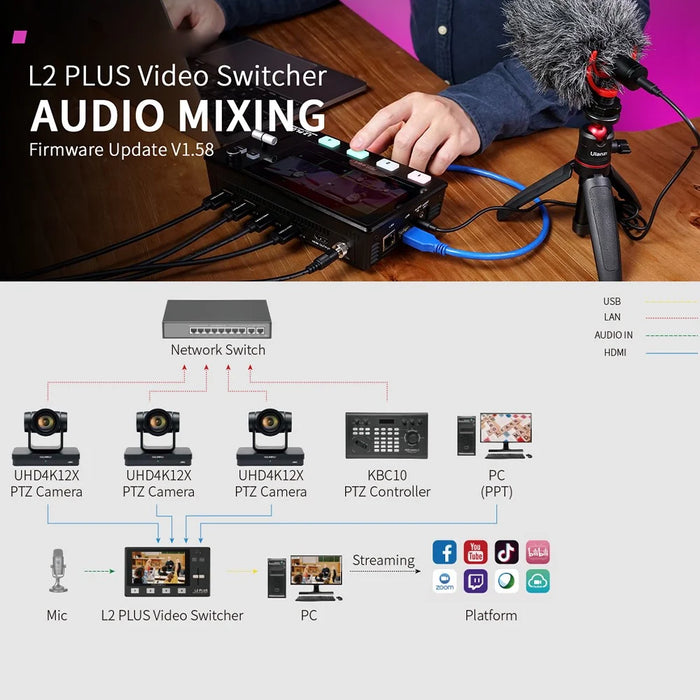

  • 【PTZ Camera Control】Controls up to eight PTZ cameras supporting the VISCA protocol, allowing smooth pan, tilt, zoom, and focus operations directly from the L2 PLUS interface.
  • 【USB 3.0 Live Streaming】Functions as a USB 3.0 webcam source for computers, compatible with streaming software and social media platforms for real-time broadcasting.
  • 【PC and Mobile APP Control】Supports computer control via LAN with XPOSE software and smartphone remote control via the XPOSE (Feelworld Live) App over Wi-Fi for flexible operation.

Specifications:

  • Model: L2 PLUS
  • Screen Size: 5.5-inch Touchscreen
  • Backlight: LED

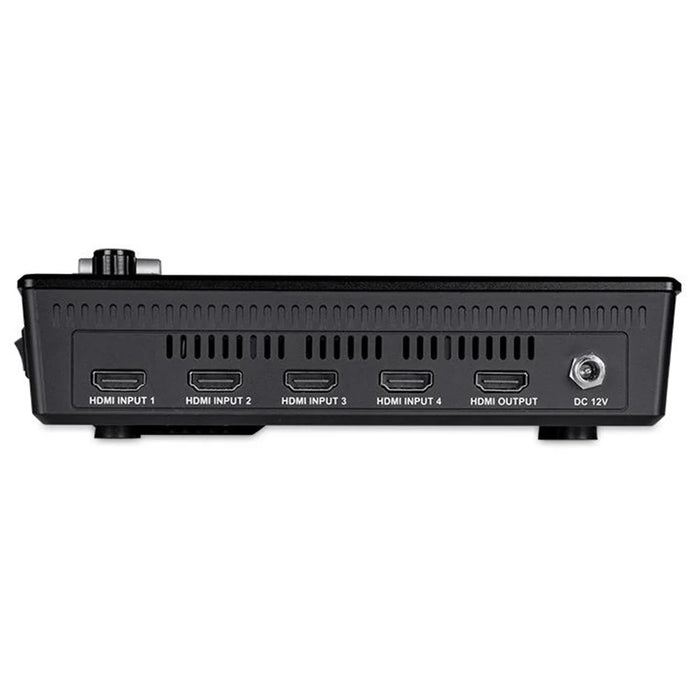

  • Input: 4 x HD-A
  • Output: 1 x HD-A, 1 x USB Type-A (USB 3.0)
  • Audio Input: 1 x 3.5mm Jack (Microphone Supported)
  • Audio Output: 1 x 3.5mm Stereo Jack
  • Input Voltage: DC 12V/2A
  • Power Consumption: 21W
  • Operating Temperature: 0°C ~ 50°C
  • Humidity: 5% ~ 85%
  • Dimensions: 191 (L) x 110 (W) x 43 (H) mm
  • Weight: 610g
  • Input Formats (HD):
  • SMPTE 720p 50/60 | 1080i 50/60 | 1080p 23/24/30/50/60
  • VESA 1024x768 60 | 1280x720 60 | 1280x768 60 | 1280x800 60 | 1280x1024 60 | 1360x768 60 | 1366x768 60 | 1440x900 60 | 1600x1200 60 | 1680x1050 60 | 1920x1080 60 | 1920x1200 60
  • Output Formats (HD):
  • SMPTE 720p 50/60 | 1080p 24/25/30/50/60
  • VESA 1024x768 60 | 1280x720 60 | 1280x768 60 | 1280x1024 60 | 1360x768 60
  • USB Streaming Formats: 1280x720 50/60 | 1280x1024 60 | 1360x768 60 | 1920x1080 24/25/30/50/60

In the box

  • 1 x Video Switcher
  • 1 x 2A Power Adapter
  • 1 x USB Cable
  • 1 x English Manual
