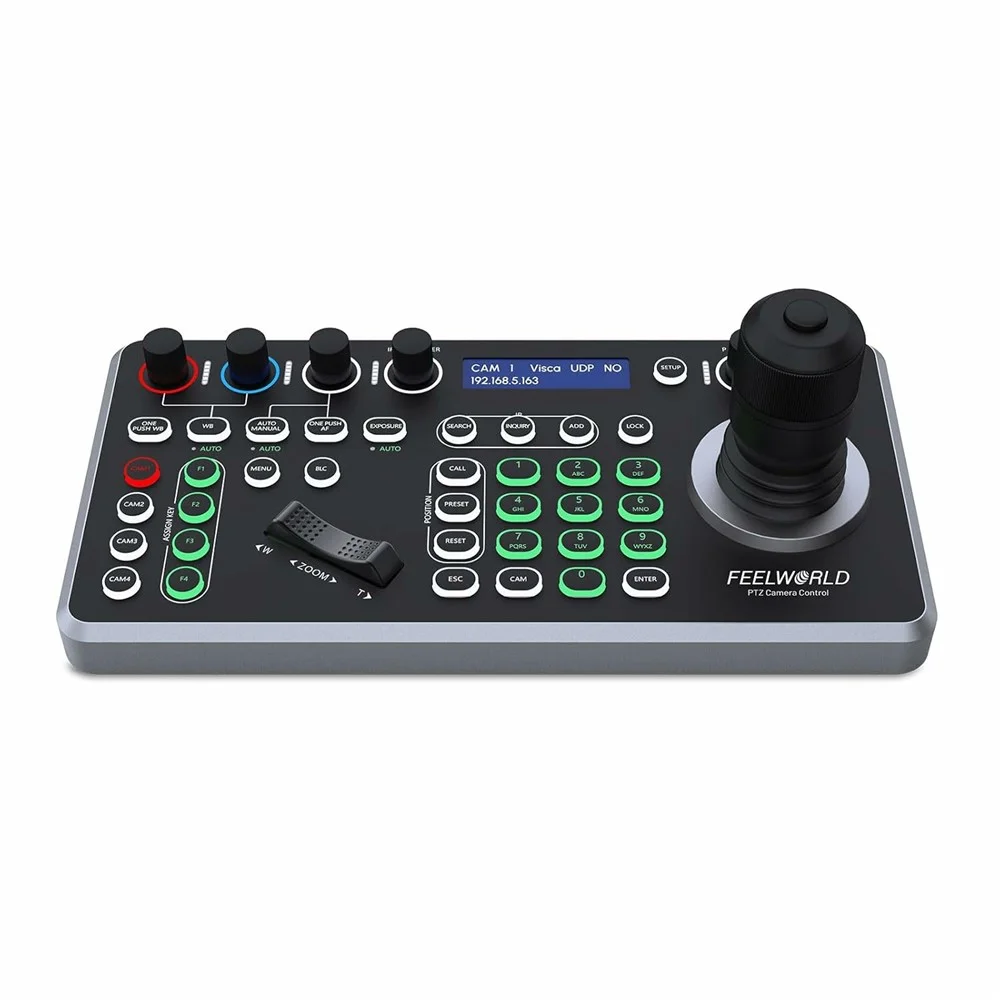

FEELWORLD KBC20 PTZ Camera Controller Precise Joystick Control Multiple Protocol PoE Powered Console - US Plug
R15 080
incl. VAT
Dispatches in 1 – 3 days
Adapter Plug
US Plug
Same price across all adapter plug options · selecting one updates the gallery
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description

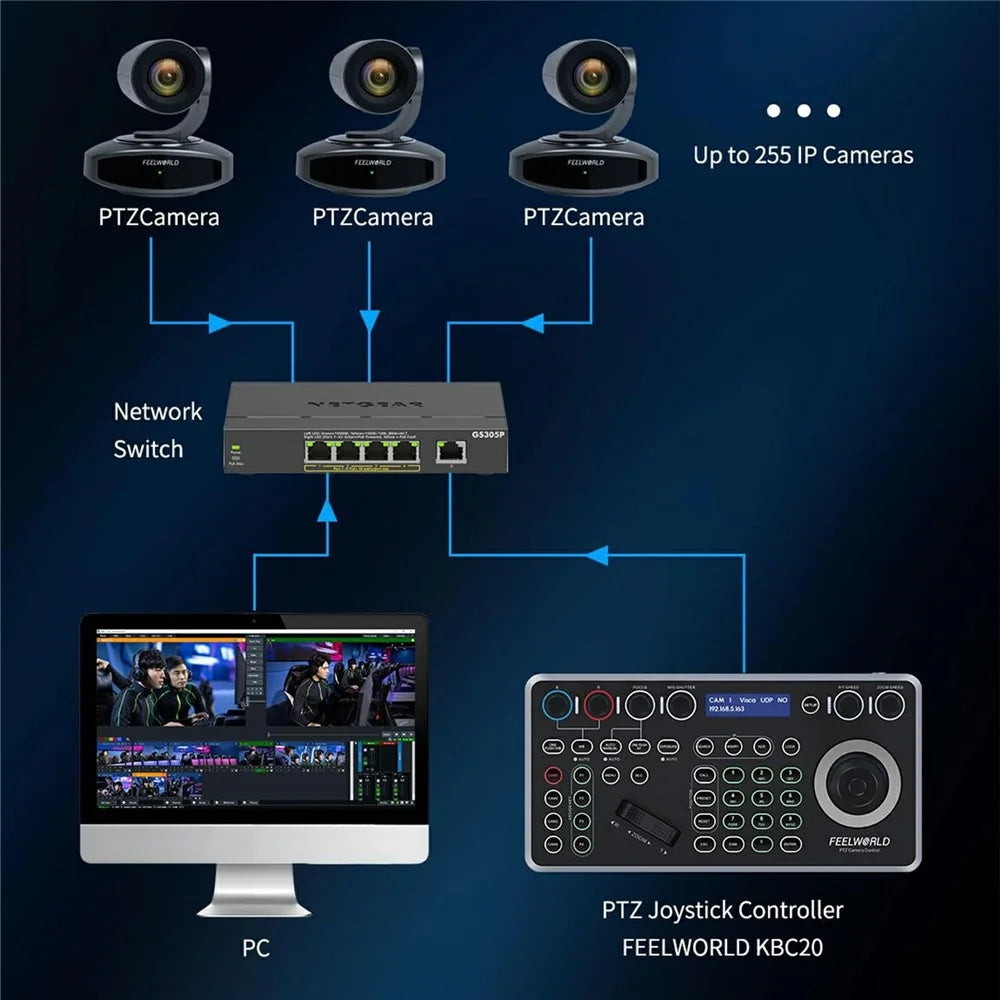

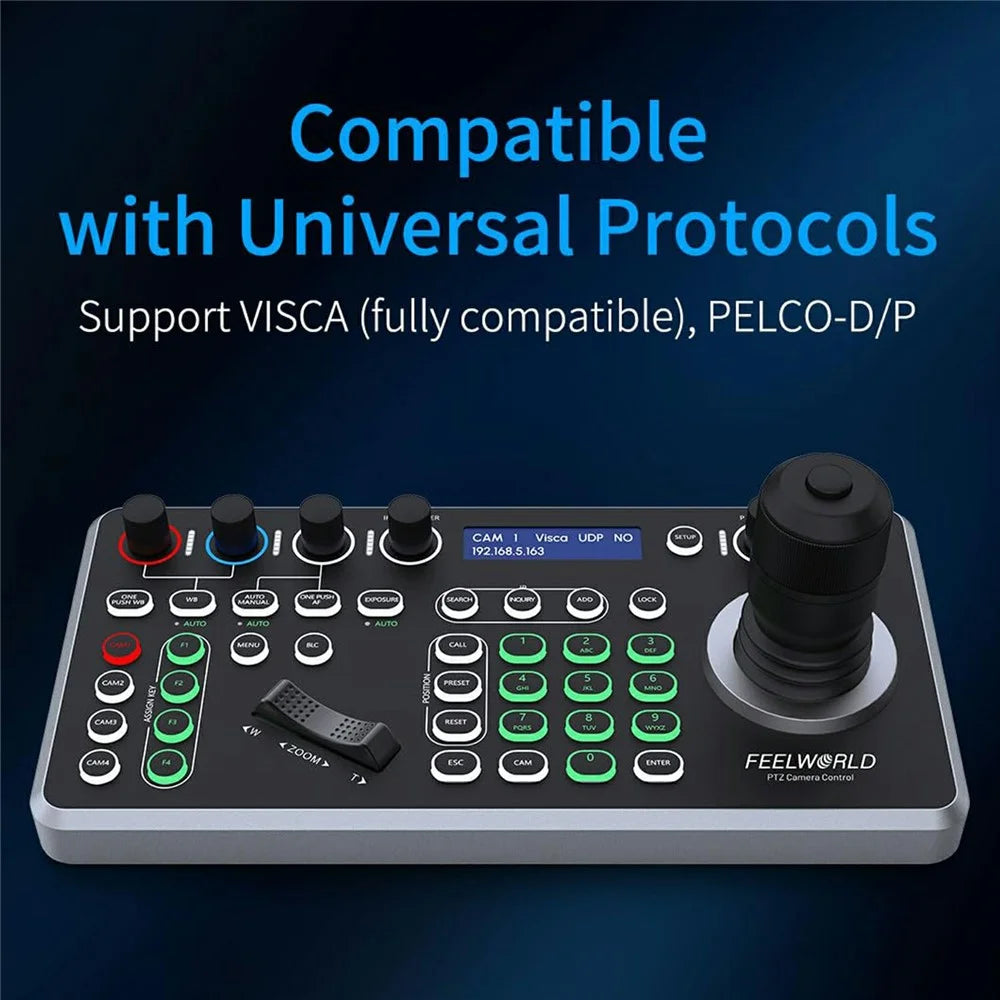

- 【Multi-Protocol Compatibility】Supports multiple control protocols including ONVIF, IP VISCA, VISCA, Pelco-D, and Pelco-P, ensuring compatibility with up to 255 PTZ cameras from different manufacturers for versatile professional video production environments.

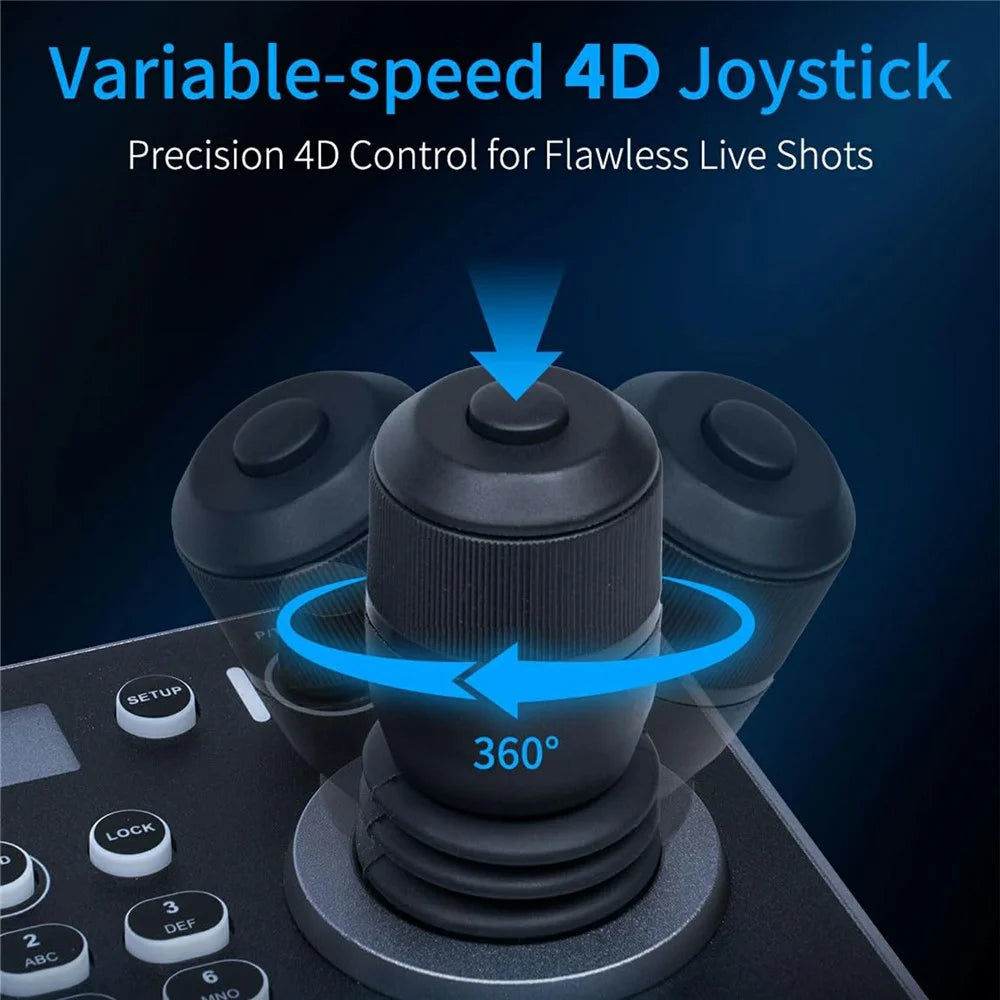

- 【Precision Joystick Control】Features a 4D variable-speed joystick with infinite speed adjustment for precise pan, tilt, zoom, and focus control, providing smooth and accurate camera movements for professional video capture.

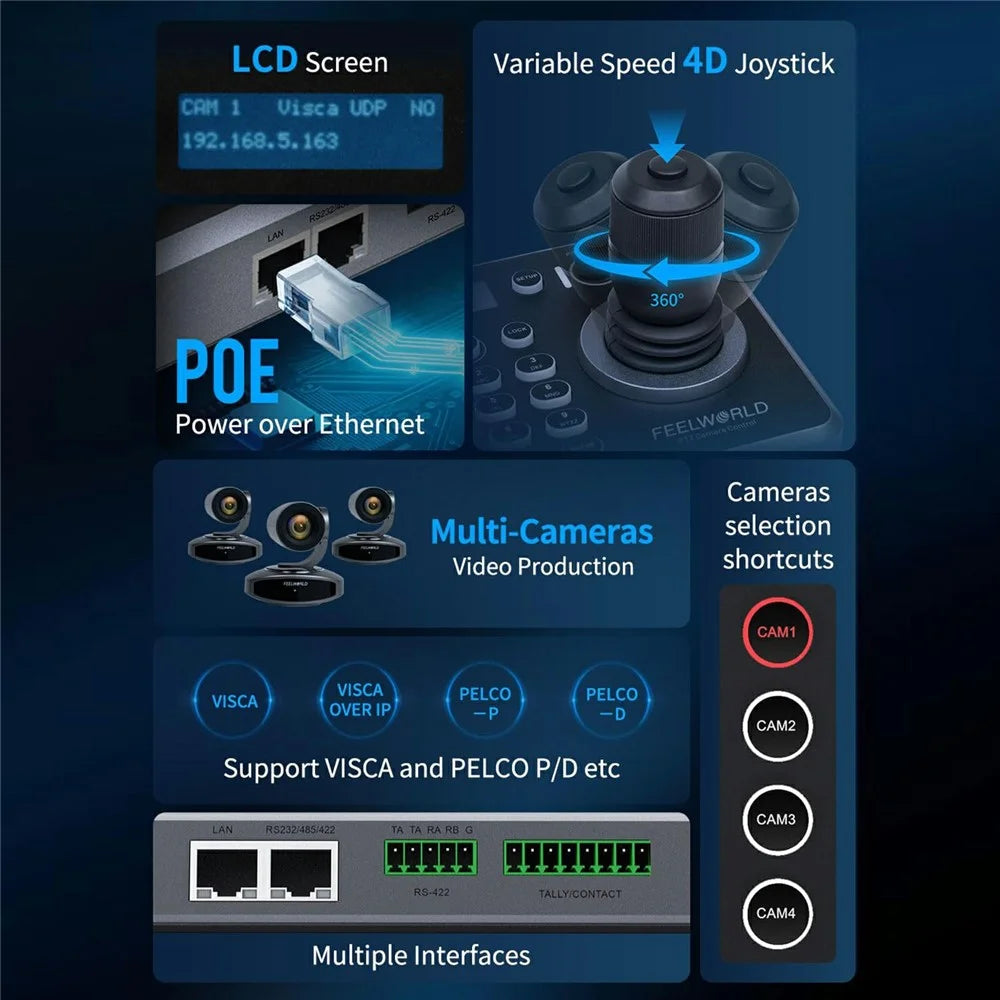

- 【Real-Time LCD Display】Equipped with an LCD screen that displays working status in real-time, showing camera ID, protocol type, and IP addresses to enhance operational efficiency and monitoring capabilities.
- 【Quick Camera Switching】Includes 4 dedicated camera shortcut control keys (CAM1-CAM4) for instant switching between multiple cameras, streamlining workflow during live productions and multi-camera setups.

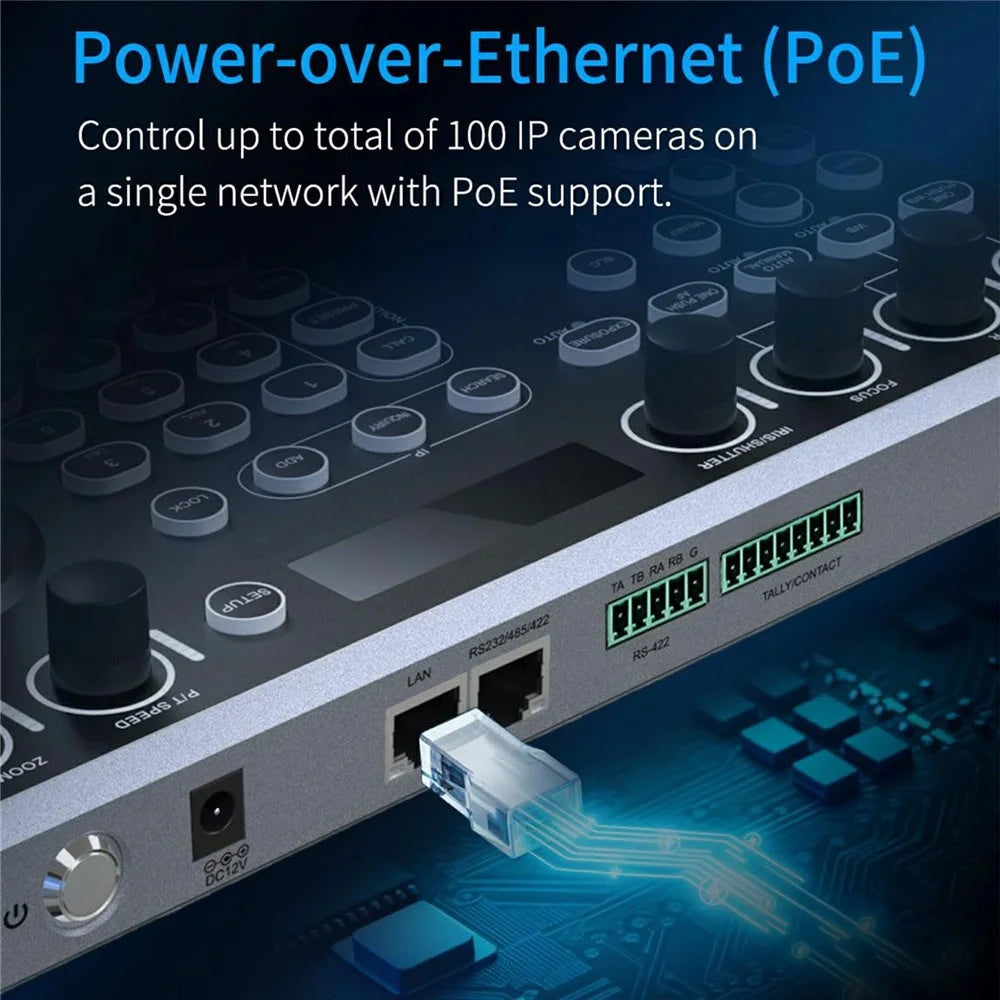

- 【PoE Power Support】Supports Power over Ethernet (PoE) interface for simplified installation and reduced cable management, allowing power and data transmission through a single ethernet cable.
- 【Web-Based Configuration】Supports IE browser-based configuration for adding and managing front-end device parameters, enabling remote setup and firmware upgrades through web control panel.
- 【Ergonomic Button Layout】Features a rational button layout designed for easy operation in any live video production scenario, with programmable function keys (F1-F4) and preset storage capabilities.
Specifications:
- Model: KBC20
- Control Protocols: ONVIF | IP VISCA | VISCA | Pelco-D | Pelco-P
- Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 115200 bps
- Display: LCD liquid crystal display screen
- Input Voltage: DC 12V
- Maximum Power: 0.6W
- Operating Temperature: 0℃～50℃
- Working Humidity: 0%～90%
- Device Weight: 1.3kg
- Device Dimensions: 270 x 135mm x 110mm
- LAN Interface: 1 x RJ45
- RS232/RS485/RS422: 1 x RJ45 to 9-pin circular connector
- RS422: 1×5 Pin Terminal
- TALLY/CONTACT: 1 x 8 Pin Terminal
- Upgrade Method: Web upgrade
In the box
- 1 x Camera Controller
- 1 x Power Adapter
- 1 x RJ45-DIN8 Cable
- 1 x English Manual
Specifications
- SKU
- 6899004108A
- Package dimensions
- 33 × 20.3 × 13.9 cm
- Gross weight
- 2.02 kg
- Units per pack
- 4
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Security & Surveillance › Surveillance Accessories
What’s in the box
- 1 Camera Controller
- 1 Power Adapter
- 1 RJ45-DIN8 Cable
- 1 English Manual
