FEELWORLD FW568S 6 Inch Camera Monitor 3G-SDI 4K HD Input / Output IPS Display Screen for Photography / Videography
R6 740
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- 【High-Resolution Display】 6-inch 1920x1080 Full HD IPS screen with 450cd/m2 brightness and 1000:1 contrast ratio for exceptional image quality.

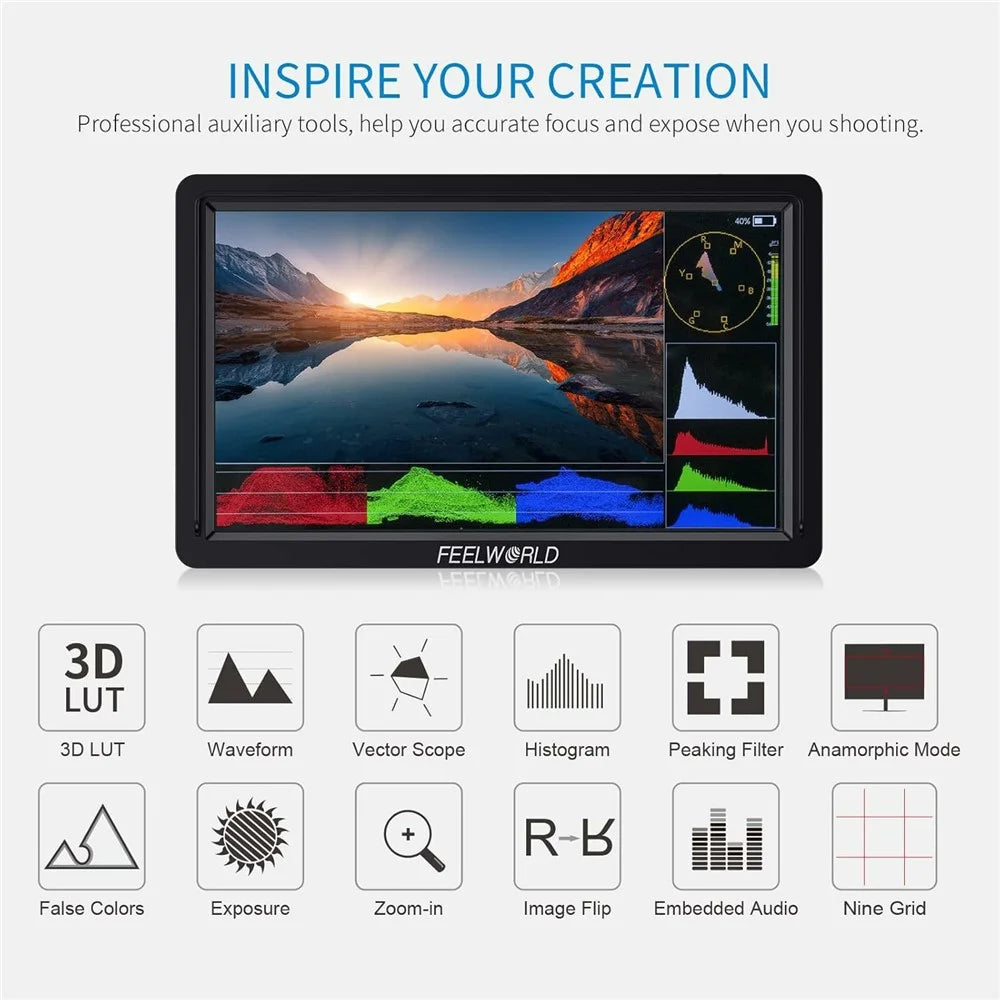

- 【Professional Monitoring Features】 Includes waveform display, vectorscope, RGB histogram, focus assist, zebra pattern, and center marker for accurate focusing and exposure.
- 【Versatile Input/Output】 Supports 3G-SDI and 4K HD input/output, with DC 8V power output for DSLR or mirrorless cameras.
- 【Advanced Color Management】 3D LUT support with Log to Rec.709 conversion and ability to upload up to 32 custom 3D LUTs.

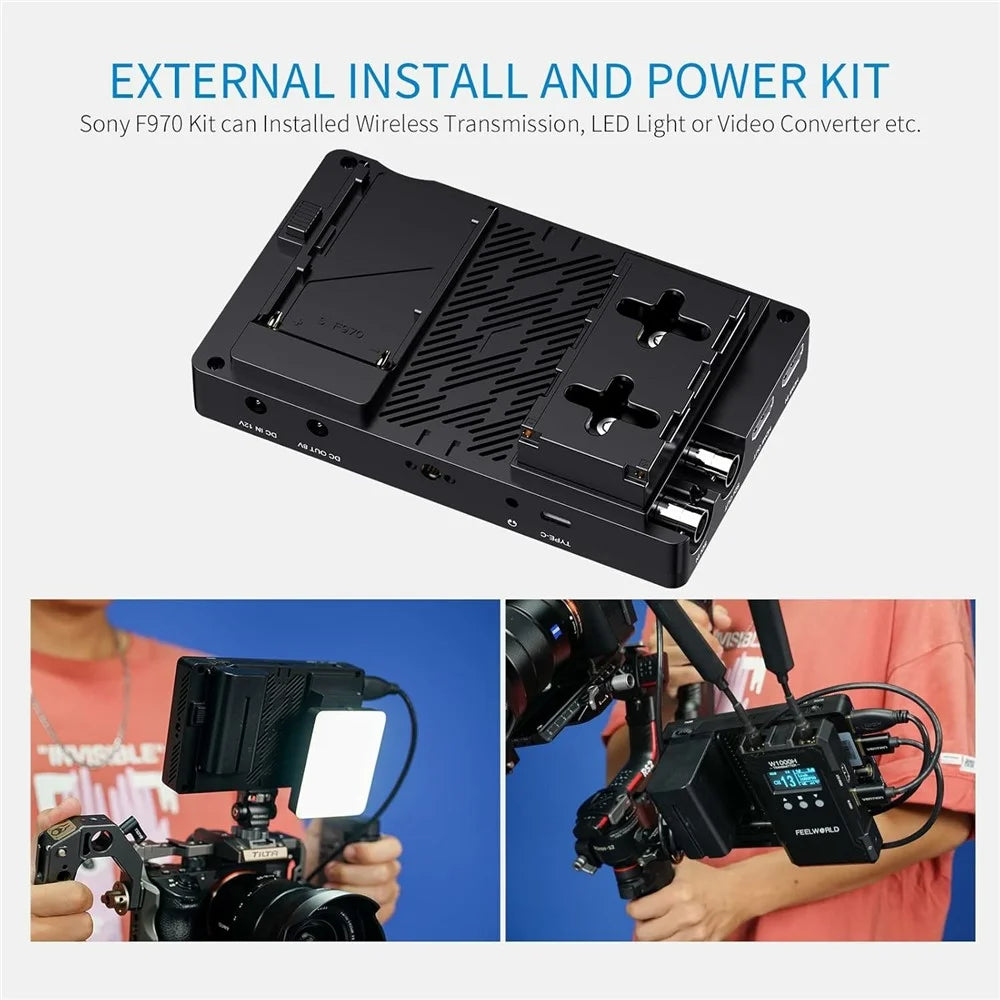

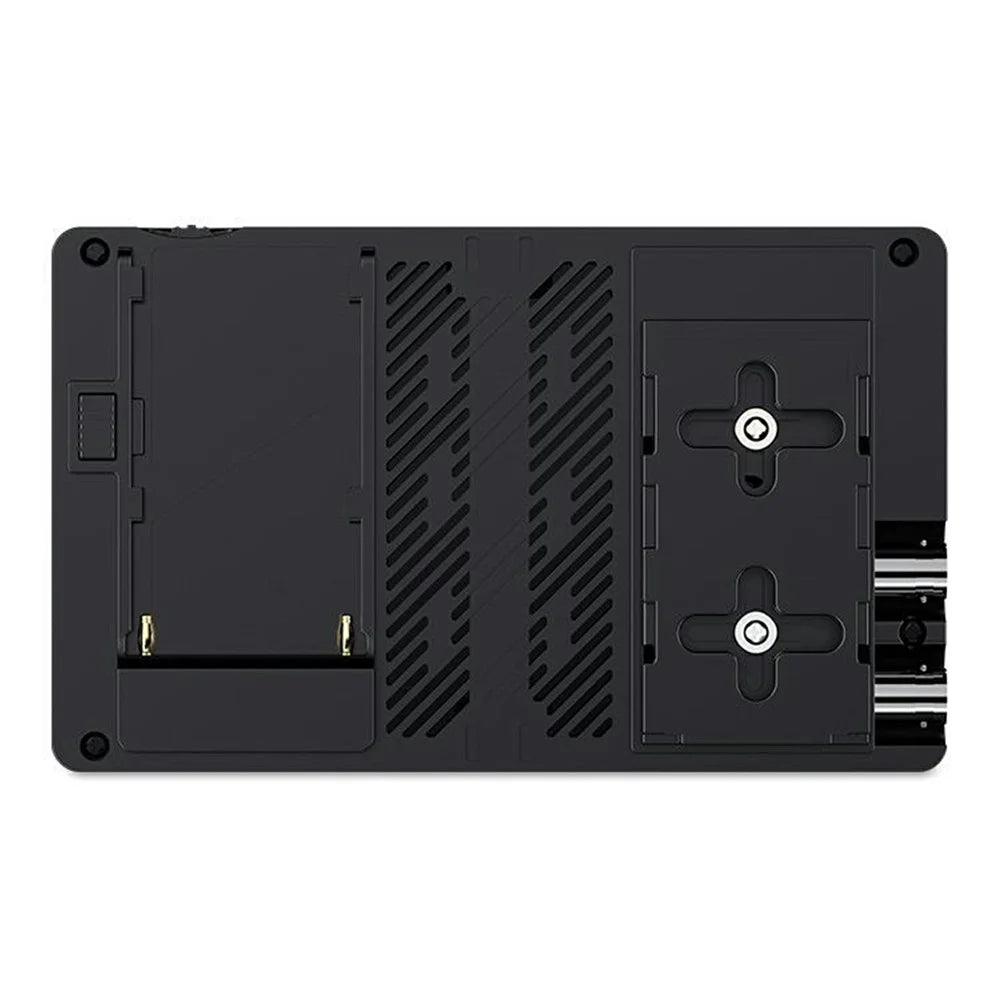

- 【Flexible Power Options】 Multiple power methods including DC 12V input, Type-C 5V input, and NP-F battery plate for versatile use in various scenarios.
Specifications:
- Model: FW568S
- Screen Size: 6" IPS
- Resolution: 1920 x 1080 pixels
- Pixel Pitch: 0.069 (H) x 0.069 (V) mm
- Aspect Ratio: 16:9
- Brightness: 450 cd/m²
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

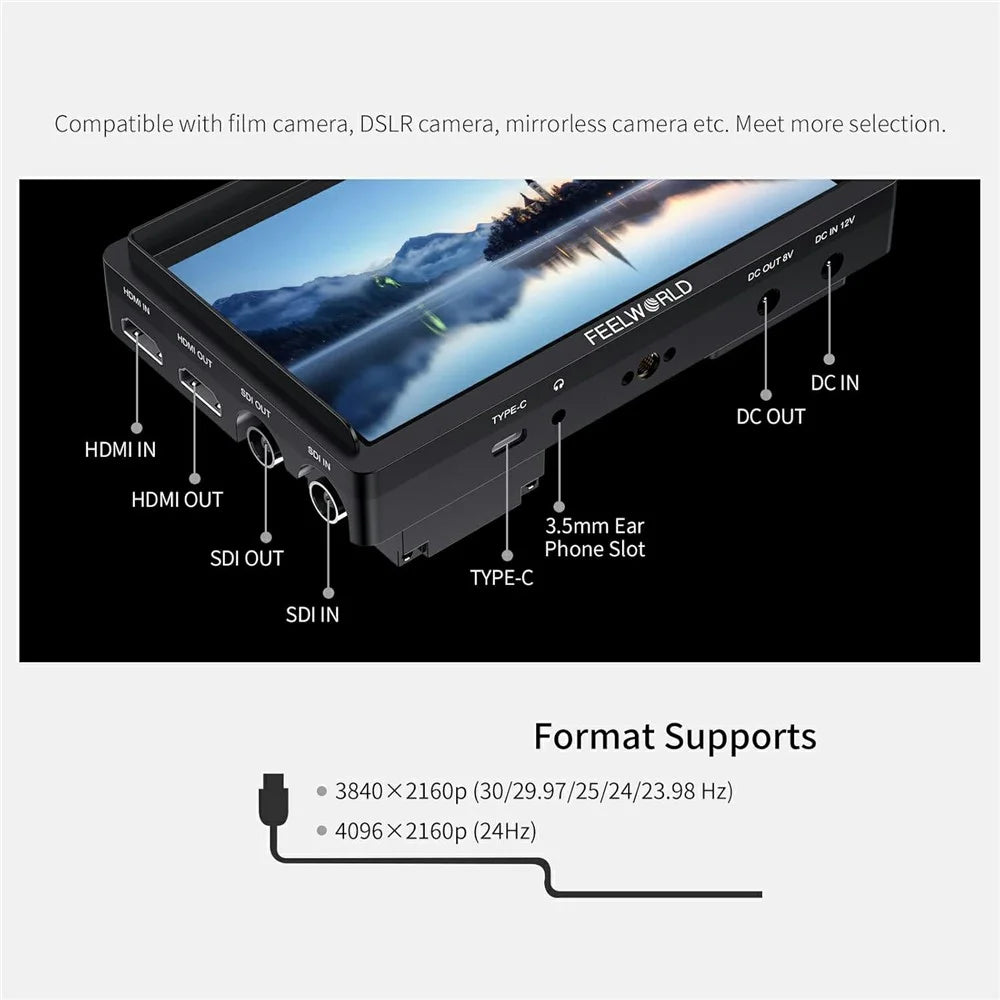

- Input:
- 1 x BNC: 3G-SDI
- 1 x HD: HD
- 1 x Type-C: 5V Type-C (Note: Please use a 5V/2A or higher Type-C power supply)
- Output:
- 1 x BNC: 3G-SDI
- 1 x HD: HD
- 1 x DC OUT: 8V (Outer Diameter 5.5mm, Inner Diameter 2.1mm; can power DSLR or mirrorless cameras)
- Audio: 3.5mm Headphone Jack
- Supported SDI Formats:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
- Supported HD Formats:
- 480i / 576i / 480p / 576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 3840x2160p (30/29.97/25/24/23.98 Hz)
- 4096x2160p (24 Hz)
- Input Voltage: DC 7–24V
- Power Consumption: ≤9W
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -30°C to 60°C
- Mounting Method: 1/4"-20 Standard Quick Release Screw Holes (Right Side, Top, Bottom)
- Dimensions: 151 x 92 x 31.4 mm
- Weight: 203 g
Note: Please press the power button to turn off the device. Do not unplug the power cable directly.
In the box
- 1 x Monitor
- 1 x Micro HD Cable

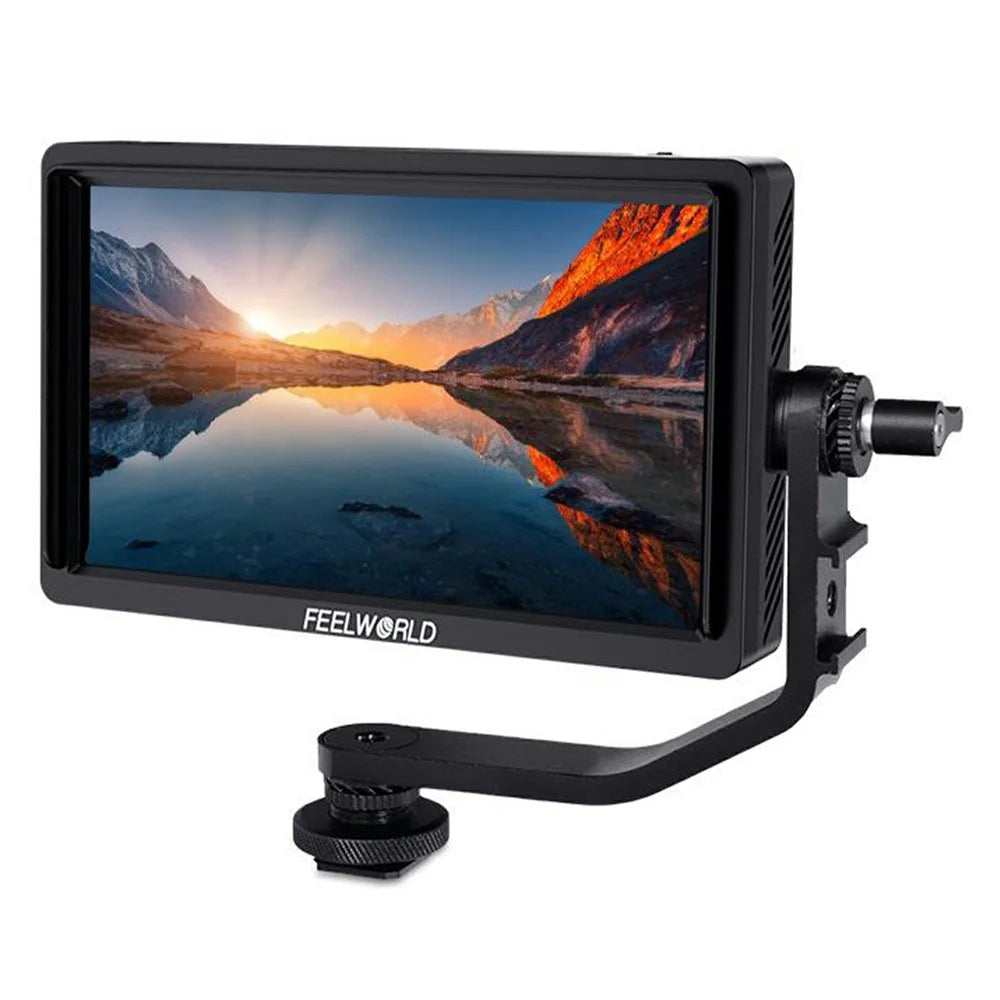

- 1 x L-shaped Mounting Bracket
- 1 x Sun Hood
- 1 x Type-C to USB Cable
- 1 x English Manual
Specifications
- SKU
- 6899003950A
- Colour
- As Shown
- Package dimensions
- 19 × 13 × 9 cm
- Gross weight
- 0.74 kg
- Units per pack
- 27
- Dispatch
- 1 - 3 days
- Category
- Photo & Video › Camera Accessories › Universal Camera Accessories
What’s in the box
- 1 Monitor
- 1 Micro HD Cable
- 1 L-shaped Mounting Bracket
- 1 Sun Hood
- 1 Type-C to USB Cable
- 1 English Manual
