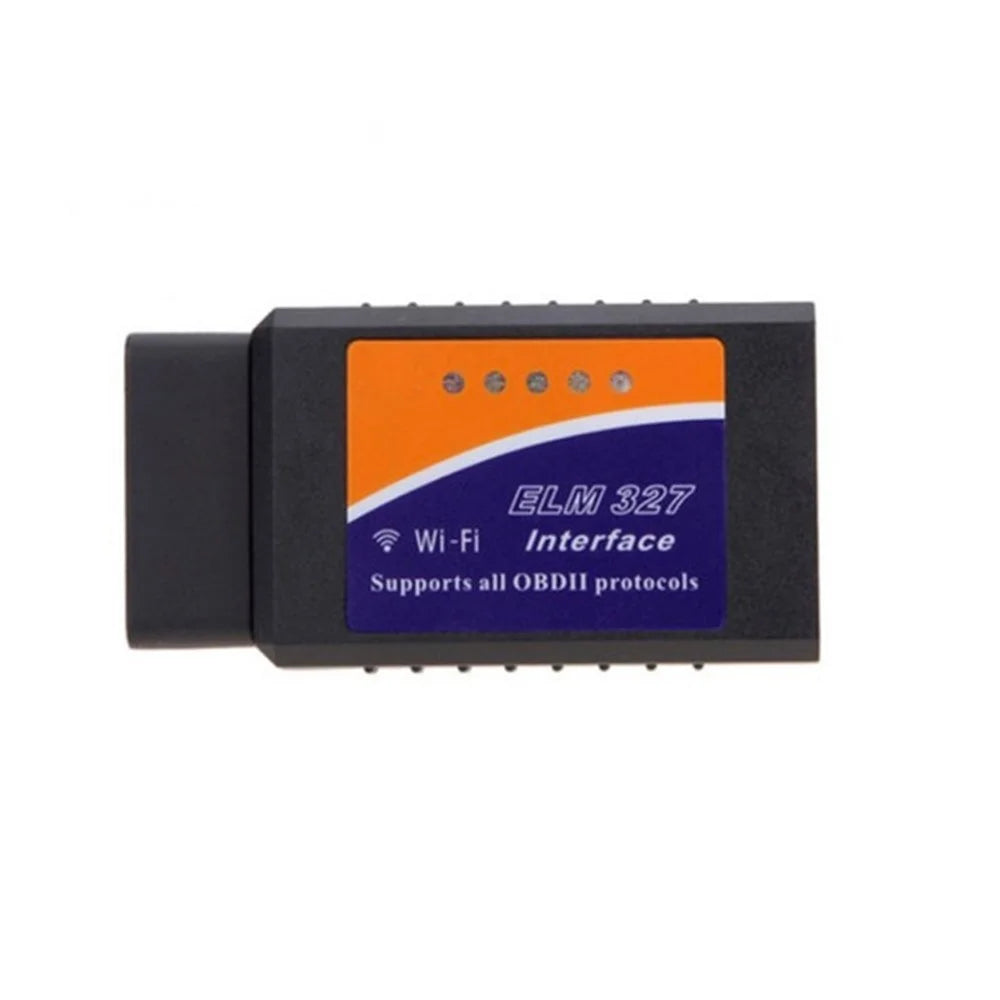

ELM327 WiFi OBD2 Scanner Diagnostic Tool Code Reader Check Engine for Android iOS Support 9 Protocols - 1
ELM327 WiFi OBD2 Scanner Diagnostic Tool Code Reader Check Engine for Android iOS Support 9 Protocols - 1

ELM327 WiFi OBD2 Scanner Diagnostic Tool Code Reader Check Engine for Android iOS Support 9 Protocols

by TVCMall
$260.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi. Supports All OBD2 Protocol works on IOS, Android, Symbian, and Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database)

  • Read diagnostic trouble codes
  • Clear trouble codes and turn off the MIL ("Check Engine" light)
  • Display current sensor data
  • Engine RPM
  • Calculated Load Value
  • Coolant Temperature
  • Fuel System Status
  • Vehicle Speed
  • Short Term Fuel Trim
  • Long Term Fuel Trim
  • Intake Manifold Pressure
  • Timing Advance
  •  Intake Air Temperature
  • Air Flow Rate
  • Absolute Throttle Position
  • Oxygen Sensor Voltages / Associated Short Term Fuel Trims
  • Fuel System Status
  • Fuel Pressure
  • Why Choose OBD2 Wifi Scanner:
  • 1. Software Version: V2.1 (depending on the software
  • 2. Hardware Version: V1.5
  • 3. Works with all OBD-II compliant vehicles
  • 4. Wireless (Wifi)
  • 5. Support Four operating platforms (IOS, Android, Symbian, Windows)
  • Supported Protocols:
  • 1.SAE J1850 PWM (41.6Kbaud)
  • 2.SAE J1850 VPW (10.4Kbaud)
  • 3.ISO9141-2 (5 baud init, 10.4 Kbaud)
  • 4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • 5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • 6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • 7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • 8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • 9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Specification:

  • SSID: WiFi_OBDII

  • IP: 192.168.0.10

  • Port: 35000

  • Communication: WiFi

  • Master Chip: ST

  • System: for IOS, Android, Symbian, Windows

  • Voltage: 9v~16v

  • Current: 65mA

  • Standby Current: 45mA

  • Size: 45mm * 25mm * 75mm

  • Compatible systems:

  • Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.

  • Compatible software:

  • Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

  • For IOS: Auto Doctor, Mini OBDII

  • For Android: Torque, Dash Command, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

  • Symbian: OBD Scope

In the box

  • 1 x Mini OBD2 Scanner
  • 1 x Box
