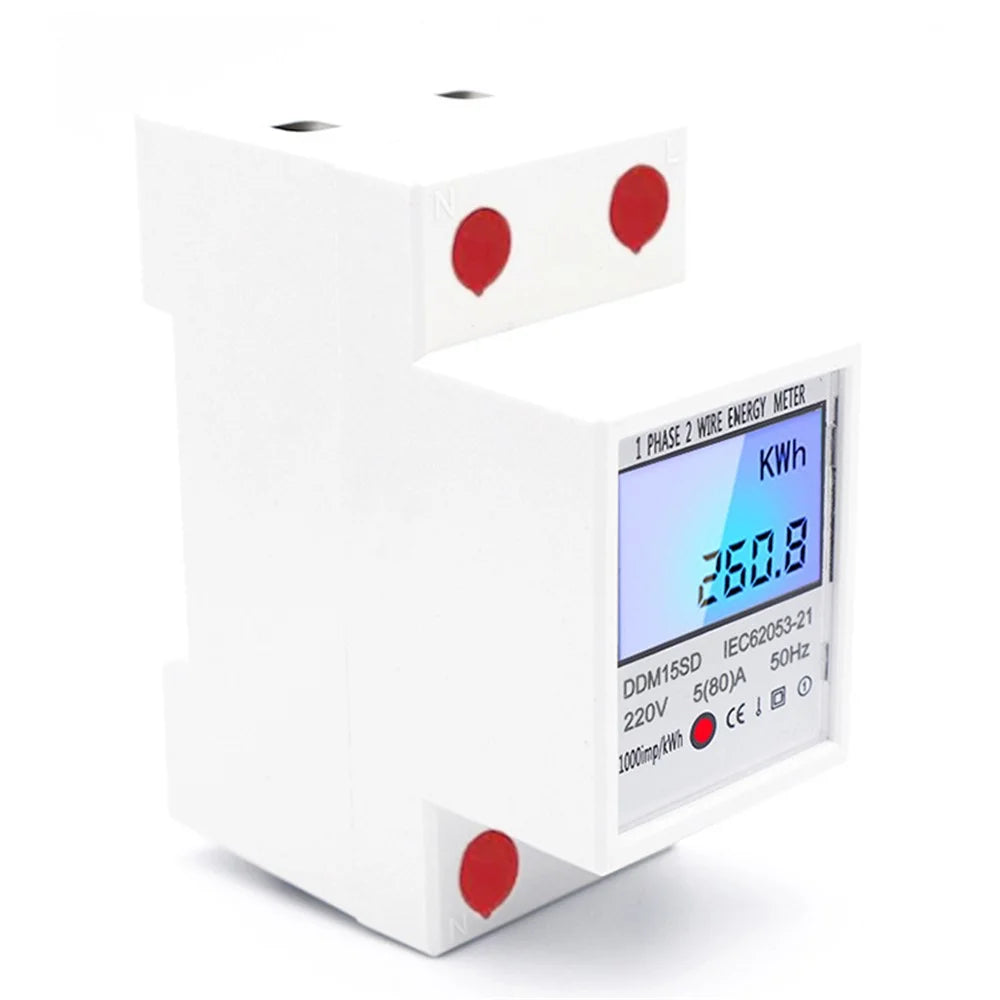

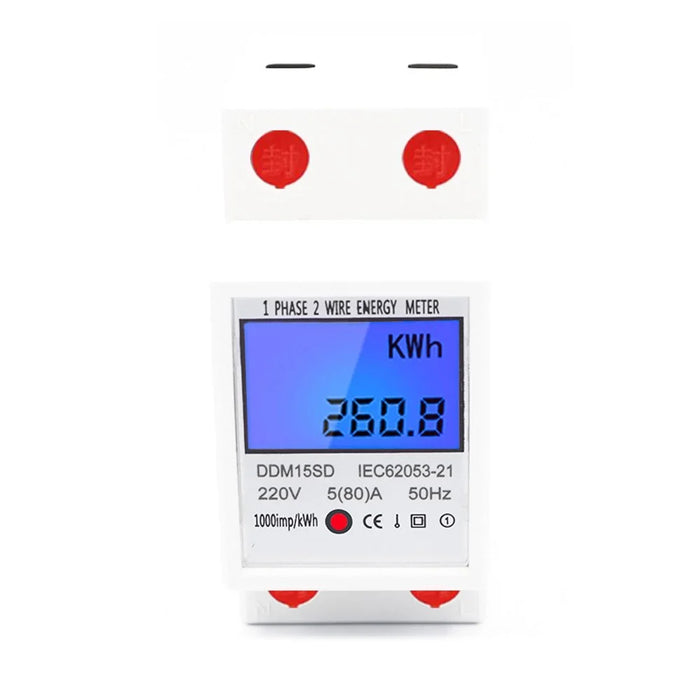

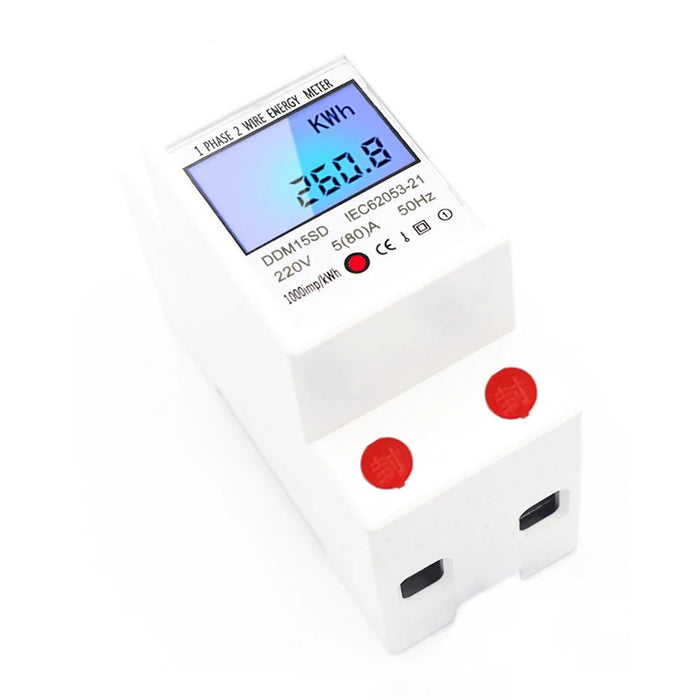

Digital Electricity Usage Monitor 5-80A Electric Meter Kilowatt Power Consumption Tester - DDM15SD - 1
Digital Electricity Usage Monitor 5-80A Electric Meter Kilowatt Power Consumption Tester - DDM15SD - 1

Digital Electricity Usage Monitor 5-80A Electric Meter Kilowatt Power Consumption Tester - DDM15SD

by TVCMall
$410.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

  • LCD backlight display, easy to read

  • It can display power, voltage, current, frequency, power

  • Embedded end caps ensure a safe power supply

  • Measure electric energy accurately and reliably

  • Good anti-electromagnetic interference, stable performance

  • 35mm DIN according to DIN EN50022

  • 17.5mm wide, in line with DIN43880 standard

Specifications:

  • Model: DDM15SD/No reset function

  • Model: DDM36SD/reset function

  • Material: Plastic

  • Accuracy: First Grade

  • Voltage: 220V/230V, 50/60Hz

  • Current: 5(80)A

  • Insulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage

  • Display: LCD Backlight

  • Installation: 35mm DIN Rail

  • Wiring Method: Up-out and down-in/up-in and down-out

  • Power: 17000W

  • Environment Temperature: -20℃~+50℃

  • Pole Width: 17.5mm/0.7in

  • Functions: Display electricity, voltage, current, frequency, power factors

In the box

  • 1 x Electricity Usage Monitor
  • 1 x English and Chinese User Manual
