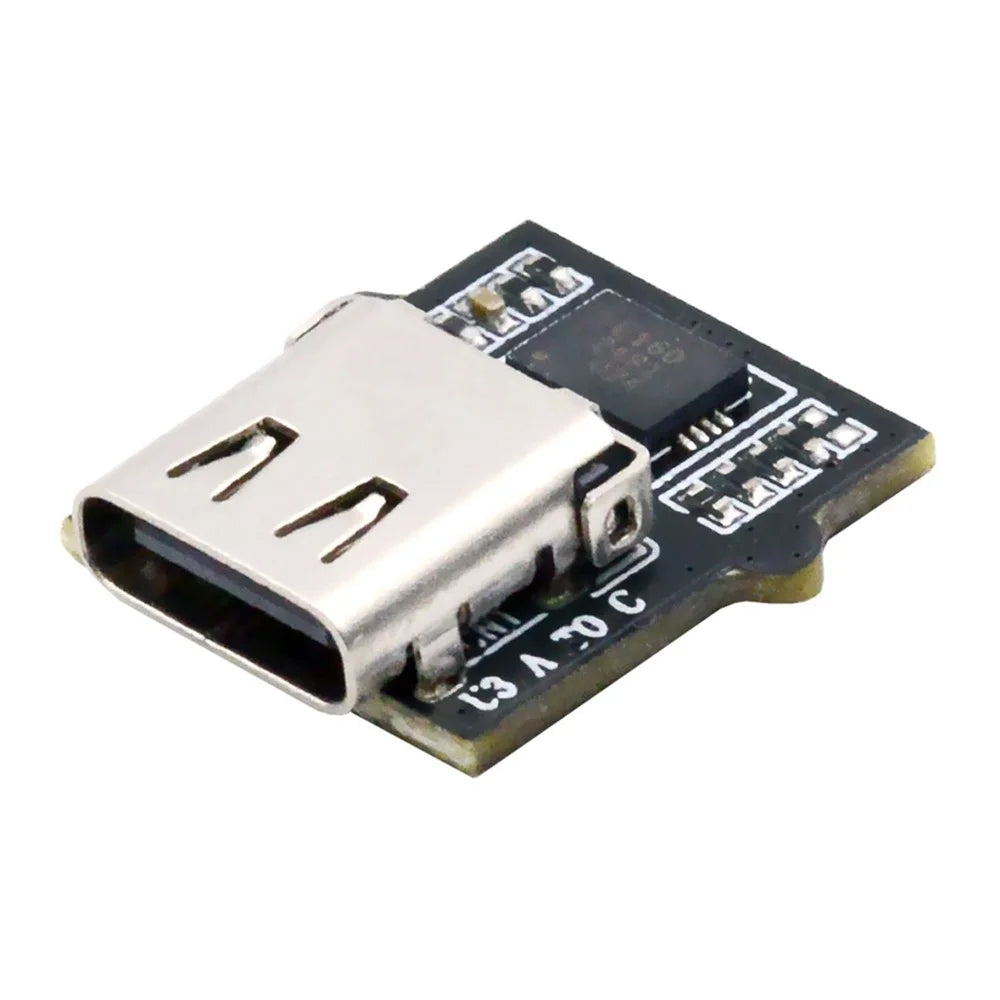

CN-031 DIY Type-C Female Socket Connector with VL160 Chipset Replace for USB3.0 Type-A DIP Female
R250
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description

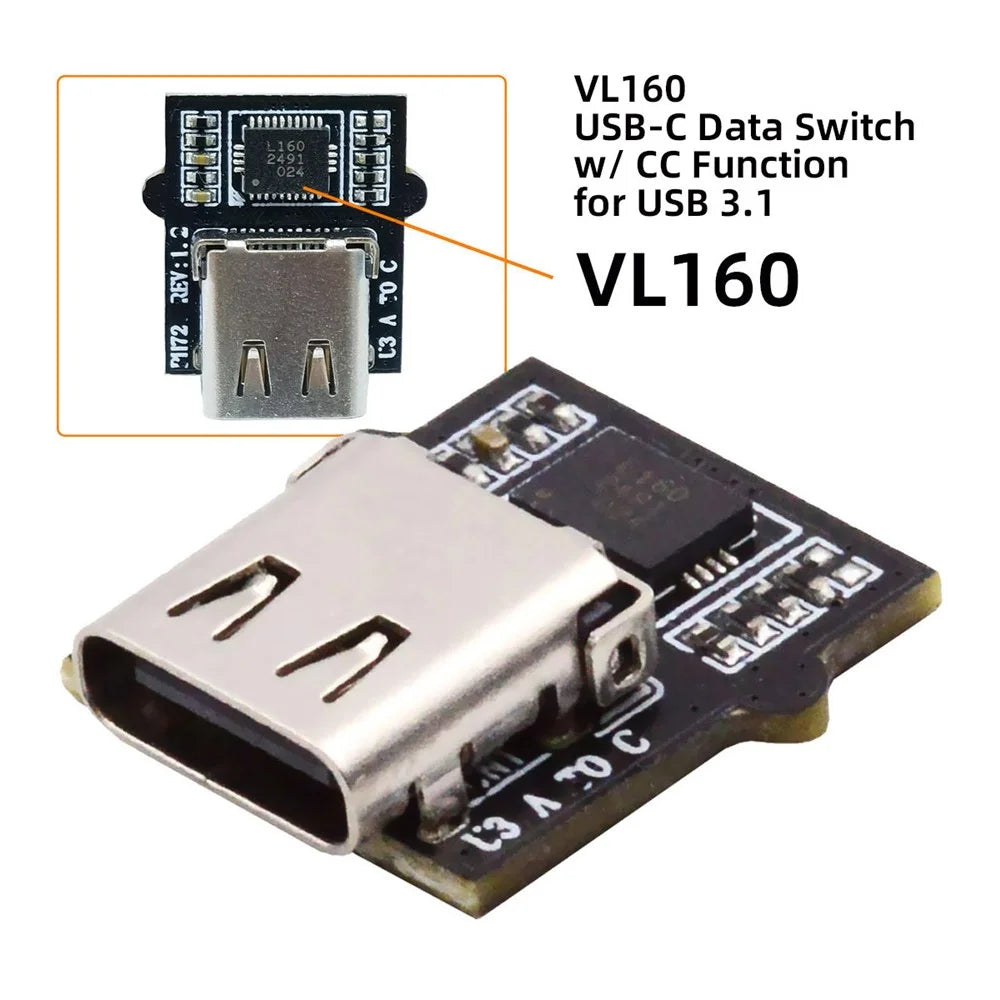

- [Build-in VL160 chipset] VL160 is USB Type-C 2:4 differential channels mux switch and integrated CC logic function for USB 3.1 type-C application, for mux switch signal performance supports up to USB 3.1. VL160 integrated internal power switch support Vconn 5V supply and with over current protection

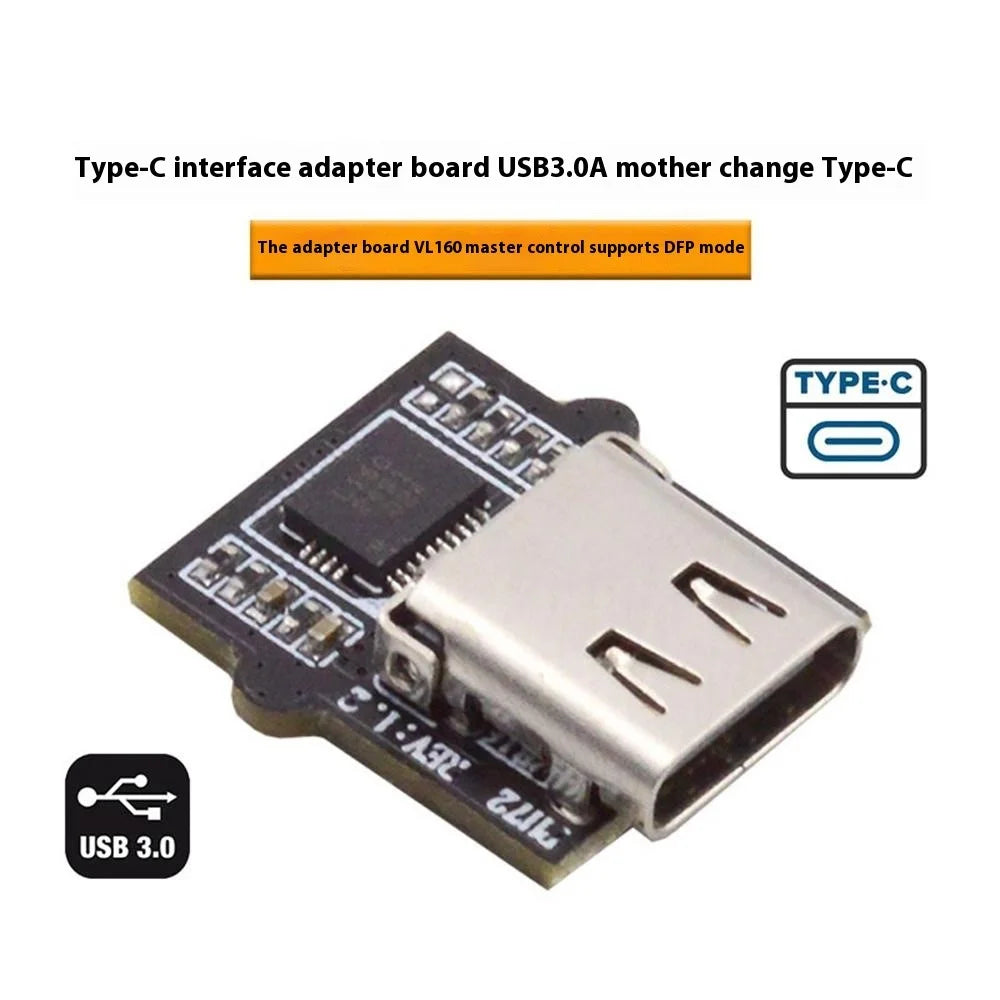

- [VL160 CC Functional Define Role] Device (UFP, default) or Host (DFP),Plug Orientation Flipped or Not, and control Switch SEL
- [Fast power] Offers a throughput of up to DC 5V 3A when used with a Type-C USB2.0 power and device

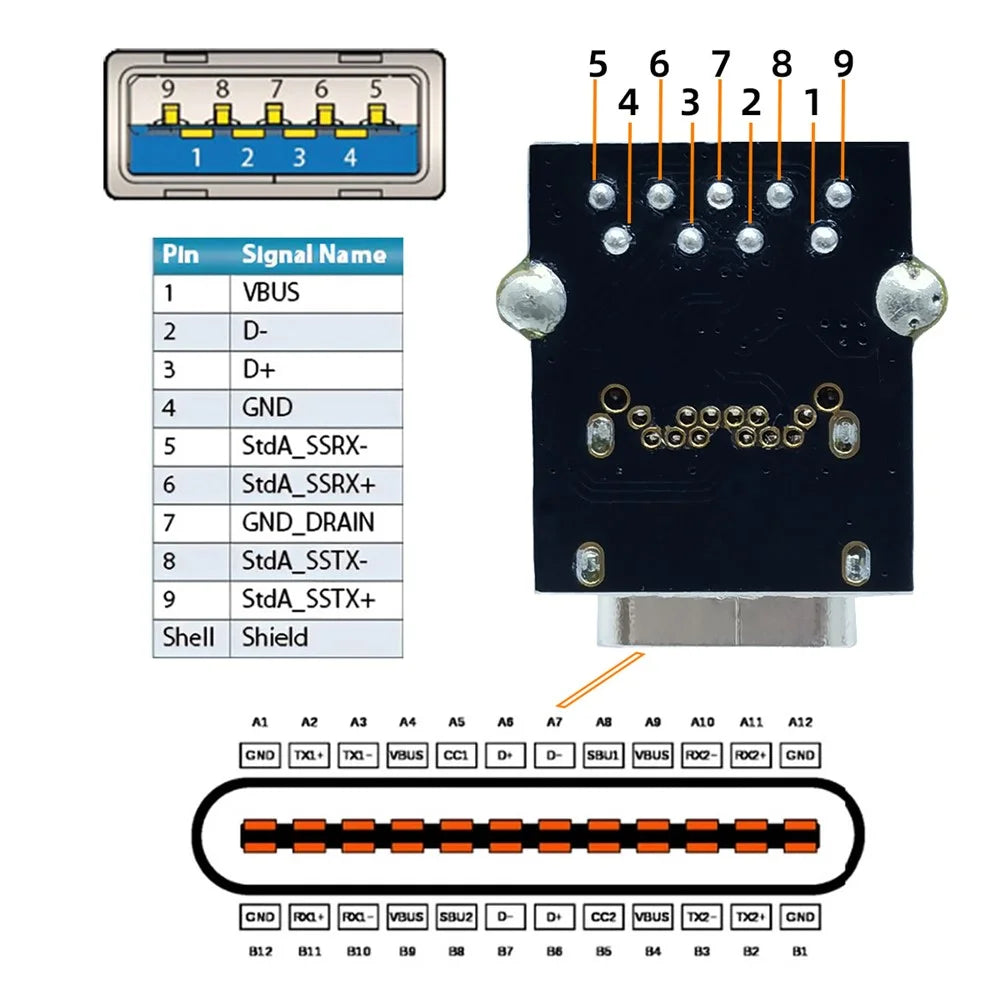

- [5Gbps Data transfer] Support 5Gbps data rating and 5V power. Compliant with USB Base Specification 3.1/3.0, Output USB3.0 Type-A interface and Type-C interface. Compliant with USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps)
- [Peripherals] Connect PCI-e card, Motherboard, laptops, and any peripheral using a Type-A connector

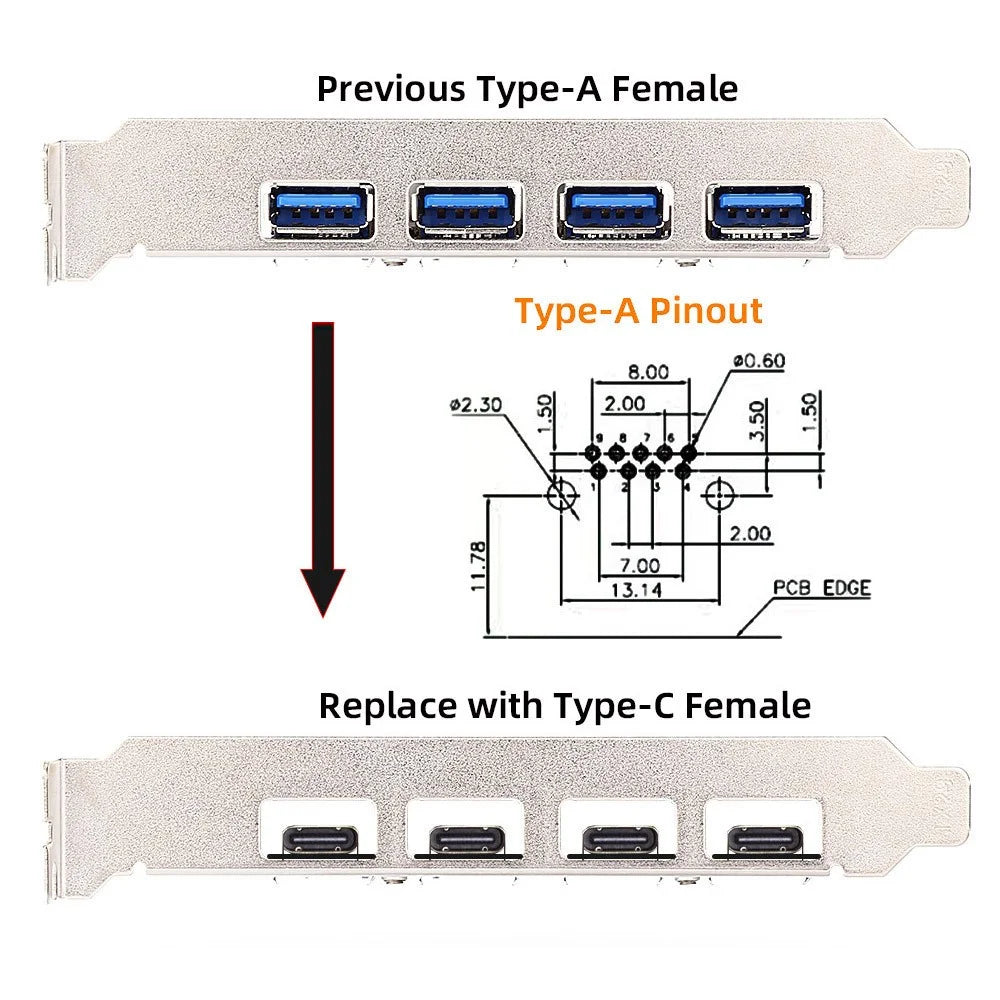

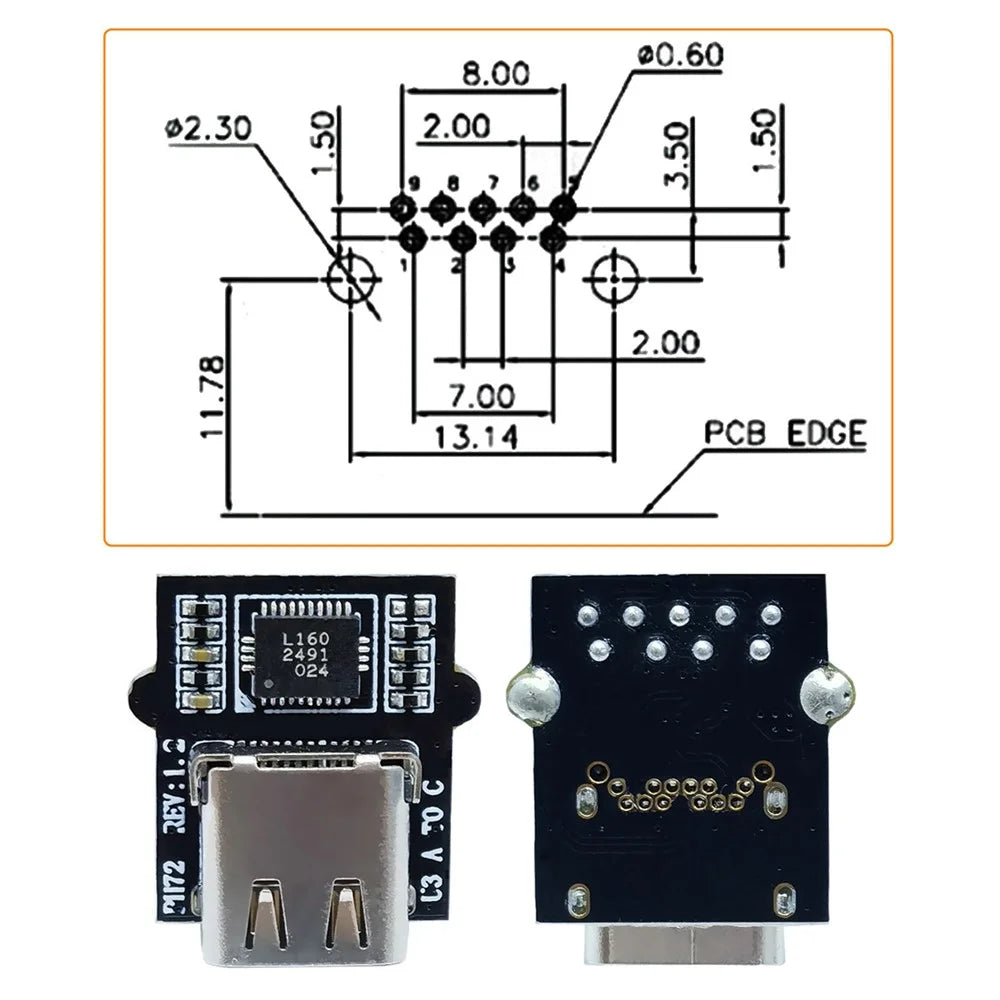

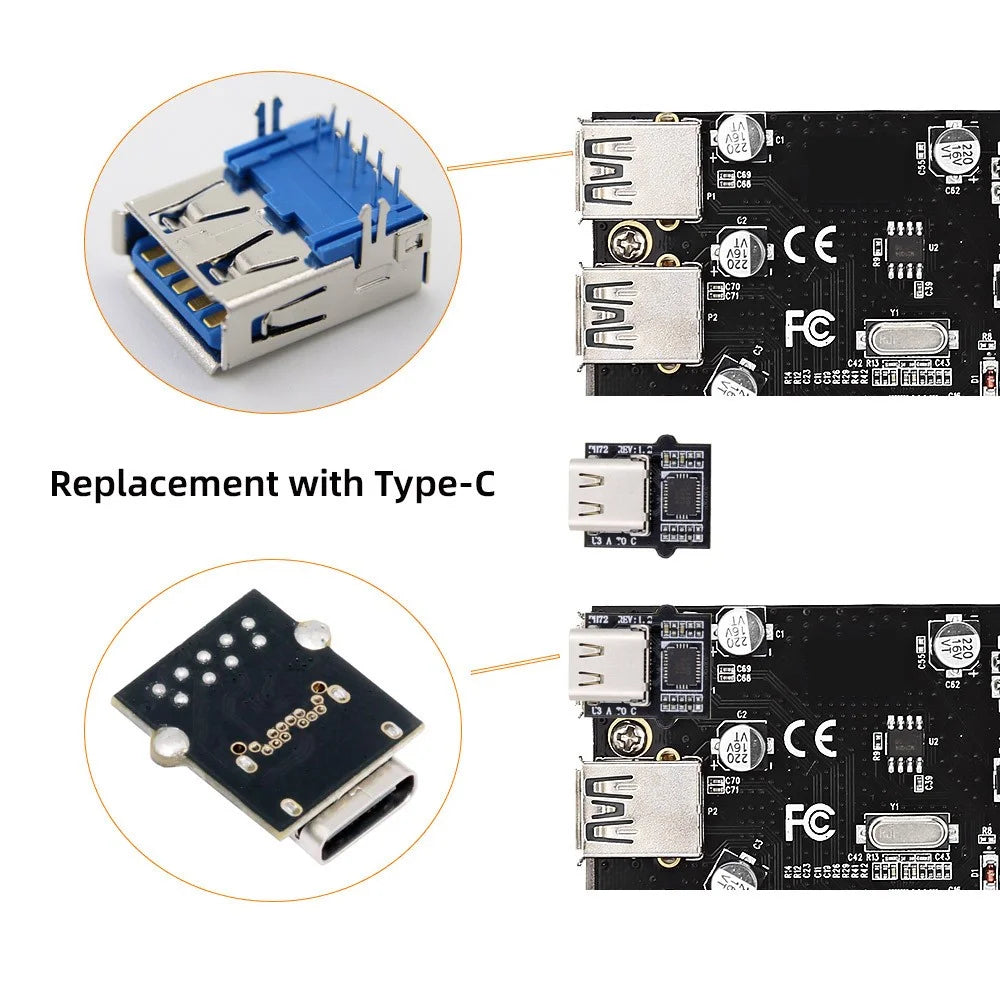

Note: The Type-C female connector is replaced for USB3.0 Type-A DIP Female. For DIY OEM use. You need to solder the connector yourself.
In the box
- 1 x Connector
Specifications
- SKU
- 6199000923A
- Colour
- As Shown
- Package dimensions
- 11 × 11 × 1 cm
- Gross weight
- 0.0 kg
- Units per pack
- 600
- Dispatch
- 1 - 3 days
- Category
- Computer & Networking › Computer Peripherals › Cables & Adapters
What’s in the box
- 1 Connector
