BSIDE Digital Multimeter 9999 Counts Auto Range Ohmmeter Smart DC AC Voltage Capacitor Resistance Diode NCV Hz Tester Detector - S10 / Black - 1
BSIDE Digital Multimeter 9999 Counts Auto Range Ohmmeter Smart DC AC Voltage Capacitor Resistance Diode NCV Hz Tester Detector - S10 / Black - 1

BSIDE Digital Multimeter 9999 Counts Auto Range Ohmmeter Smart DC AC Voltage Capacitor Resistance Diode NCV Hz Tester Detector - S10 / Black

by BSIDE
$780.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

  • Color LCD Display: The color LCD display greatly enhance the reading experience, very easy to read

  • 3 Results Display: The large screen can show 3 test results on the screen, such as voltage, frequency and analog bar

  • Automatic Identification: It can automatically identify the tested parameters and choose their required range

Specifications:

  • Material: Plastic

  • Size: 14.3 x 7 x 1.6cm

  • Display: 9999 counts

  • Screen size: 3.5 inches

  • DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V

  • AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V

  • Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω

  • Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF

  • Frequency:

  • 1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz

  • 1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz

  • Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%

  • Diode: Auto-identify diode if less than 3.0V

  • V-Alert (non-contact voltage detection): beep alarm sounds

  • Live Check: alarm beep sounds, LCD screen display stripe

  • Continuity: If the resistance is less than 30Ω, the beeper sounds

  • S10 Power: 1.5V (AAA) x 2 (Not included)

  • S11 Power: Built-in 700mAh lithium battery

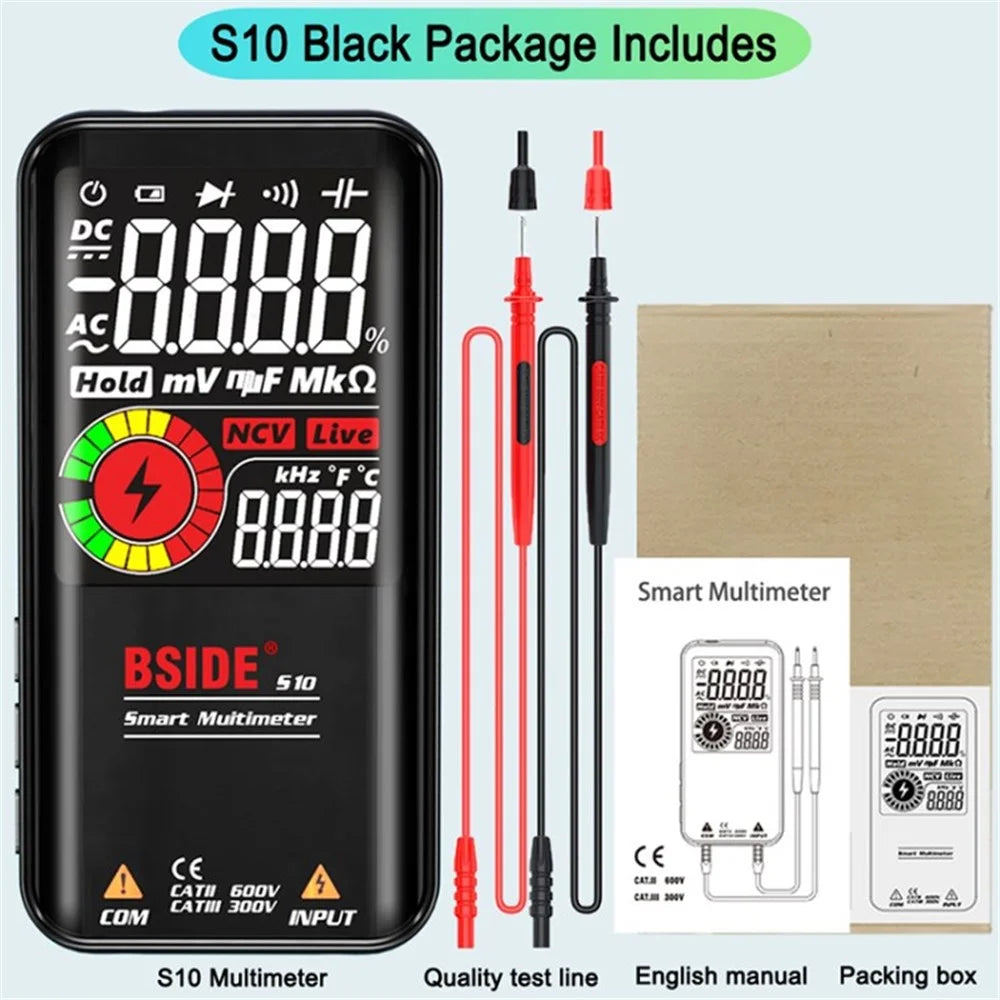

In the box

  • 1 x Multimeter
  • 1 x Test Lead
  • 1 x English User Manual
  • 1 x USB Cable
  • 1 x Cloth Bag
  • 1 x Protective Shell
