BSIDE A5 Smart Digital Multimeter Profesional AC DC Current VFC NCV Live Wire Ohm Diode Voltage Detector Meter - 1
BSIDE A5 Smart Digital Multimeter Profesional AC DC Current VFC NCV Live Wire Ohm Diode Voltage Detector Meter - 1

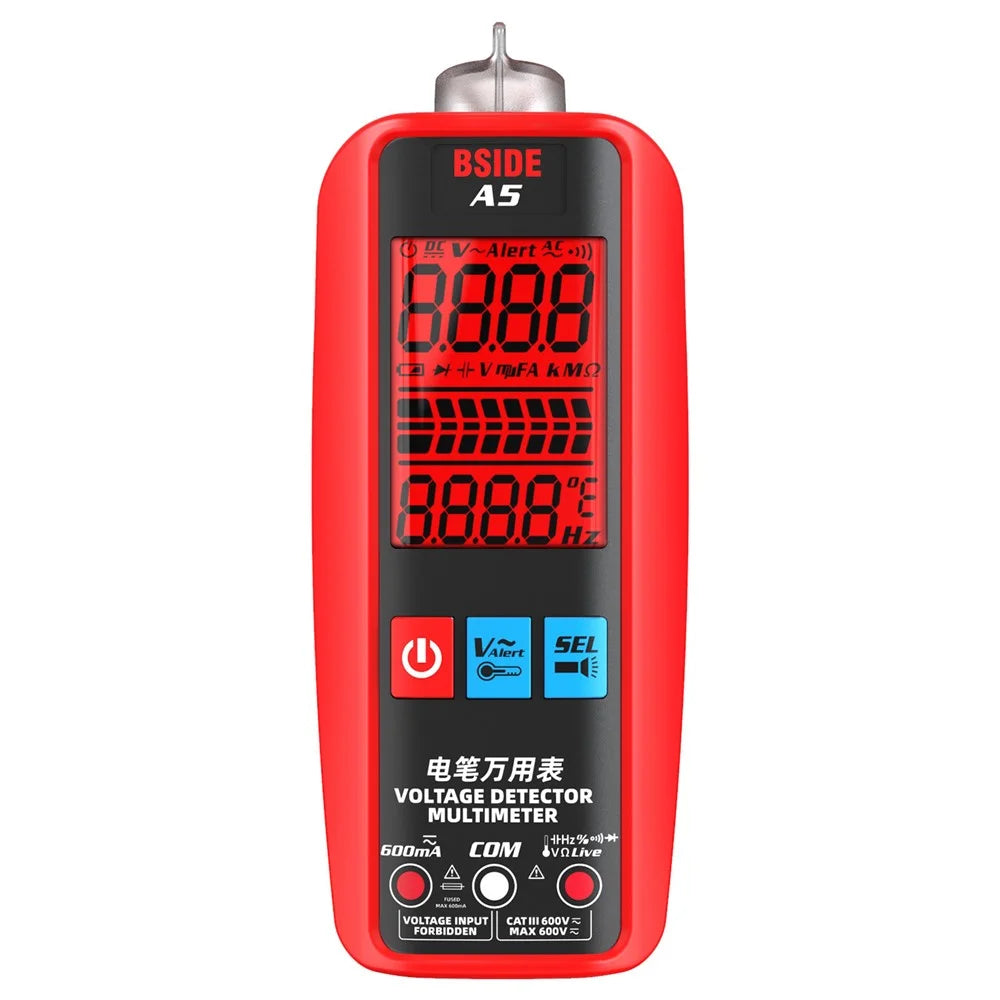

BSIDE A5 Smart Digital Multimeter Profesional AC DC Current VFC NCV Live Wire Ohm Diode Voltage Detector Meter

by BSIDE
$660.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

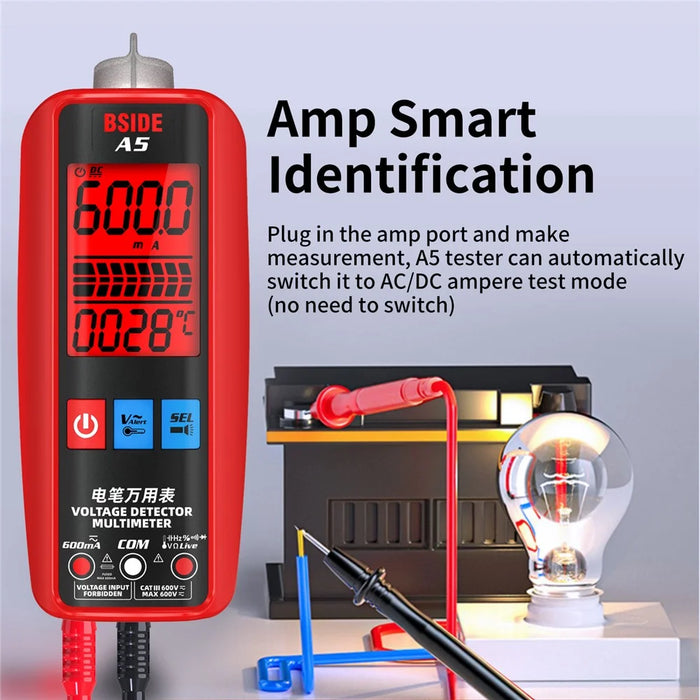

  • Amp Smart Identification: Automatically detects and measures AC/DC amperes when connected to the amp port, eliminating the need for manual switching between test modes, saving time and ensuring accurate readings

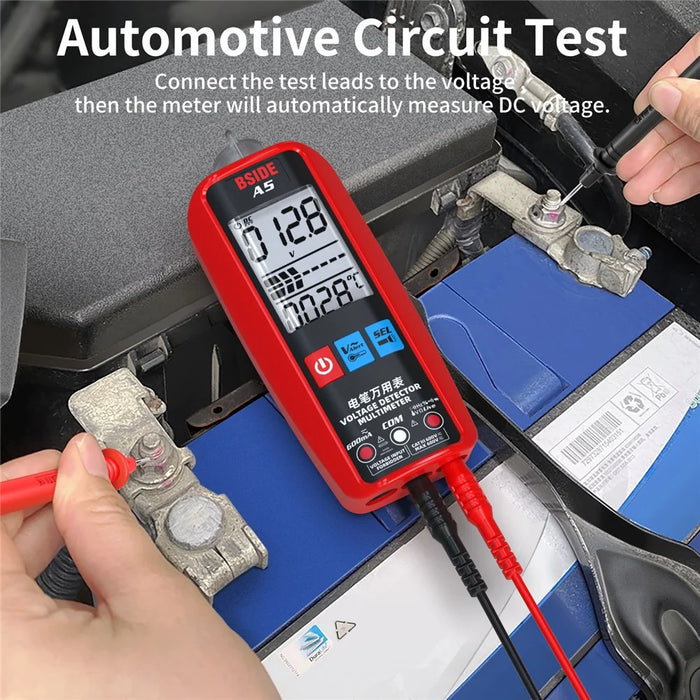

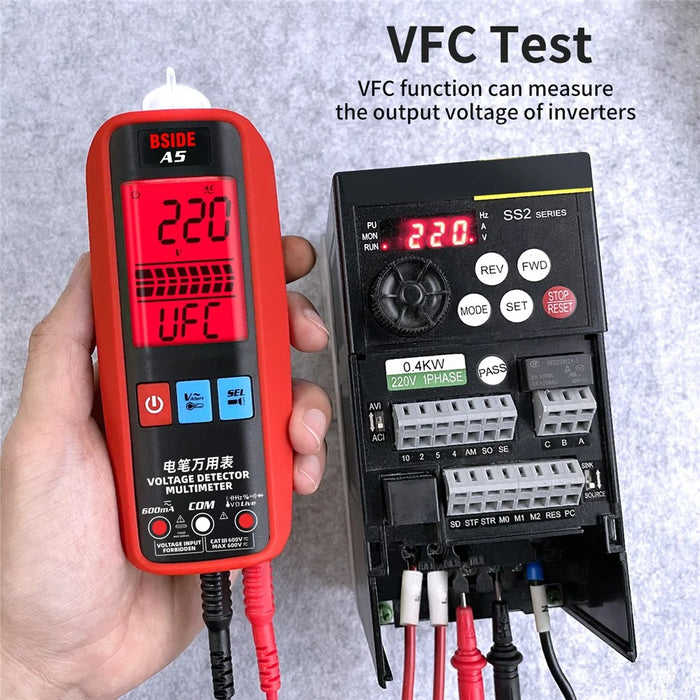

  • VFC and Automotive Circuit Testing: Special VFC function allows precise measurement of inverter output voltage. The device also features automatic DC voltage measurement for automotive circuit testing, making it ideal for vehicle diagnostics and repairs

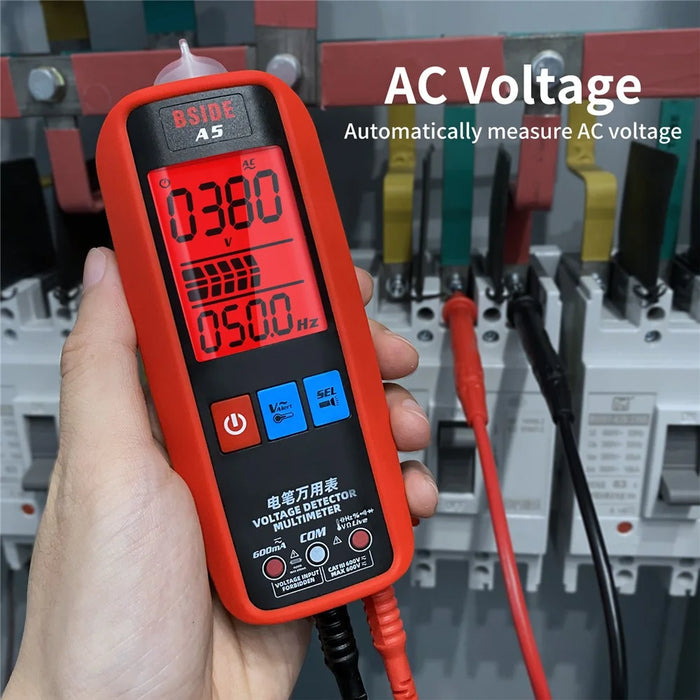

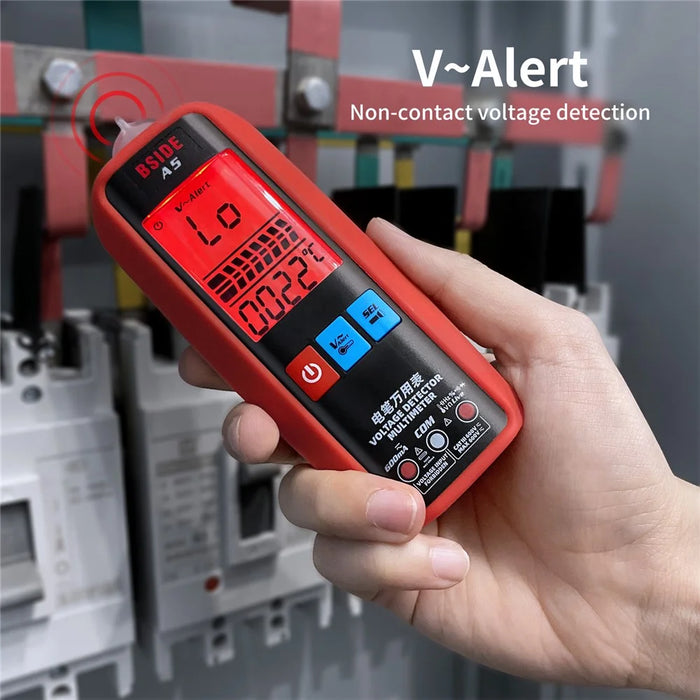

  • AC Voltage and Non-contact Voltage Detection: Automatically measures AC voltage, and the V~Alert feature provides non-contact voltage detection, enhancing safety and reducing the risk of electric shock while testing live circuits

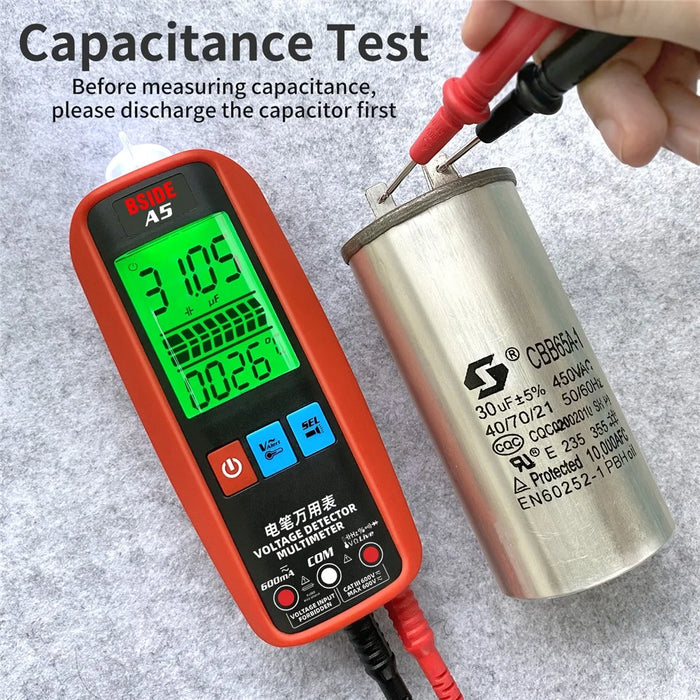

  • Capacitance Testing: Capable of testing capacitance with precision. Remember to discharge the capacitor before testing for accurate results. This feature is especially useful for electronics and electrical component analysis
  • Easy to Read Display: Comes with an extra-large, backlit display that ensures clear, easy reading even in low-light environments, providing a comfortable user experience for various measurement tasks

Specifications:

  • DC voltage: Range: 0~620V (DC mode), 0.8~620V (Auto mode), Resolution: 0.01V (Accuracy ±(0.8%+3))
  • AC voltage: Range: 0~620V (AC mode), 0.8~620V (Auto mode), Resolution: 0.01V (Accuracy ±(1.2%+5))
  • Resistance: 0Ω~6.0MΩ ±0.1 (1.2%+5)/ 6.0MΩ~60.0MΩ ±0.1 (2.0%+10)
  • Capacitance: 0.5μF~6000μF±0.001 (3.5%+8)/6000μF~60000μF±0.001 (4.5%+10)
  • DC current: 1.0~610mA±0.1 (1.5%+3)
  • AC current: 1.0~610mA(40~1000Hz)±0.1 (1.5%+3)
  • VFC voltage: 10V~620V±1 (4.0%+3)
  • Temperature: 0~50℃±1 (1.5%+2)
  • K-type thermocouple: 50~1000℃±1 (2.0%+3)
  • Frequency: 0Hz~9999Hz±0.001Hz (2.0%+10)
  • Diode: less than 3.0V diode shows approximate forward voltage
  • Automatic shutdown: 15 minutes
  • On-off buzzer: less than 50Ω, buzzer sounds and red backlight turns on
  • Battery: 1.5V AAA *2 (not included)
  • Fuse: Current: 630mA, Size: 20*5mm
  • Dimensions: 140*54*33mm
  • Weight: 92g

In the box

  • 1 x Multimeter
  • 1 x Pair of Test Pen
  • 1 x English User Manual
