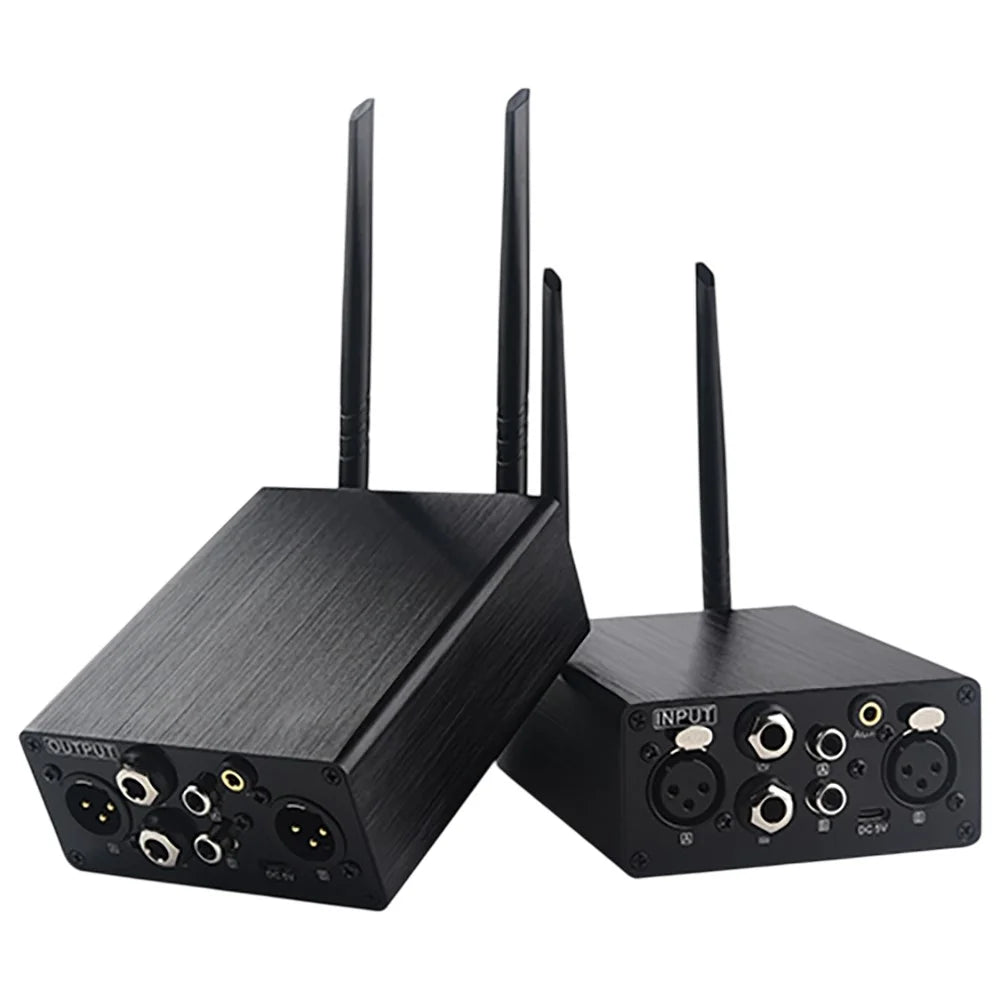

AU680A Wireless Audio Transmitter Receiver Set XLR Connector Low Latency Long Range 100M / 328ft - US Plug - 1
AU680A Wireless Audio Transmitter Receiver Set XLR Connector Low Latency Long Range 100M / 328ft - US Plug - 1

AU680A Wireless Audio Transmitter Receiver Set XLR Connector Low Latency Long Range 100M / 328ft - US Plug

by TVCMall
$3,840.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.
  • 【Versatile Audio Transmission】The AU680A XLR wireless audio transmitter and receiver set offers professional-grade audio transmission for various applications.
  • 【Long-Range Performance】Achieve up to 100 meters (328 feet) of transmission distance in open areas, ensuring reliable audio delivery in large spaces.
  • 【Low Latency】Experience near-instantaneous audio transmission with less than 0.5ms delay, perfect for live performances and real-time monitoring.
  • 【High-Quality Audio】Enjoy excellent sound quality with a 20Hz-20kHz frequency response, 95dB signal-to-noise ratio, and 90dB dynamic range.
  • 【Multiple Input Modes】The transmitter supports three input modes: stereo audio, standard microphone, and surveillance microphone, offering flexibility for different audio sources.
  • 【Adjustable Transmission Power】Choose from 1-100mW transmission power (default 100mW) to balance range and power consumption based on your needs.
  • 【Channel Selection】The transmitter offers one-way cyclic channel selection, while the receiver provides both automatic search and manual channel switching options.

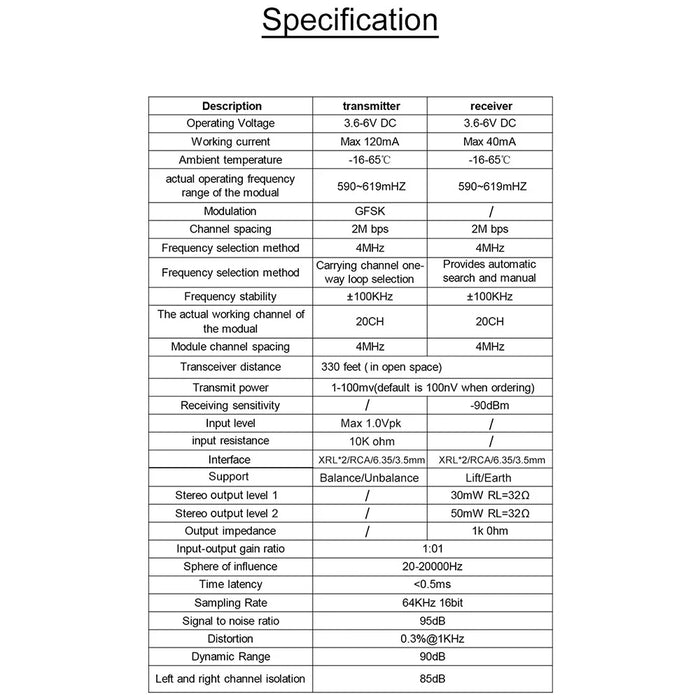

Specifications:

  • Operating Voltage: 3.6–6V DC (Transmitter & Receiver)
  • Working Current: Max 120mA (Transmitter) / Max 40mA (Receiver)
  • Ambient Temperature: -16–65°C
  • Actual Operating Frequency Range: 590–619MHz
  • Modulation: GFSK (Transmitter)
  • Channel Spacing: 2M bps
  • Frequency Selection Method: 4MHz
  • Frequency Selection: Carrying Channel One-Way Loop Selection (Transmitter) / Automatic & Manual Search (Receiver)
  • Frequency Stability: ±100KHz
  • Working Channels: 20CH
  • Module Channel Spacing: 4MHz
  • Transceiver Distance: 330 feet (in open space)
  • Transmit Power: 1–100mV (Default 100nV when ordering)
  • Receiving Sensitivity: -90dBm (Receiver)
  • Input Level: Max 1.0Vpk (Transmitter)
  • Input Resistance: 10k ohm (Transmitter)
  • Interface: XLR*2 / RCA / 6.35 / 3.5mm
  • Support: Balance / Unbalance (Transmitter), Lift / Earth (Receiver)
  • Stereo Output Level 1: 30mW RL=32Ω (Receiver)
  • Stereo Output Level 2: 50mW RL=32Ω (Receiver)
  • Output Impedance: 1k ohm (Receiver)
  • Input-Output Gain Ratio: 1:01
  • Frequency Response Range: 20–20000Hz
  • Time Latency: <0.5ms
  • Sampling Rate: 64KHz 16bit
  • Signal-to-Noise Ratio: 95dB
  • Distortion: 0.3% @ 1KHz
  • Dynamic Range: 90dB
  • Left and Right Channel Isolation: 85dB

In the box

  • 1 x Transmitter
  • 1 x Receiver
  • 1 x English User Manual
