ATS-20+ Full Band Radio Receiver 0.96 Inch Screen DSP SDR Receiver FM AM (MW and SW) and SSB (LSB and USB) Portable Radio - 1
ATS-20+ Full Band Radio Receiver 0.96 Inch Screen DSP SDR Receiver FM AM (MW and SW) and SSB (LSB and USB) Portable Radio - 1

ATS-20+ Full Band Radio Receiver 0.96 Inch Screen DSP SDR Receiver FM AM (MW and SW) and SSB (LSB and USB) Portable Radio

by TVCMall
$1,460.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

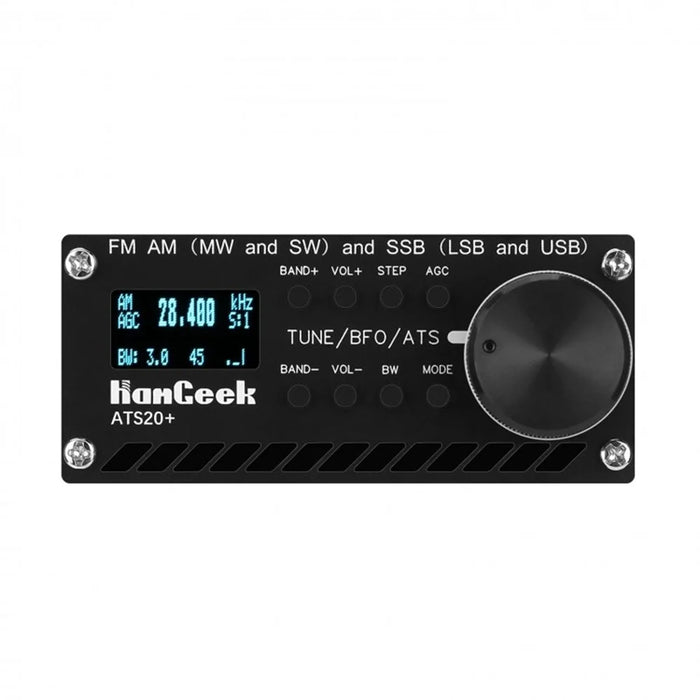

With a 0.96" OLED display, it is a quality full-band radio receiver, supporting the auto-hold setting function after power failure. Equipped with audio output, it supports 3.5mm earphones. Also, it supports 8ohm speaker 1.5W output.

  • Support auto-hold setting function after power failure
  • Internal 3.6V 800mAh polymer lithium battery for stable and sustainable power supply
  • Support USB recharging, provided using a Type-c charging cable

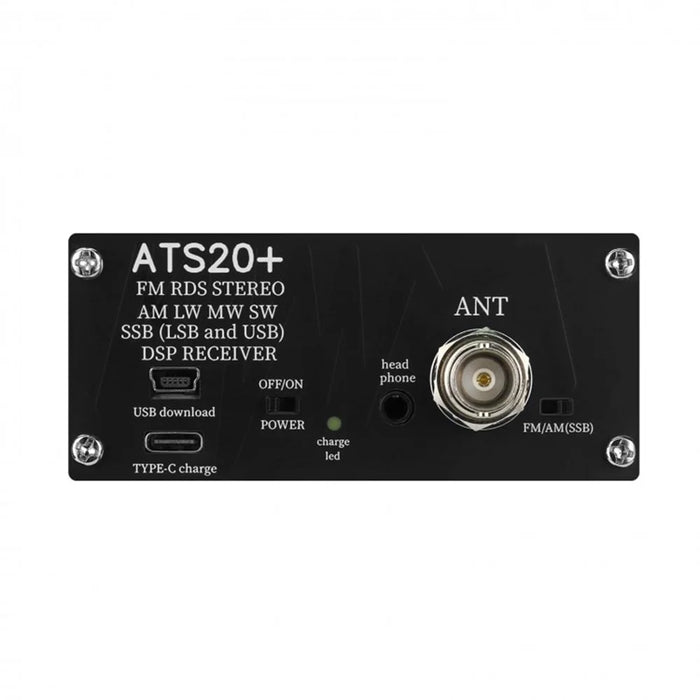

  • Equipped with audio output function, supports 3.5mm headphones
  • With 22 commercial and ham radio bands pre-configured, you can use them freely
  • Also support 8ohm speaker 1.5W output
  • Antenna interface uses SMA interface and the printed circuit board retains the SI4732 package, you can replace the chip by yourselves, and the software is compatible
  • With 22 commercial and ham radio bands pre-configured, you can use them freely
  • Support band: FM, AM (MW and SW) and SSB (LSB and USB)
  • Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz
  • BFO Control
  • Frequency step switch (1, 5 and 10KHz)
  • Supported frequency bands: FM, AM (MW and SW) and SSB (LSB and USB)

Specifications:

  • Name: Radio receiver
  • Material: printed circuit board
  • Product size: 89 * 107 * 41mm/3.50 * 4.21 * 1.61in

Band:

  • {FM_BAND_TYPE, 8400, 10800, 10430, 10},
  • {LW_BAND_TYPE, 100, 510, 300, 1},
  • {MW_BAND_TYPE, 520, 1720, 810, 10},
  • {SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
  • {SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
  • {SW_BAND_TYPE, 4500, 5500, 4850, 5},
  • {SW_BAND_TYPE, 5500, 6300, 6000, 5},
  • {SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters
  • {SW_BAND_TYPE, 7800, 10000, 9600, 5},
  • {SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters
  • {SW_BAND_TYPE, 11000, 12500, 11940, 5},
  • {SW_BAND_TYPE, 12500, 13900, 13600, 5},
  • {SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters
  • {SW_BAND_TYPE, 14500, 15900, 15300, 5},
  • {SW_BAND_TYPE, 15900, 17900, 17600, 5},
  • {SW_BAND_TYPE, 17900, 18300, 18100, 1},  // 17 meters
  • {SW_BAND_TYPE, 18300, 21900, 21200, 1},  // 15 meters
  • {SW_BAND_TYPE, 21900, 26200, 24940, 1},  // 12 meters
  • {SW_BAND_TYPE, 26200, 27900, 27500, 1},  // CB band (11 meters)
  • {SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters

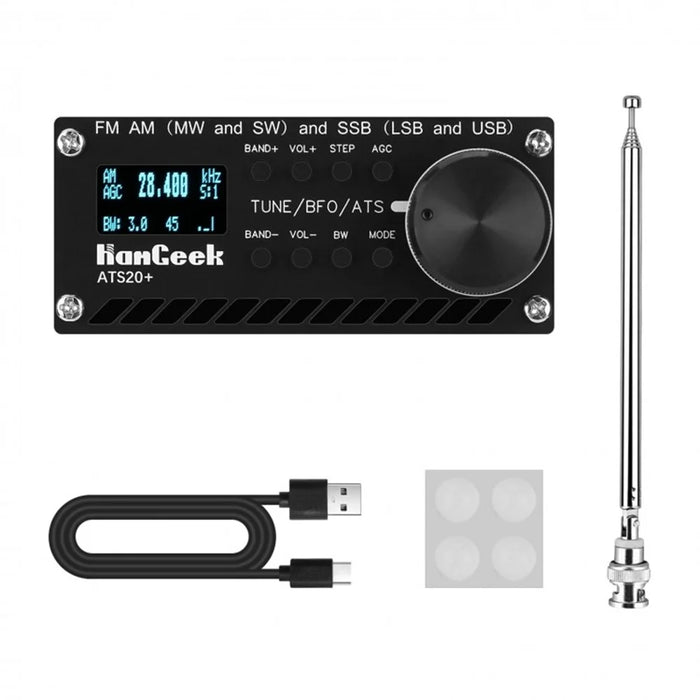

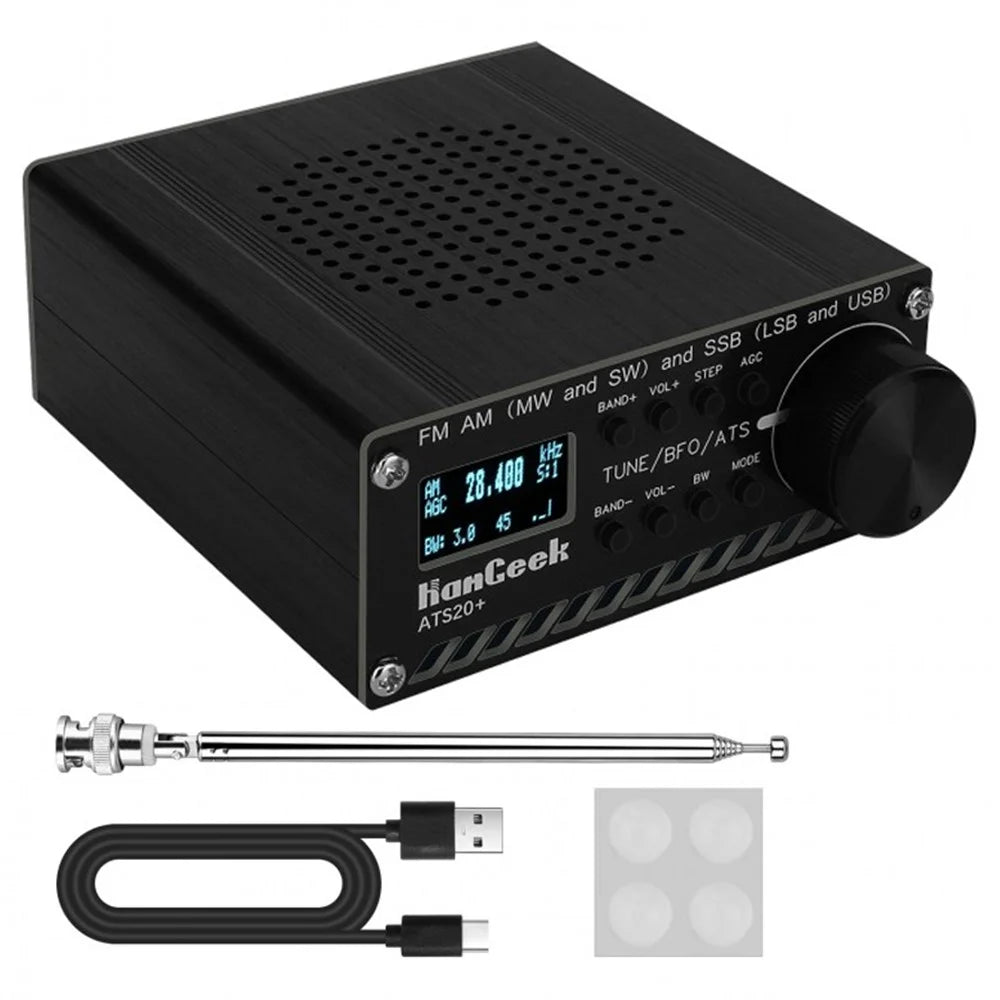

In the box

  • 1 x Transceiver
  • 1 x Charging Cable
  • 1 x Pad
  • 1 x Antenna
