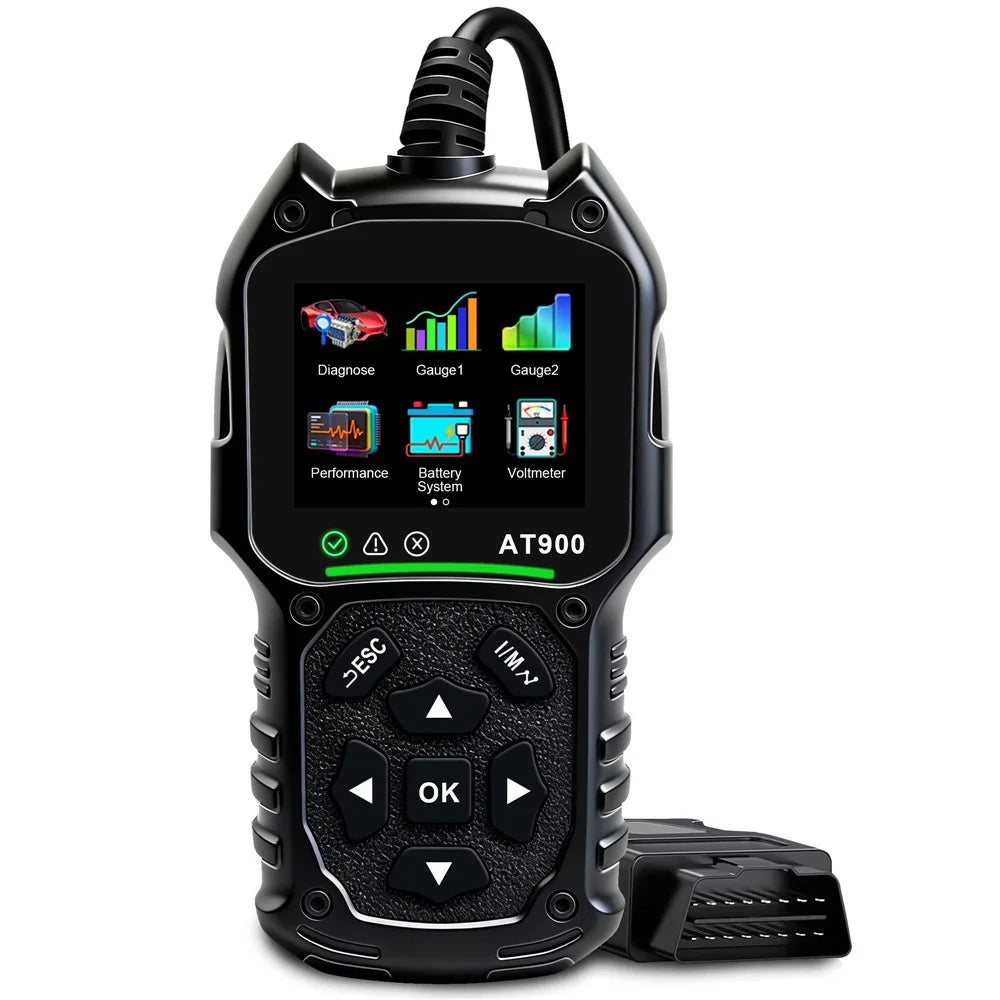

AT900 OBD2 Car Diagnostic Scanner Tool Support Cloud Print 2.4 Inch TFT Screen Battery Tester for Engine Check - Black - 1
AT900 OBD2 Car Diagnostic Scanner Tool Support Cloud Print 2.4 Inch TFT Screen Battery Tester for Engine Check - Black - 1

AT900 OBD2 Car Diagnostic Scanner Tool Support Cloud Print 2.4 Inch TFT Screen Battery Tester for Engine Check - Black

by TVCMall
$900.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

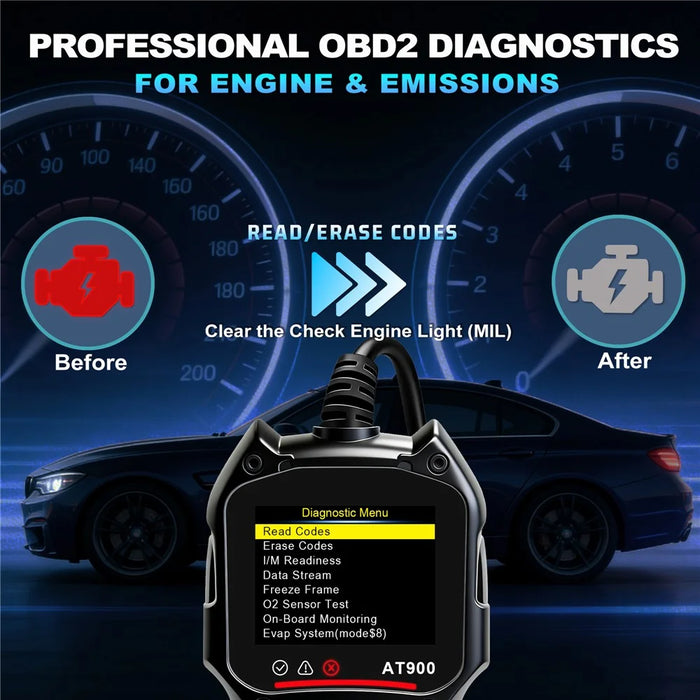

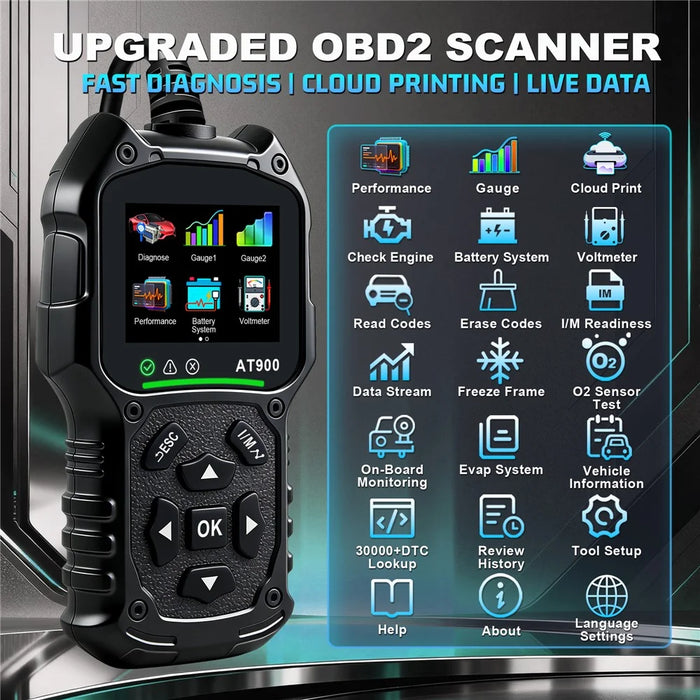

  • 【Professional OBD2 Diagnostic Tool】Advanced automotive diagnostic scanner supporting 9 OBD2 protocols for comprehensive vehicle system analysis and fault detection.

  • 【Cloud Print & Mobile Reports】Generate diagnostic reports with QR code sharing, allowing you to view and share results directly on your mobile device.

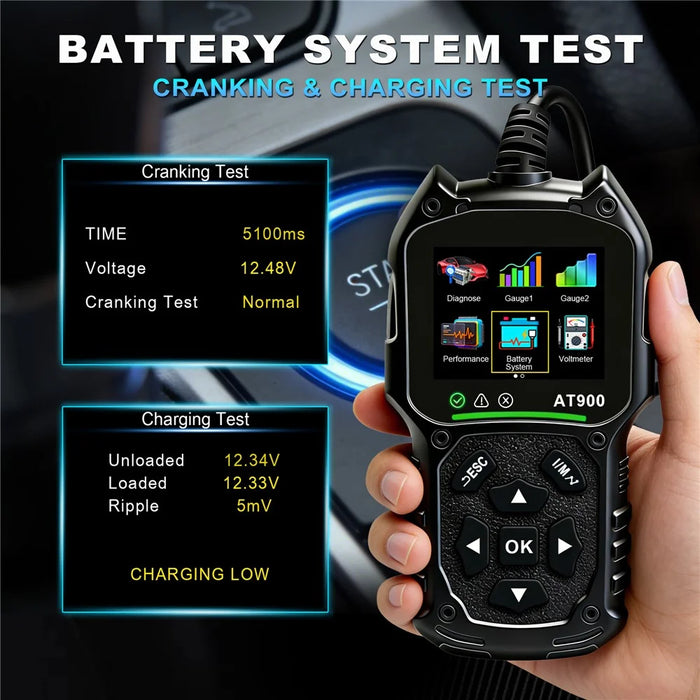

  • 【Battery & Electrical System Testing】Comprehensive battery testing including cranking test, charging system analysis, voltage measurement, and ripple detection with graphical waveforms.

  • 【Real-Time Data Stream】Display up to 4 simultaneous data streams with live parameters including RPM, coolant temperature, vehicle speed, and engine load.

  • 【Performance Testing Suite】Built-in acceleration test, braking test, and distance measurement for comprehensive vehicle performance evaluation.

Specifications:

  • Display: 2.4 inch HD TFT Color Screen
  • Supported Protocols:
  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2(5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)
  • Language Support: 11 Languages
  • Vehicle Compatibility: Asian vehicles (2008+), European vehicles (2003+), US vehicles (1996+)
  • Data Stream: Up to 4 simultaneous parameters

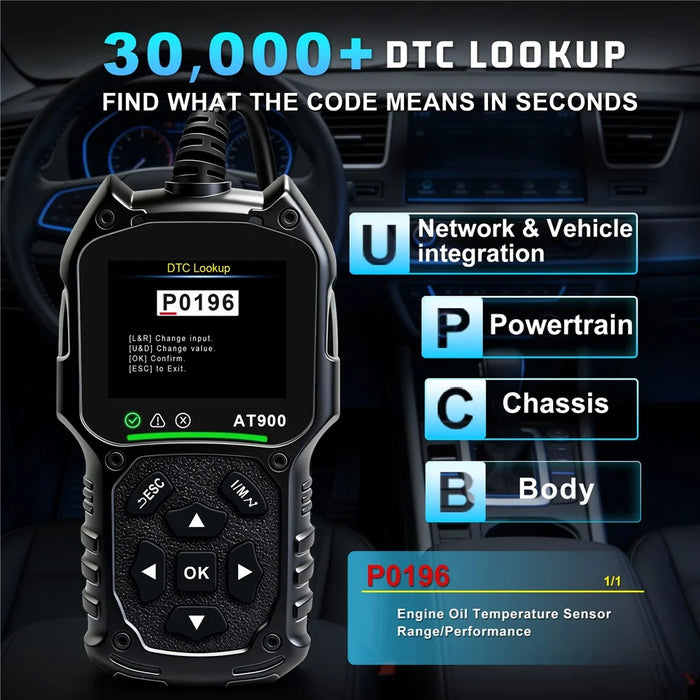

  • DTC Database: 30,000+ diagnostic trouble codes
  • Interface: 16-pin OBD2 connector
  • Special Features: Ambient lighting, Cloud printing, QR code sharing
  • Test Functions: Battery test, Cranking test, Charging test, Acceleration test, Braking test, Distance test

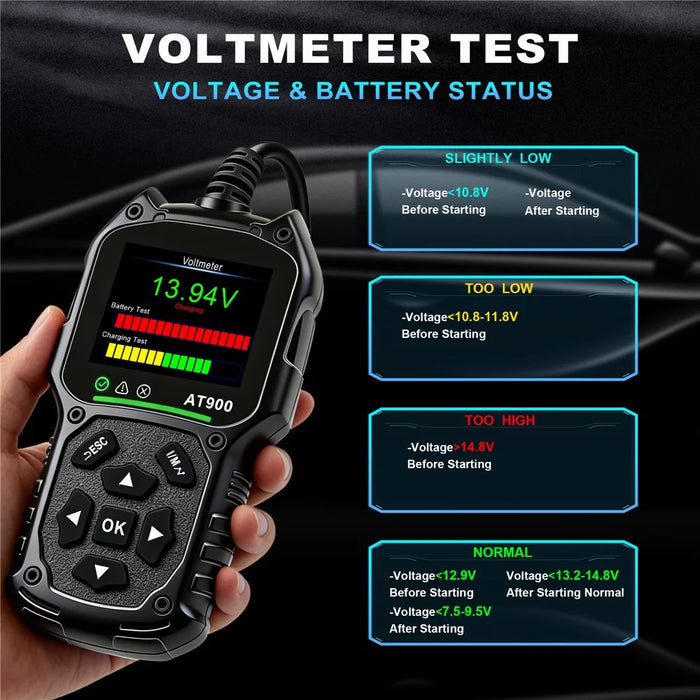

  • Voltage Range: Normal 13.2-14.8V (pre-start), 7.5-9.5V (post-start)

In the box

  • 1 x OBD2 Car Diagnostic Scanner (includes OBD Cable)
  • 1 x Multi-language User Manual (English, German, French, Spanish, Italian)
