AT700 OBD2 Scanner 2.4 Inch TFT Screen Battery Test Car Diagnostic Tool Support Cloud Print - Red - 1
AT700 OBD2 Scanner 2.4 Inch TFT Screen Battery Test Car Diagnostic Tool Support Cloud Print - Red - 1

AT700 OBD2 Scanner 2.4 Inch TFT Screen Battery Test Car Diagnostic Tool Support Cloud Print - Red

by TVCMall
$870.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

  • 【Professional OBD2 Diagnostic Tool】Advanced automotive scanner supports 9+ protocols including SAE J1850, ISO9141-2, and CAN bus for comprehensive vehicle diagnostics on 1996+ vehicles.

  • 【2.4 Inch HD TFT Color Display】High-resolution TFT color screen with ambient light sensing technology changes backlight colors (green, red, orange) based on environmental conditions for optimal visibility.

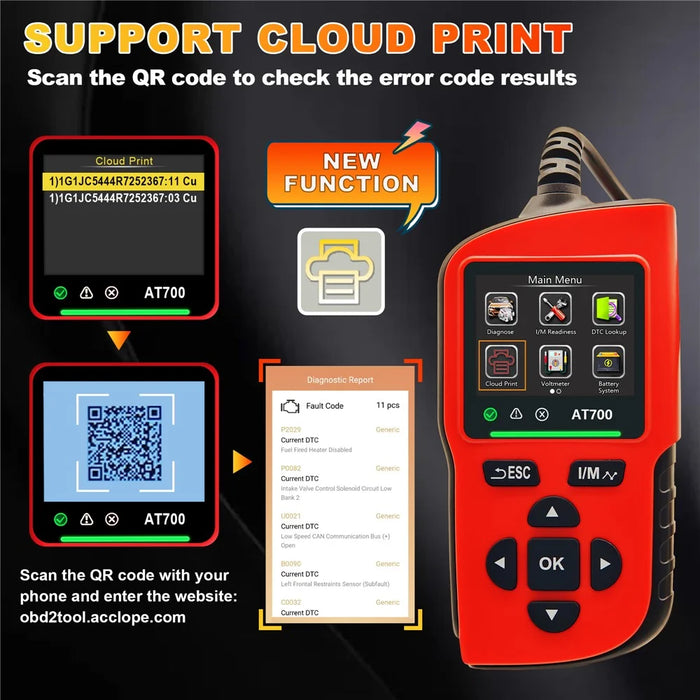

  • 【Cloud Print Technology】Generate diagnostic reports with QR codes for instant mobile access, allowing you to view and share results on smartphones via cloud platform.

  • 【Complete Battery System Testing】Advanced cranking test displays startup voltage and time, while charging system test analyzes ripple voltage, no-load and load conditions with graphical waveform display.

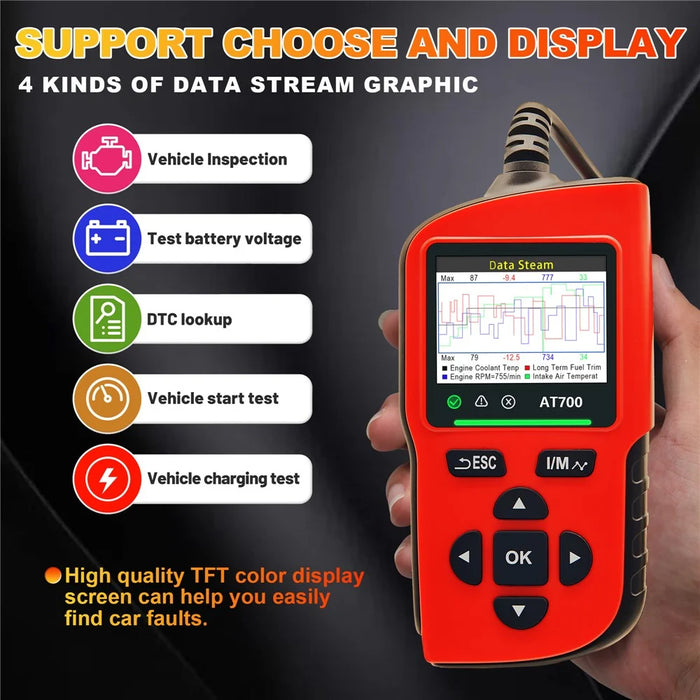

  • 【Real-Time Data Stream Monitoring】Monitor 4 different data streams simultaneously with live graphical waveform display for comprehensive vehicle performance analysis.

Specifications:

  • Model: AT700
  • Material: ABS
  • Display: 2.4 inch TFT Color Screen
  • Language Support: 11 Languages

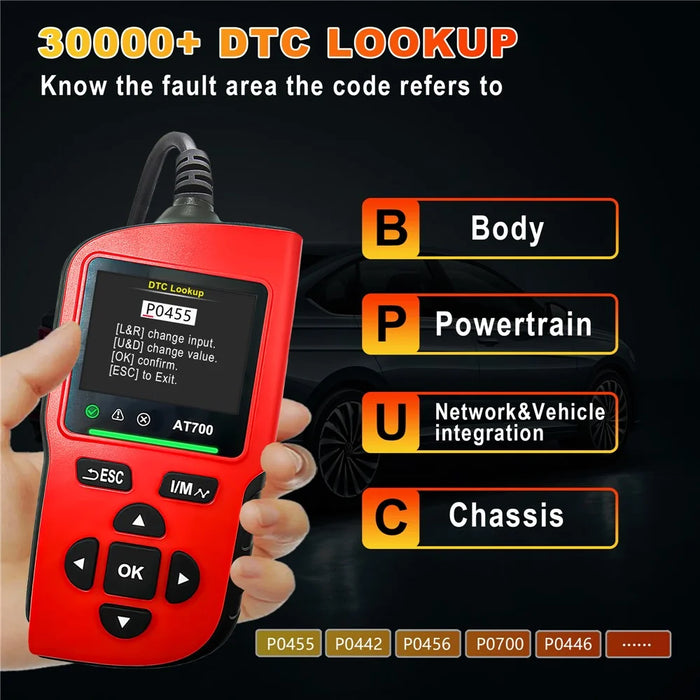

  • DTC Database: 30000+ Codes
  • Supported Protocols:
  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2(5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)
  • Vehicle Compatibility: US Cars (1996+), European Cars (2003+), Asian Cars (2008+)
  • Data Stream Display: 4 Types
  • Interface: OBD-II 16-pin Connector

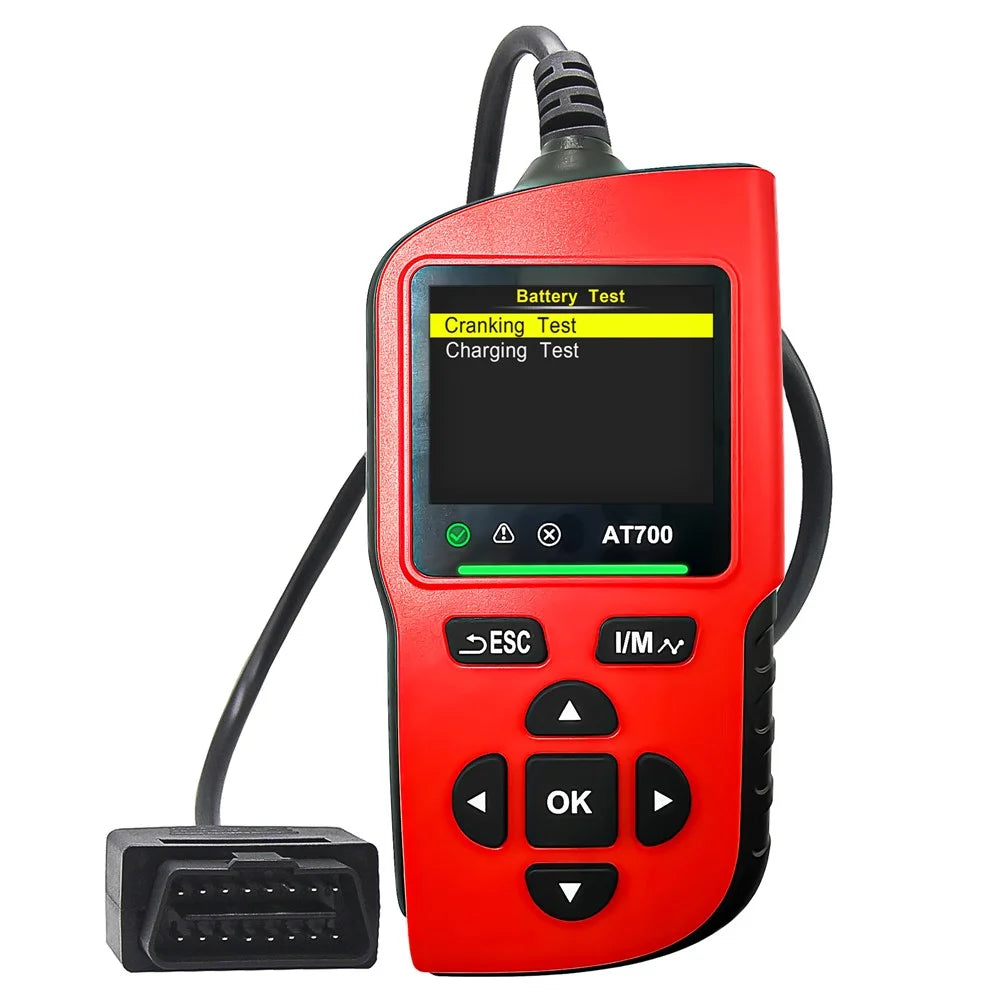

  • Battery Test Functions: Cranking Test, Charging Test

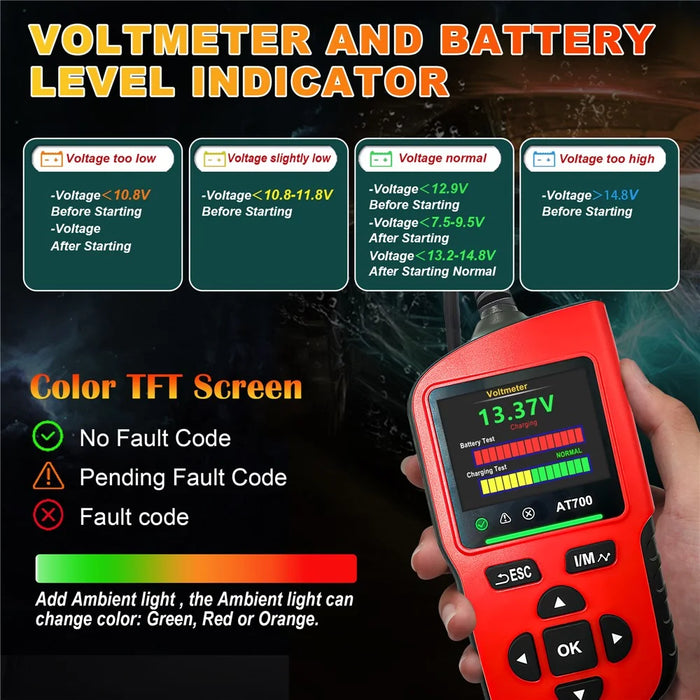

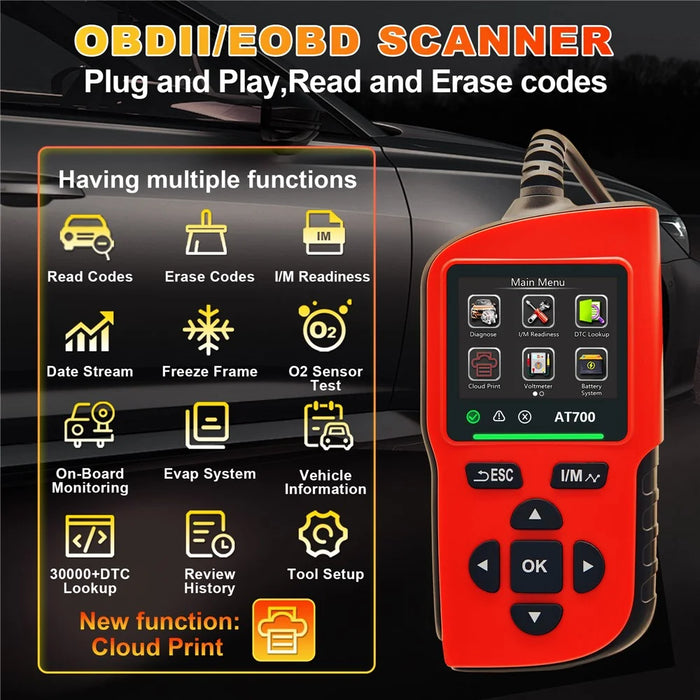

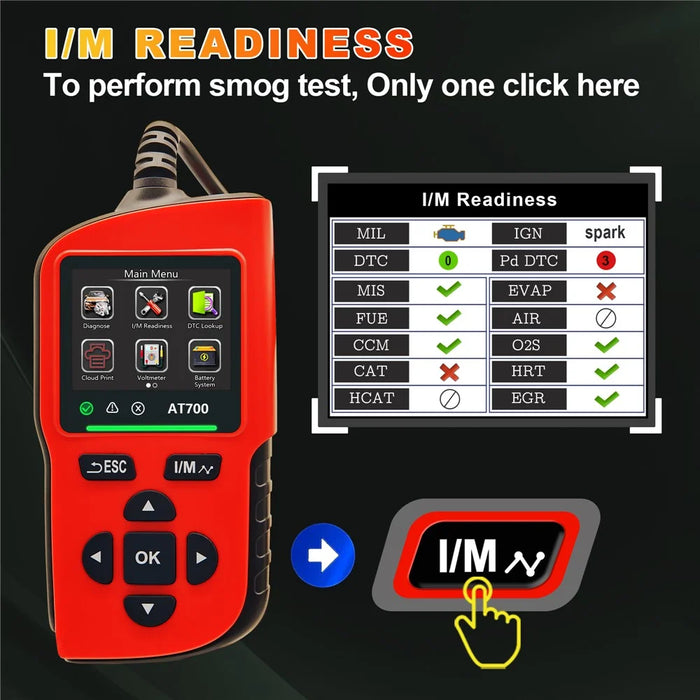

  • Main Functions: Diagnose, I/M Readiness, DTC Lookup, Cloud Print, Voltmeter, Battery System

In the box

  • 1 x OBD2 Scanner (includes OBD Cable)
  • 1 x Multi-language User Manual
