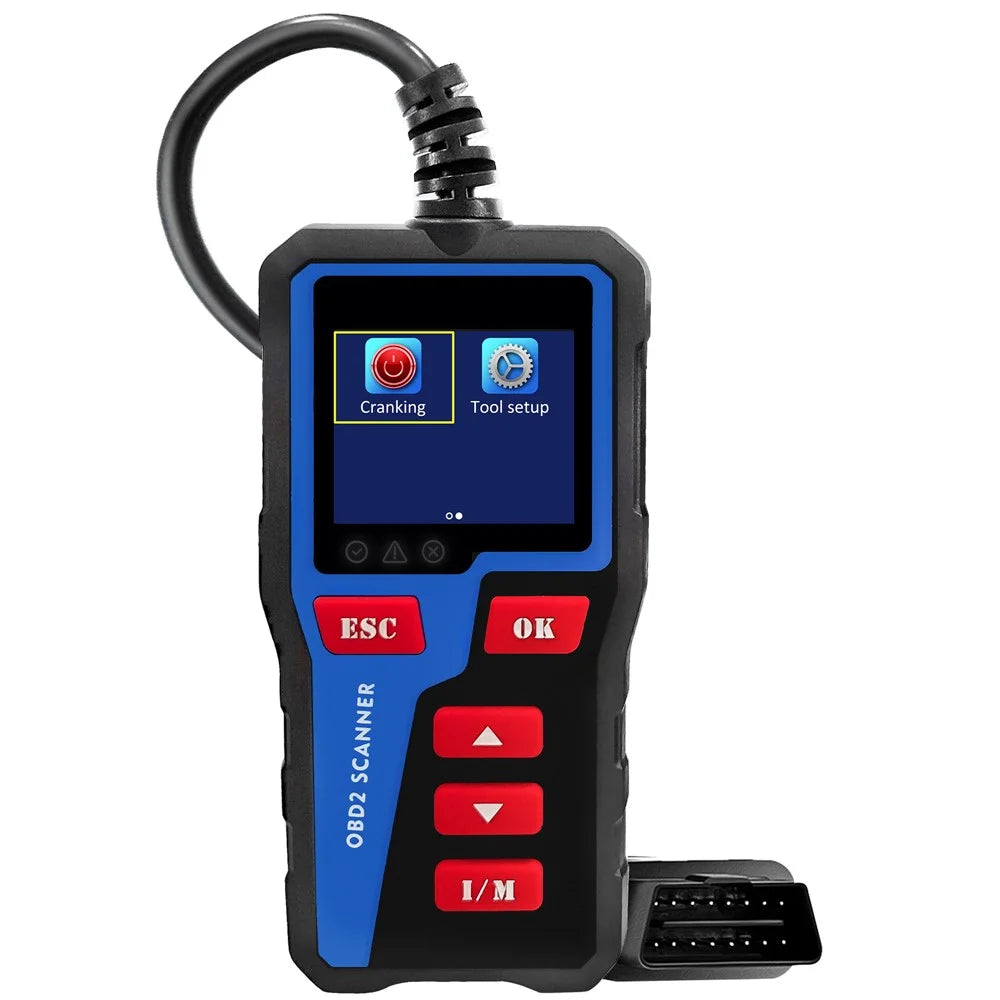

AT300 OBD2 Scanner 1.8 Inch TFT Screen Car Diagnostic Tool Battery Test Code Reader for Engine Check

by TVCMall
$620.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

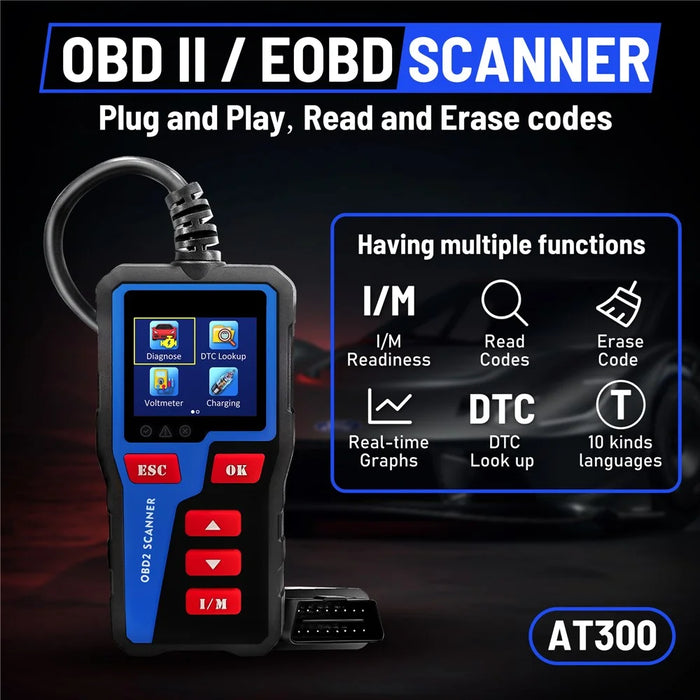

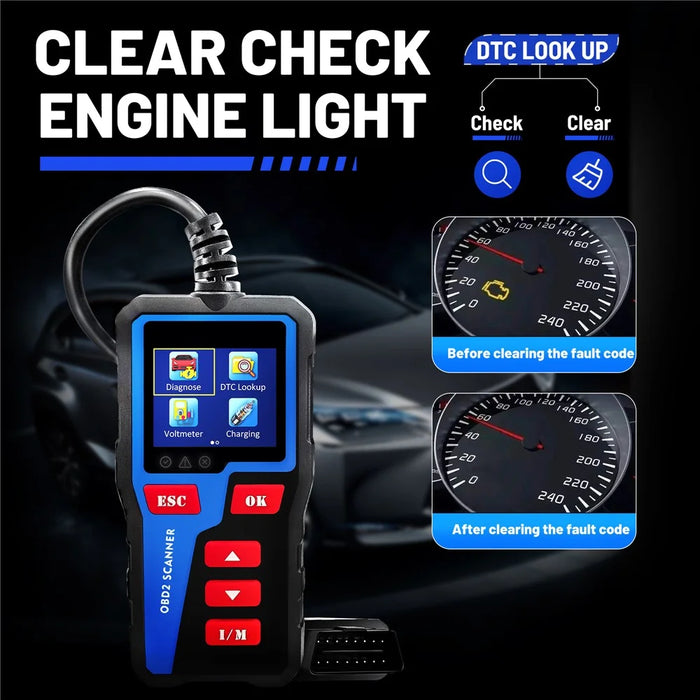

  • 【Professional OBD2 Diagnostic Tool】Advanced automotive diagnostic scanner that reads and clears trouble codes, displays real-time data streams, and performs comprehensive vehicle system testing.

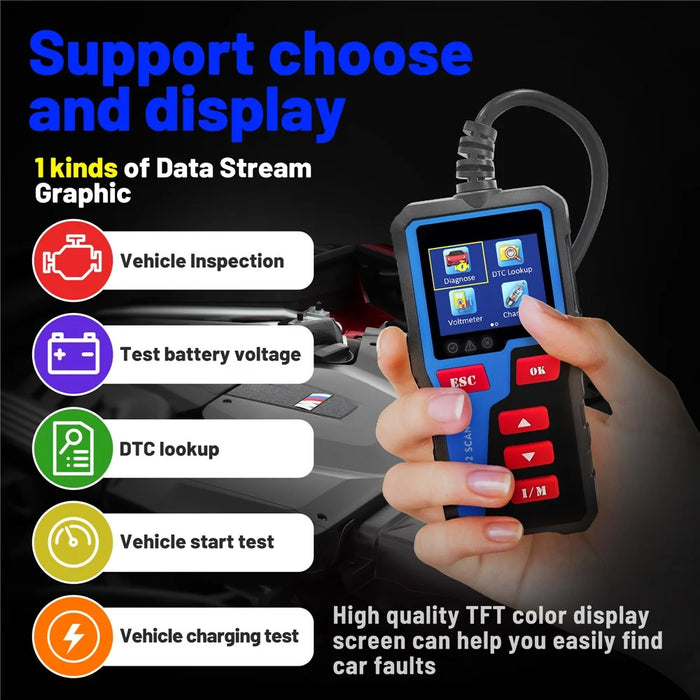

  • 【1.8 Inch HD TFT Color Display】High-definition TFT color screen provides clear visibility of diagnostic results, data streams, and system status with intuitive interface navigation.
  • 【Smart Ambient Lighting System】Bottom ambient light changes color based on vehicle fault status, providing instant visual feedback on your car's health condition.

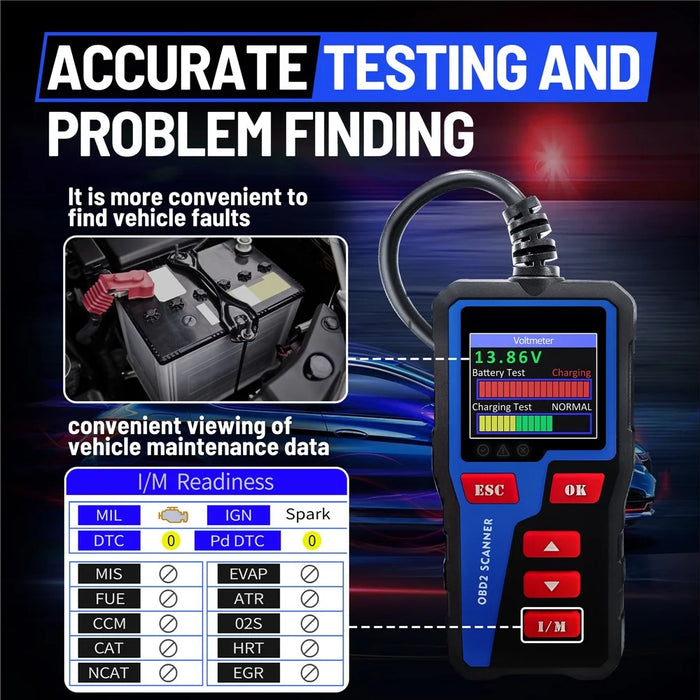

  • 【Comprehensive Battery Testing】Built-in voltmeter tests battery condition, displays remaining charge percentage, and analyzes charging system performance with ripple waveform display.
  • 【Advanced Engine Starting Analysis】Performs starting system tests showing startup voltage, cranking time, and waveform graphs for complete engine performance evaluation.

Specifications:

  • Display: 1.8 inch HD TFT Color Screen
  • Material: ABS
  • Dimensions: 125mm x 62mm x 18mm (4.9 x 2.4 x 0.7 inch)
  • Interface: Standard 16-pin OBD2 Diagnostic Port
  • Supported Protocols:
  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2(5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)
  • Language Support: 10 Languages (English, Spanish, German, French, Italian, Russian, Portuguese, Dutch, Polish, Finnish)
  • Vehicle Compatibility: US vehicles 1996+, European vehicles 2000+, Asian vehicles 2008+

In the box

  • 1 x OBD2 Scanner (with OBD Cable)
  • 1 x 5-Language User Manual (English, German, French, Spanish, Italian)
