AT100 1.8 Inch TFT Screen OBD2 Scanner Car Diagnostic Tool Engine Code Reader for Auto Repair - 1
AT100 1.8 Inch TFT Screen OBD2 Scanner Car Diagnostic Tool Engine Code Reader for Auto Repair - 1

AT100 1.8 Inch TFT Screen OBD2 Scanner Car Diagnostic Tool Engine Code Reader for Auto Repair

by TVCMall
$680.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

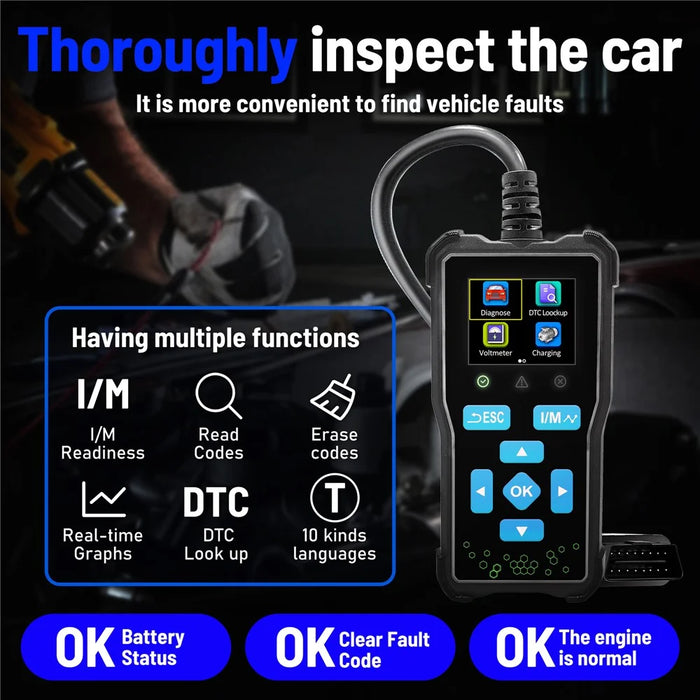

  • 【Professional OBD II Diagnostic Scanner】Advanced automotive diagnostic tool that reads and clears fault codes, monitors vehicle system status, and performs comprehensive battery performance testing.

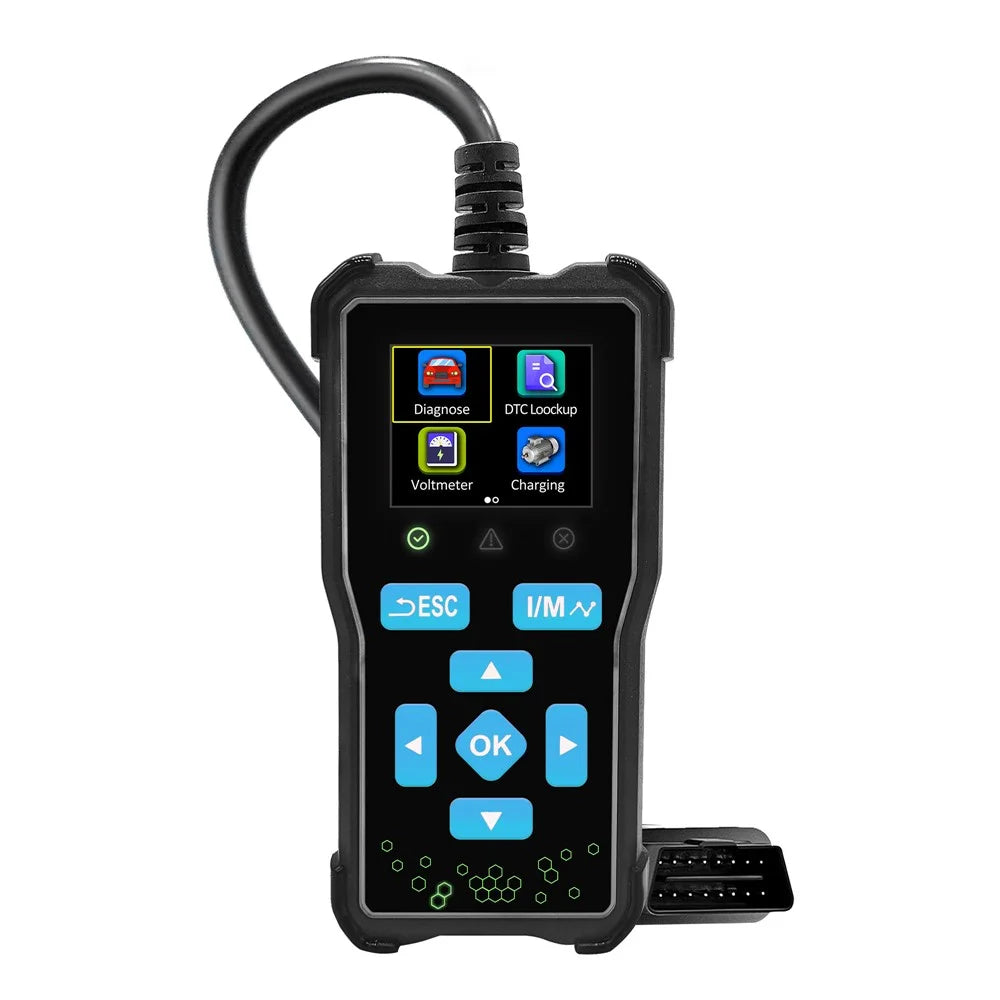

  • 【1.8 Inch HD TFT Color Display】High-definition 1.8-inch TFT color screen with premium acrylic panel provides clear visibility and professional appearance for easy operation.

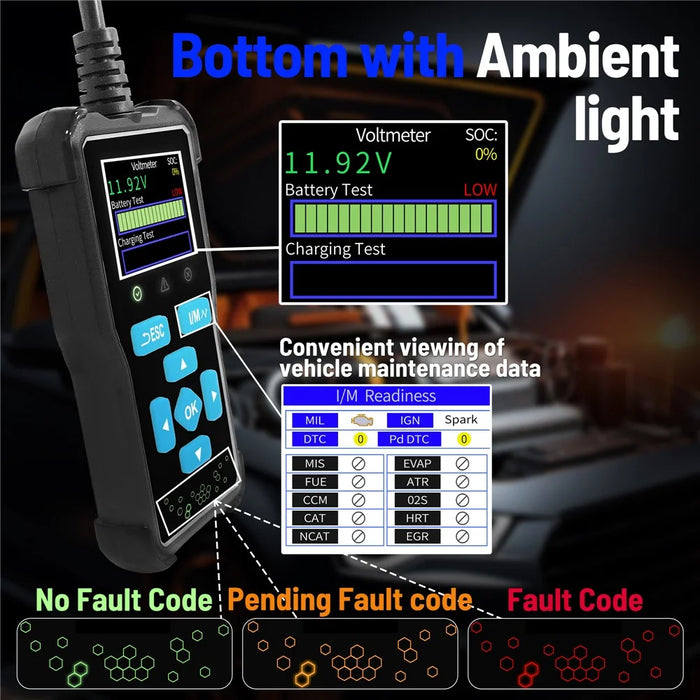

  • 【Smart Ambient Light System】Bottom ambient light changes color based on vehicle fault status - green for no faults, orange for pending codes, and red for active fault codes.

  • 【Advanced Battery Testing】Built-in voltmeter displays real-time voltage, remaining battery capacity (SOC), and performs comprehensive battery health analysis with visual indicators.

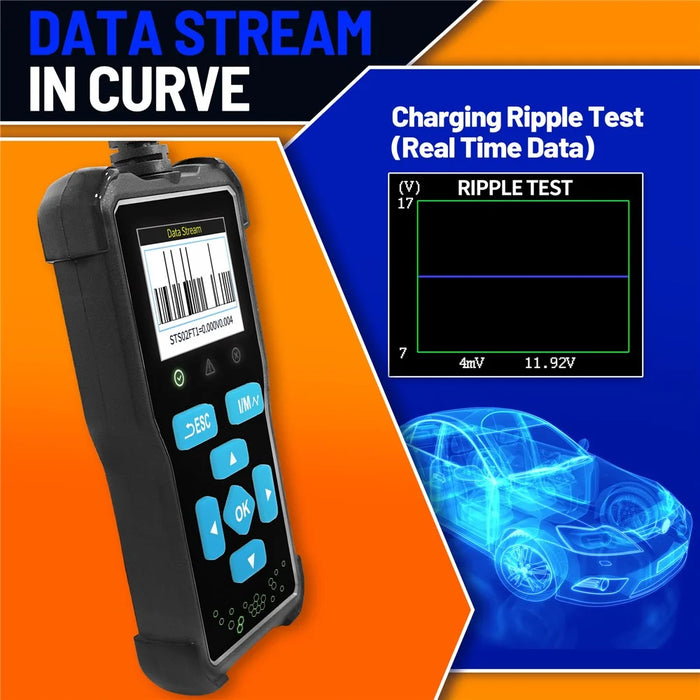

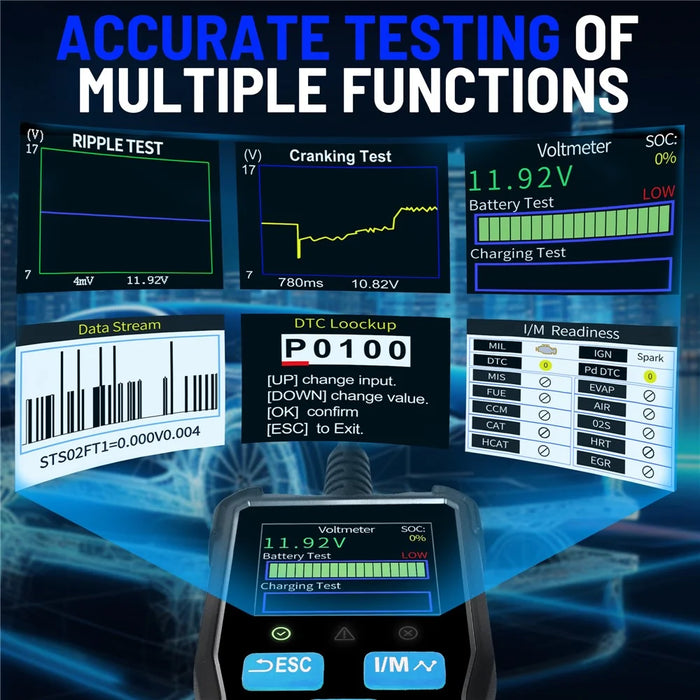

  • 【Comprehensive System Analysis】Features cranking system test with voltage and timing display, charging system analysis with ripple detection, and real-time waveform graphs.

Specifications:

  • Display: 1.8 inch HD TFT Color Screen
  • Material: ABS
  • Dimensions: 12 cm x 5.5 cm
  • Supported Protocols:
  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2(5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)
  • Language Support: 10 Languages (English, German, French, Spanish, Italian, Portuguese, Dutch, Polish, Finnish, and Russian)
  • Vehicle Compatibility: Asian Cars (2008+), USA Cars (1996+), European Cars (2000+)

In the box

  • 1 x OBD2 Scanner (Including OBD Cable)
  • 1 x Multi-language User Manual (English, German, French, Spanish, Italian)
