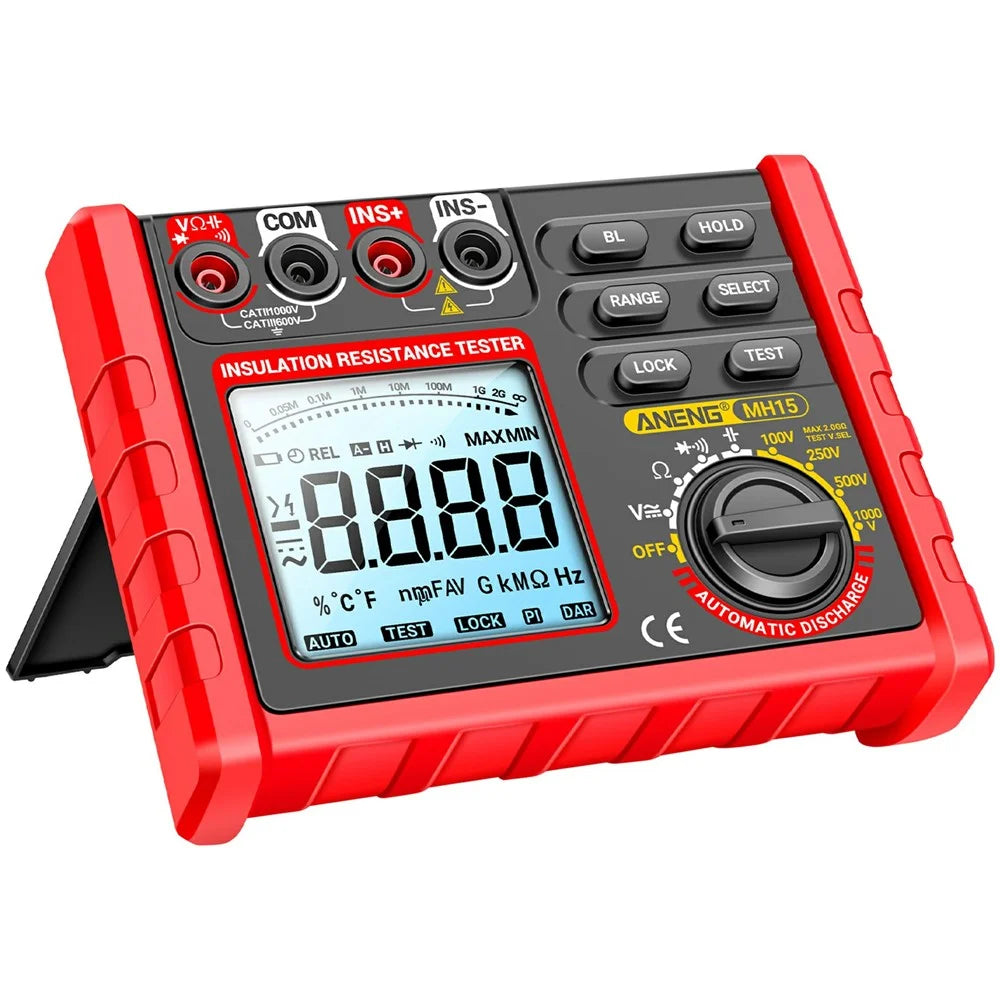

ANENG MH15 Digital Megohmmeter Insulation Resistance Tester LCD Display High Voltage Voltmeter

by ANENG
$1,180.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

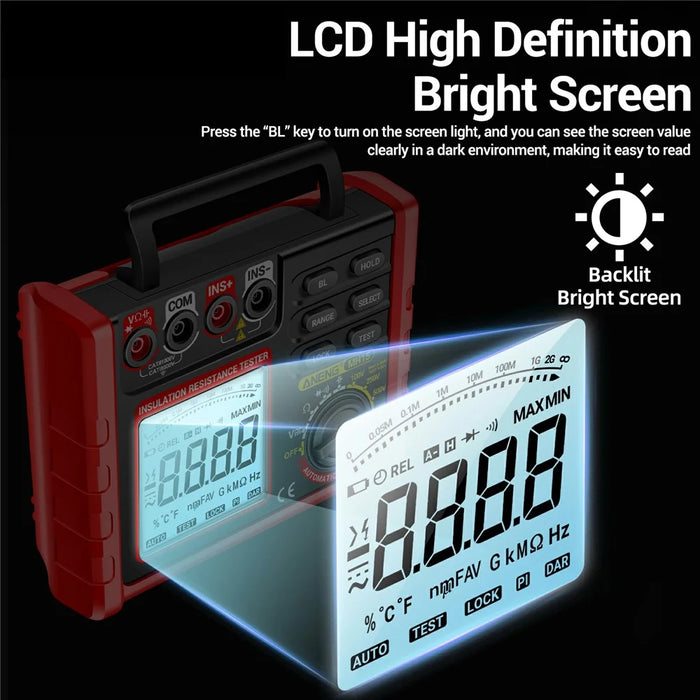

  • 【Backlit LCD Display】The digital insulation resistance tester features a large LCD screen with a backlight, easily activated by pressing the BL button, making readings clear and visible in any lighting conditions
  • 【Automatic Discharge Function】With automatic discharge for added safety, the tester performs discharging tests without the need for manual operation, ensuring a safer testing process
  • 【Portable and Compact】Designed for convenience, this lightweight and compact device can be easily held with one hand, making it ideal for on-the-go use. It offers portability without compromising on performance
  • 【Precise Measurement】This tester provides accurate and reliable measurements, ensuring you get precise insulation resistance values for your electrical testing needs

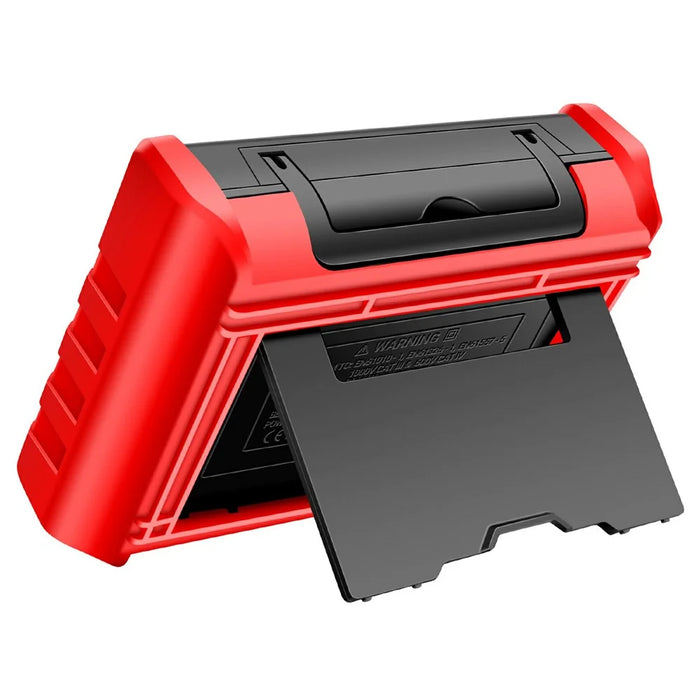

  • 【Convenient Stand Design】The back of the device features a built-in stand, allowing for hands-free operation and easy viewing during testing, adding to its overall functionality

Specifications:

  • DC Voltage: 0V-750V
  • AC Voltage: 0mV-1000V
  • Capacitance: 0nF-60mF
  • Resistance: 0-60MΩ
  • Diode: Supported
  • Buzzer: Supported
  • Weight: 419g
  • Max Count: 6000 counts
  • Material: ABS/Silicone
  • Auto Power Off: 15 minutes of inactivity, auto shutdown

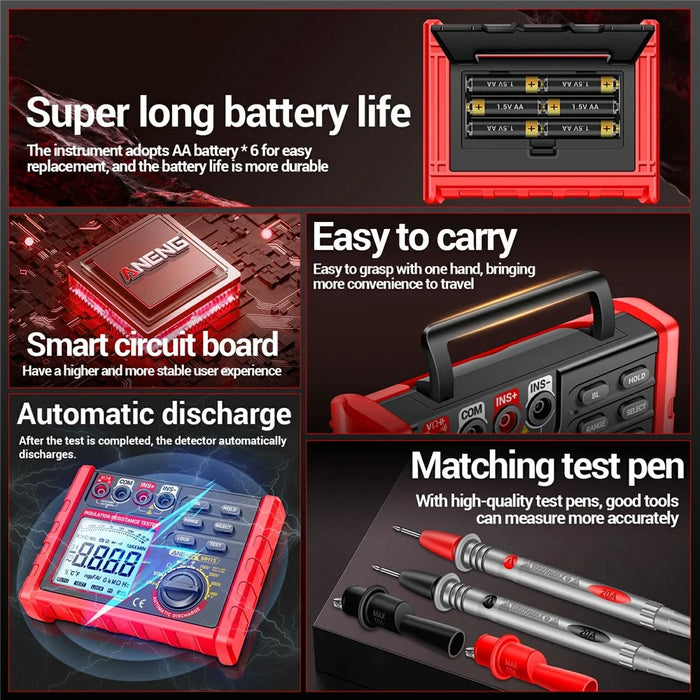

  • Battery Model: 1.5V AA batteries *6 (not included)
  • Auto Discharge: Supported
  • HOLD (Data Hold): Supported
  • Low Battery Display: Supported
  • Test Voltage Range 100V: Display Range 0.1~20MΩ   20~100MΩ
  • Test Voltage Range 250V: Display Range 0.1~20MΩ   20~100MΩ
  • Test Voltage Range 500V: 0.1~20MΩ   20~100MΩ 200~500MΩ
  • Test Voltage Range 1000V: Display Range 0.1~20MΩ   20~100MΩ 200~500MΩ 500~2000MΩ

In the box

  • 1 x Megohmmeter
  • 2 x Crocodile Clamp
  • 2 x Test Lead
  • 1 x Storage Bag
  • 1 x English Manual
