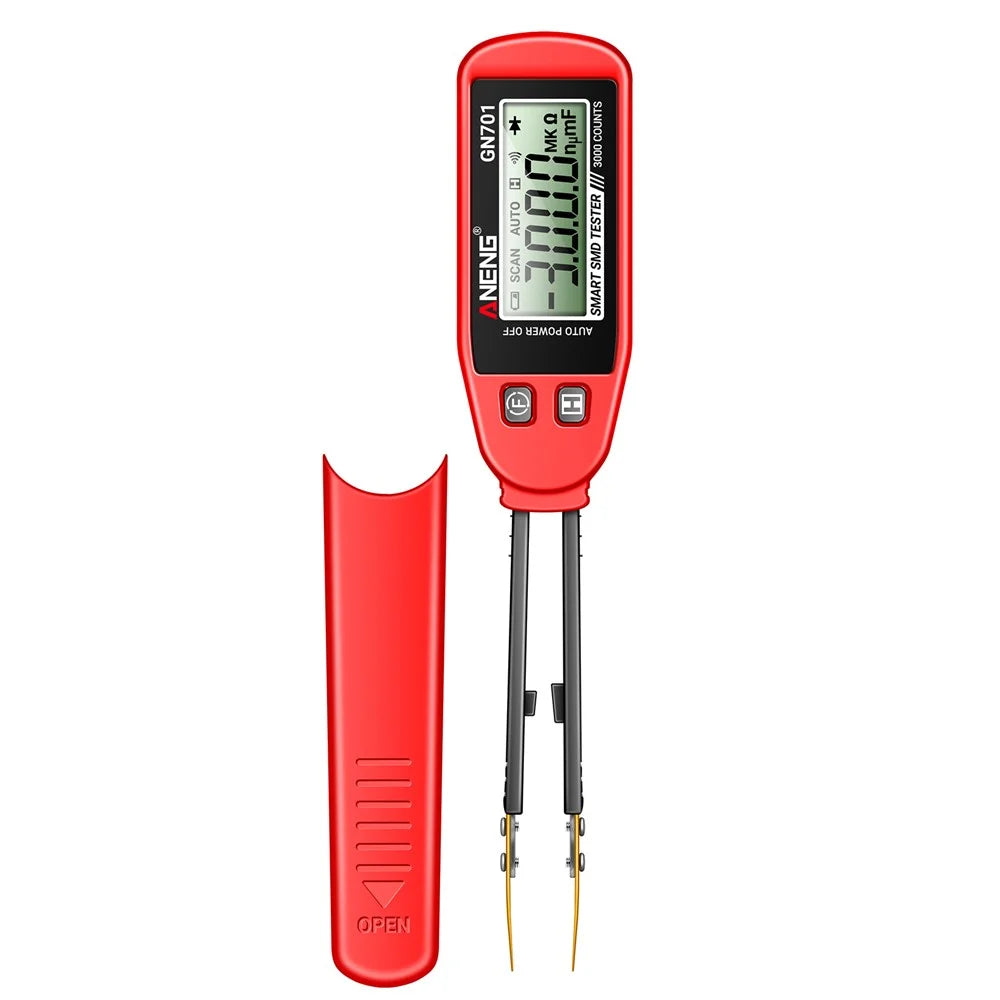

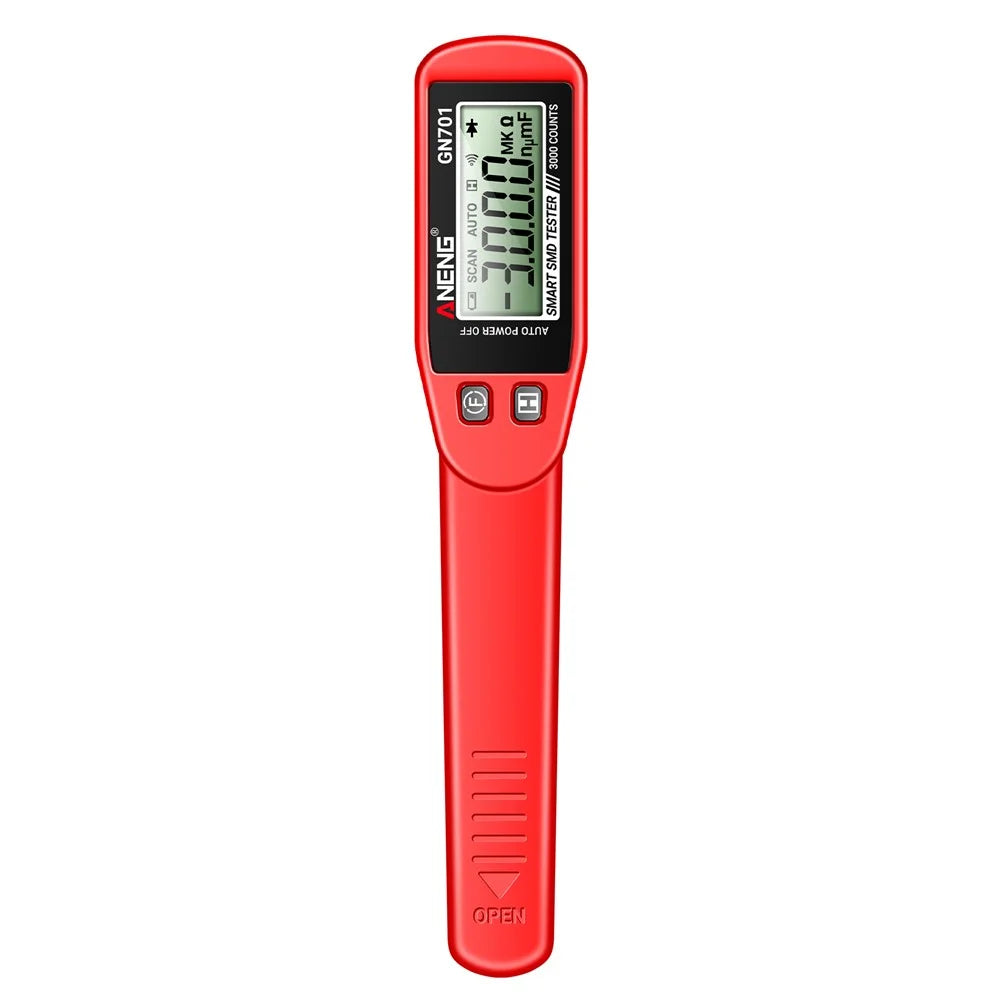

ANENG GN701 Digital Smart SMD Tester Electrical Multimeter Resistance Capacitance Continuity Diode Test Meter
R620
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description

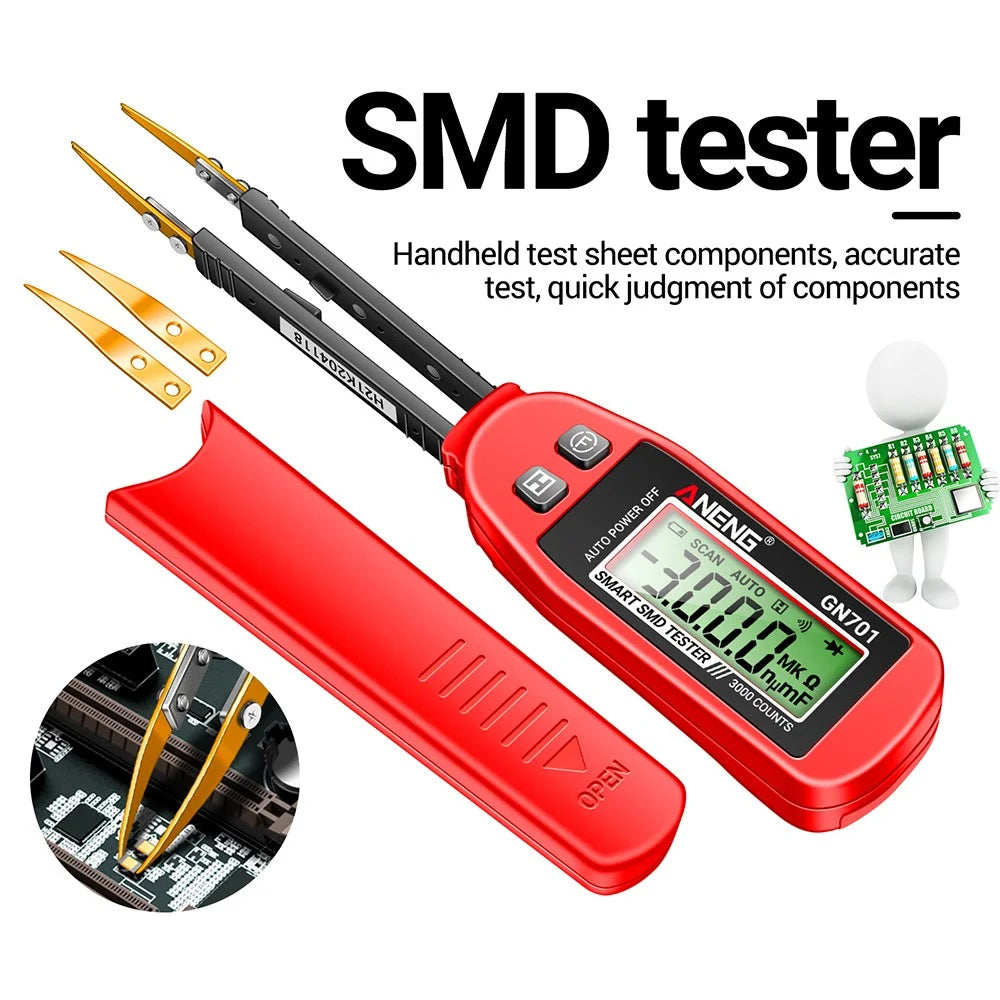

- SMD Tester: Handheld test sheet components, accurate test, quick judgment of components

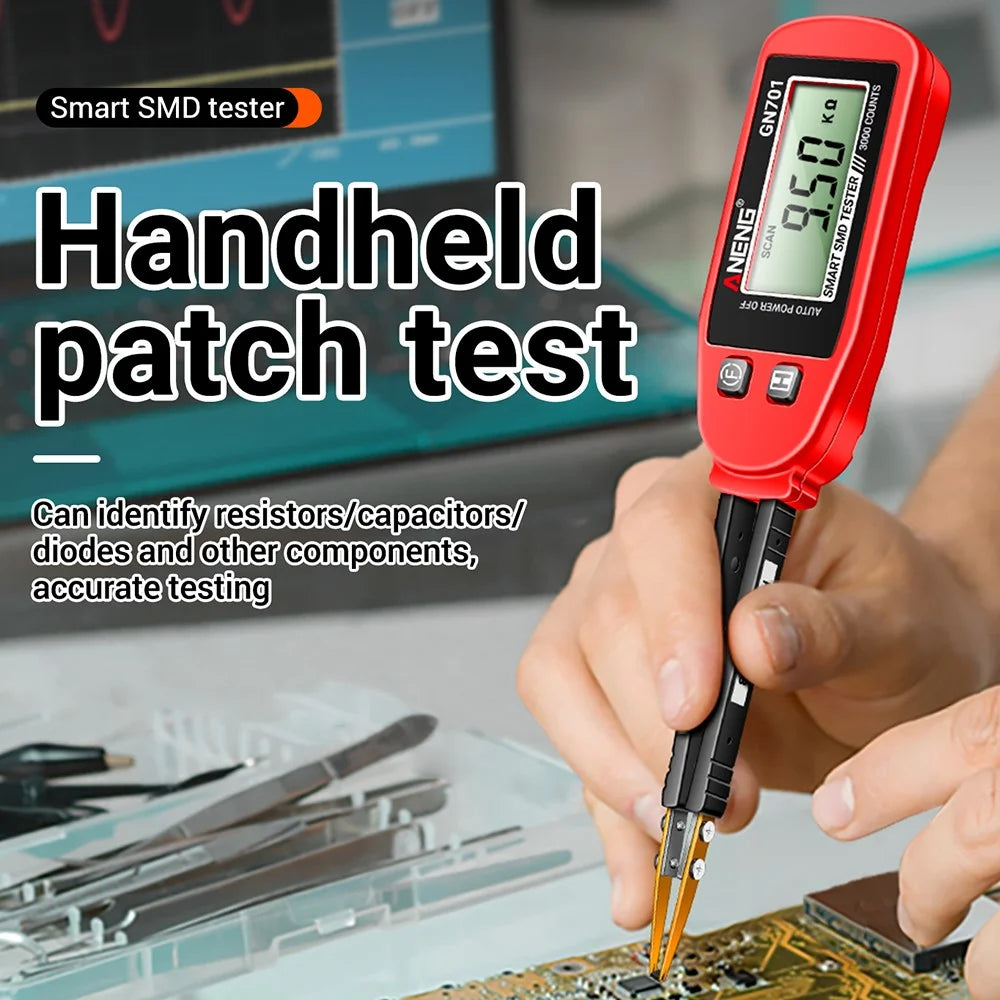

- Handheld Patch Test: Can identify resistors/capacitors/diodes and other components, accurate testing

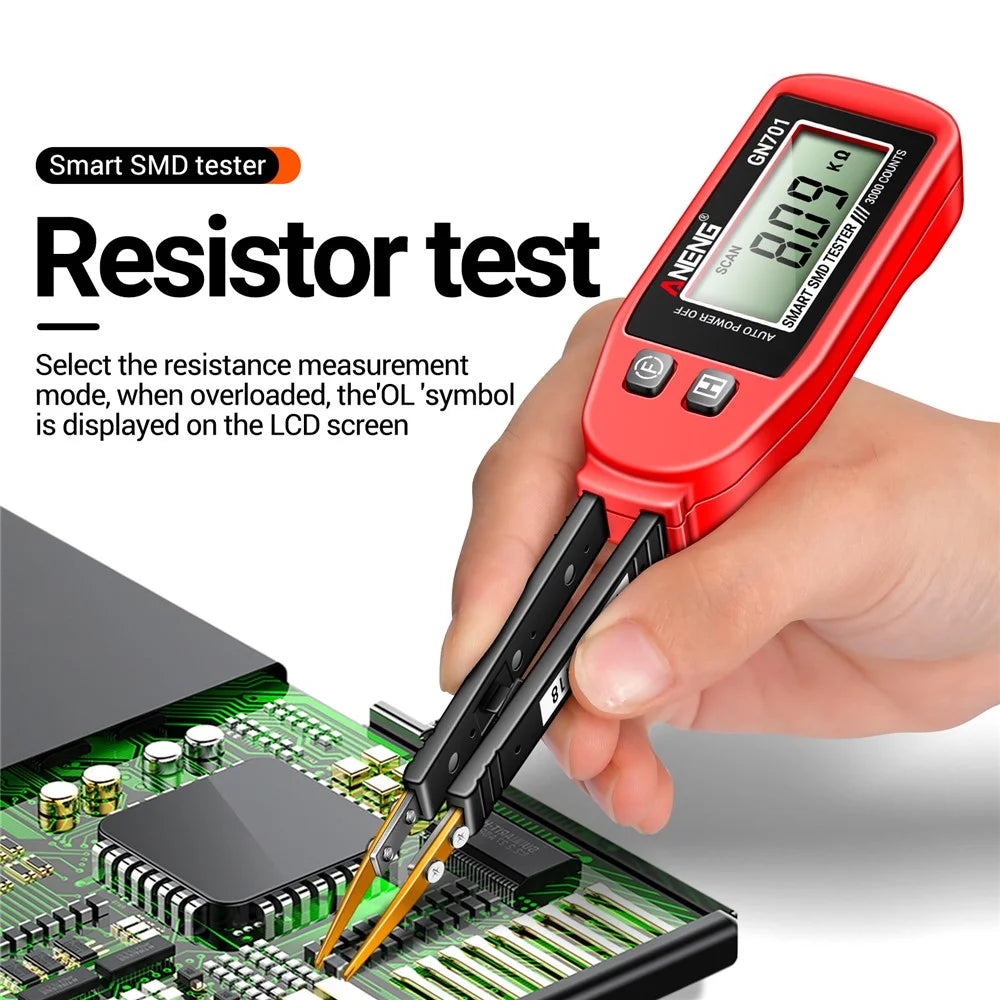

- Resistor Test: Select the resistance measurement mode, when overloaded, the 'OL' symbol is displayed on the LCD screen

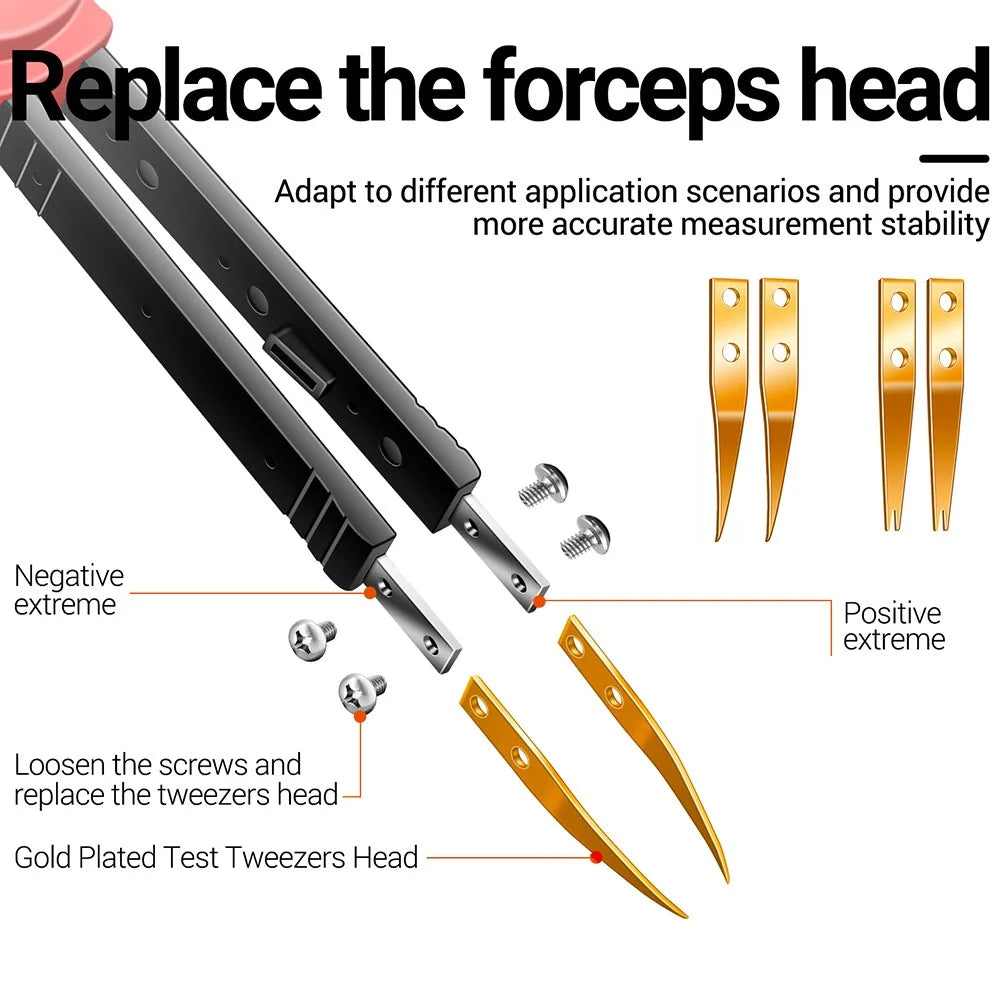

- Replace the Forceps Head: Adapt to different application scenarios and provide more accurate measurement stability

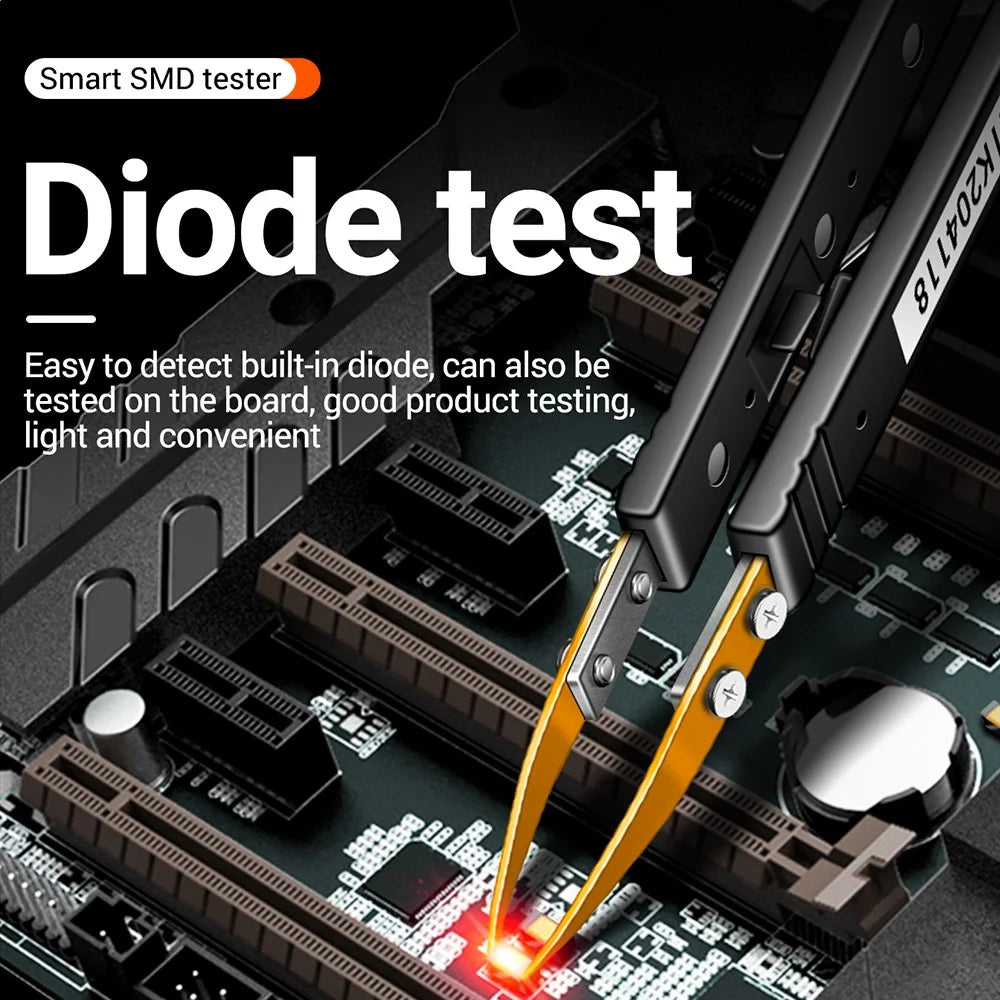

- Diode Test: Easy to detect built-in diode, can also be tested on the board, good product testing, light and convenient
- Automatic Shutdown: Use 1x CR3032 button battery (not included), after 20 minutes of startup, it will automatically shut down to save power
- Data Hold Key: When this key is pressed, the meter stops refreshing the test data, while maintaining the current test data, and returns to the normal test state when this key is pressed
Specifications:
- Resistance: 0Ω - 30ΜΩ
- Capacitance: OnF - 30mF
- Diode: √
- Buzzer: √
- Data retention: √
- Automatic shutdown: √
- Low battery prompt: √
- Screen: LCD display
- Battery: 3V CR3032 button battery (not included)
- Maximum count: 3000 counts
- Working temperature and humidity: 0-40 ℃ (32-104 ℉) & <80% RH
- Storage temperature and humidity: -10~50 ℃ (14~122 ℉) & <70% RH
- Material: ABS
In the box
- 1 x Digital Multimeter
- 2 x Tester Pen
- 1 x English User Manual
- Other items not include
Specifications
- SKU
- 640101509A
- Colour
- As Shown
- Package dimensions
- 20.2 × 5.5 × 3.2 cm
- Gross weight
- 0.12 kg
- Units per pack
- 144
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Test Equipment › Multimeter & Accessories
What’s in the box
- 1 Digital Multimeter
- 2 Tester Pen
- 1 English User Manual
- — Other items not include
