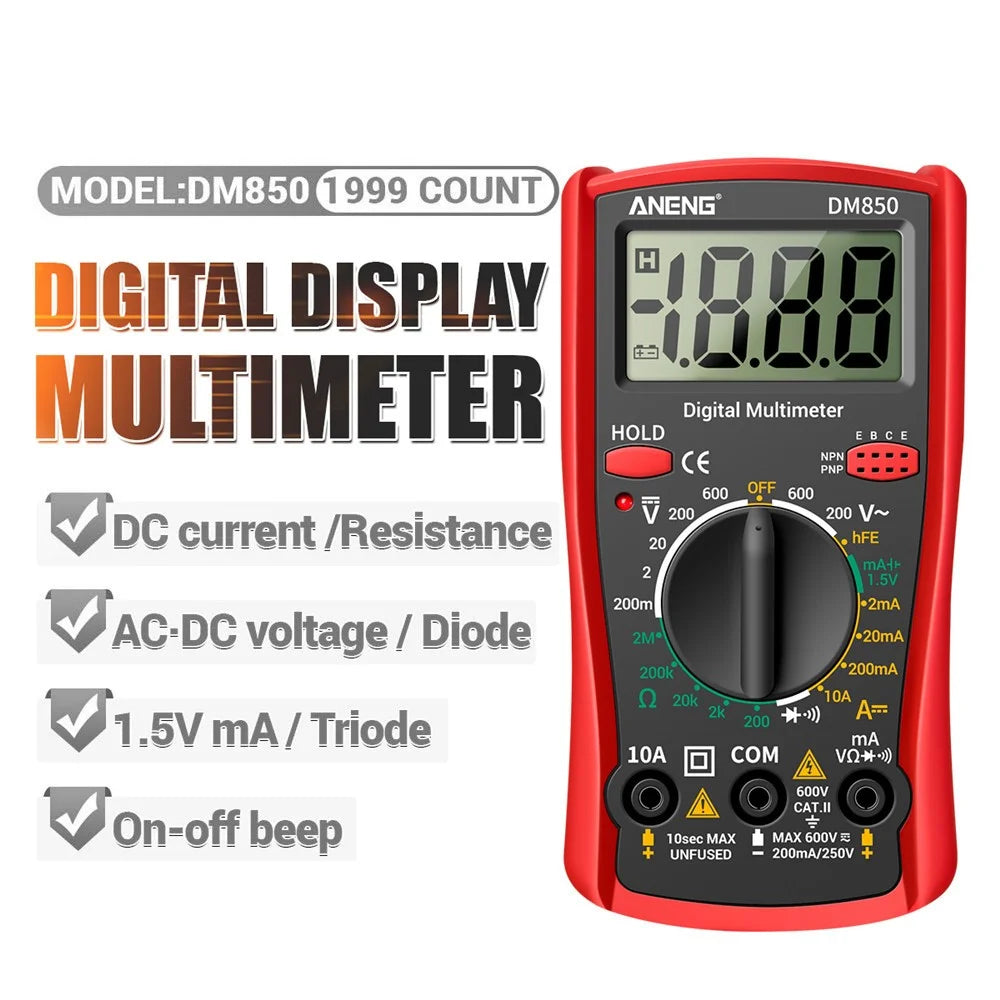

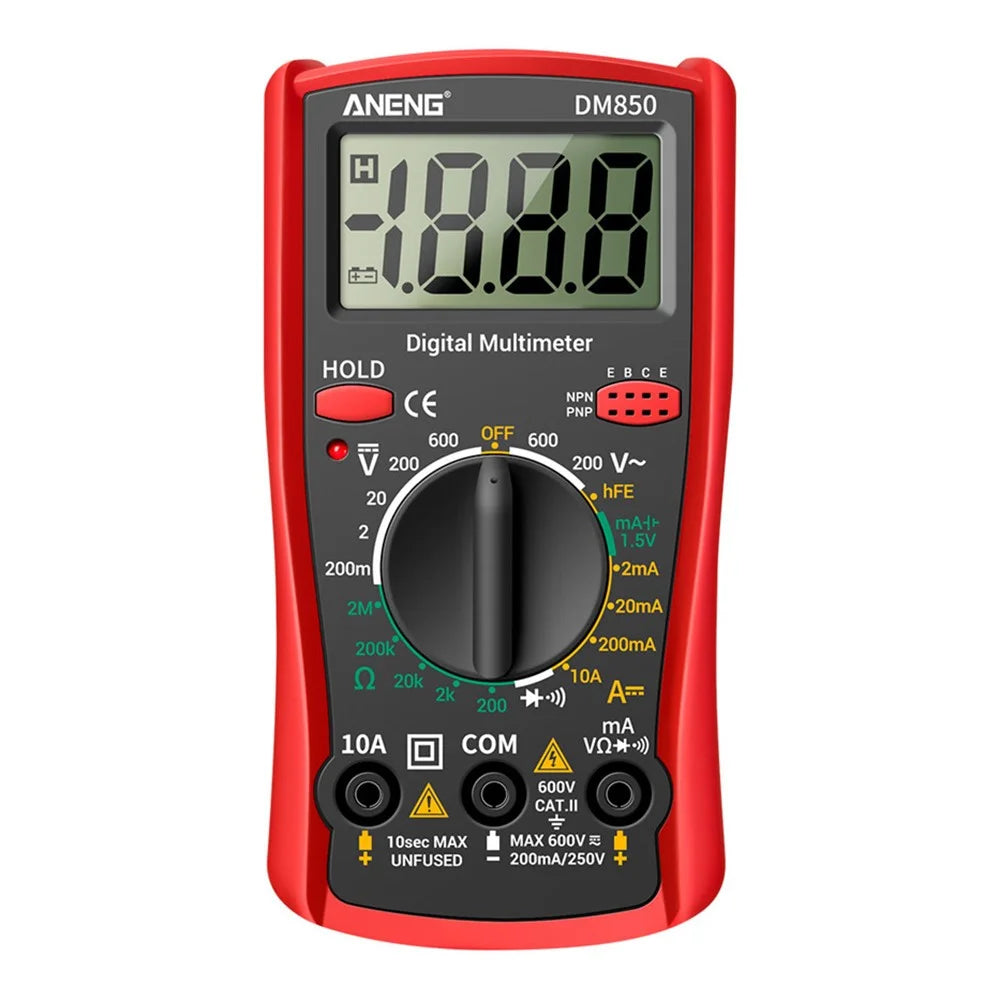

ANENG DM850 Digital Display Multimeter 1999 Counts Multimeter Tester Current Voltmeter Ammeter - Red

• This instrument is a compact pocket-sized digital multimeter for measuring AC & DC voltage, DC Current, Resistance and Diode

• Also provide Temperature, audible continuity test function or can be used as single generator

• Full range overload protection and battery indication are provided

• They are the ideal instrument for use in fields, such as laboratory, workshop, DIYers, and the home applications

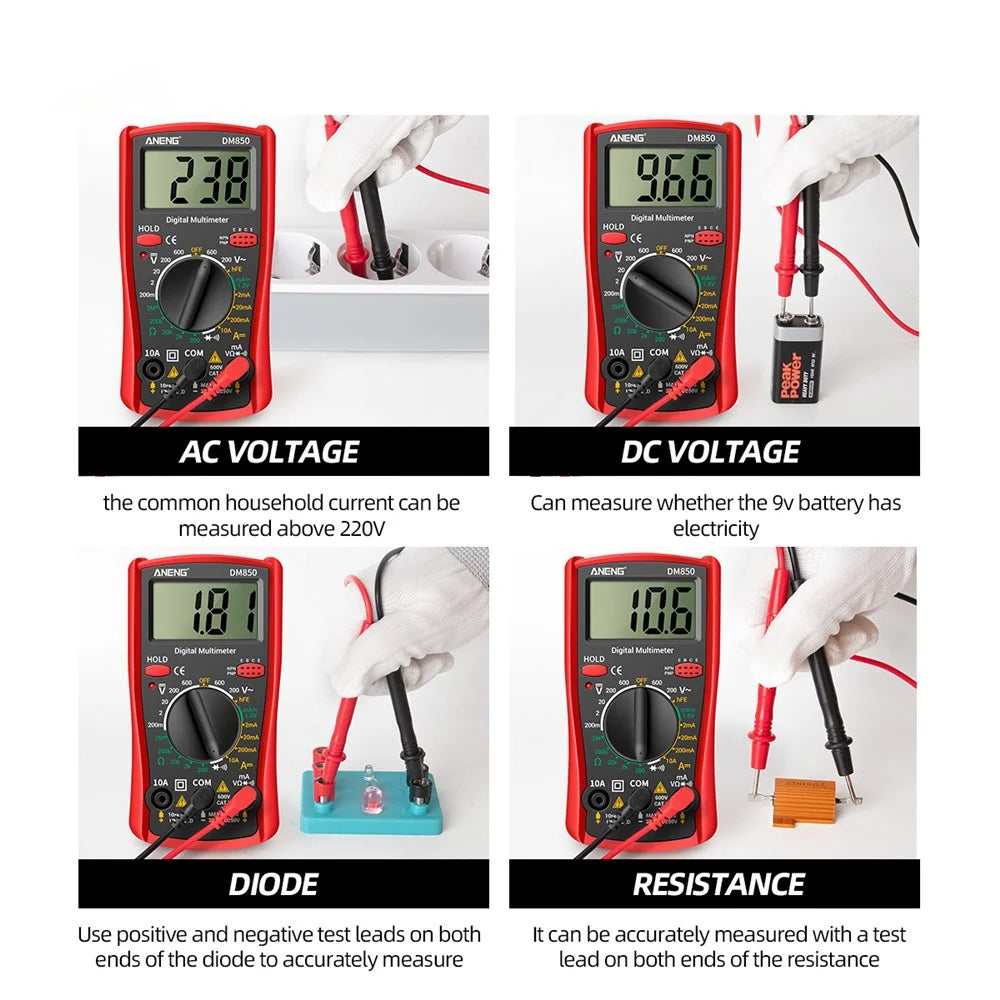

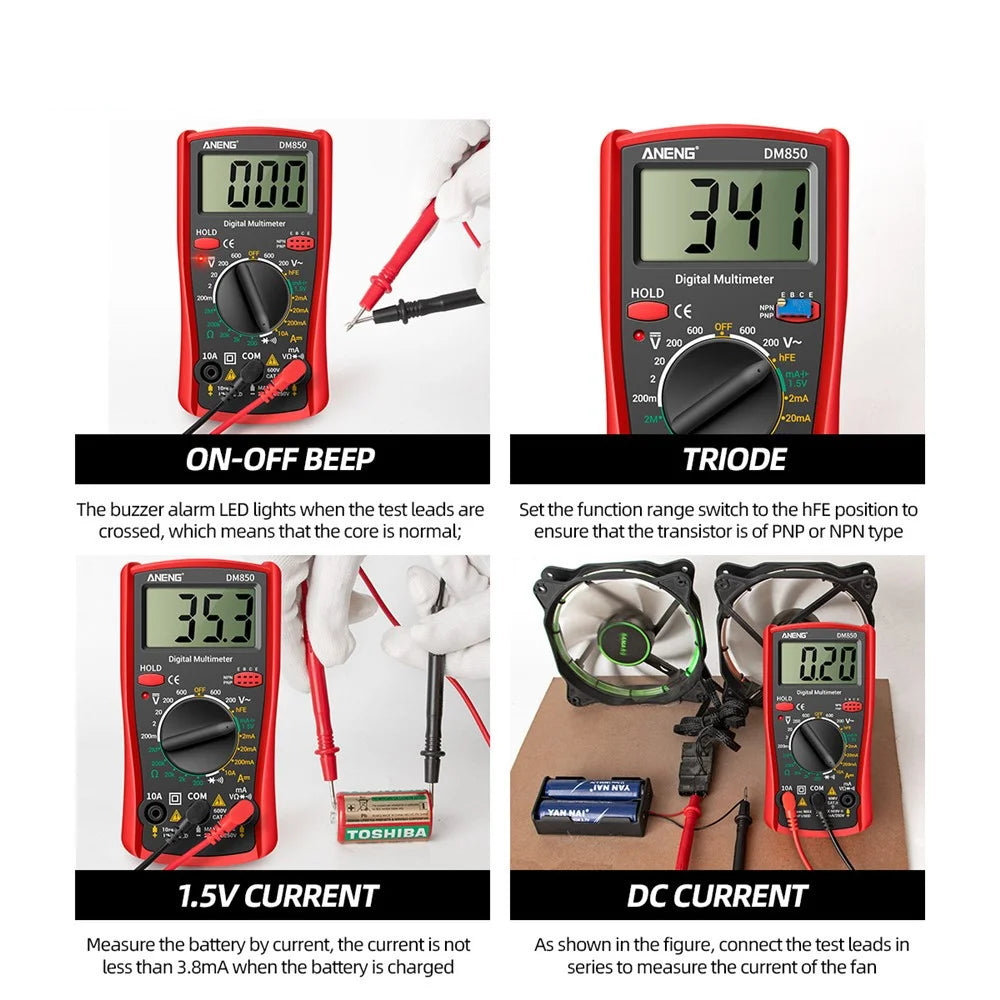

• The meter is used for AC current, DC current, AC voltage, DC voltage, frequency, resistance, capacitance, temperature, diode, line continuity and non-contact voltage detection

• The meter has a reading hold function

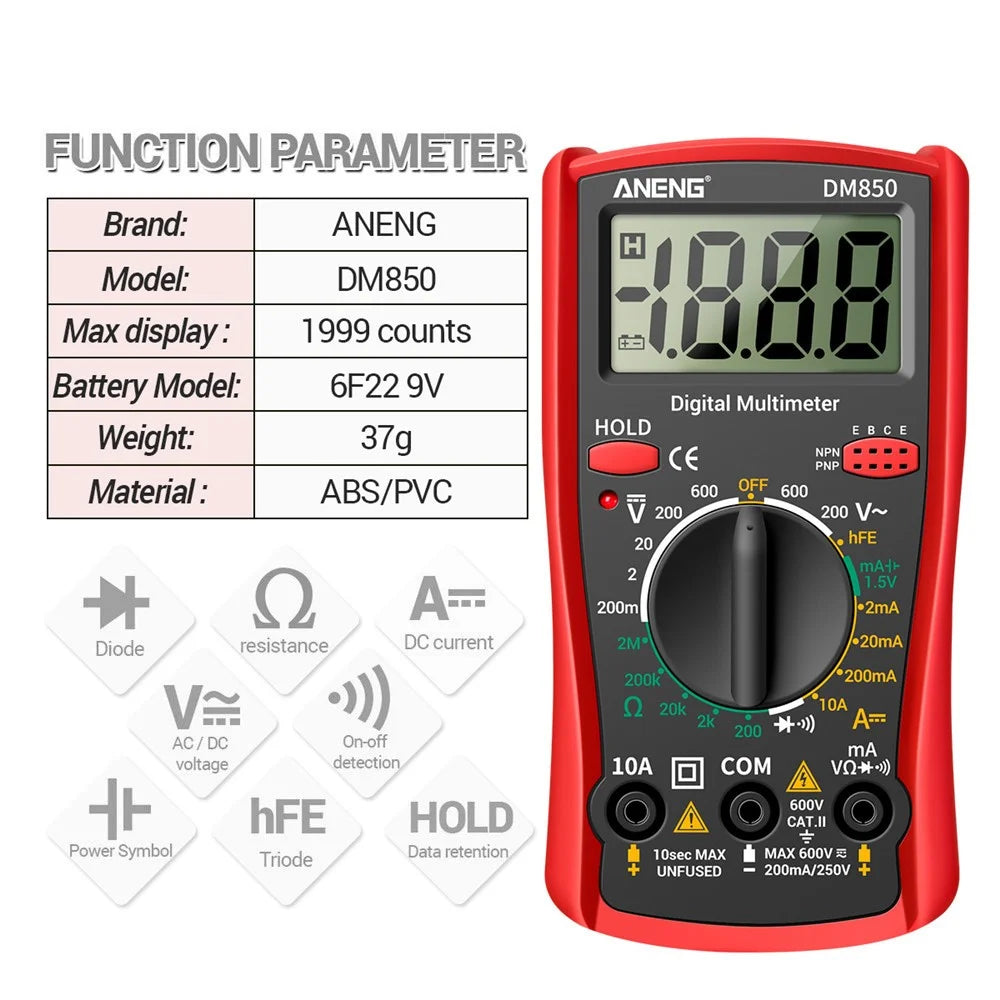

Specifications:

• Display: LCD

• Max display: 1999 counts
• Battery Model: 6F22 9V
• Weight: 37g
• Material: ABS/PVC

• Sampling time: about 3 times/sec

• Battery type: 6FF22 9V battery (not included)

• Size: 139*74.5*33.6mm

• Working temperature: 18℃ - 28℃

• Storage temperature: -10℃ - 50℃

• DC Voltage: 200mV + -(2% of rdg+3D) 2000mV/20V/200V + -(2% of rdg+5D) 600V + -(2.5% of rdg+5D)

• DC Current: 200uA/2000uA/20mA + -(2% of rdg+2D) 200mA + -(2.5% of rdg+2D) 10A + -(2.5% of rdg+10D) AC Voltage: 200V/600V + -(2% of rdg+10D)

• Frequency Range: 45Hz~450Hz

• Audible Continuity Test: Yes

• Resistance: 200Ω + -(2.5% of rdg+10D) 2000Ω/20kΩ/200kΩ/2000kΩ + -(2.5% of rdg+4D)

• Overload Protection: 15 second
