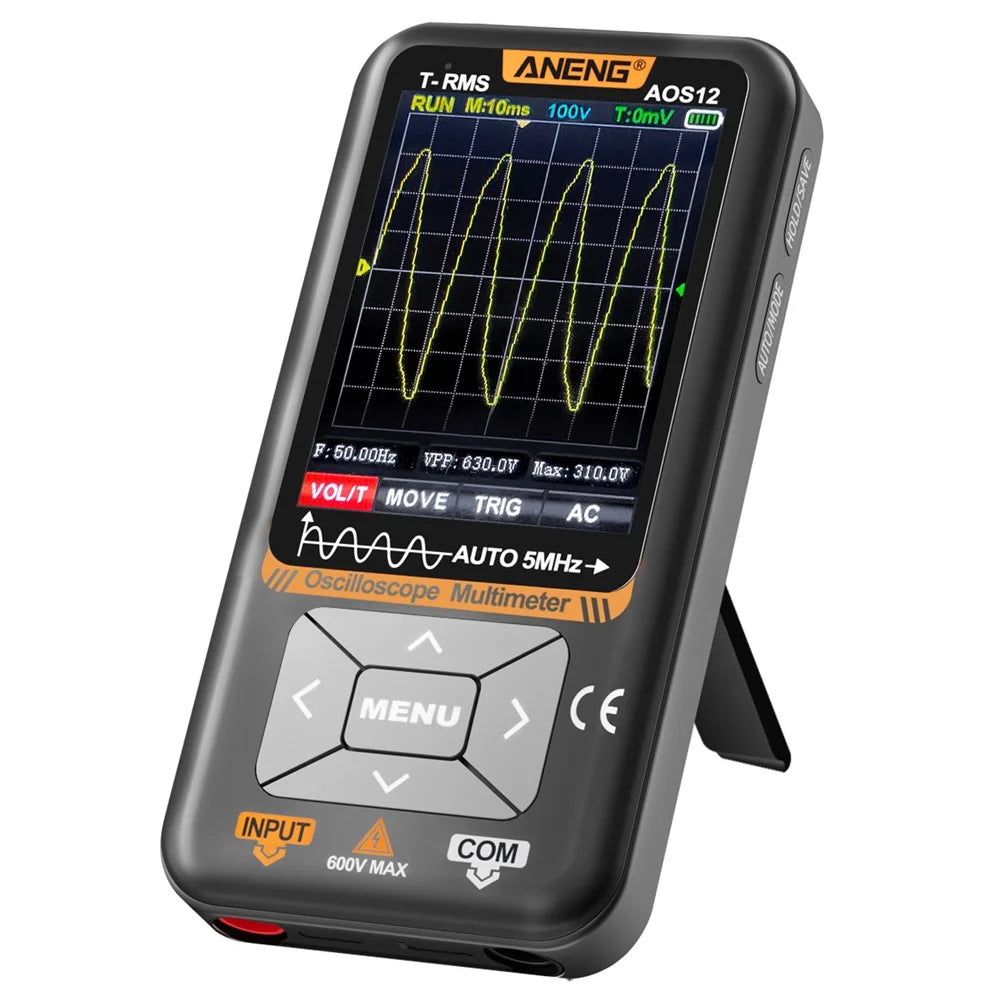

ANENG AOS12 2 In 1 Smart Color Screen Digital Oscilloscope Portable Handheld Multimeter

by ANENG
$1,540.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

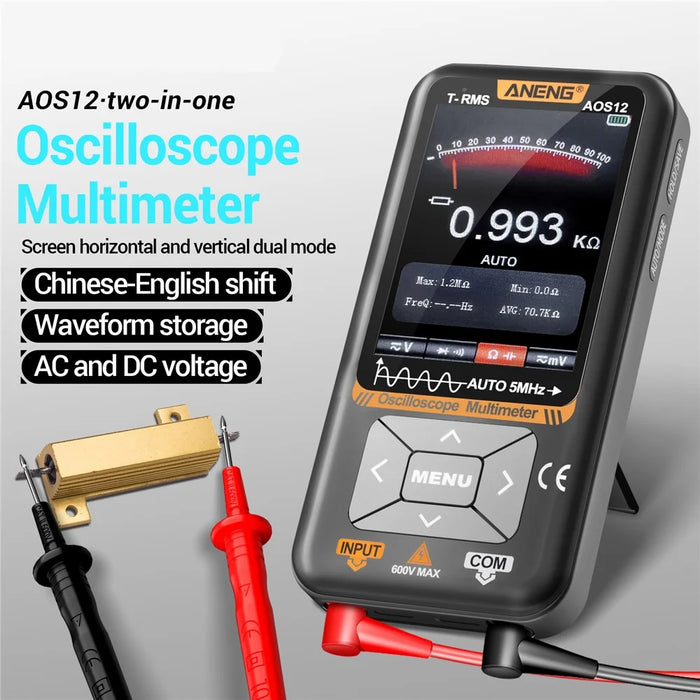

  • 【2-in-1 Functionality】Integrates both oscilloscope and multimeter capabilities, offering versatile measurement options for complex circuit debugging.
  • 【High-Speed Sampling】Real-time sampling rate of 48MSa/s ensures accurate waveform capture for precise analysis.
  • 【Vibrant Display】Features a VA color reverse display screen for clear waveform visualization and easy reading of measurements.
  • 【Extensive Measurement Range】Covers a wide range of electrical parameters including DC/AC voltage, resistance, capacitance, and frequency.
  • 【Portable Design】Weighing only 157g with a built-in 3.7V 1500mAh lithium battery, it's perfect for on-the-go measurements.
  • 【User-Friendly Interface】Offers adjustable screen brightness, selectable language (Chinese/English), and customizable backlight duration for enhanced usability.

Specifications:

  • Oscilloscope technical indicators:
  • Sampling mode: real-time sampling
  • Real-time sampling rate: 48MSa/s
  • Number of channels: single channel
  • Input coupling: DC, AC
  • Input impedance: 10MΩ, @16pf
  • Maximum input voltage: <300V (DC+AC peak)
  • Sampling rate range: 1.5Sa/s-48MSa/s
  • Waveform interpolation: (sinx)x
  • Sweep speed range: 100ns/div-20s/div
  • Time base accuracy: 20ppm
  • Record length: up to 64Kbyte
  • Sensitivity: 100mV/div-100V/div
  • Displacement range: 4 grids (positive and negative)
  • Analog bandwidth: 5MHz
  • Low frequency response: greater than 10Hz
  • Rise time: less than 100ns
  • DC gain accuracy: ±3%
  • Measurement information: frequency, maximum, minimum, RMS, duty cycle

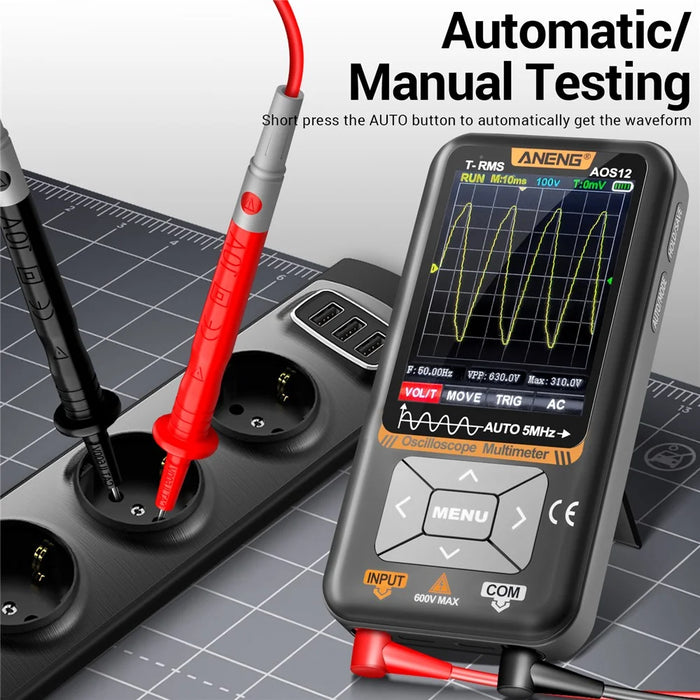

  • Trigger mode: automatic, normal, single
  • Trigger edge: rising edge, falling edge
  • Screen display: VA color reverse screen
  • Waveform storage: can store about 104 waveforms

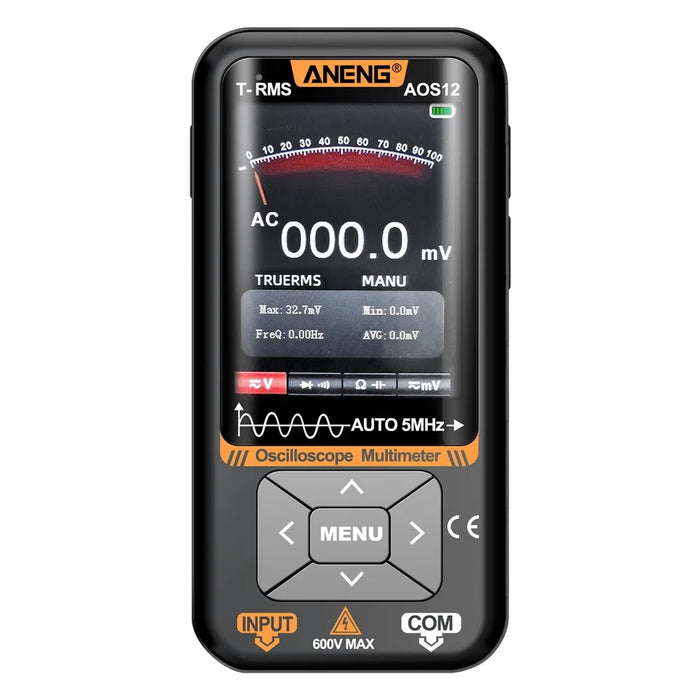

  • Multimeter parameters:
  • DC voltage (V): 999.9mV-600.0V
  • DC voltage (mV): 9.999mV-99.99mV
  • AC voltage (V): 999.9mV-600.0V
  • AC voltage (mV): 9.999mV-99.99mV
  • Resistance: 99.99Q-99.99MQ
  • Capacitance: 9.999nF-99.99mF
  • Frequency (can only measure 100kz in AC voltage range): 99.99Hz-999.9kHZ
  • Diode: Yes
  • On/off buzzer: Yes
  • Data retention: Yes
  • True RMS: Yes
  • Weight: 157g
  • Battery type: 3.7V 1500mAh lithium battery
  • Adjustable screen brightness: 30%-50%-80%-100%
  • Screen backlight time: off-30s-60s-120s
  • Back support: yes
  • Automatic shutdown: yes
  • Low battery reminder: yes
  • Material: ABS+TPE
  • Language selectable: Chinese/English
  • Maximum count: 9999 counts
  • Range: automatic/manual
  • Sampling rate: 3 times/second

In the box

  • 1 x 2 In 1 Oscilloscope Multimeter
  • 2 x Test Leads
  • 1 x Charging Cable
  • 1 x Support Stand
  • 1 x English User Manual
  • 1 x Storage Bag
