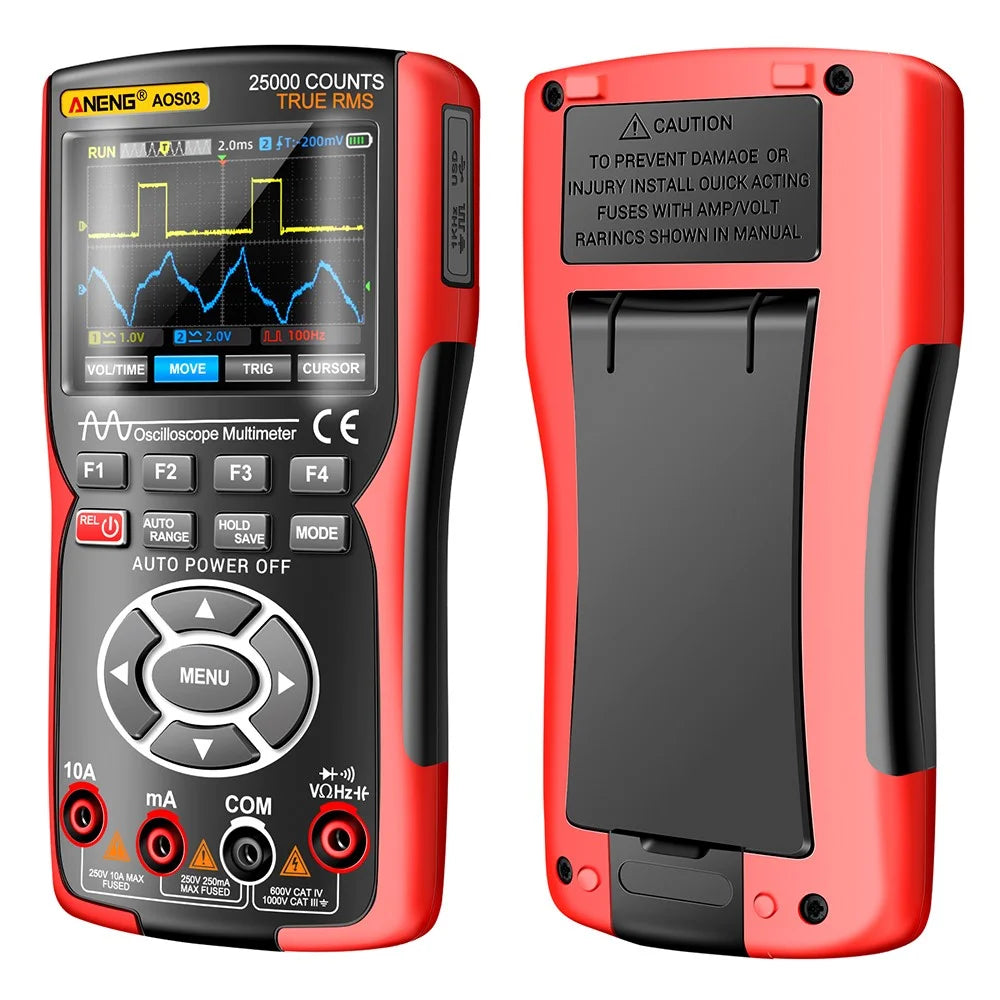

ANENG AOS03 Digital Oscilloscope Multimeter Signal Generator Waveform Output Handheld Multimeter

by ANENG
$2,770.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

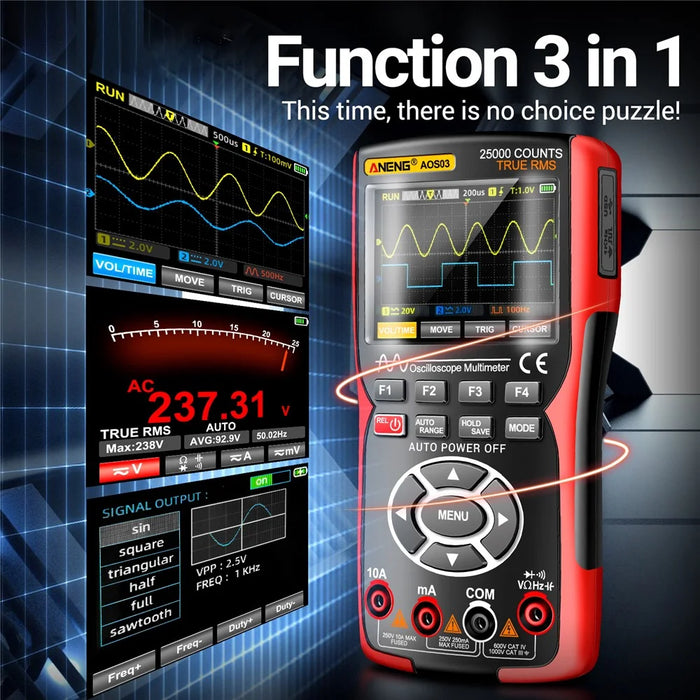

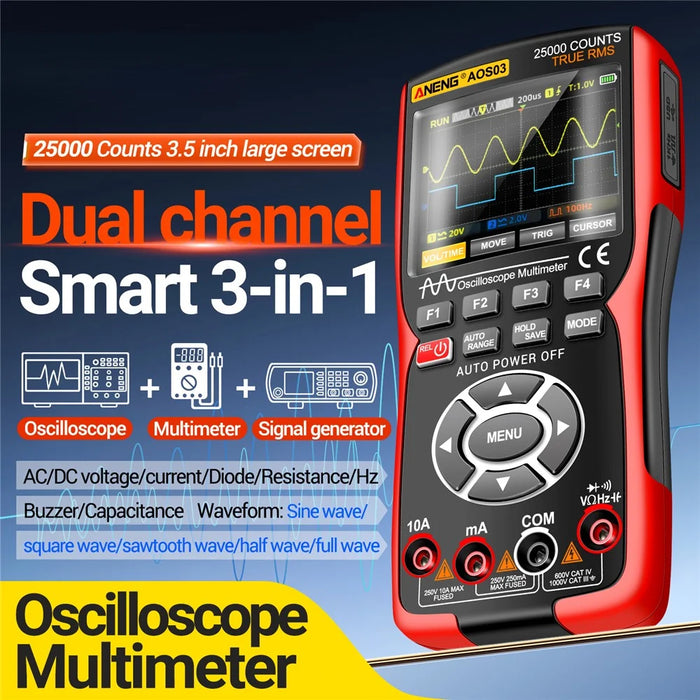

  • Two channel 3-in-1 digital oscilloscope multimeter: multimeter + oscilloscope + signal generator function
  • 3.5-Inch high-resolution large-screen display, allowing you to read clearly under strong light

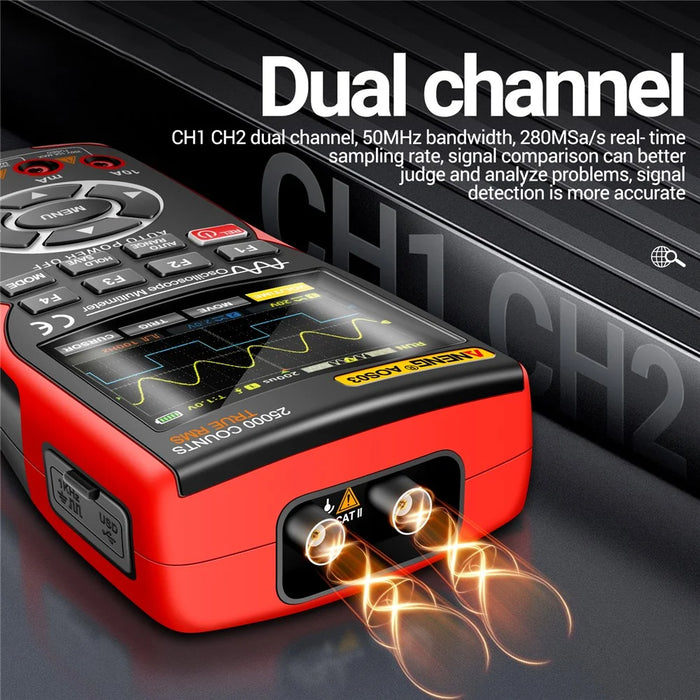

  • CH1 CH2 dual channel, 50MHz bandwidth, 280MSa/s real-time sampling rate, signal comparison can better judge and analyze problems, signal detection is more accurate

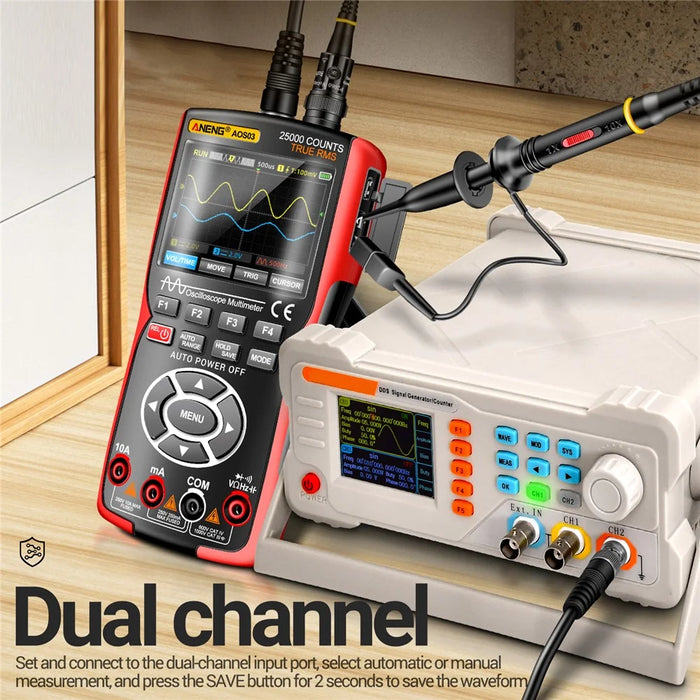

  • Set and connect to the dual-channel input port, select automatic or manual measurement, and press the SAVE button for 2 seconds to save the waveform

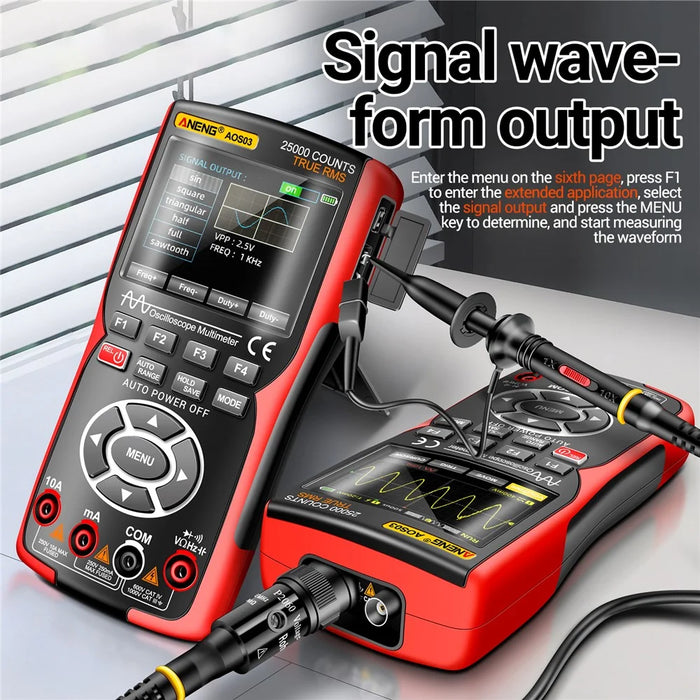

  • 7 signal waveforms can be selected: sine wave, square wave, triangular wave, half wave, full wave, sawtooth wave
  • Arbitrary waveforms: a variety of waveform measurements to meet your daily needs

Specifications:

  • Oscilloscope function:
  • Bandwidth: 50MHz dual channel
  • Sampling method: real-time sampling
  • Real-time sampling rate: 200M/280MSa/s
  • Number of channels: dual channels
  • Input coupling: DC, AC
  • Input impedance: 1M0,@16pf
  • Probe attenuation: X1, X10
  • Maximum input voltage: X1 gear <150V, X10 gear <300V (DC+AC peak)
  • Sampling rate range: 1.5Sa/s-280MSa/s
  • Waveform interpolation (sinx): x
  • Scan speed range: 10ns/div-20s/div
  • Time base accuracy: 20ppm
  • Record length: up to 128Kbyte
  • Sensitivity: 20mV/div-10V/div
  • Displacement range: 4 grids (plus or minus)
  • Analog bandwidth: 50MHZ
  • Low frequency response: greater than 10HZ
  • Rise time: less than 10ns
  • DC gain accuracy: ±3%
  • Automatic measurement: period/frequency/maximum value/minimum value/root mean square/duty cycle/number of pulses
  • Trigger mode: automatic, normal, single
  • Trigger edge: rising edge, falling edge
  • multimeter:
  • AC voltage (V): 0V-750.0V
  • DC voltage (V): 0V-1000.0V
  • AC and DC voltage (mV): 25.000mV-250.00mV
  • AC and DC current (A): 0A-10.000A
  • AC current (μA/mA): 25.000mA-250.00mA
  • DC current (mA): 25.000mA-250.00mA
  • Resistance: 0-250.0MΩ
  • Capacitance: 0nF-99.99mF
  • Hz: can only measure 100kHz 0Hz-999.9kHz at the AC voltage range
  • Diode/Buzzer: √
  • Low battery indication: √
  • USB charging: √
  • Battery model: 3.7V 18650 battery*1 3400 mAh (included)

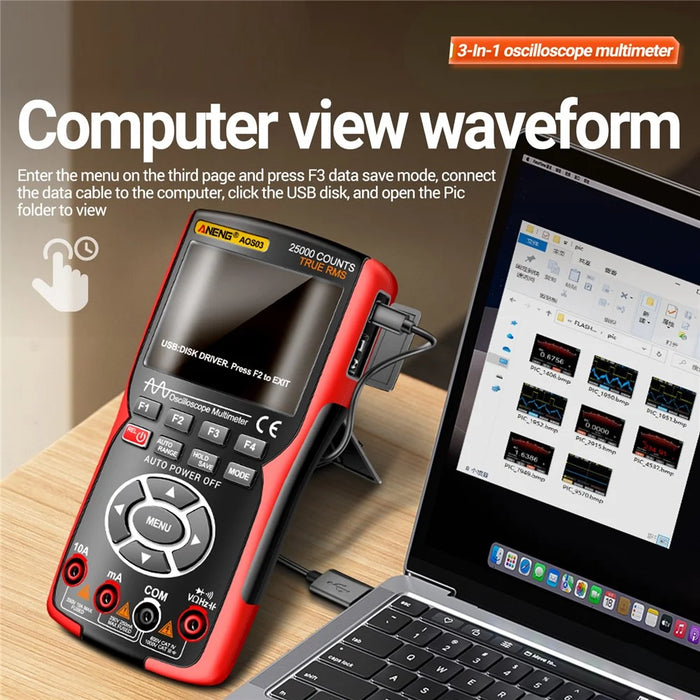

  • Data storage/viewing: USB connection to computer
  • Sampling rate: 3 times/second
  • Screen display: VA reverse display color screen
  • Screen brightness is adjustable: 30% 50% 80% 100%
  • Data retention: √
  • Back support frame: √
  • True valid value: √
  • Material: ABS/TPE
  • Language options: Simplified Chinese/English
  • Maximum count: 25000 counts

In the box

  • 1 x Oscilloscope Multimeter
  • 2 x Test Lead
  • 1 x Set of Oscilloscope Pen Kit
  • 1 x Type-C Cable
  • 1 x Storage Bag
  • 1 x English User Manual
