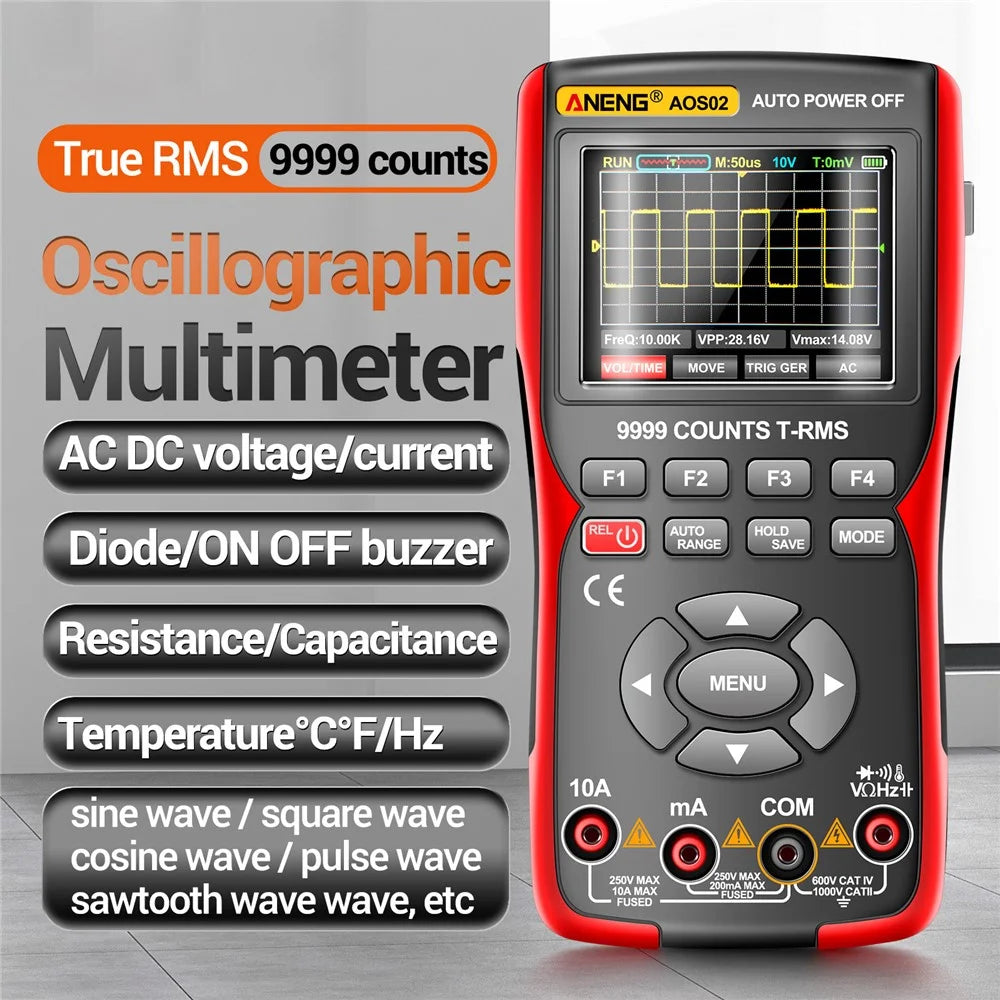

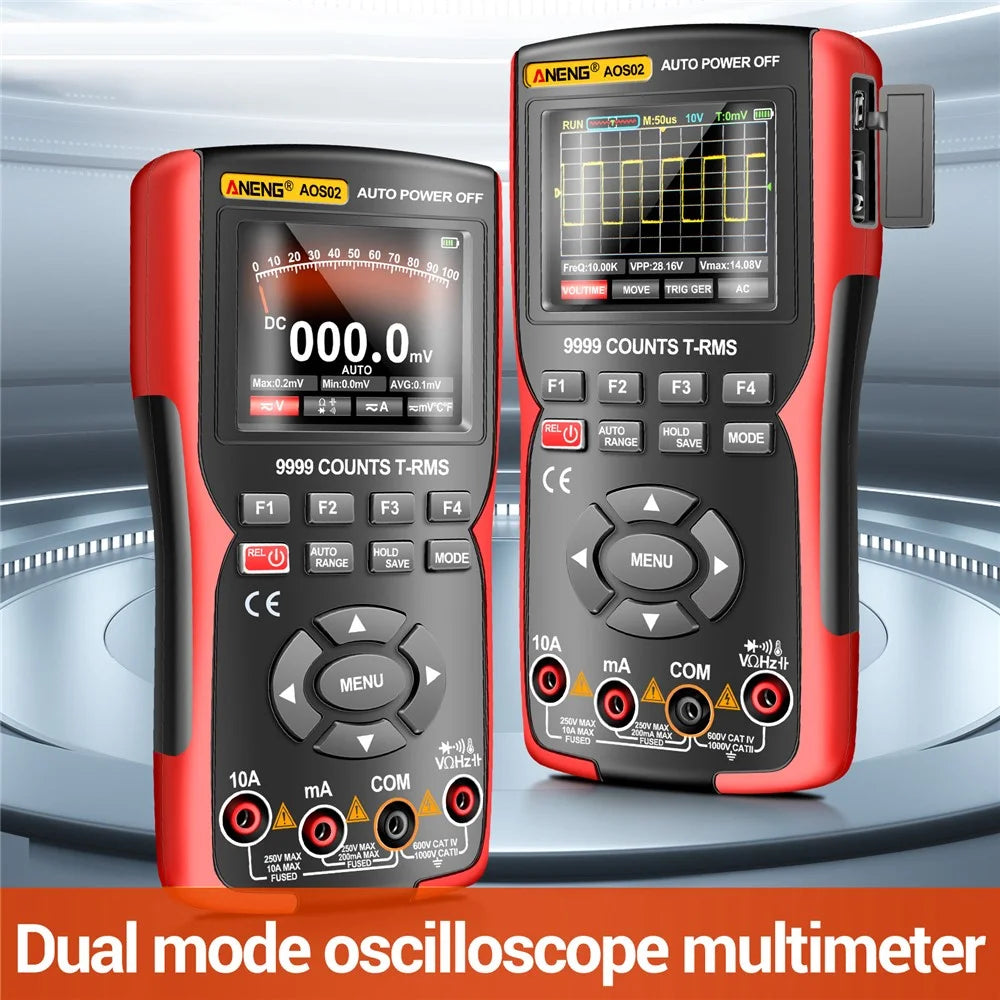

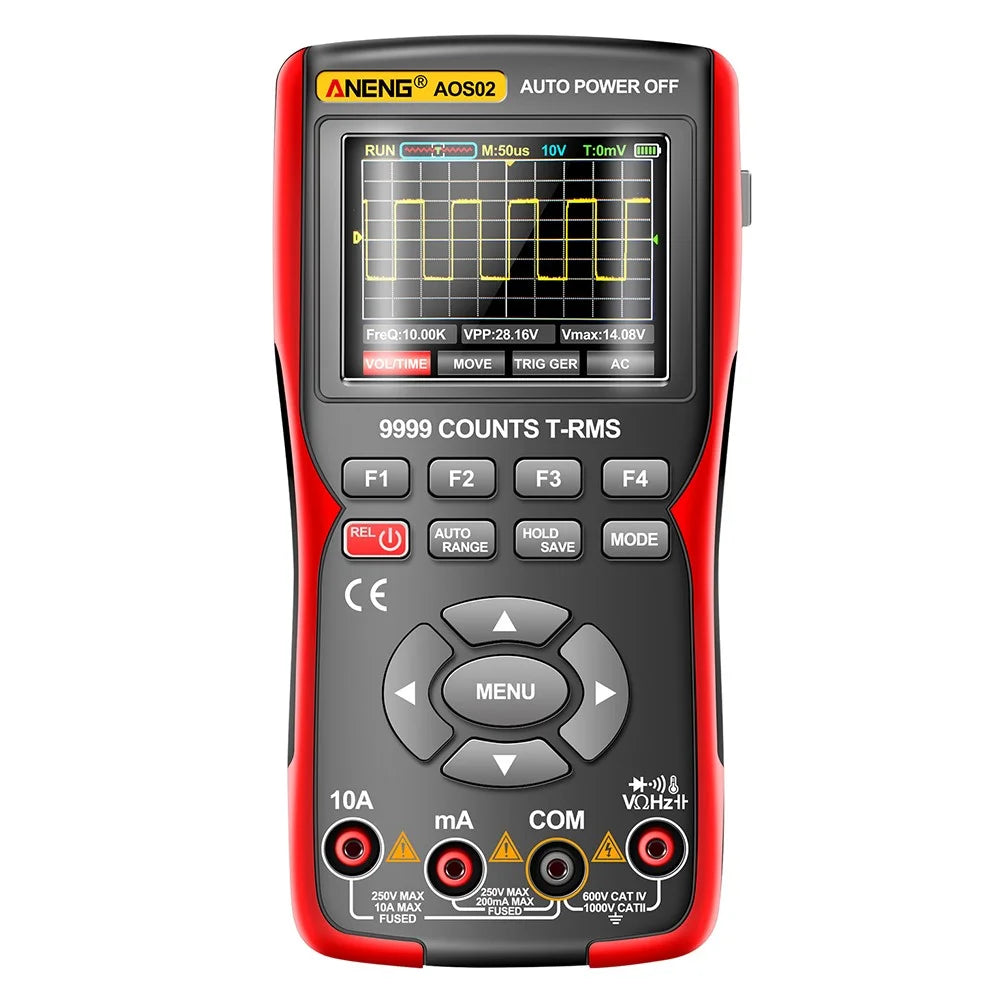

ANENG AOS02 Dual Mode Oscilloscope Multimeter Handheld Color Screen Digital Tester 2-in-1 Auto Repair Multimeter
R2 150
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description

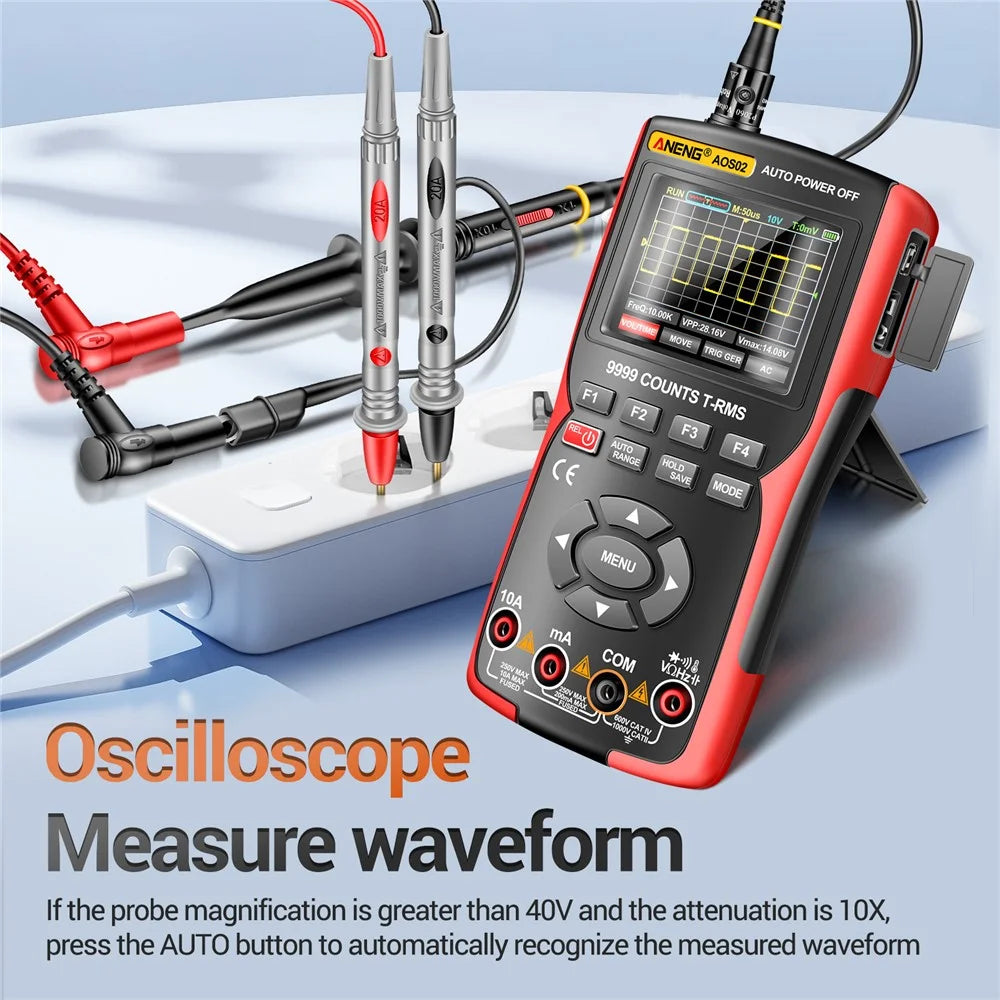

- Oscilloscope Measure Waveform: If the probe magnification is greater than 40V and the attenuation is 10X, press the AUTO button to automatically recognize the measured waveform

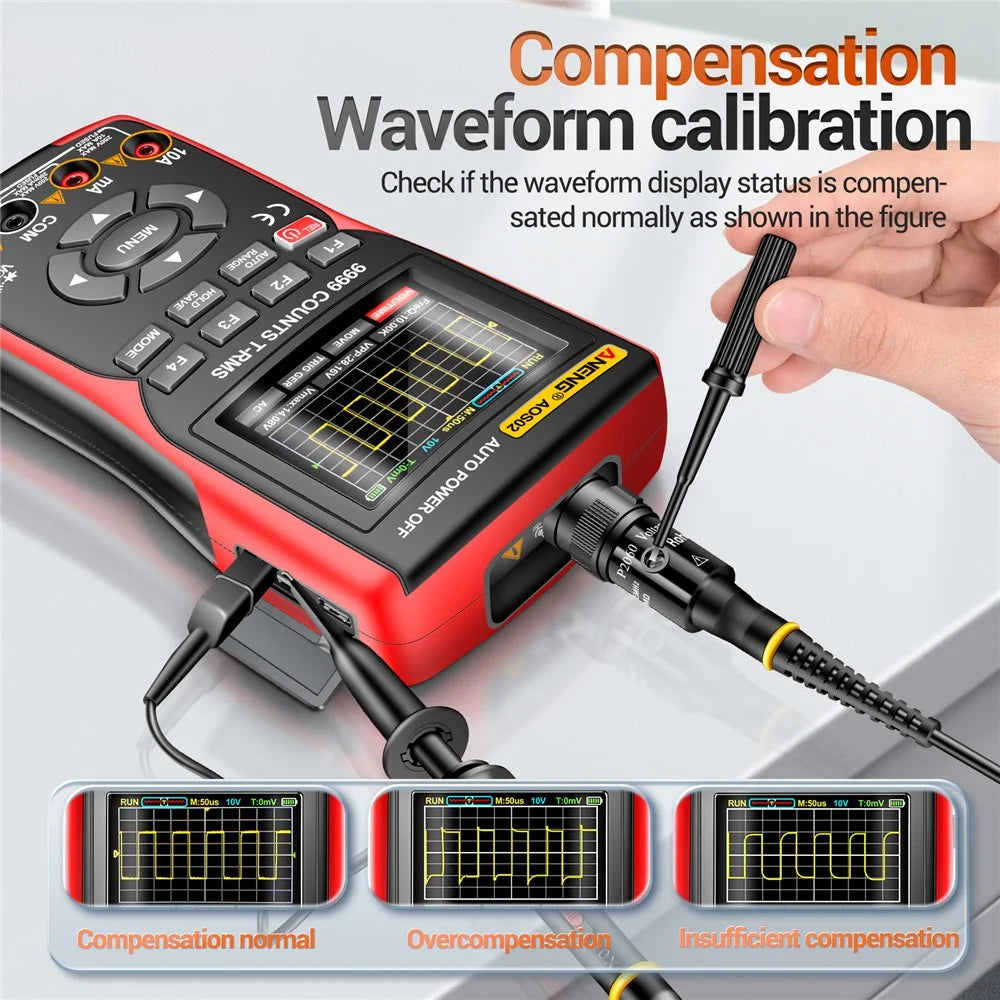

- Compensation Waveform Calibration: Check if the waveform display status is compensated normally as shown in the figure

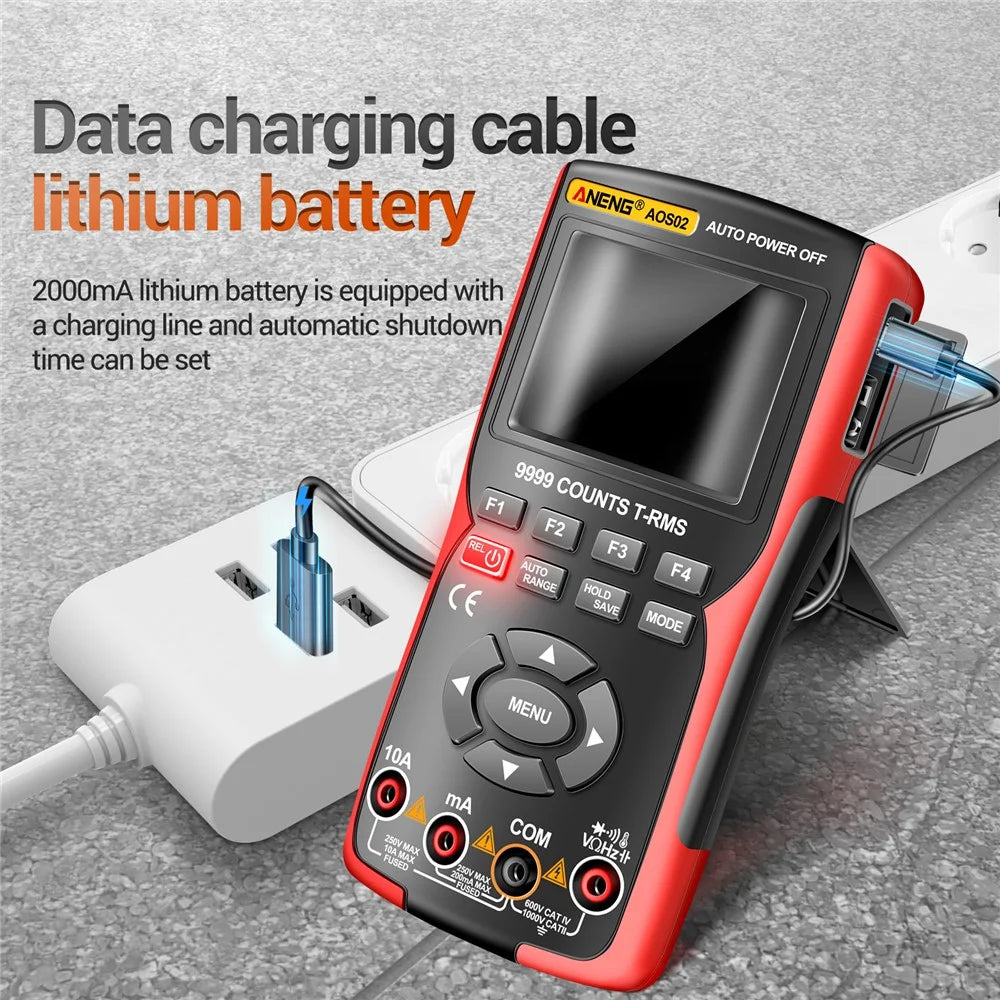

- Data Charging Cable Lithium Battery: 2000mAh lithium battery is equipped with a charging line and automatic shutdown time can be set
- Double Safety Tube Intelligent Protection: Built-in overload protection dual fuse, and equipped with high-performance chips, read data more accurately,10A 250V/200mA 250V

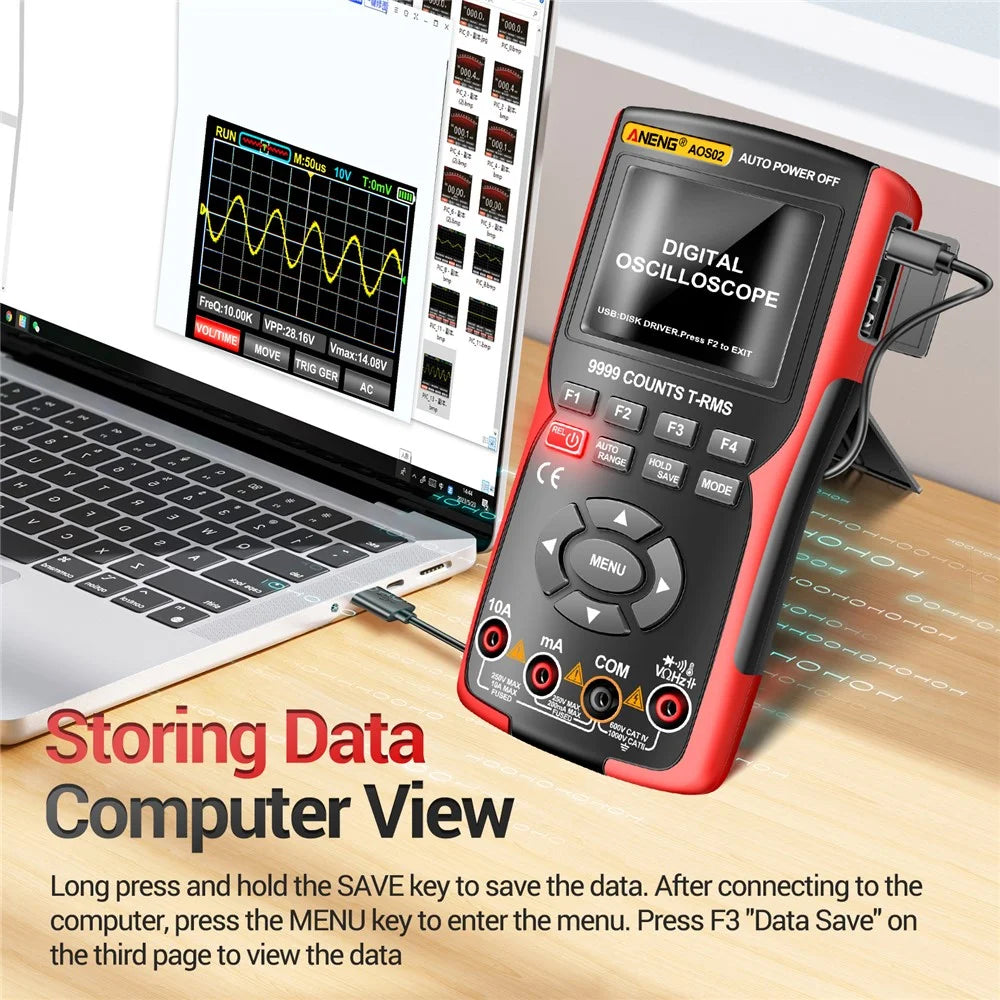

- Storing Data Computer View: Long press and hold the SAVE key to save the data. After connecting to the computer, press the MENU key to enter the menu. Press F3 "Data Save" on the third page to view the data
Specifications:
- DC voltage: V999.9mV~999.9V
- DC voltage: mV9.999mV~99.99mV
- AC voltage: V999.9mV~750V
- AC voltage: mV9.999mV~99.99mV
- DC current: A9.999A~999.9mA
- DC current: μA/mA99.99mA~9999μΑ
- AC current: A9.999A~999.9mA
- AC voltage: μA/mA99.99mA~9999μΑ
- Resistance: 0~99.99mΩ
- Capacitance: 9.999nF~99.99mF
- Frequency: (AC voltage range) 40Hz~1kHz
- Temperature: ℃(-20~1000)℃
- Temperature: ℉(-4~1832)℉
- Diode: √
- Data Hold: √
- Anti-burnout double fuse: 200mA 250V/10A 250V
- Language selectable: Simplified Chinese/English
- Backlight brightness adjustment: 30% 50% 80% 100%
- Data storage/viewing: USB connection to PC
- True RMS: √
- On/off beep: √
- Maximum count: 9999 counts
- Counting battery type: 3.7V lithium battery 2000mAh
- Product material: ABS/TPE
- Pen material: brass/PVC
- Pencil length: 107cm/42.1inch
In the box
- 1 x Oscilloscope Multimeter
- 2 x Test Cable
- 1 x USB Cable
- 1 x Thermocouple
- 1 x Oscilloscope Test Rod
- 1 x English User Manual
- 1Set x Other Accessories
- 1 x Storage Bag
- Other items not included
Specifications
- SKU
- 640101069A
- Colour
- As Shown
- Package dimensions
- 24 × 13.5 × 6.5 cm
- Gross weight
- 0.79 kg
- Units per pack
- 24
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Test Equipment › Multimeter & Accessories
What’s in the box
- 1 Oscilloscope Multimeter
- 2 Test Cable
- 1 USB Cable
- 1 Thermocouple
- 1 Oscilloscope Test Rod
- 1 English User Manual
- 1Set Other Accessories
- 1 Storage Bag
- — Other items not included
Shipping & returns
Dispatch
Orders placed before 13:00 are picked the same day. Dispatch time for each item is shown next to the price.
Delivery
Courier to your door: 2–4 working days to Gauteng, Cape Town and Durban; 3–6 days to outlying areas.
Returns
30 days from delivery for unused goods in original packaging. Faulty items are replaced or refunded in full.
Warranty
12-month warranty against manufacturing defects, handled locally — no cross-border shipping required.
