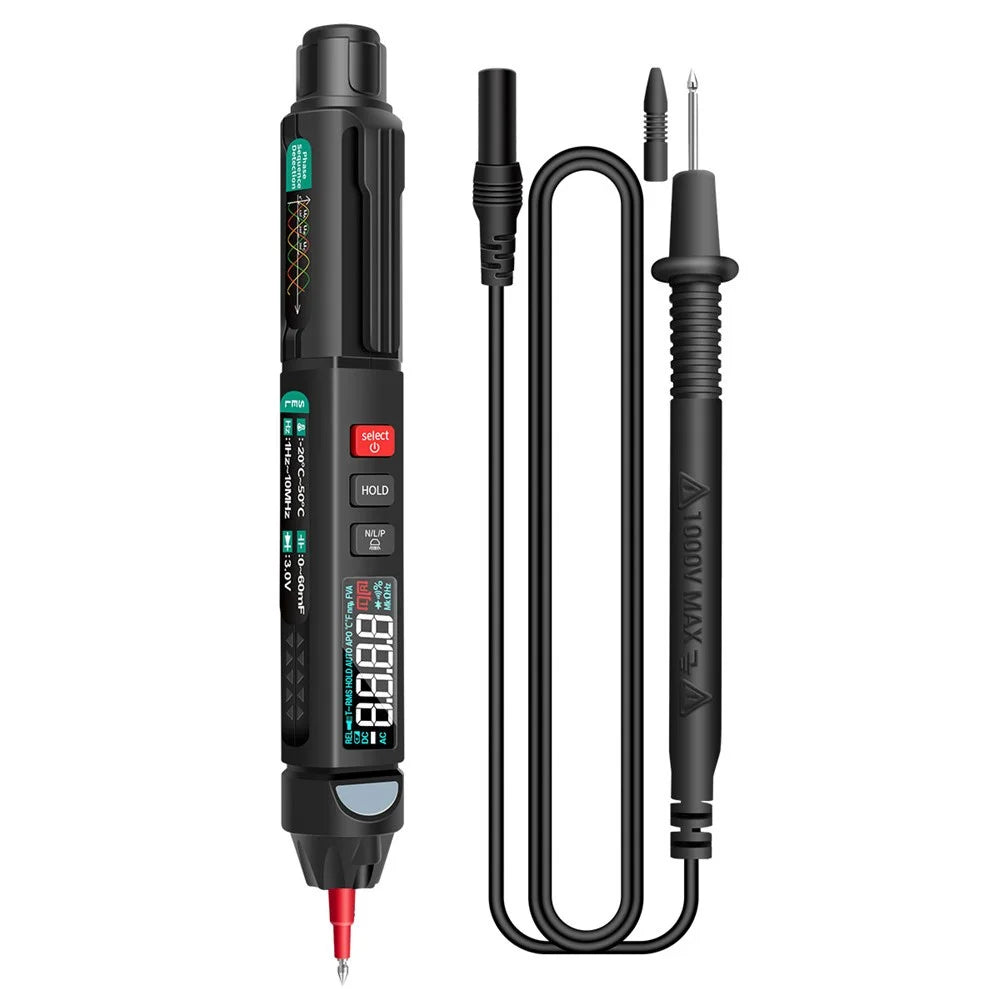

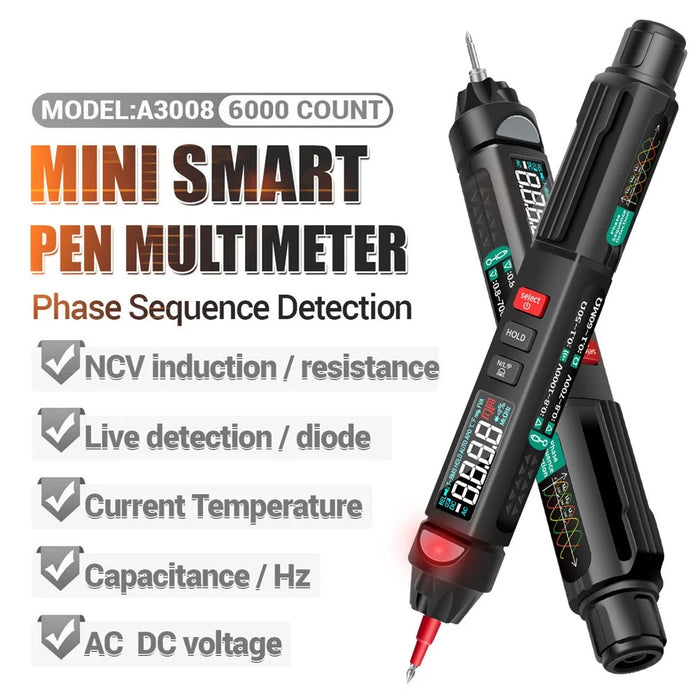

ANENG A3008 6000 Counts Voltage Meter Non Contact AC / DC LCD Display NCV Digital Multimeter Pen

• It is a pocket-sized 3 5/6 digit true effective value, pen-shaped smart multimeter, no need to turn the dial to select the function

• According to the different input voltage/resistance, the meter will automatically identify and measure

• The machine has stable performance, high precision, high reliability, clear readings, and overload protection

• Powered by a 1.5V AAA battery(not include), the meter uses a large LCD display and a boost power supply. Even on the edge of the low 0.8V battery, it can guarantee the backlight and ultra-high brightness of the flashlight

• The meter is easy to carry and is an extremely popular instrument for users

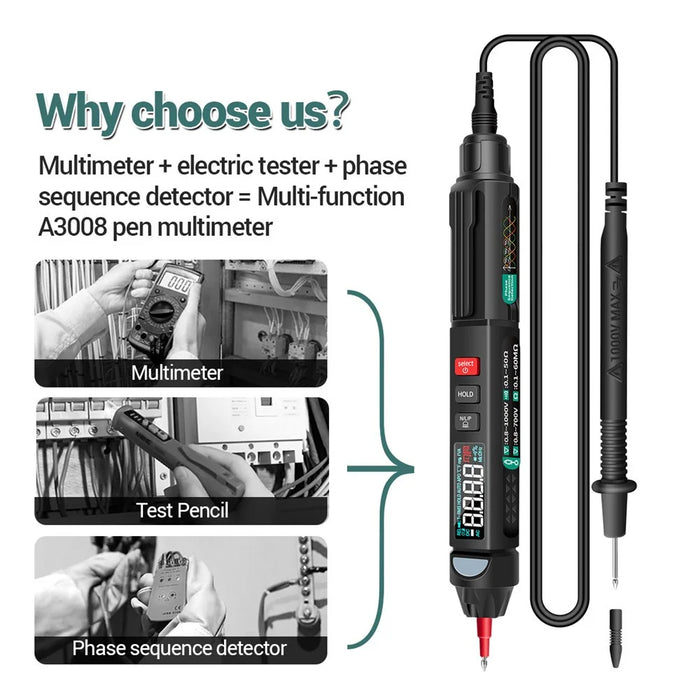

• This series of meters can automatically identify DC voltage and AC voltage, resistance, without any change, and can also manually switch to measure capacitance, diode, continuity test, non-contact voltage measurement. Neutral live wire measurement, phase sequence measurement and other parameters

• This high-performance tool meter is an ideal tool for labs, factories, radio enthusiasts, and families

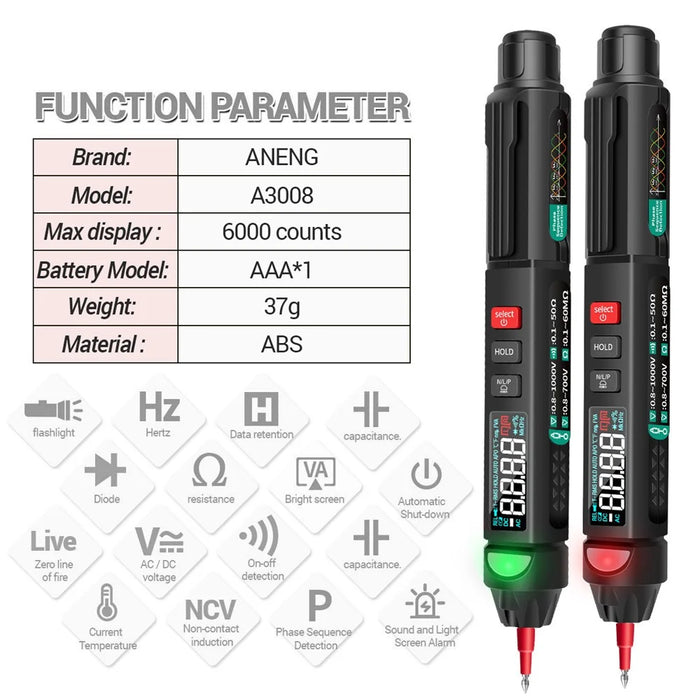

Specification:

• Display mode: LCD

• Maximum display: 5999 (3 5/6) digit automatic polarity display

• Measurement method: Double integral a / d conversion

• Sampling rate: about 3 times per second

• Over-range display: Highest position shows "OL"

• Working environment: (0-40) ℃

• Relative humidity <80%

• Power supply: 1 x 1.5V AAA battery (not included)

Function:

• DC DCV Voltage: Yes

• AC ACV Voltage: Yes

• Resistance / Diode / Continuity / Capacitance Test: Yes

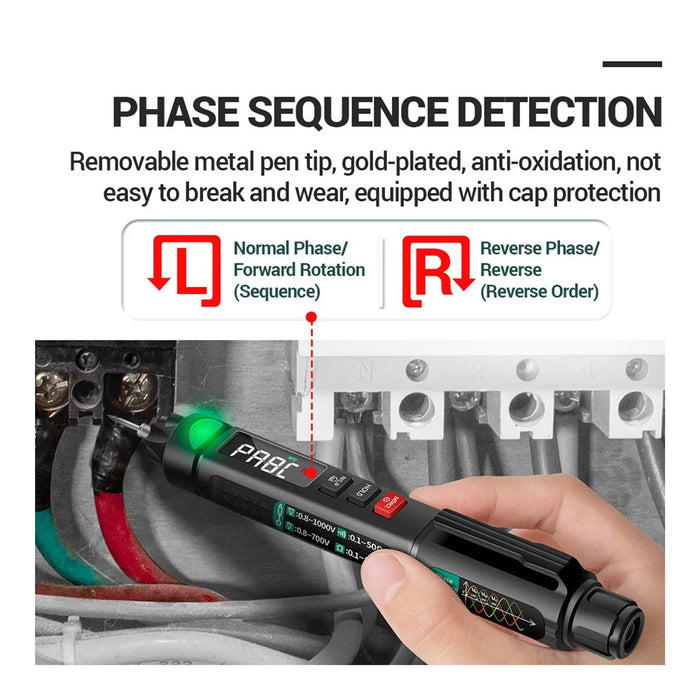

• A3008 Type Non-Contact Phase Sequence Measurement: Yes

• A3008 Type Color Display: Yes

• NCV: Yes

• Neutral / Live Line Test: Yes

• Full Unit Symbol: Yes

• Backlight Manual / Auto Power Off: Yes

• True RMS Measurement: Yes

• Temperature (℃ / ℉) Normal Temperature Display: Yes

• Illumination Flashlight: Yes

• Auto Power Off: Yes

• DC Voltage / AC Voltage

• 6000 Range Accuracy of DC Counts Resolution

• AC 6V ± (0.5% + 4) 0.001V

• DC / AC 60V ± (0.5% + 4) 0.01 V

• DC600 / AC600V ± (0.5% + 4) 0.1 V

• DC1000V / AC700V ± (0.8% + 10 ) 1V

• Resistance

• 6000 Range Accuracy of Counts Resolution

• 600Ω ± (0.8% + 5) 0.1Ω

• 6kΩ ± (0.8% + 3) 1Ω

• 60kΩ ± (0.8% + 3) 10Ω

• 600kΩ ± (0.8% + 3) 100Ω

• 6MΩ ± (0.8 % + 3) 1kΩ

• 60MΩ ± (2.5% + 3) 10kΩ

• Capacitance

• Accuracy of 6000 range of Counts Resolution

• 10nF ± (3.5% + 20) 10pF

• 100nF ± (3.5% + 20) 100pF

• 1uF ± (3.5% + 20) 1nF

• 10uF ± (3.5% + 20) 10nF

• 100uF ± (3.5% + 20)

• 100nF 1mF ± (3.5% + 20) 1uF

• 10mF ± (3.5% + 20) 10uF

• 60mF ± (5% + 3) 100uF

• Temperature measurement (℃ / ℉)

• Accuracy of 6000 range of Counts resolution

• (-20-50)℃ ± (1.0% + 5) <50℃ 1℃

• (0-122)℉ ± (0.75% + 5) <122℉ 1℉
