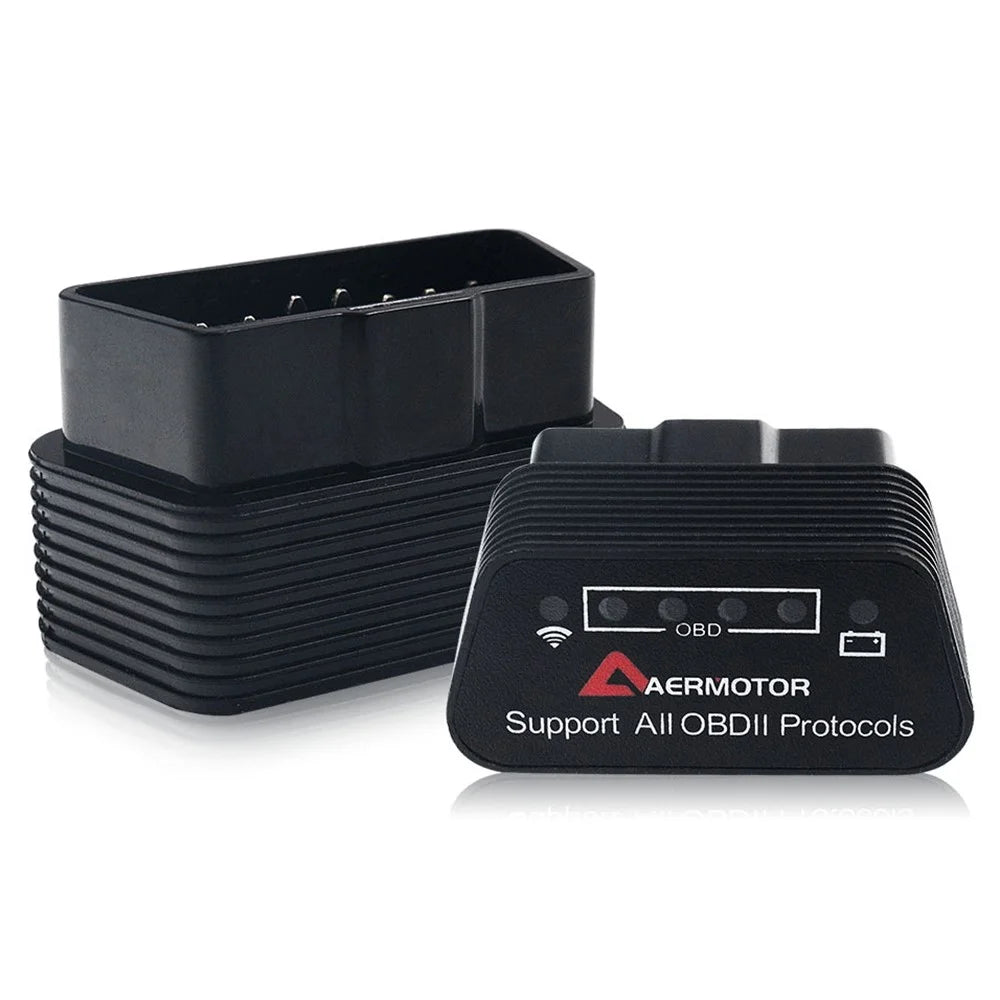

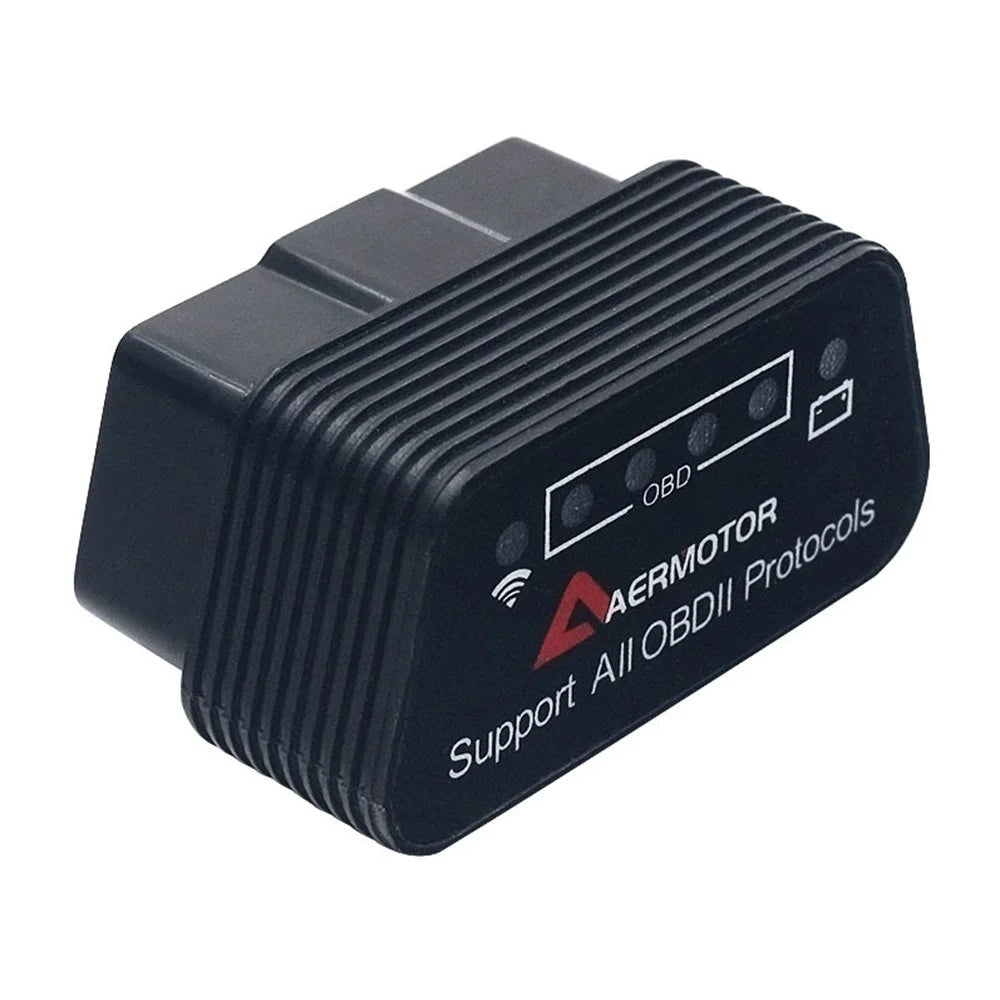

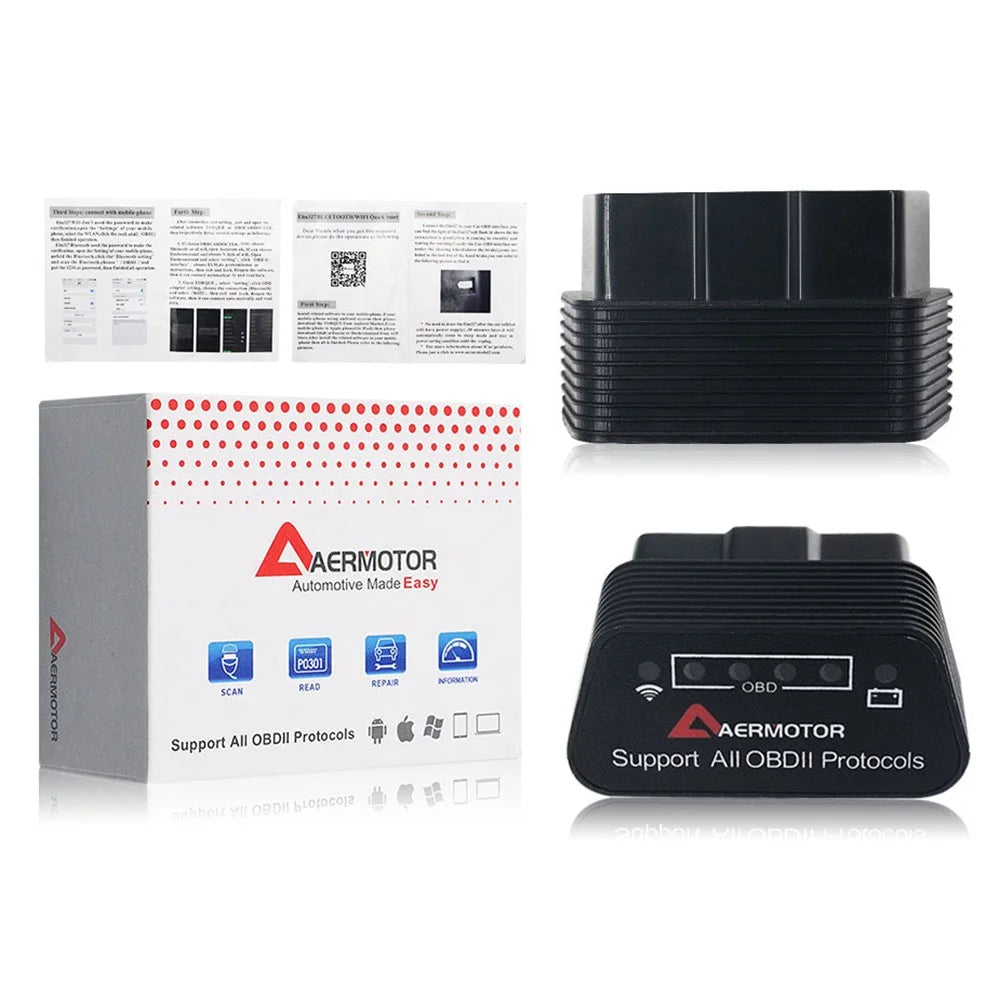

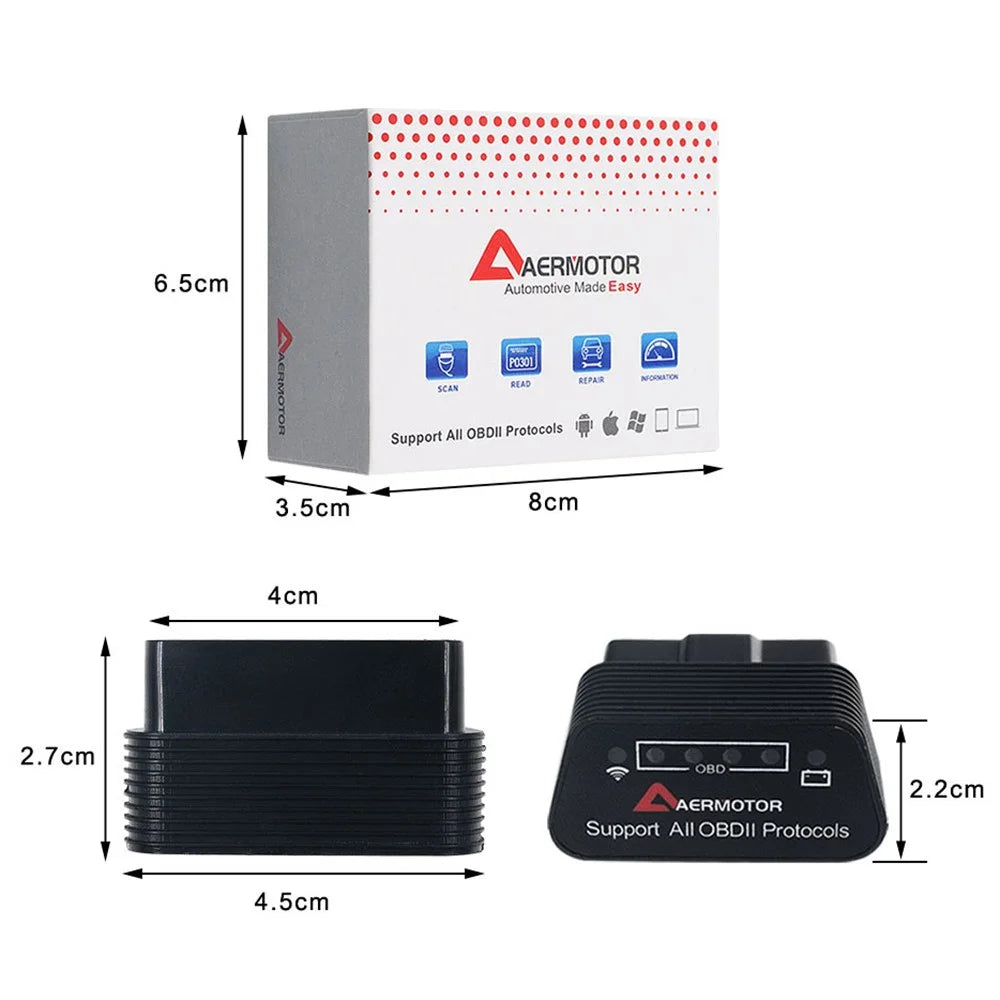

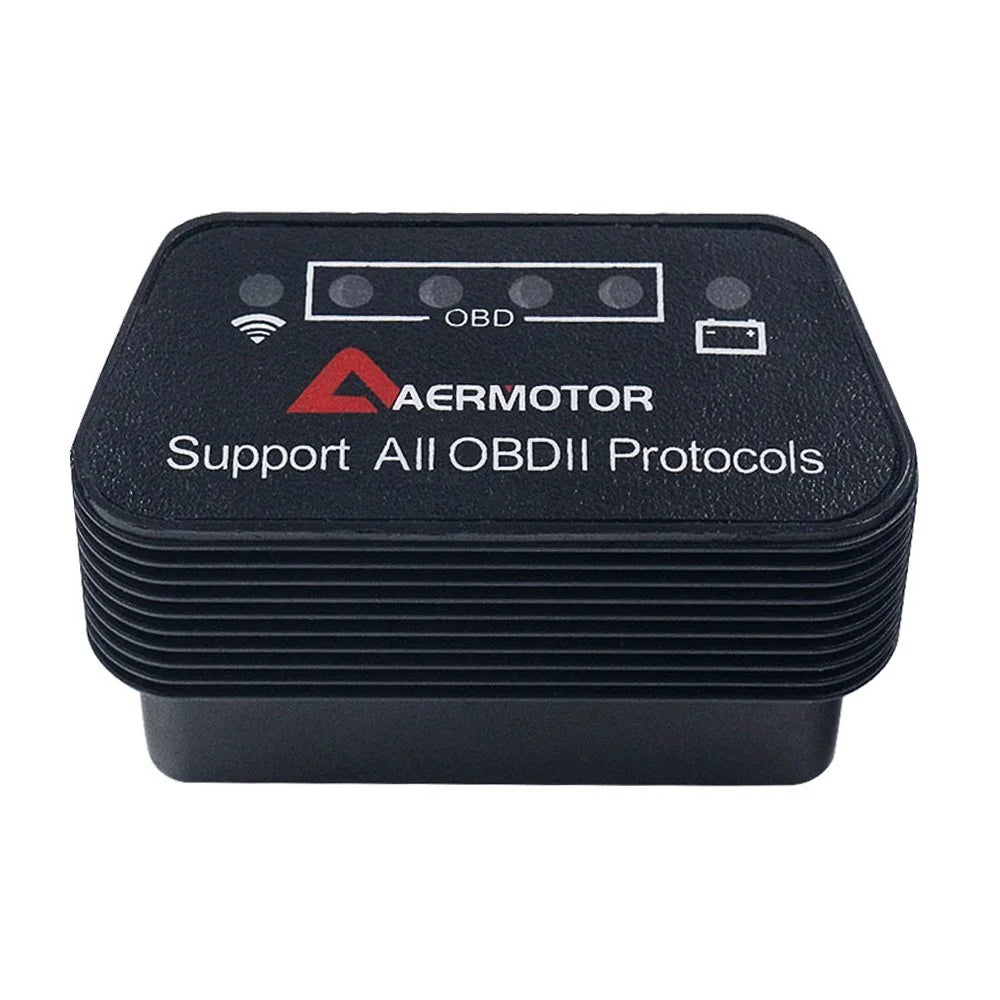

AERMOTOR V1.5 WiFi ELM327 Car Diagnostic Scan Tool Check Engine Device OBD2

• Mini OBD2 Bluetooth-compatible scanner suitable for multi-brand CAN-BUS, same as ELM327 Bluetooth. Supports all OBD2 protocols running on Android Symbian for reading universal and manufacturer-specific troubleshooting codes and showing you what you mean (more than 3000 universal code definitions in the database).
• Reads generic and manufacturer-specific diagnostic trouble codes and displays their meaning (over 3000 generic code definitions in database).
• Clear the fault code and turn off the MIL ("Check Engine" indicator light)
• Display current sensor data, including: engine speed, calculated load value, coolant temperature, fuel system status, vehicle speed, short-term fuel trim, long-term fuel trim, intake manifold pressure, timing advance, intake air temperature, air flow, absolute throttle position, oxygen sensor voltage /related short-term fuel trim, fuel system status, fuel pressure and other functions

Specifications:

• Working voltage: 9V-16V
• Working current: 35mA
• Standby current: 25mA
• Working temperature: -40℃-85℃
• Working humidity: less than 60%
• Compatible systems:
• Software support platform: iOS, Windows XP, Windows 7/8, Android, Symbian.
• Compatible software:
• Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
• Android: Torque, DashCommand, OBD Auto Doctor, Auto Doctor, Mini OBD, EOBD and more
• Symbian：OBDScope
• Supported protocols:
• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4K baud)
• ISO9141-2 (5 baud initialization, 10.4 Kbaud)
• ISO14230-4 KWP (5 baud initialization, 10.4 Kbaud)
• ISO14230-4 KWP (fast initialization, 10.4 Kbaud)
• ISO15765-4 CAN (11-bit ID, 500 Kbaud)
• ISO15765-4 CAN (29-bit ID, 500 Kbaud)
• ISO15765-4 CAN (11-bit ID, 250 Kbaud)
• IOS15765-4 CAN (29-bit ID, 250 Kbaud)
