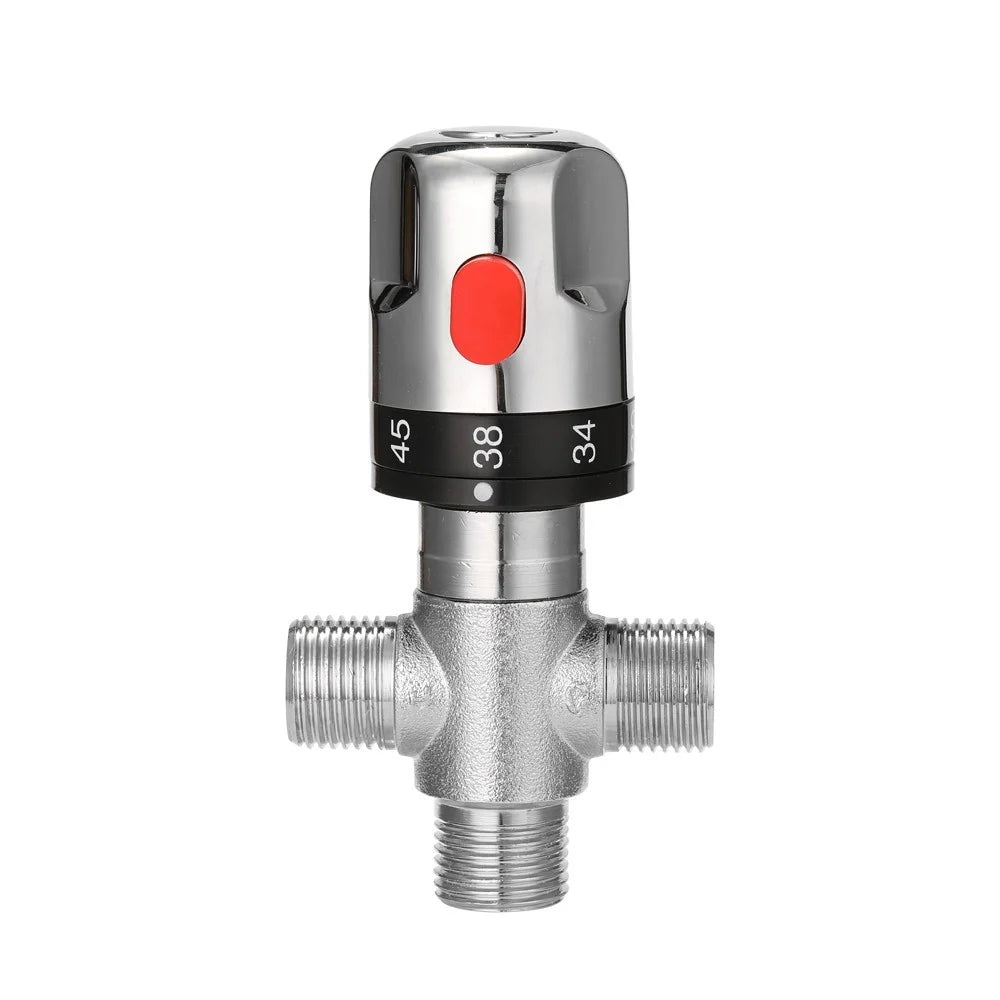

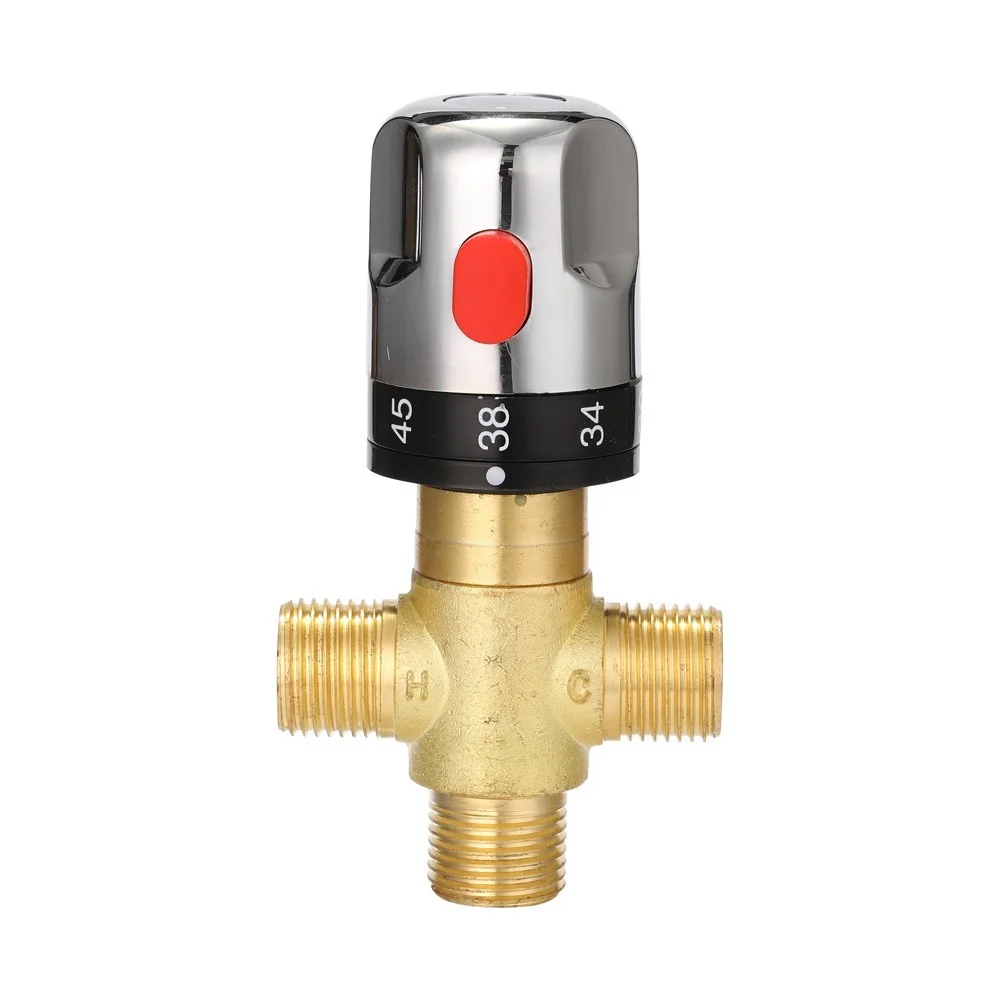

Adjustable Thermostatic Bathroom Mixer Valve Durable Brass Water Mixer Hot/Cold Water Mixing Temperature Control Valve for Home Water Heater - Type 1

This valve is used to mix hot and cold water, in order to control water temperature and keep water temperature in a certain range.

• By using this thermostatic valve, it is easy to control the hot and cold water amount for adjusting water temperature as needed

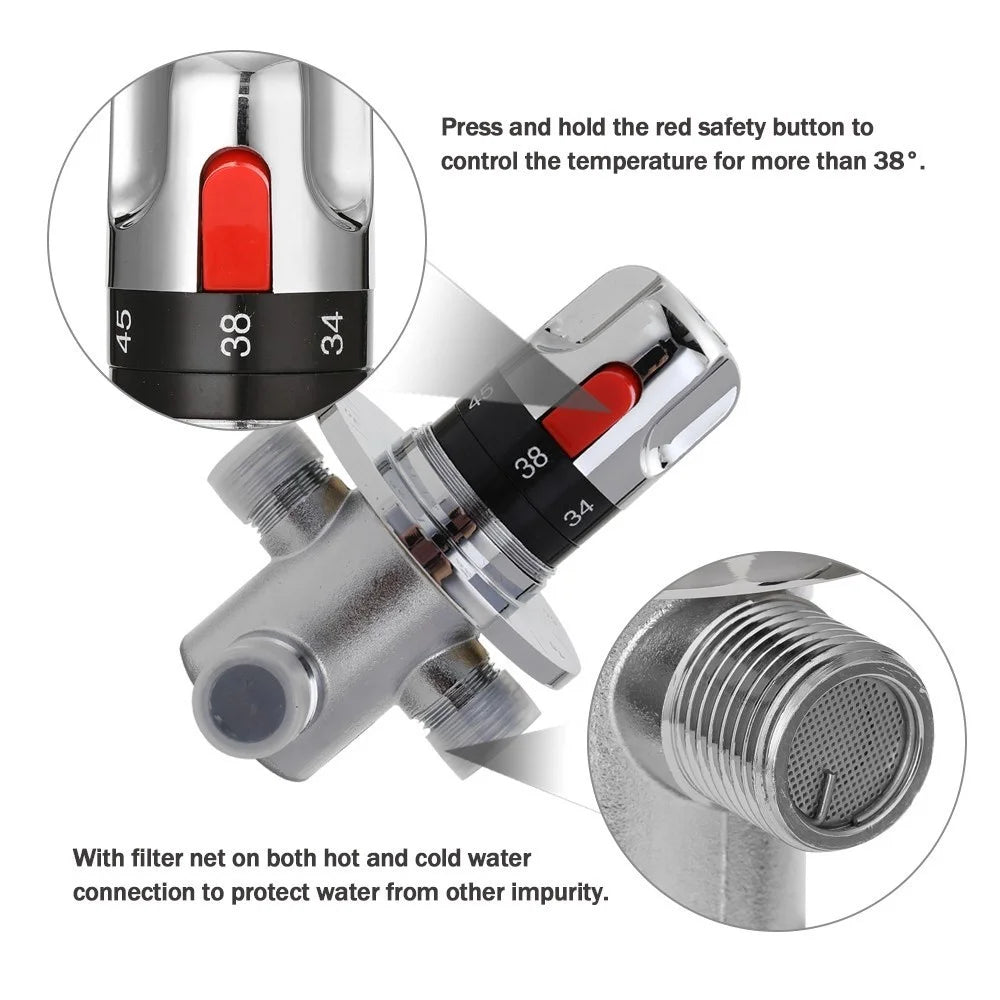

• Press and hold the red safety button to control the temperature for more than 38°

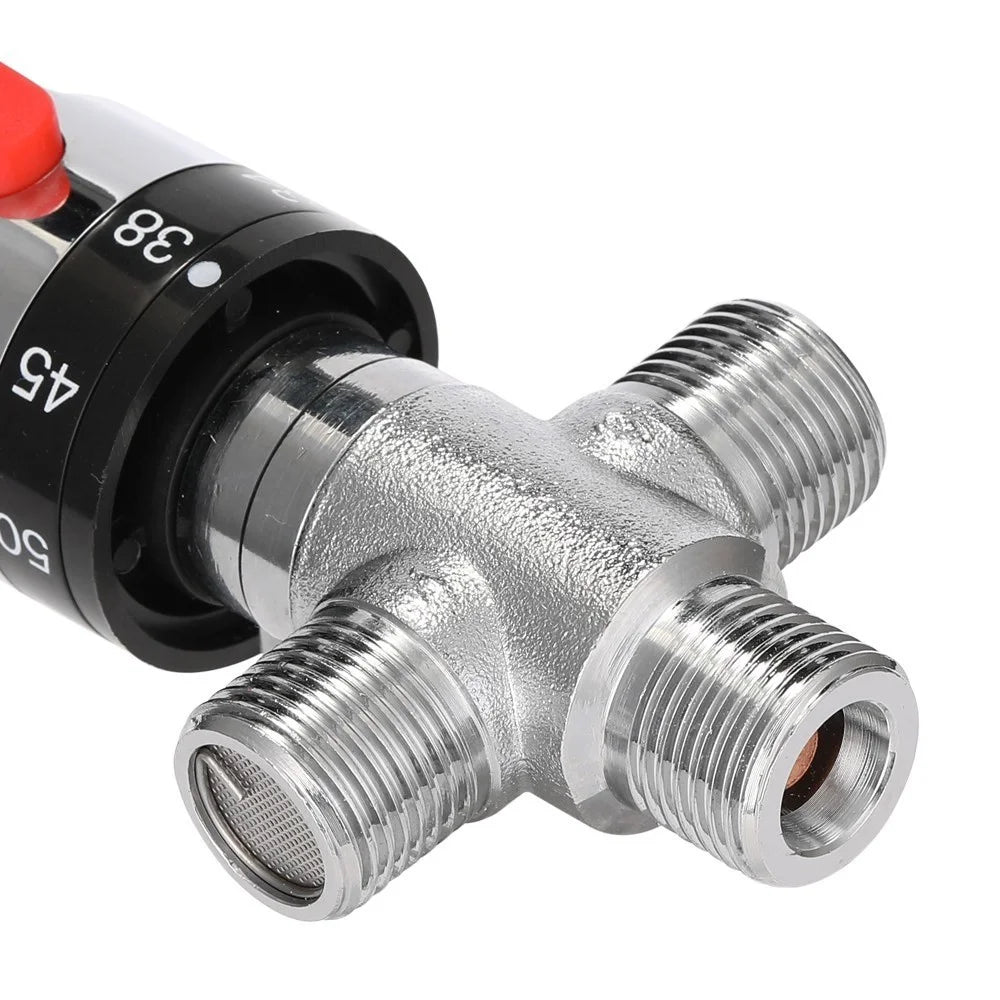

• With filter net on both hot and cold water connection to protect water from other impurities
• Made of solid brass valve element, it is durable, sturdy and not easy to rust
• Wall-mounted bath thermostatic mixer valve is easy to install and suitable for many water heaters
• Built-in temperature control safety device will automatically shut down hot water if there is no cold water, which can protect scald

Specifications:

• Operating Pressure: 0.05-1Mpa
• Recommended Pressure: 0.1-0.5Mpa(Need Release Valve When Pressure Is Over 0.5Mpa)
• Standard Pressure: Dynamic Pressure 0.3±0.02Mpa
• Cold Water Supply Temperature: 4°C-29°C
• Hot Water Supply Temperature: 55°C-85°C
• Recommended Normally Use Temperature: 60-70°
• Water Temperature Control Range: 20°C-50°C
• Safety Button Temperature: 38°

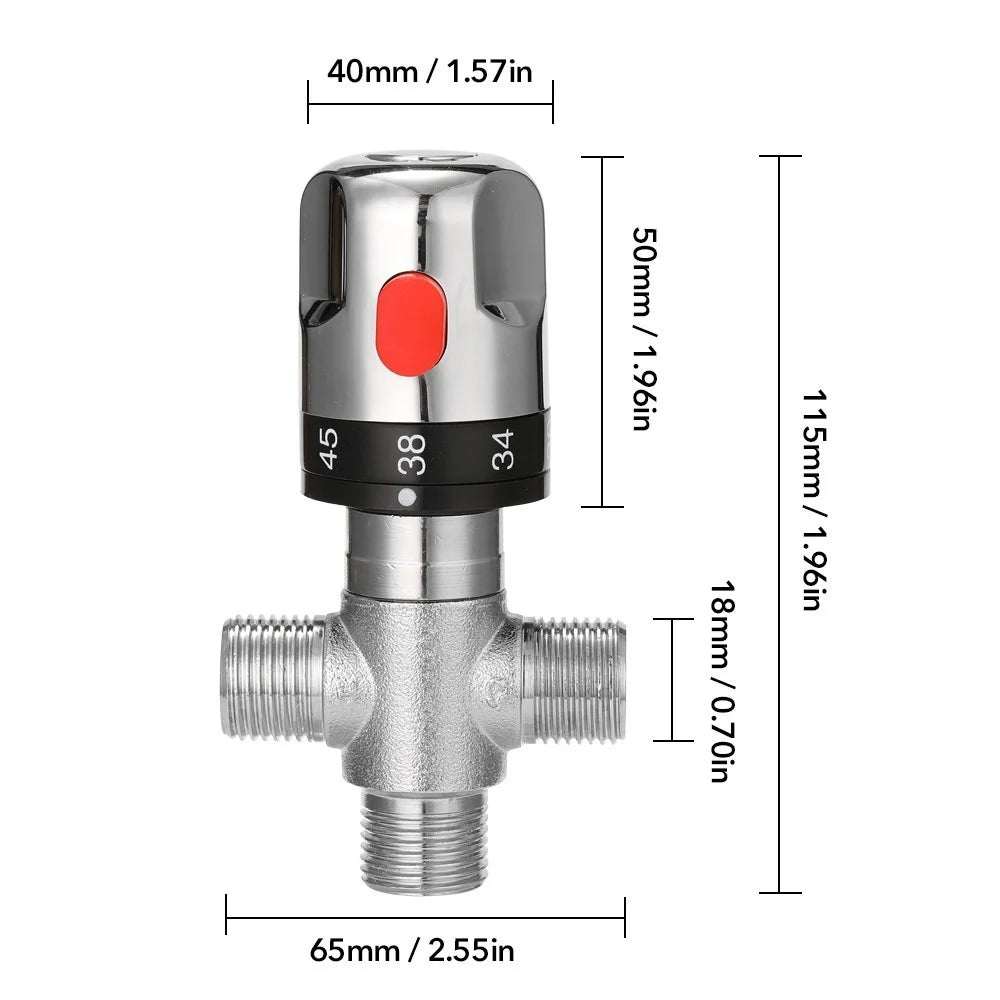

Type 1:

• Length: 115mm / 4.5in
• Width: 63mm / 2.5in
• Height: 42mm / 1.7in
• Item Weight: 296g / 10.4ounce

Type 2:

• Length: 113mm / 4.4in
• Width: 86mm / 3.4in
• Height: 42mm / 1.7in
• Item Weight: 394g / 13.9ounce

Type 3:

• Length: 115mm / 4.5in
• Width: 63mm / 2.5in
• Height: 42mm / 1.7in
• Item Weight: 296g / 10.4ounce

Notes:

• Please allow 1-30mm error due to manual measurement.
• Due to the difference between different monitors, the picture may not reflect the actual color of the item.
