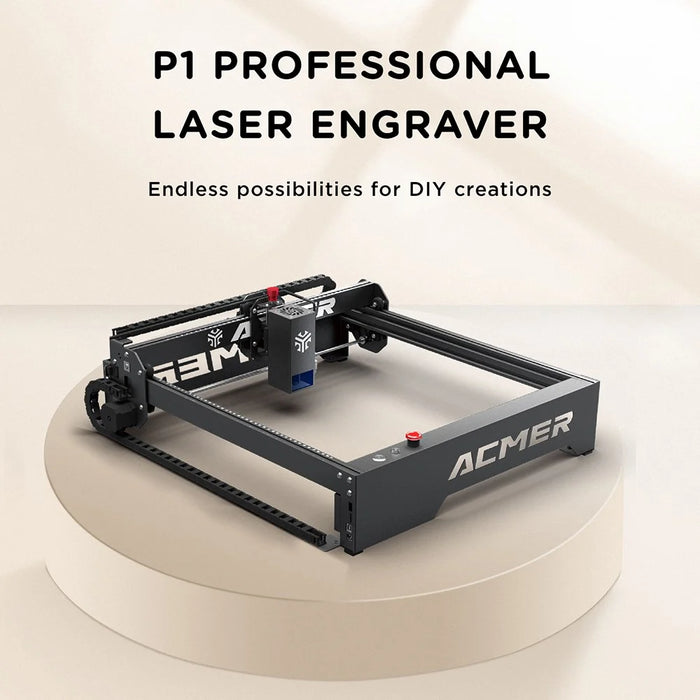

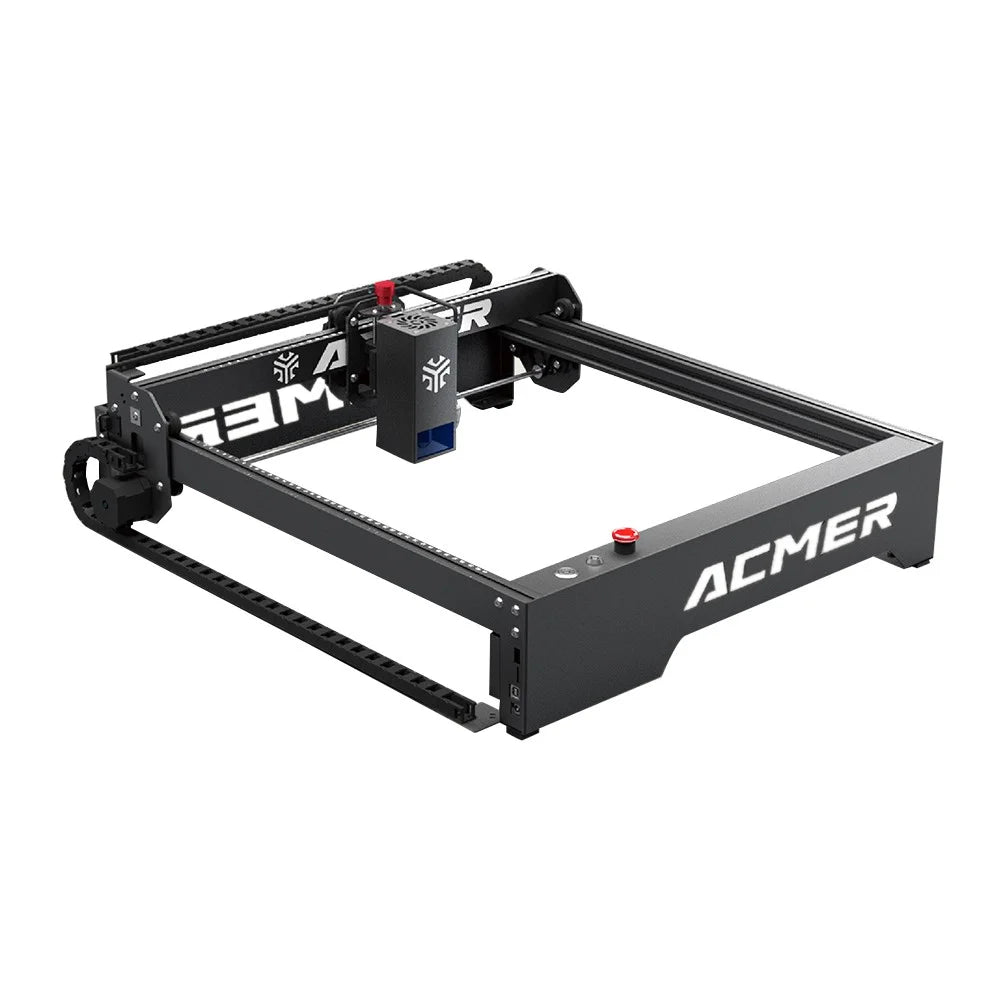

ACMER P1 20W High Speed Laser Engraver 0.01mm Accuracy WiFi Control Cutter Machine - US Plug - 1
ACMER P1 20W High Speed Laser Engraver 0.01mm Accuracy WiFi Control Cutter Machine - US Plug - 1

ACMER P1 20W High Speed Laser Engraver 0.01mm Accuracy WiFi Control Cutter Machine - US Plug

by TVCMall
$21,520.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

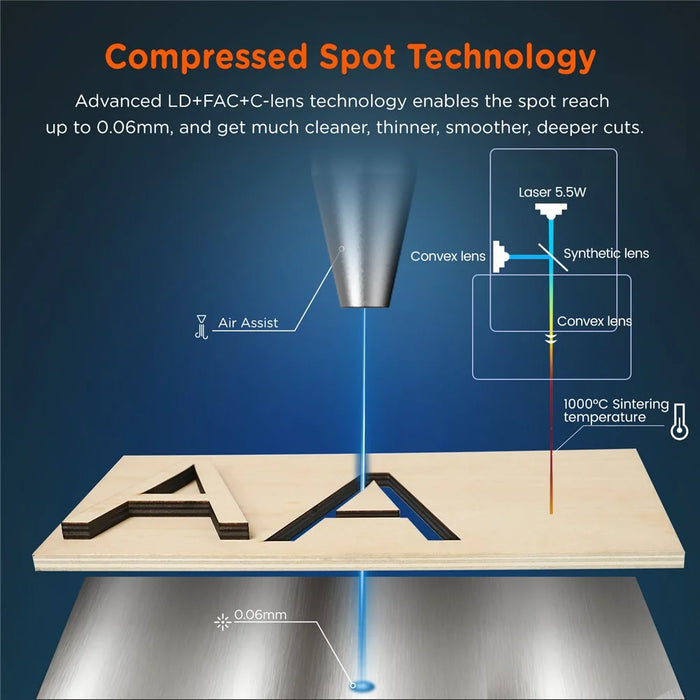

  • [Powerful Diode Laser Module] The ACMER P1 20W compressed beam offers higher power, greater cutting capability, faster speed, and better results at the same electrical power
  • [Ultimate Harvesting] By focusing and boosting the laser beam's energy, we can achieve the ability to cut 0.1mm stainless steel sheets with ultimate precision

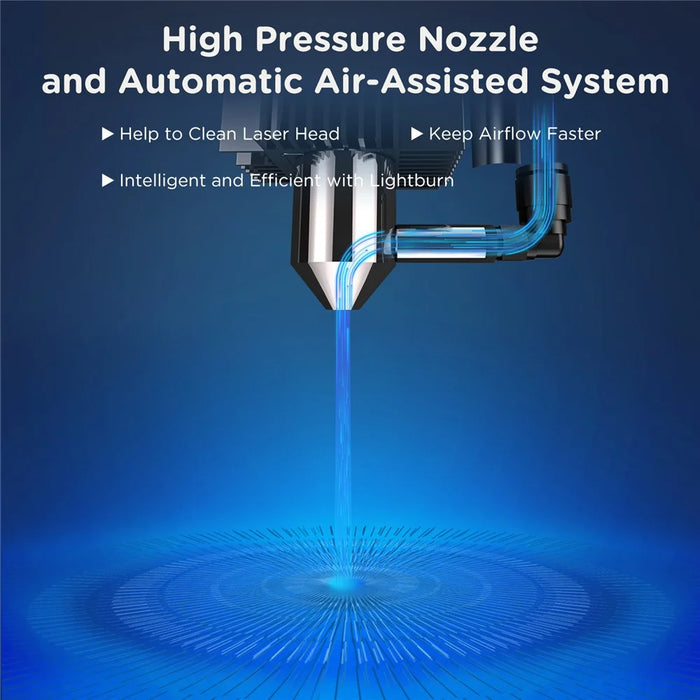

  • [Accessories Ecosystem] Supports optional accessories such as M2 Rotary Roller, honeycomb bed, R10 Enclosure Box, C4 air assist pump, and a range of other accessories
  • [High-performance ESP32 MCU] Combining high-performance chips with optimized motion algorithms, the maximum speed can reach 10,000mm/min
  • [More Details and Features] P1 supports wireless connectivity to the engraving machine through an app via Wi-Fi. You can also use a TF card to load your designs and instructions for the machine to execute

Specifications:

  • Laser Output Power: 20000mw
  • Laser Type: Diode laser
  • Machine Power: 96W
  • Laser Wavelength: 450±5nm
  • Power Supply: 24V/4A
  • Focal Length: 5mm

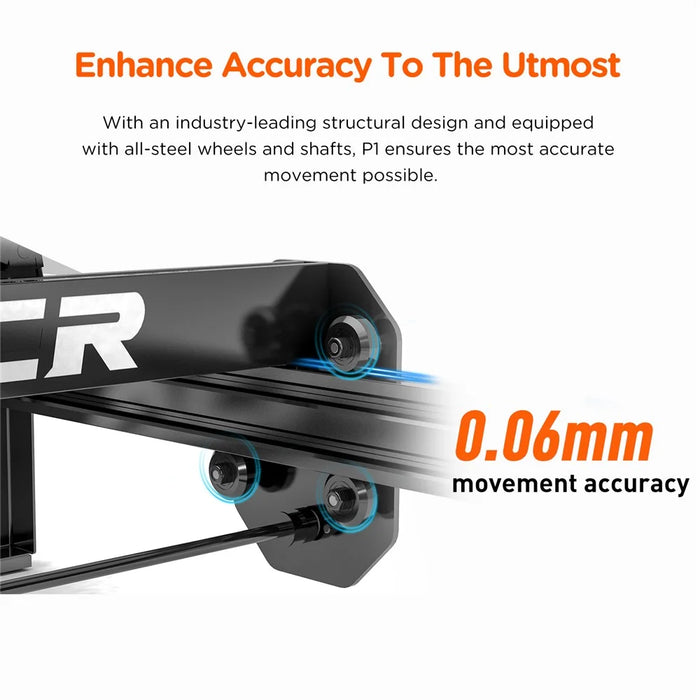

  • Engraving Accuracy: 0.01mm
  • Laser Module Design Life: 10000 hours
  • Maximum Engraving Speed: 10,000 mm/min
  • Working Area Size: 400*385mm
  • Certification: FCC/CE/RoHS/FDA
  • Control Software: LightBurn/LaserGRBL/ACMER App(Android) / MKS(iOS)
  • File Format Supported: JPG, SVG, PNG, BM

In the box

  • 1 x Front Assembly
  • 1 x Rear Assembly
  • 1 x X-axis Assembly
  • 1 x Left Profile
  • 1 x Rught Profile
  • 1 x Laser Model
  • 1 x Wrench
  • 1 x Goggles
  • 1 x TF Card
  • 1 x USB Cable
  • 1 x Adapter
  • 1 x Card Reader
  • 5 x Screw Bag
  • 2 x Keys
  • 3 x Test Board
  • 1 x Air Pump
  • 1 x Adapter Wire
  • 1 x Pneumatic Joint
  • 1 x Air Pipe
  • 1 x English User Manual
