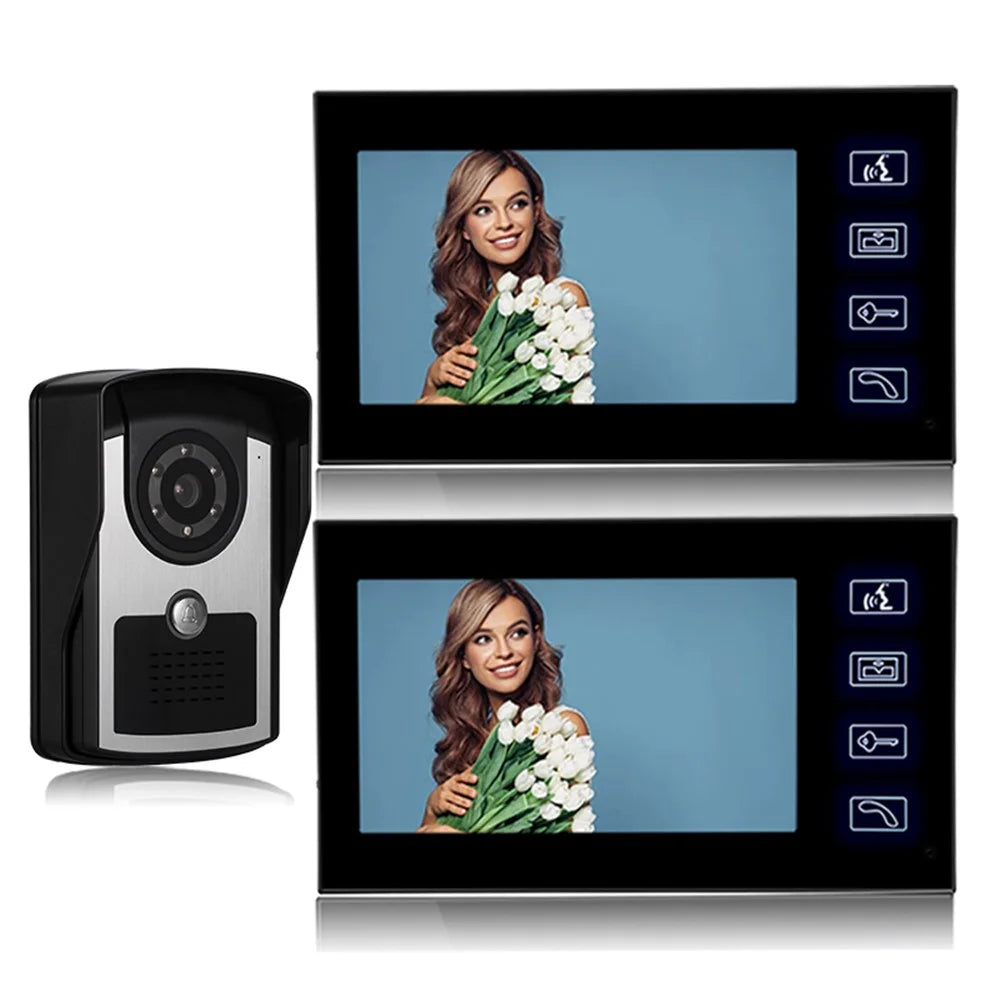

806FC12 EU Plug 7" Wired Intercom Video Doorbell System 1 Camera+2 Monitor
R5 470
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description

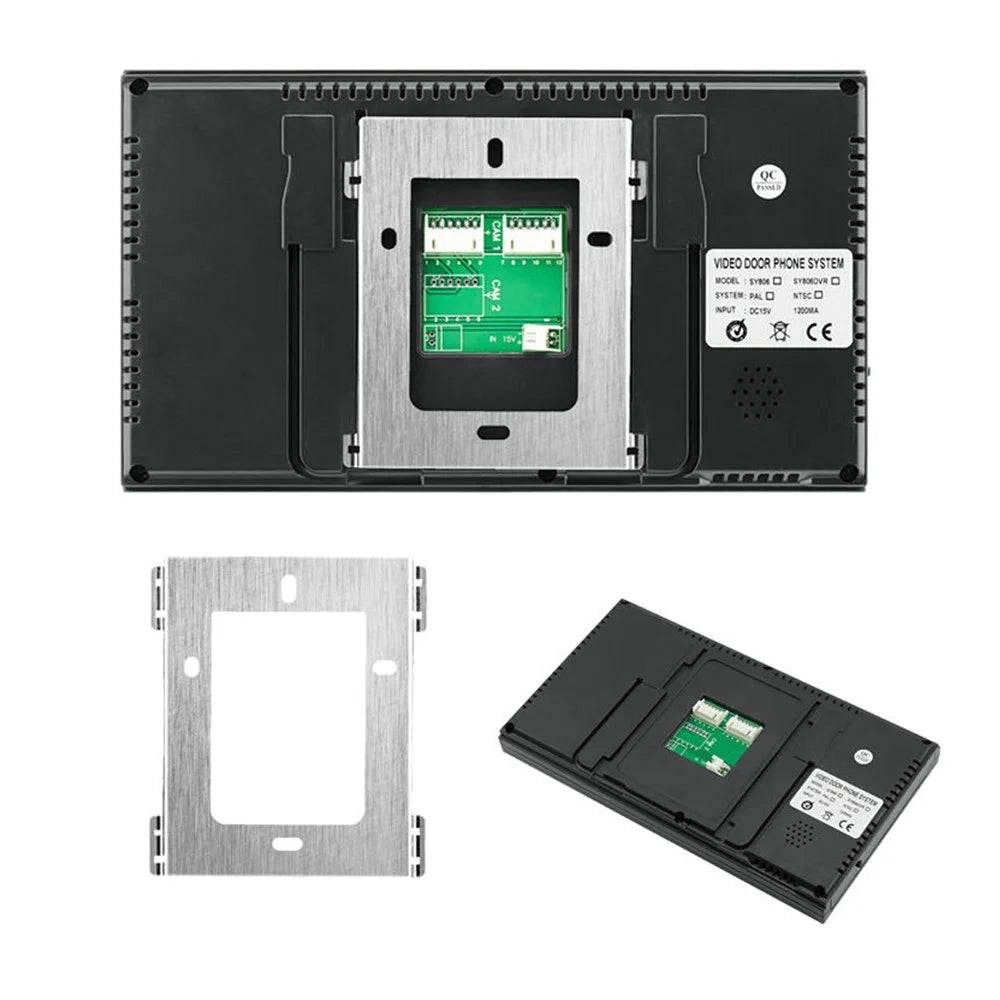

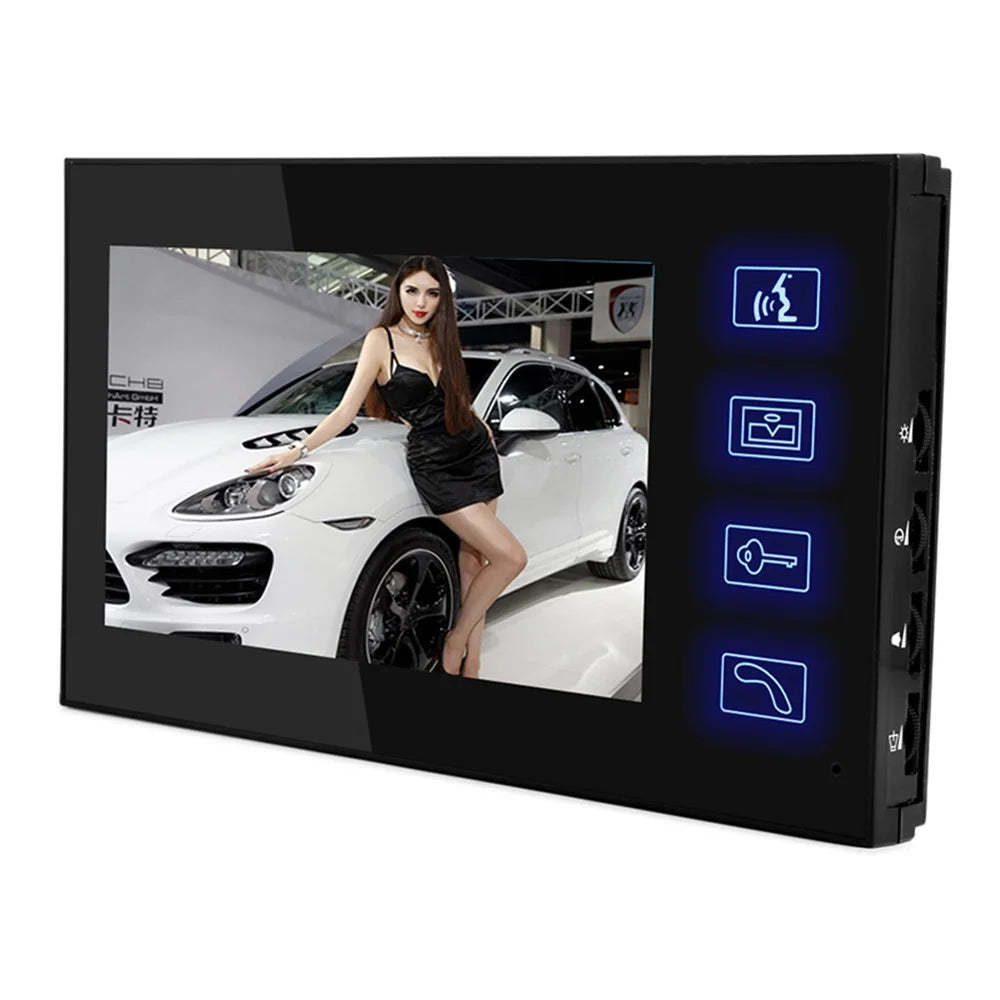

Indoor Unit:

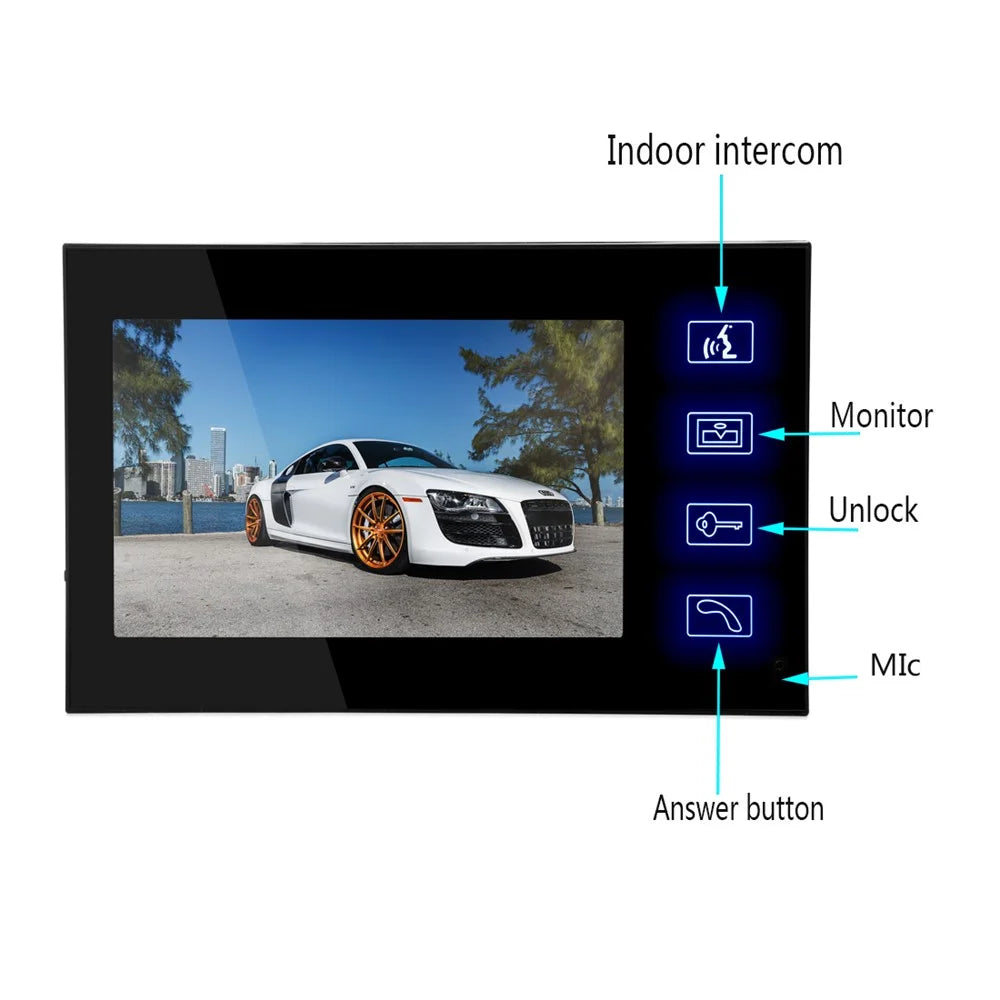

- It has Surveillance, Talkback, Unlocking, Ring music choice, Indoor intercom, Sound volume control, Brightness and Color Adjustment function
- 7Inch TFT LCD, nonradioactive, low power consumption, High definition widescreen image
- Hands-free intercom function
- Monitoring functions. The remote unlock function

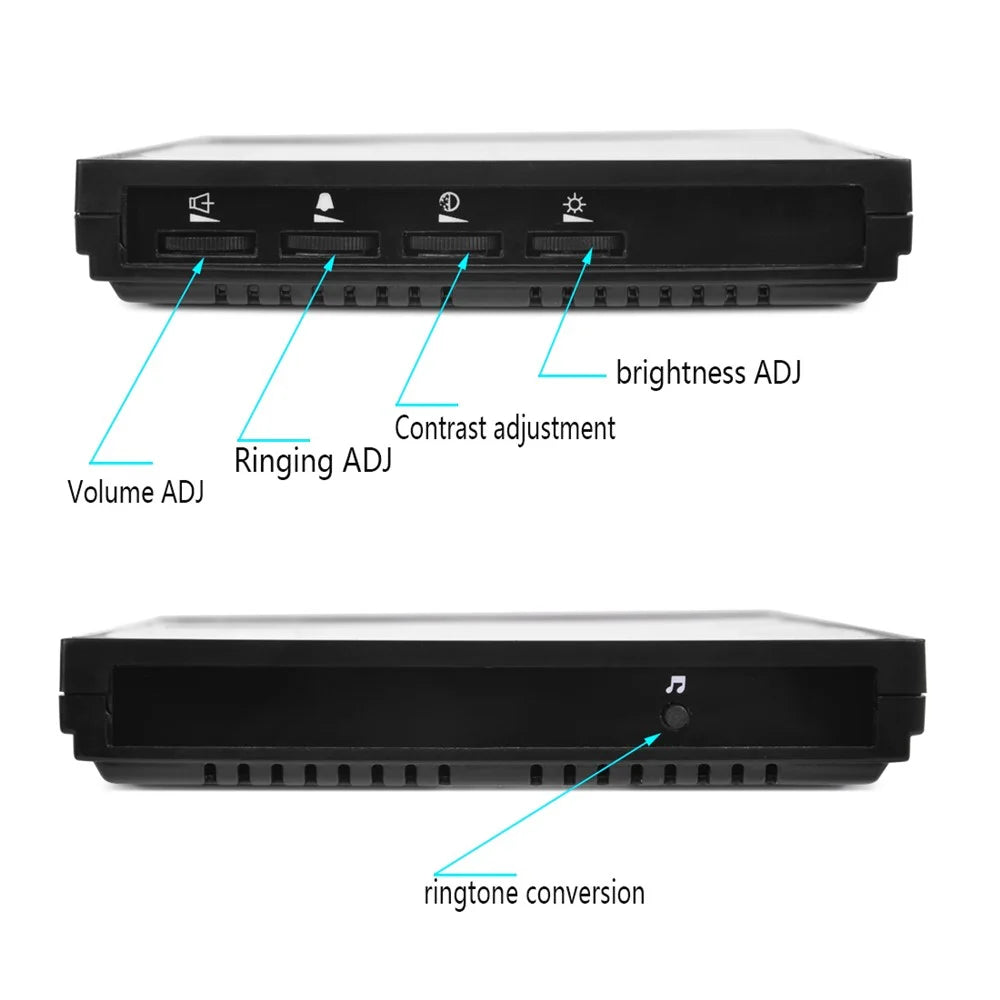

- Image brightness, chroma, ring music choice, sound volume control can be adjusted
- Ultra-thin aluminum panel ABS design
- 16 different polyphonic sound Ring music choice, will not always hear the monotone of doorbell ring
- Wall-mounted installation
- Indoor Unit Size: 22.5*12.8*2.3cm
- Connection mode: (outdoor unit to indoor unit Used to 4 Core cable)
- Power supply mode: DC15V/1.2A
- Two indoor unit can one to one talkback

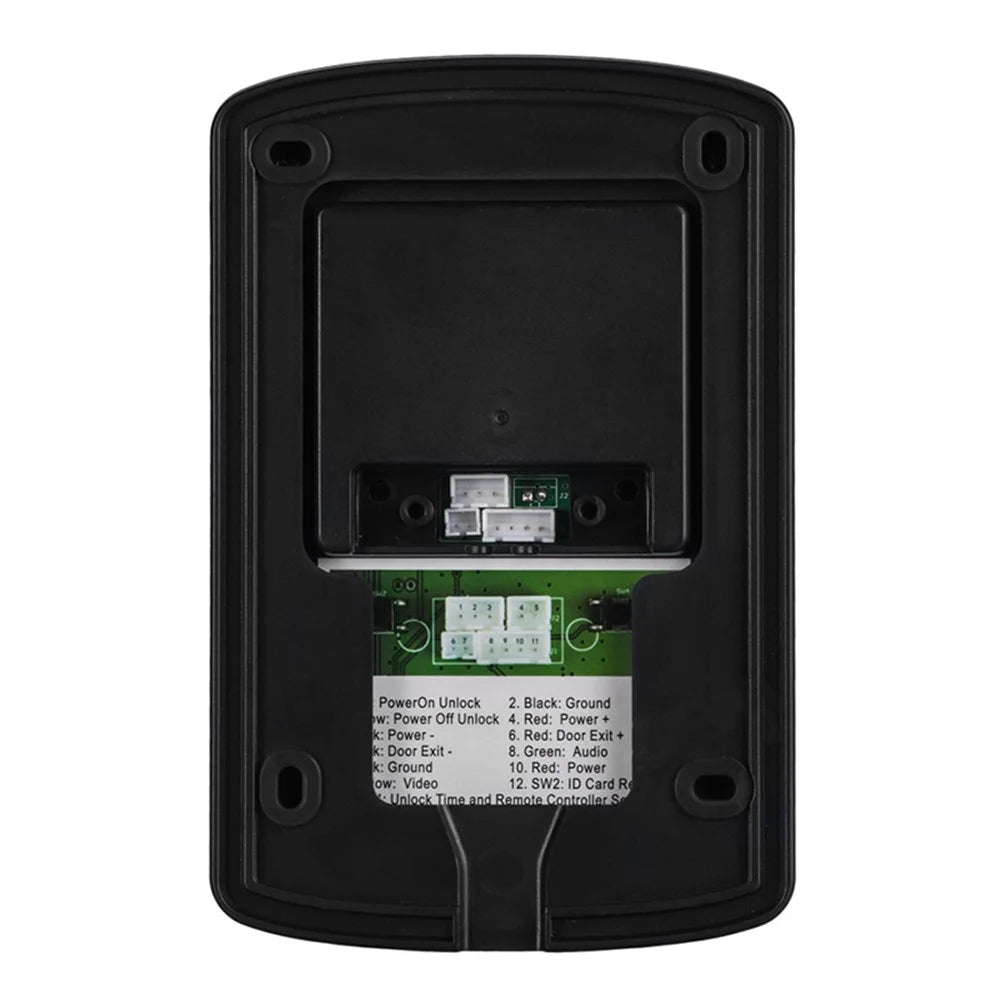

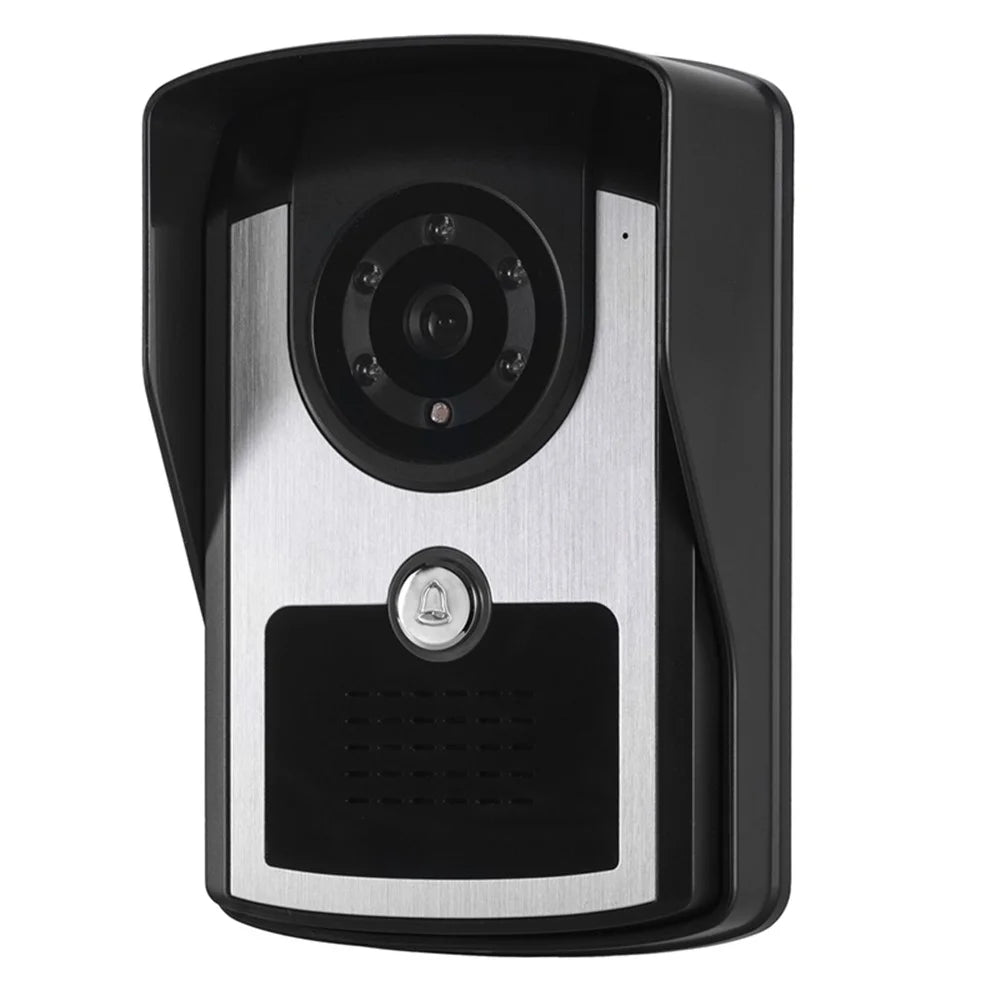

Outdoor unit:
- Antioxidant Acrylic plate and wear-resisting
- ABS shell
- 1099 COMS HD photosensitive Chip, 700TVL, 3.6mm Lens, 92 degrees viewing angle
- Infrared night vision function (5 PCS IR Led + 1 PCS light resistance)
- Touch Keypad, Blue backlight, IP55 Water proof cover
- It has Power to unlock, Power lock, Exit Button unlock Function
- Wall-mounted installation
- Outdoor unit size: 155*100*55mm
- Connection mode: 4 Core cable
- Power supply mode: DC15V/1.2A
- Power supply: AC100-240V/ DC15V 1.2A/50/60HZ
- Machine current: less than 800mA
- Call delay time: 120S±10%
- Surveillance delay time: 60S±10%
- Camera sensor: 700TVL
- Lens: 3.6mm Lens, 92 degrees viewing angle
Wiring Requirements:
- 1. Within 15 meters can choose with five types of Lan cable
- 2. 16-30 meters please choose four core pure copper cable with 0.3 square
- 3. 31-50 meters please choose four core pure copper cable with 0.5 square
- 4. 51-80 meters please choose four core pure copper cable with 0.75 square
- 5. 80-120 meters please choose 1.0 square four core pure copper cable
- 6. 120-150 meters please choose 1.5 square four core pure copper cable
Note: Does not include built-in rechargeable battery or memory card.
In the box
- 2 x 7-inch TFT Color Screen Indoor Unit
- 1 x Outdoor Unit
- 2 x Cable
- 2 x AC Adapter
- 1 x English User Manual
- 1 x Screw Pack
- 1 x 2-cord Terminal Wire
- 1 x 3-cord Terminal Wire (Spare)
Specifications
- SKU
- 689901915A
- Colour
- As Shown
- Package dimensions
- 36 × 27.5 × 10 cm
- Gross weight
- 2.35 kg
- Units per pack
- 6
- Dispatch
- 1 - 3 days
- Category
- Consumer Electronics › Security & Surveillance › Video Doorbells
What’s in the box
- 2 7-inch TFT Color Screen Indoor Unit
- 1 Outdoor Unit
- 2 Cable
- 2 AC Adapter
- 1 English User Manual
- 1 Screw Pack
- 1 2-cord Terminal Wire
- 1 3-cord Terminal Wire (Spare)
