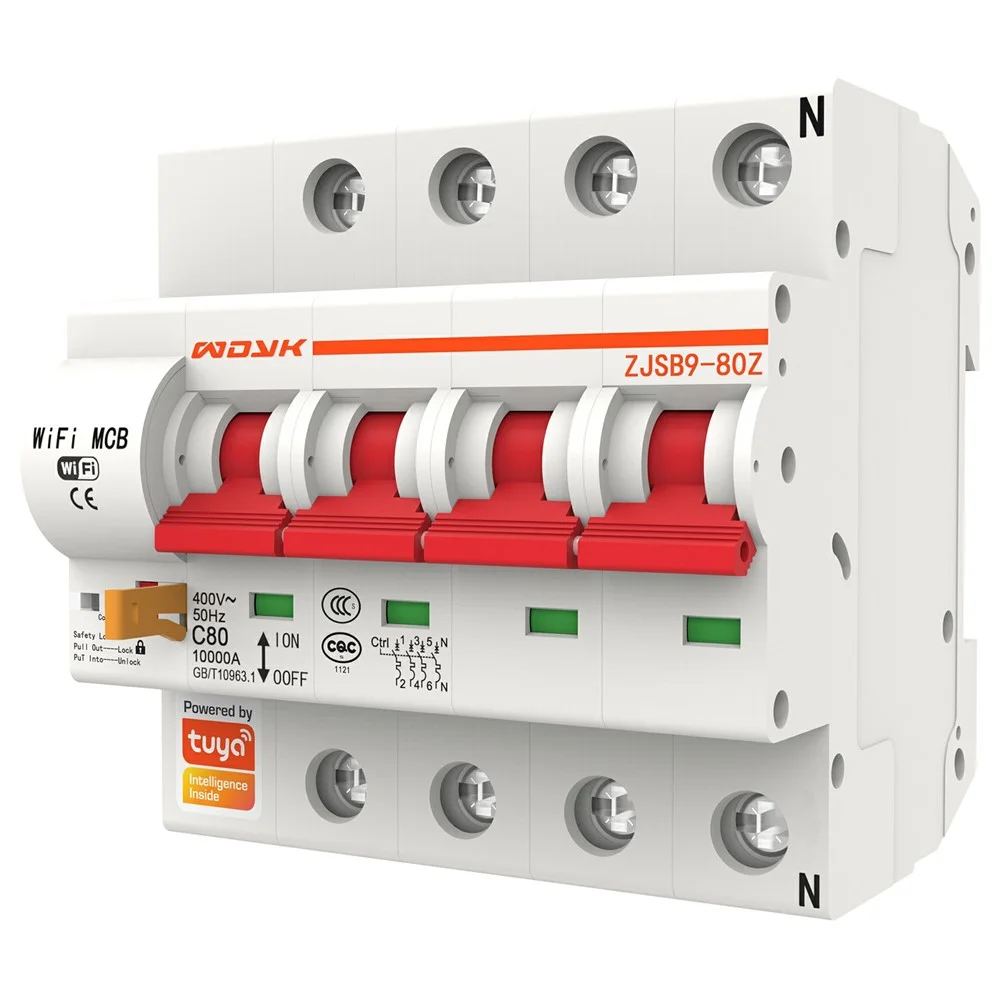

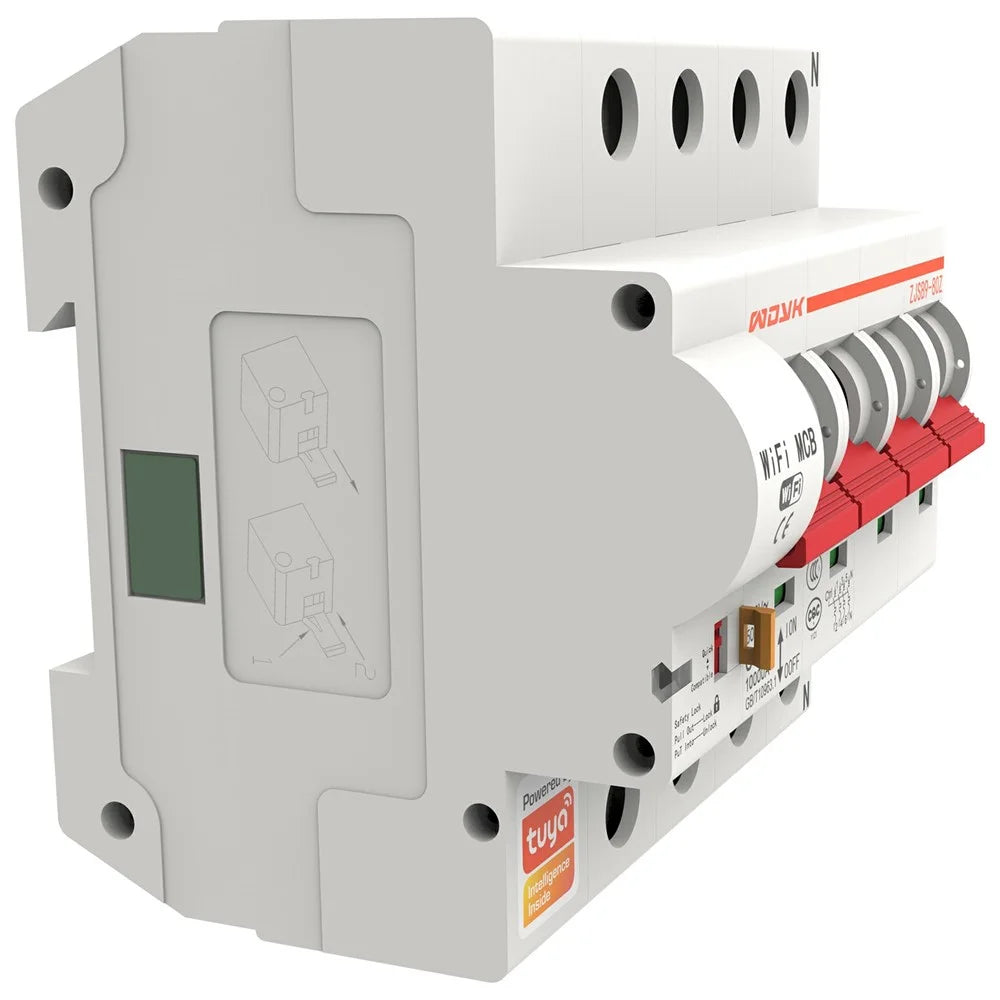

4P Tuya Smart Home WiFi Circuit Breaker Remote Control Cloud-Managed Intelligent Switch - 10A
R1 570
incl. VAT
Dispatches in 1 – 3 days
Color
10A
Same price across all color options · selecting one updates the gallery
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- 【Smart WiFi Control】Tuya smart circuit breaker offers remote control and monitoring through WiFi connectivity, enabling seamless integration with smart home systems
- 【High Short-Circuit Protection】Features a 6kA rated short-circuit breaking capacity, ensuring robust protection against electrical faults
- 【Durable Performance】Boasts a mechanical life of over 10,000 operations and an electrical life exceeding 6,000 operations for long-term reliability
- 【Enhanced Safety Features】Equipped with a 6kV rated impulse withstand voltage and C-type instantaneous tripping for improved safety
- 【Environmental Resilience】Designed to withstand harsh conditions, including salt spray (48h) and dust exposure (8h), ensuring consistent performance
Specifications:
- Standard Compliance: GB/T10963.1, IEC60898-1
- Rated Voltage: AC400V
- Rated Frequency: 50Hz
- Pole Configuration: 4P
- Pollution Degree: 2
- Protection Class: IP20
- Installation Category: II, III
- Operating Temperature: -25 to +65℃
- Frame Size Rated Current: 80A, 125A
- Rated Current Options: 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A
- Instantaneous Tripping Type: C
- Rated Short-Circuit Breaking Capacity: 6kA
- Rated Impulse Withstand Voltage: 6kV
- Mechanical Life: Over 10,000 operations
- Electrical Life: Over 6,000 operations
- EMC Performance: Complies with GB/T 18449
- Surge Withstand: Complies with GB/T 17626.5, 4.0KV voltage
- Salt Spray Resistance: Complies with GB/T2423.17, 48h
- Dust Resistance: Complies with GB 4208, 8h
- Maximum Wiring Capacity: 50mm²
- Tightening Torque: 4-5Nm
In the box
- 1 x Circuit Breaker
- 1 x English and Chinese Manual
Specifications
- SKU
- 6802002010A
- Package dimensions
- 11.4 × 11.4 × 10.3 cm
- Gross weight
- 0.71 kg
- Units per pack
- 34
- Dispatch
- 1 - 3 days
- Certification
- CE, FCC-ID
- Category
- Consumer Electronics › Smart Electronics › Smart Home › Smart Home Controls
What’s in the box
- 1 Circuit Breaker
- 1 English and Chinese Manual
