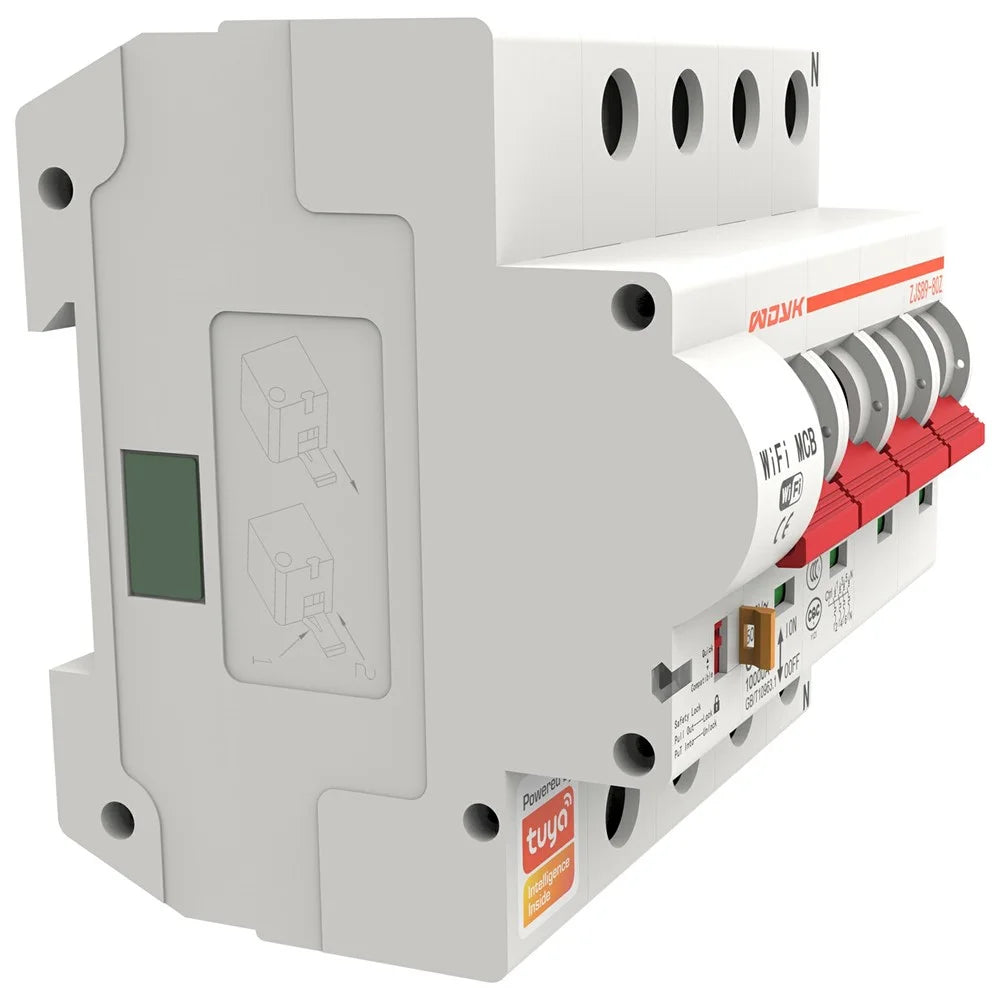

4P 125A Tuya Smart Home WiFi Circuit Breaker Remote Control Cloud-Managed Intelligent Switch
R1 710
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- 【Smart WiFi Control】Tuya smart circuit breaker enables remote control and monitoring of your electrical system through WiFi connectivity, bringing convenience to your smart home setup
- 【Enhanced Safety Features】Features a 6kA short-circuit breaking capacity and 6kV rated impulse withstand voltage for improved protection against electrical faults
- 【Durable Performance】Boasts a mechanical life of over 10,000 operations and an electrical life exceeding 6,000 operations, ensuring long-term reliability
- 【Wide Operating Range】Designed to function effectively in temperatures from -25 to +65℃, suitable for diverse environments
- 【Environmental Resilience】Complies with stringent standards for EMC performance, surge withstand, salt spray resistance, and dust resistance, guaranteeing stable operation in various conditions
Specifications:
- Standard Compliance: GB/T10963.1, IEC60898-1
- Rated Voltage: AC400V
- Rated Frequency: 50Hz
- Pole: 4P
- Pollution Degree: 2
- Protection Class: IP20
- Installation Category: II, III
- Operating Temperature: -25 to +65℃
- Frame Size Rated Current: 80A, 125A
- Rated Current: 125A
- Instantaneous Tripping Type: C
- Rated Short-circuit Breaking Capacity: 6kA
- Rated Impulse Withstand Voltage: 6kV
- Mechanical Life: >10,000 operations
- Electrical Life: >6,000 operations
- EMC Performance: Complies with GB/T 18449
- Surge Withstand: Complies with GB/T 17626.5, 4.0KV
- Salt Spray Resistance: Complies with GB/T2423.17, 48h
- Dust Resistance: Complies with GB 4208, 8h
- Maximum Wiring Capacity: 50mm²
- Tightening Torque: 4-5Nm
In the box
- 1 x Circuit Breaker
- 1 x English and Chinese Manual
Specifications
- SKU
- 6802002012A
- Colour
- As Shown
- Package dimensions
- 11.8 × 11.8 × 10.7 cm
- Gross weight
- 0.74 kg
- Units per pack
- 34
- Dispatch
- 1 - 3 days
- Certification
- CE, FCC-ID
- Category
- Consumer Electronics › Smart Electronics › Smart Home › Smart Home Controls
What’s in the box
- 1 Circuit Breaker
- 1 English and Chinese Manual
Shipping & returns
Dispatch
Orders placed before 13:00 are picked the same day. Dispatch time for each item is shown next to the price.
Delivery
Courier to your door: 2–4 working days to Gauteng, Cape Town and Durban; 3–6 days to outlying areas.
Returns
30 days from delivery for unused goods in original packaging. Faulty items are replaced or refunded in full.
Warranty
12-month warranty against manufacturing defects, handled locally — no cross-border shipping required.
