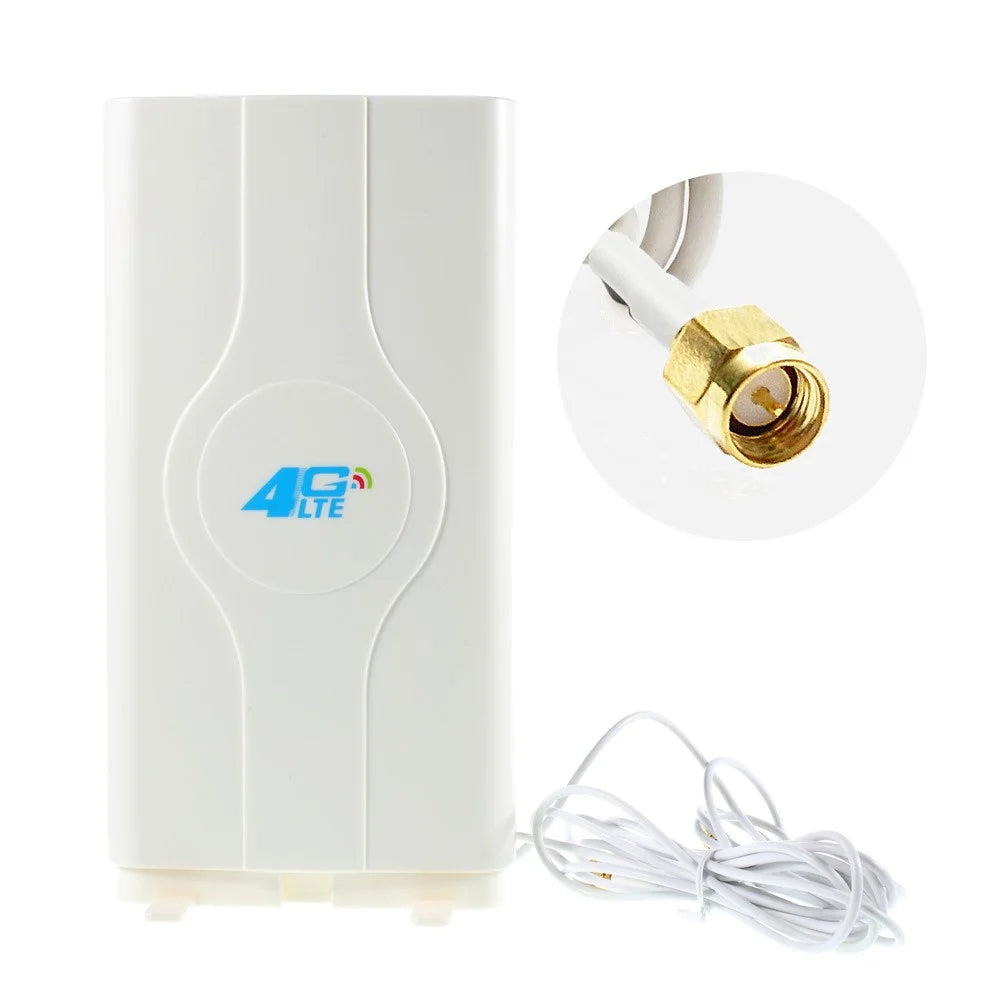

4G LTE MIMO Desktop or Wall Mounted Antenna (LF-ANT4G01) - SMA Connector - 1
4G LTE MIMO Desktop or Wall Mounted Antenna (LF-ANT4G01) - SMA Connector - 1

4G LTE MIMO Desktop or Wall Mounted Antenna (LF-ANT4G01) - SMA Connector

by TVCMall
$680.00




    Delivered in 10-15 Days.
    more info Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
    All-Inclusive Pricing.
    more info The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
    Hassle-Free returns For 7 Days.
    more info View our Return Policy for more info.

The device is used to extend the signal range indoors or fringe network areas, you can plug it into 3G/4G USB modems or mobile hotspots to boost speeds.

  • Solid construction: high quality shell + 4G LTE copper antenna + radioactive metal plate

  • Support SMA/CRC9/TS-9 customized connectors

  • Improves mobile hotspot antenna efficiency by up to 50%

  • Extend the signal range indoors or fringe network areas

  • Covers a wide band spectrum (700 MHz to 2600 MHz)

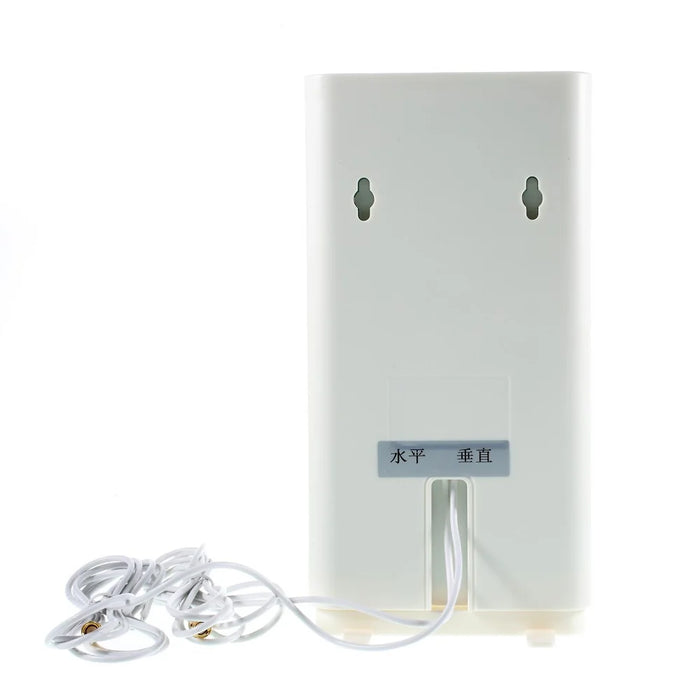

  • Indoor desktop or wall mounted

  • Simple installation, no software required

  • Improve performance of 3G or 4G signal strength

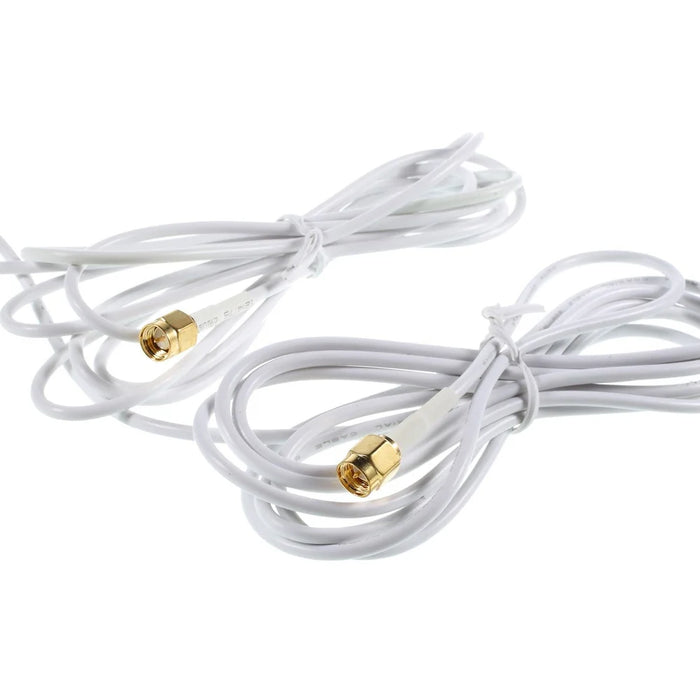

  • Cable length: 2m

  • Quick to setup and use

Specifications:

  • Model Number: LF-ANT4G01

  • Frequency range: 800MHz-2700MHz

  • Maximum Input Power: 200W

  • VSWR: ≤1.5

  • Input Impedance: 50Ω

  • Bandwidth: 83 MHz

  • Gain dBi: 88

  • Rated Wind Velocity: 60m/s

  • Dimensions: 235*120*71mm

Compatible Model

Connector Type

Model Type

TWO SMA MIMO

ZTE MF28G, ZTE MF29T, ZTE MF29S2, ZTE MF28D

Huawei E5186, HUAWEI B890, Huawei B593u-12, Huawei B593s-22, Huawei B593u-91, Huawei B593u, Vodafone B4000, Vodafone B3000, Vodafone B2000, Vodafone B1000, Huawei E5172AS-22, Huawei E5172S-22, HUAWEI E5172

Note:

Compatible model is not limited to the above, more models continue to update.

In the box

  • 1 x LF-ANT4G01 4G LTE MIMO Desktop or Wall Mounted Antenna

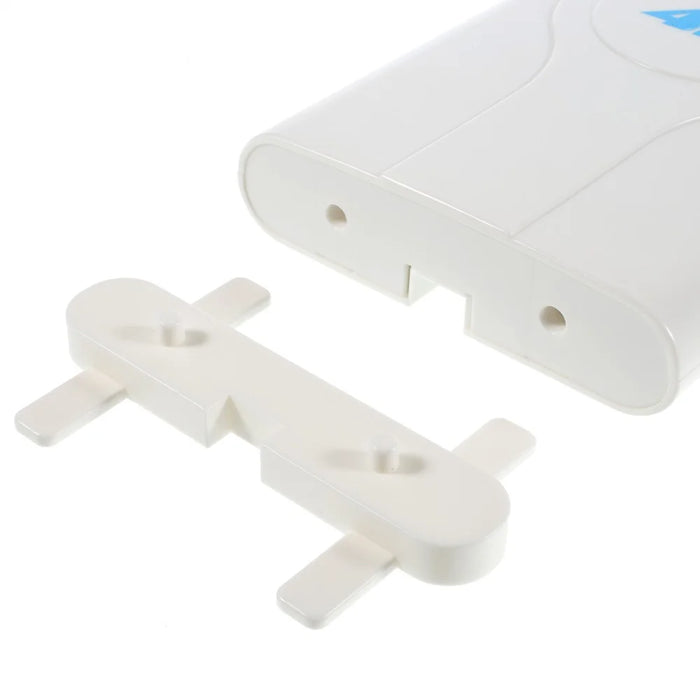

  • 1 x Bracket
