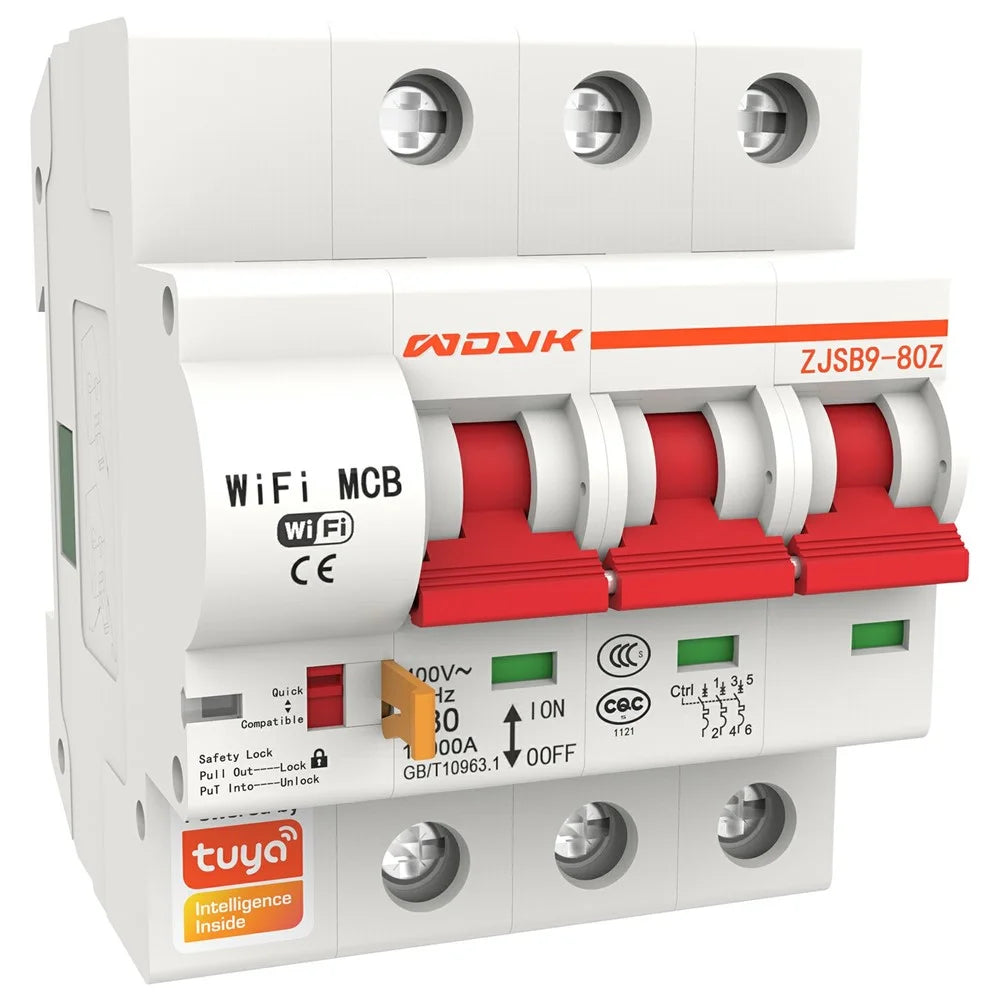

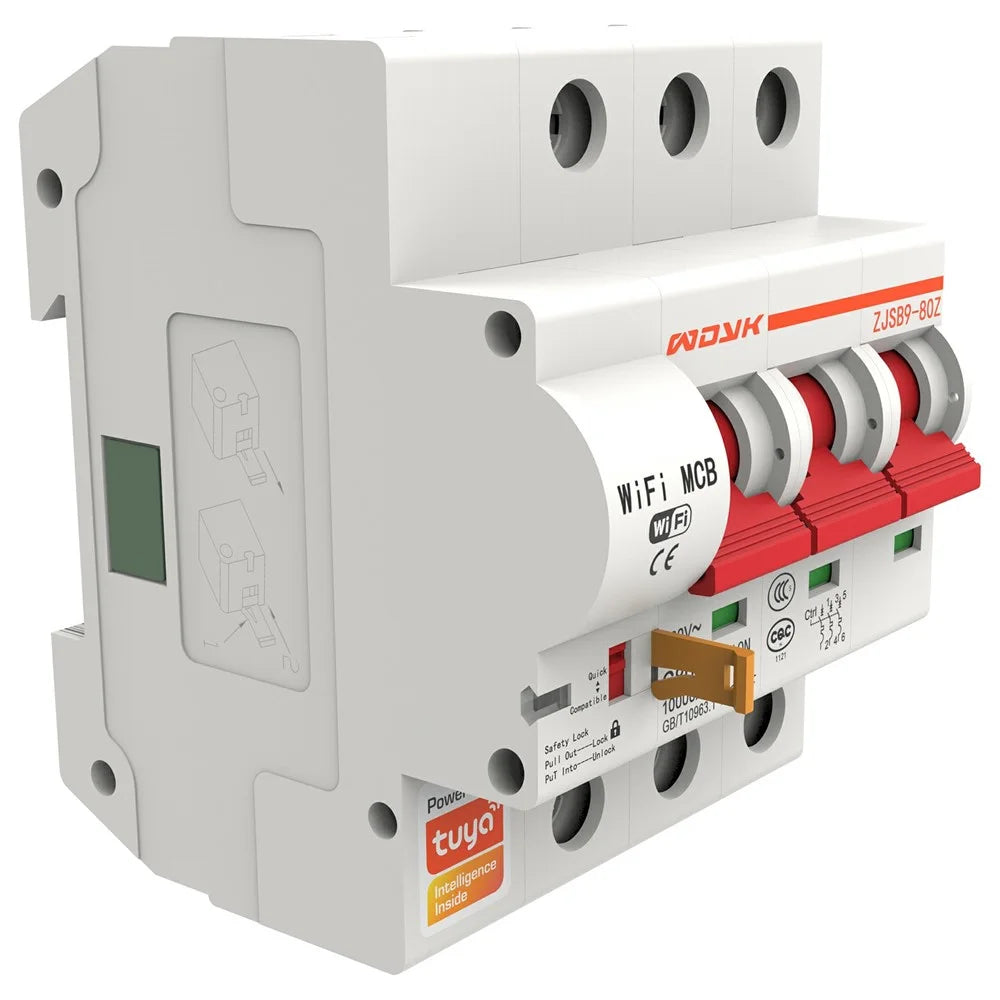

3P 125A Tuya Smart Home WiFi Circuit Breaker Remote Control Cloud-Managed Intelligent Switch
R1 690
incl. VAT
Dispatches in 1 – 3 days
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
- 【Smart WiFi Control】Tuya-enabled WiFi circuit breaker for remote control and monitoring of your electrical system through smartphone or voice commands
- 【Versatile Compatibility】Available in 1P, 2P, 3P, and 4P configurations, suitable for various residential and commercial applications
- 【High Current Capacity】Rated currents ranging from 10A to 125A, accommodating different power requirements
- 【Robust Protection】6kA rated short-circuit breaking capacity and 6kV rated impulse withstand voltage for enhanced safety
- 【Durable Performance】Mechanical life exceeding 10,000 operations and electrical life over 6,000 operations for long-term reliability
- 【Wide Operating Temperature】Designed to function effectively in temperatures ranging from -25 to +65℃
- 【Environmental Resistance】Compliant with salt spray and dust resistance standards for durability in various environments
Specifications:
- Standard Compliance: GB/T10963.1, IEC60898-1
- Rated Voltage: AC220V (1P, 2P) / AC400V (3P, 4P)
- Rated Frequency: 50Hz
- Pole Numbers: 1P, 2P, 3P, 4P
- Pollution Degree: 2
- Protection Class: IP20
- Installation Category: II, III
- Operating Temperature: -25 to +65℃
- Frame Size Rated Current: 80A, 125A
- Rated Current Options: 10A, 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A, 125A
- Instantaneous Tripping Type: C
- Rated Short-circuit Breaking Capacity: 6kA
- Rated Impulse Withstand Voltage: 6kV
- Mechanical Life: > 10,000 operations
- Electrical Life: > 6,000 operations
- EMC Performance: Compliant with GB/T 18449
- Surge Withstand: Compliant with GB/T 17626.5, 4.0KV
- Salt Spray Resistance: Compliant with GB/T2423.17, 48h
- Dust Resistance: Compliant with GB 4208, 8h
- Maximum Wiring Capacity: 50mm²
- Tightening Torque: 4-5Nm
In the box
- 1 x Circuit Breaker
- 1 x English and Chinese Manual
Specifications
- SKU
- 6802002009A
- Colour
- As Shown
- Package dimensions
- 11.4 × 11.4 × 10.3 cm
- Gross weight
- 0.62 kg
- Units per pack
- 40
- Dispatch
- 1 - 3 days
- Certification
- CE, FCC-ID
- Category
- Consumer Electronics › Smart Electronics › Smart Home › Smart Home Controls
What’s in the box
- 1 Circuit Breaker
- 1 English and Chinese Manual
