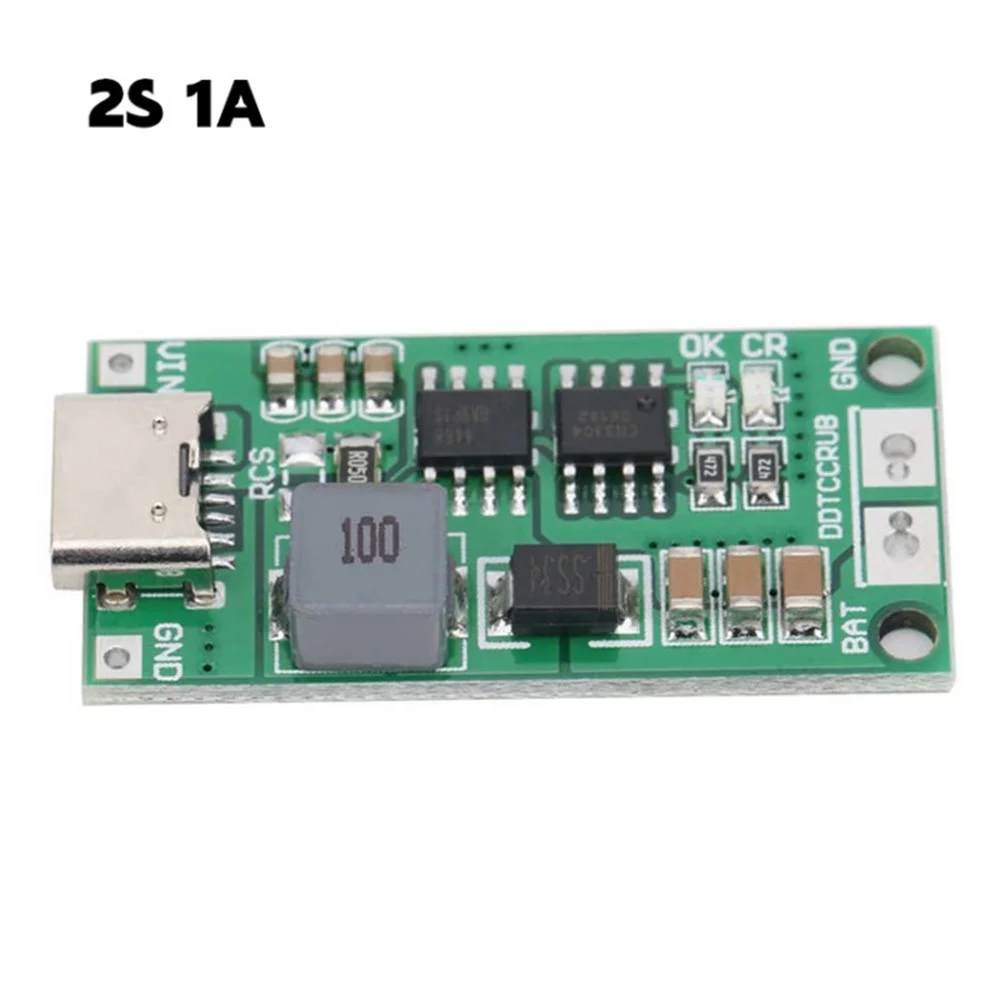

2S / 3S / 4S Charging Module Battery Charging Board Type-C Step-Up Boost Module 18650 Lithium Battery Charger Module - 2S 1A
R240
incl. VAT
Dispatches in 1 – 3 days
Color
2S 1A
Same price across all color options · selecting one updates the gallery
Nationwide delivery
2–4 working days to major metros
Secure checkout
Card, EFT, Ozow and PayFast
30-day returns
Unused, in original packaging
Description
-
Switching frequency up to 1MHz
-
Quasi-CV mode to compensate for the voltage loss on the battery's internal
-
Resistance and trace resistance automatic recharge
-
Good adaptability to input supply with limited driving capability
-
With battery overvoltage protection, low voltage protection, and short circuit protection
-
Great for PDA, MP3, MP4, cameras, Bluetooth-compatible applications, games consoles, notebooks, 18650 lipo lithium battery, phones, solar charging, audio equipment, POS, electric fan, Type-C charging equipment, etc.
Specification:
-
Size: 39x18x6.3mm
-
Operating temperature - 40 ℃ ~+85 ℃
2-Cell (2S) 8.4V Version
-
Input voltage: DC 3-6V (Recommend DC 3.7V 5V)
-
Input current: 1A (1A Version); 2A(2A Version); 4A (4A Version)
-
Charging voltage: 8.4V
-
Charging current: 0.55A (1A Version); 1.1A (2A Version); 2.2A (4A Version)

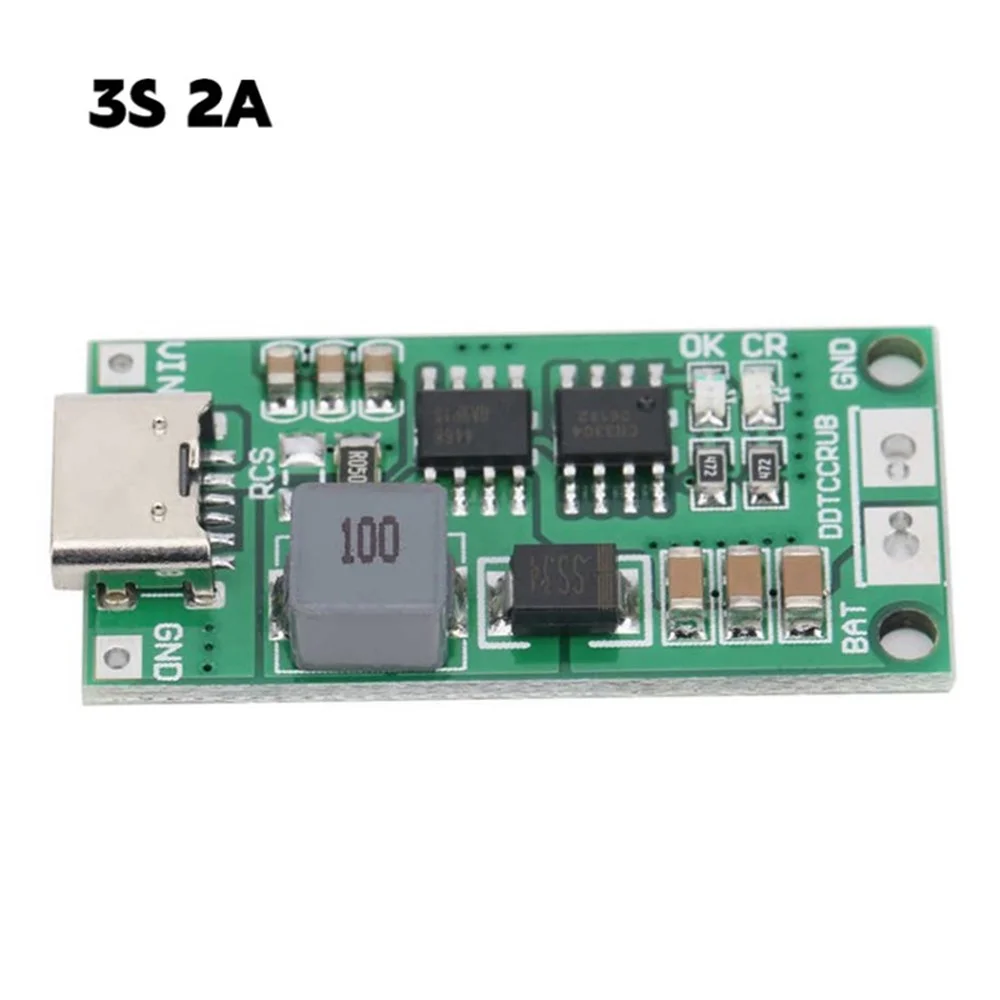

3-Cell (3S) 12.6V Version
-
Input voltage: DC 3-6V(Recommend DC 3.7V 5V)
-
Input current: 1A (1A Version); 2A (2A Version); 4A (4A Version)
-
Charging voltage: 12.6V
-
Charging current: 0.37A (1A Version); 0.74A (2A Version); 1.48A (4A Version)
4-Cell (4S) 16.8V Version
-
Input voltage: DC 3-6V (Recommend DC 3.7V 5V)
-
Input current: 1A (1A Version); 2A(2A Version); 4A(4A Version)
-
Charging voltage: 16.8V
-
Charging current: 0.28A (1A Version); 0.56A (2A Version); 1.12A (4A Version)
LED Indicator:
-
"CR": Charging
-
"OK": Fully charged or constant voltage mode
In the box
- 1 x Lithium Battery Charger Module
- 1 x English User Manual
