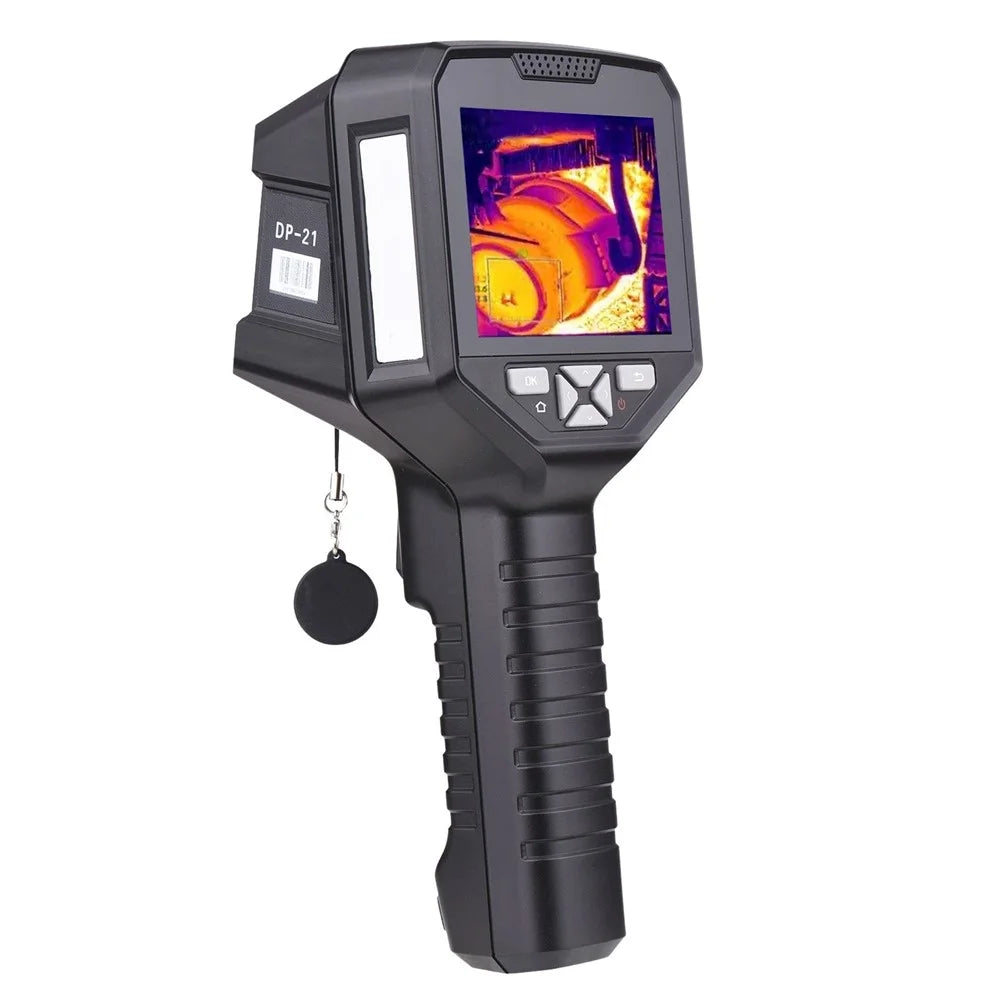

220x160 High Resolution Infrared Thermal Imager with 3.5-inch Color Digital Screen Handheld Thermal Imaging Camera Professional IR Thermal Imager Portable Infrared Thermometer

With highly sensitive and accurate thermal sensors, this thermal imager will help you quickly capture thermal images and then identify neglected issues, which is a perfect selection for electric power, electronic manufacturing, industrial inspection and other fields.

• With the large 3.5-inch full color display screen, this thermal camera can help you observe the full range of infrared images with high definition resolution

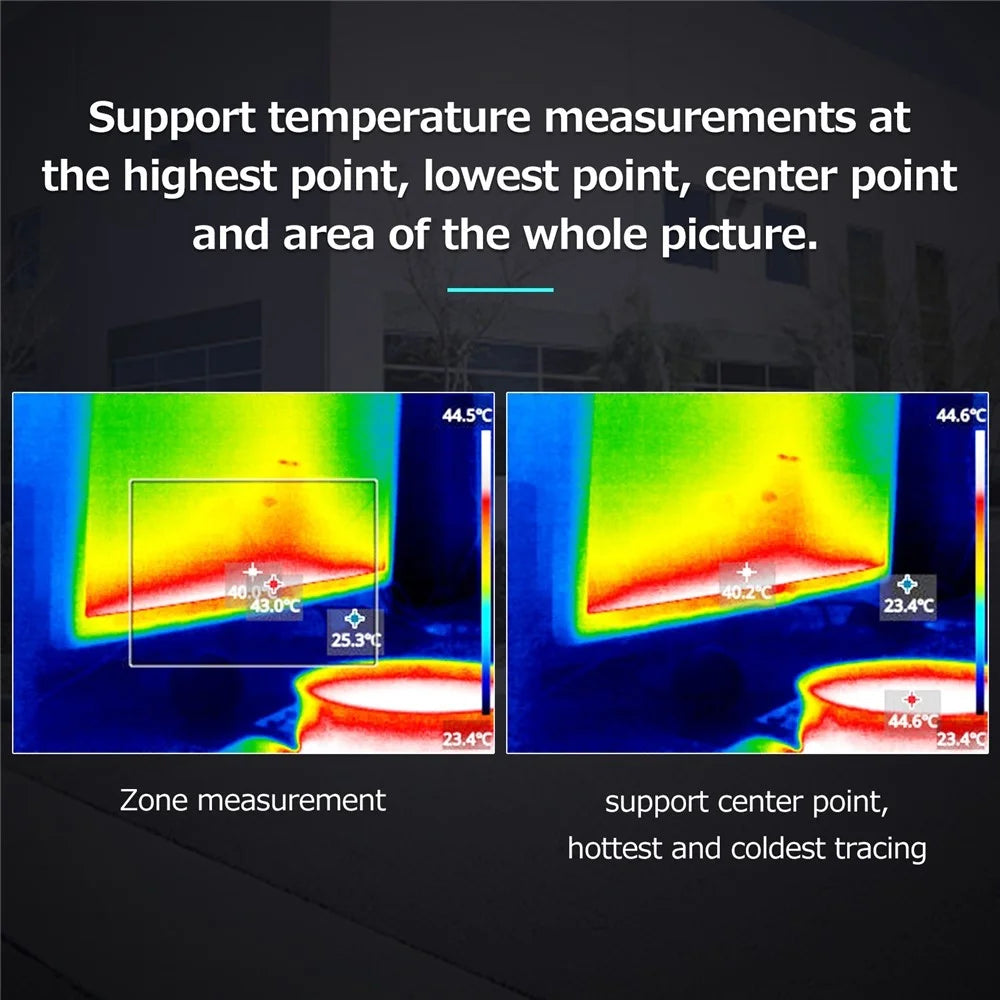

• Support temperature measurements at the highest point, lowest point, center point and area of the whole picture

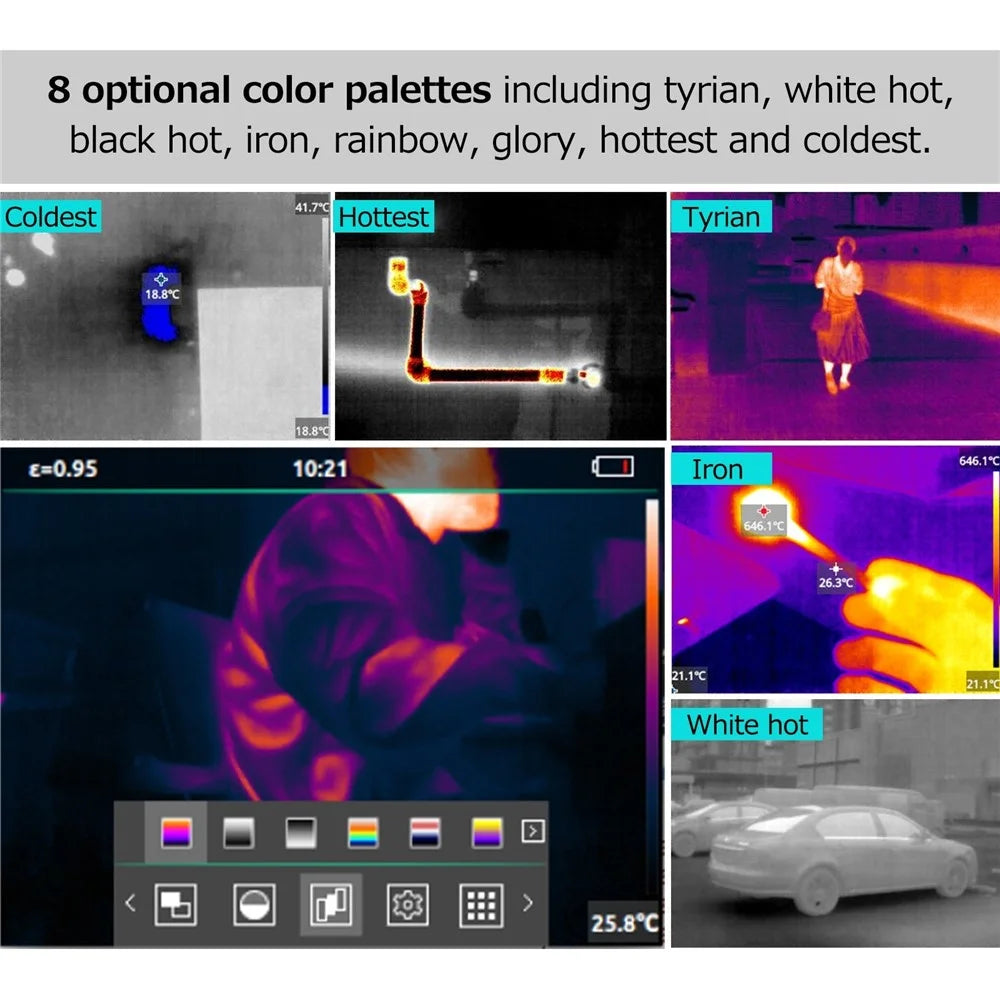

• 8 optional color palettes including Tyrian, white hot, black hot, iron, rainbow, glory, hottest and coldest

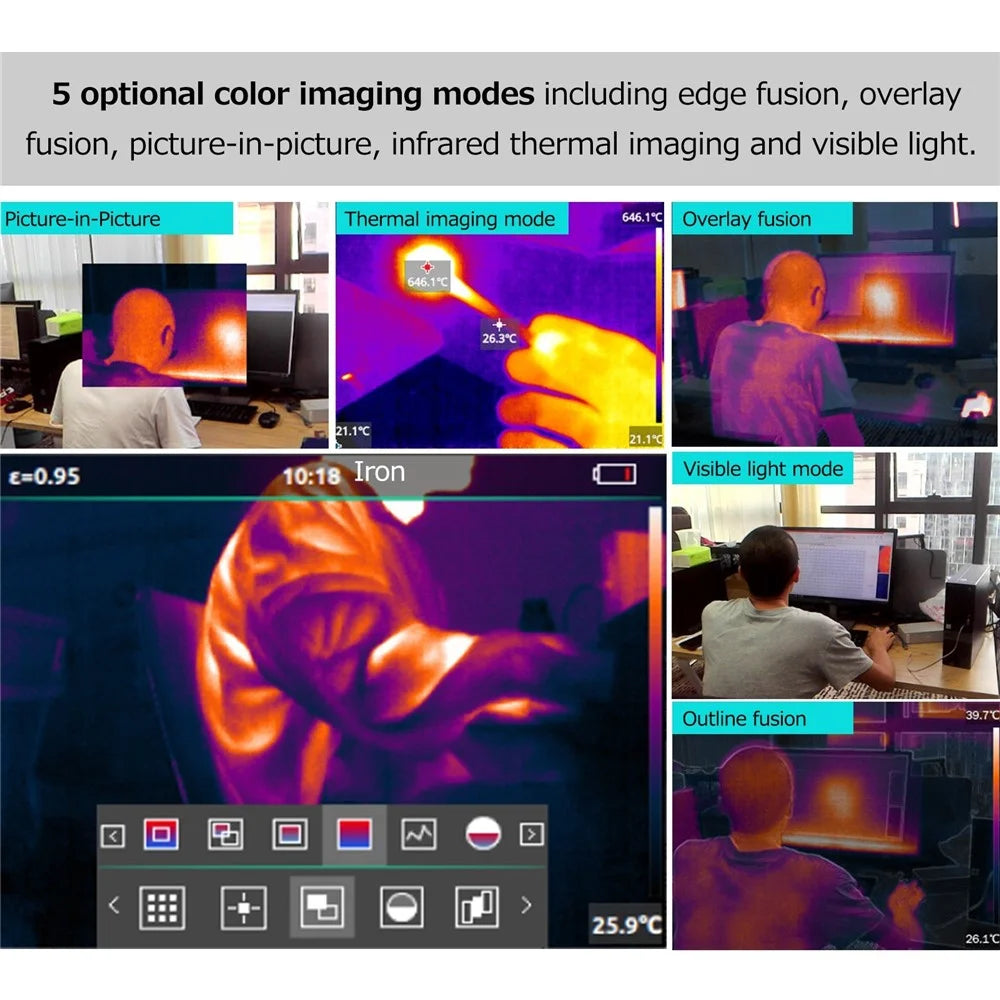

• 5 optional color imaging modes including edge fusion, overlay fusion, picture-in-picture, infrared thermal imaging and visible light

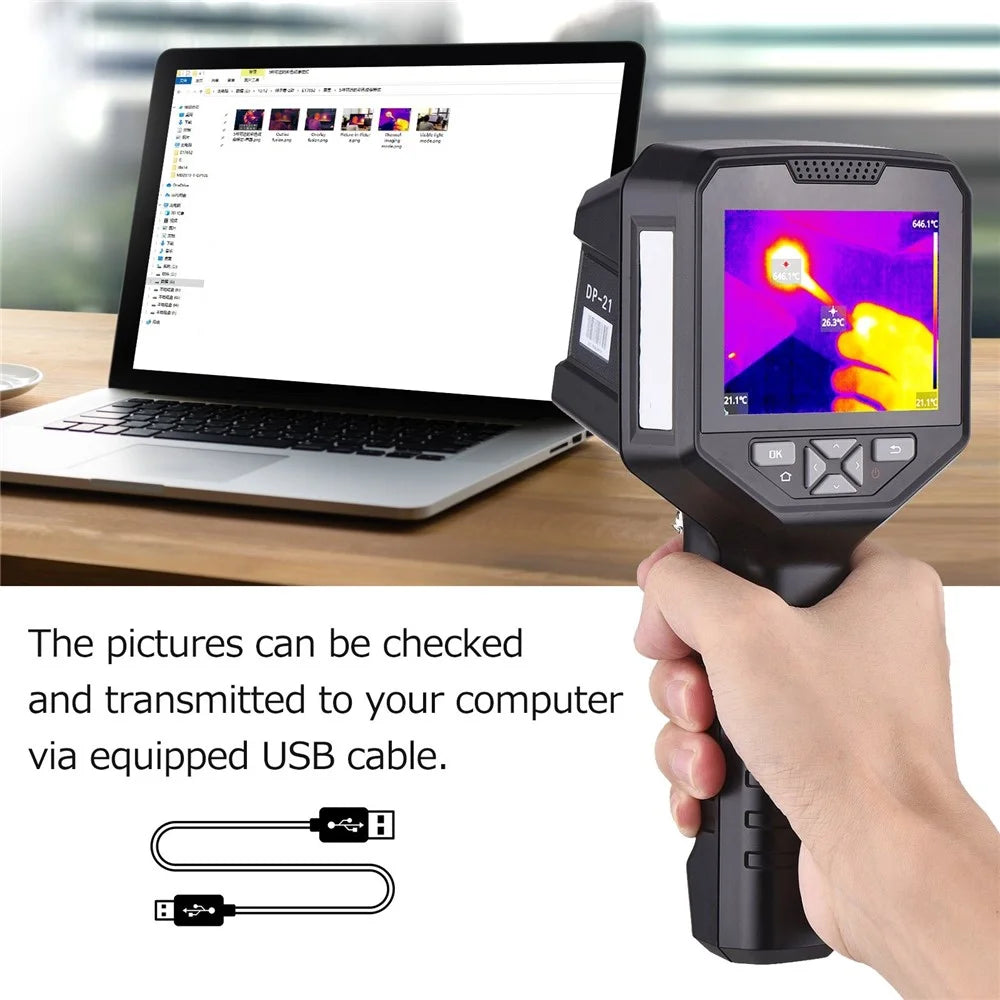

• The pictures can be checked and transmitted to your computer via equipped USB cable
• The rear LED lamp, with low energy consumption and high brightness, is used as a light supplement when the ambient light is insufficient

Note:

• Please read the User Manual carefully before use.
• The infrared thermal imager should be charged for around 4 hours before used for the first time.

Specifications:

• Model: DP-21
• Material: ABS
• Power Supply: built-in 3.7V 500mAh battery
• Working Time: >4 hours in 25℃
• Interface: Type-C interface, support charging and data transmission
• Display: 3.5-inch, 320×240 resolution
• Light Source: infrared/visible light
• LED Light: √
• Resolution (Infrared Thermal Imaging): 220×160
• Frequency Band: 8~14μm
• Frame Rate (Infrared Thermal Imaging): 9Hz
• NETD: 70mK@25℃
• Field of View: 35°×26°
• Lens: 4mm
• Temperature Range: -10℃~+450℃
• Accuracy: ±2℃ / ±2%
• Temperature: hottest, coldest, central point, zone area temperature measurement
• Color Palette: Tyrian, white hot, black hot, iron, rainbow, glory, hottest, coldest
• Image Mode: Edge fusion, overlay fusion, picture-in-picture, infrared thermal imaging, visible light
• Storage Capacity: built-in memory, about 6.6G available, can store more than 20,000 pictures
• Picture Storage Mode: simultaneous storage of infrared thermal imaging, visible light and fusion images
• Waterproof and Dustproof: IP54
• Item Size: Approx. 22.5*9.5*8.8cm / 8.86*3.74*3.46in
• Item Weight: Approx. 409g / 14.43oz
