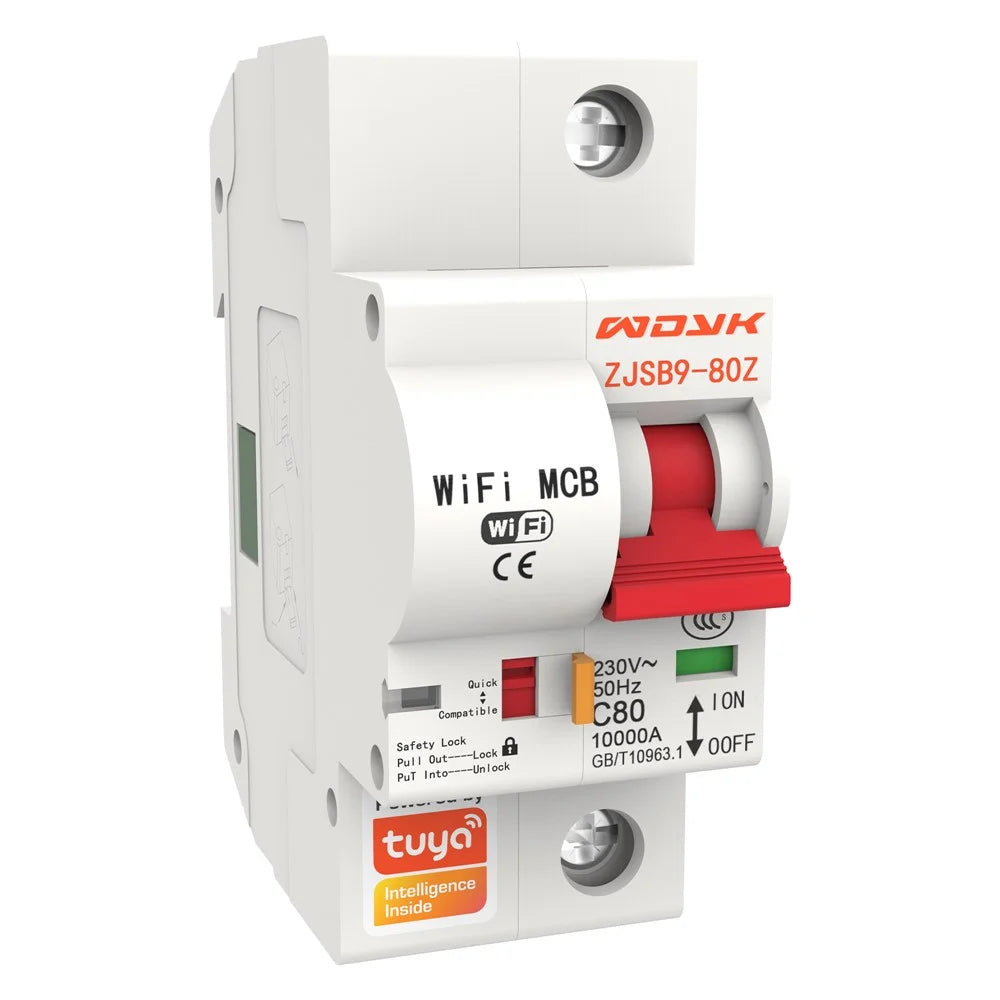

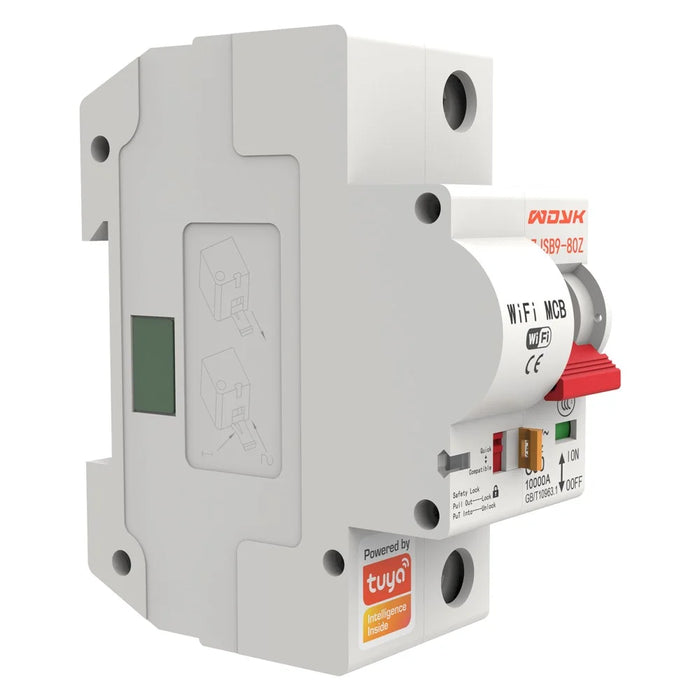

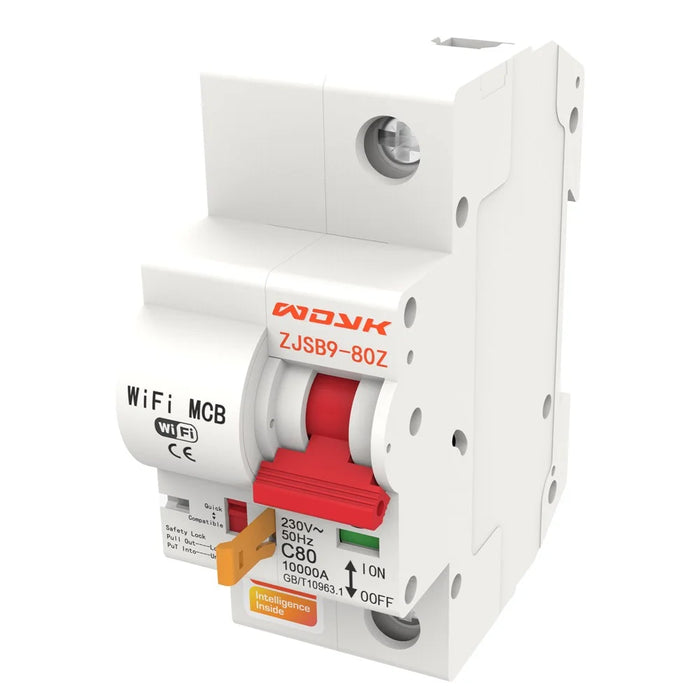

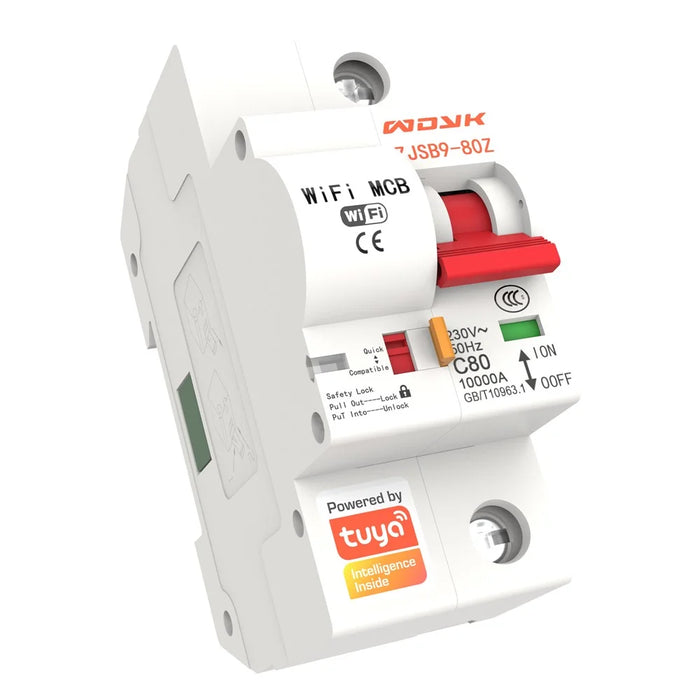

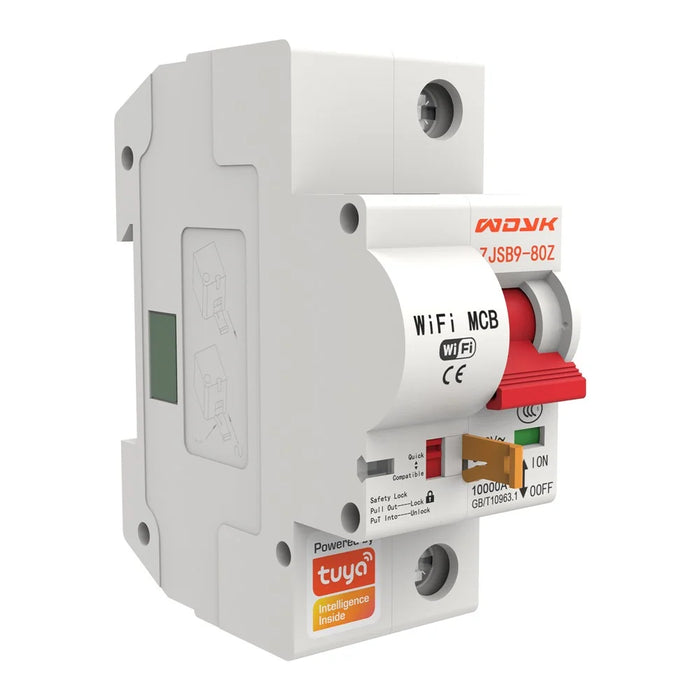

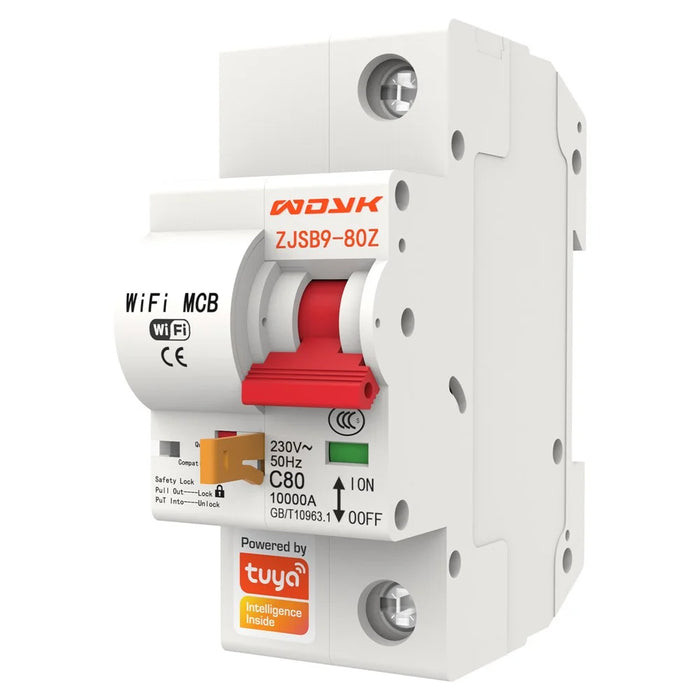

1P 100A Tuya Smart Home WiFi Circuit Breaker Remote Control Cloud-Managed Intelligent Switch
by TVCMall
$1,060.00
Delivered in 10-15 Days.
more info
Orders from overseas warehouse are delivered to our customers within 10-15 working days. We have a dedicated team to keep things moving quickly, and we will keep you updated on your order via SMS or email.
All-Inclusive Pricing.
more info
The price you see is the price you pay. Price includes any Customs, Insurance and Courier fees. Absolutely no hidden fees. We also take care of customs clearance.
Hassle-Free returns For 7 Days.
more info
View our Return Policy for more info.
- 【Smart Wi-Fi Circuit Breaker】Tuya-enabled intelligent circuit breaker for IoT and smart home applications, offering wireless remote control capabilities
- 【Versatile Compatibility】Suitable for various electrical systems, supporting AC220V
- 【High Performance】Features a rated short-circuit breaking capacity of 6kA and a rated impulse withstand voltage of 6kV, ensuring reliable protection
- 【Durable Construction】Boasts a mechanical life exceeding 10,000 operations and an electrical life of over 6,000 operations, guaranteeing long-term reliability
- 【Wide Operating Range】Designed to function effectively in temperatures from -25 to +65℃, suitable for diverse environmental conditions
- 【Enhanced Safety Features】Complies with GB/T 17626.5 for surge protection up to 4.0KV and offers IP20 protection grade for added safety
Specifications:
- Standard Compliance: GB/T10963.1, IEC60898-1
- Rated Voltage: AC220V
- Rated Frequency: 50Hz
- Pole Type: 1P
- Pollution Degree: 2
- Protection Grade: IP20
- Installation Category: II, III
- Operating Temperature: -25 to +65℃
- Frame Size Rated Current: 80A, 125A
- Rated Current: 100A
- Instantaneous Tripping Type: C
- Rated Short-circuit Breaking Capacity: 6kA
- Rated Impulse Withstand Voltage: 6kV
- Mechanical Life: >10,000 operations
- Electrical Life: >6,000 operations
- EMC Performance: Complies with GB/T 18449
- Surge Withstand: Complies with GB/T 17626.5, 4.0KV
- Salt Spray Resistance: Complies with GB/T2423.17, 48h
- Dust Resistance: Complies with GB 4208, 8h
- Maximum Wiring Capacity: 50mm²
- Tightening Torque: 4-5Nm
In the box
- 1 x Circuit Breaker
- 1 x English and Chinese Manual
